PVC/UPVC Pipe Production Machine
Complete production line for PVC/UPVC pipe manufacturing with diameters ranging from 16mm to 800mm. This versatile system produces pipes for electrical conduit, agricultural, and construction applications with competitive pricing and 65/132 screw diameter capability.
Applications

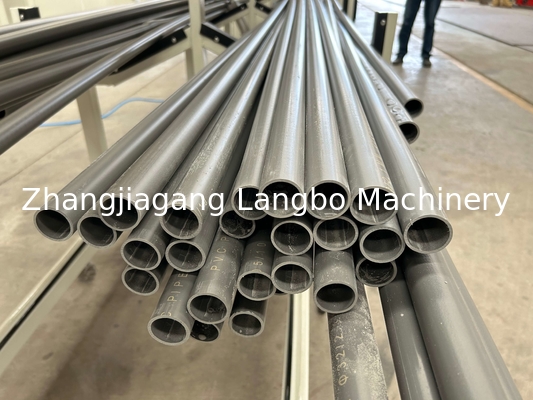

The UPVC pipes produced are suitable for electrical conduit systems, water supply lines, sewage systems, house decoration, chemical transportation, and gas distribution. These pipes feature high strength, excellent chemical resistance, durability, thermal stability, non-toxic safety, and cost-effective maintenance.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion
- Molding and calibration
- Vacuum and cooling
- Spray cooling
- Haul-off process
- Cutting to length
- Discharge rack or pipe belling
Specifications
| Model |
Pipe Diameter (mm) |
Extruder Model |
Motor Power (KW) |
| LB-32F |
16-32 (Four Pipe) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (Double Pipe) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (Double Pipe) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (Double Pipe) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (Double Pipe) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (Double Pipe) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (Double Pipe) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (Double Pipe) |
SJSZ65/132 |
37 AC |
Machine Components
Mixer
Specialized design reduces raw material self-friction, improving energy efficiency. Features vacuum suction load with low noise and dust-free operation.

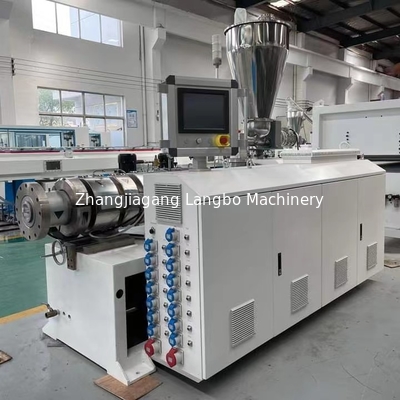

Twin Screw Extruder
Crafted with premium components for production stability and durability. Conical twin screw design ensures homogeneous mixture, superior plastification, and efficient material conveying.

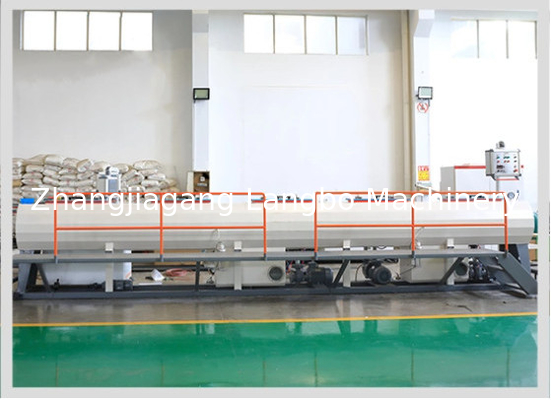

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling sections. Constructed from stainless 304 steel with excellent vacuum system for precise pipe sizing.

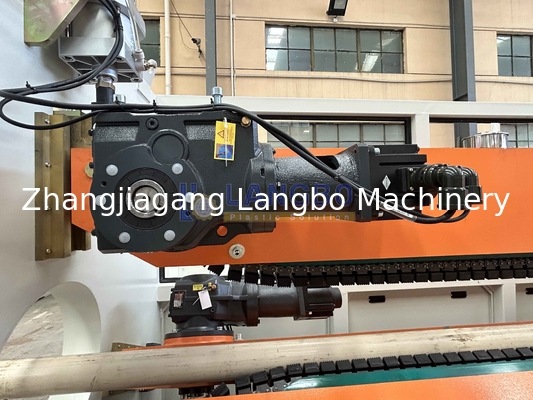

Haul-off Unit
Three crawler tracks ensure stable pipe movement. Adjustable hauling models accommodate specific production requirements through centralized control.

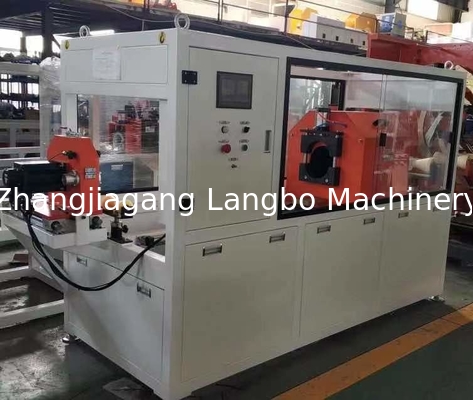

Cutting Unit
High-accuracy encoder provides precise cutting lengths. PLC control system enables manual operation for specific application needs.
Technical Features
- Plastic pulverizer easily grinds hard and soft PVC into powder
- Dust collector effectively reduces pollution
- Main fan discharge reduces operator labor intensity
- Accessible host door cover for convenient maintenance and cutter replacement
- Water and wind dual cooling system prevents component overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Premium brand components including Siemens motors for long-term reliability
- Comprehensive optional accessories for customized solutions
Delivery Information
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% advance, 70% before delivery
Packing: Standard export wooden cases
Service Support
One-year machine guarantee with 24-hour technical support. Our engineers provide overseas installation and commissioning services. Post-warranty maintenance guidance and competitively priced spare parts available. Comprehensive operator training services included.
Product Gallery
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province. Factory visits are welcome with pick-up service available from Shanghai and Wuxi areas.
How to build trust with Langbo?
We provide working videos from international installations and customer-focused technical solutions. Factory visits allow direct assessment of our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. We assist customers with current shipping rates and provide flexibility in carrier selection.
What happens after order confirmation?
Process includes configuration confirmation, proforma invoice, 30% payment, test running, machine confirmation, 70% payment, delivery preparation, shipping, commissioning, training, handover, and ongoing support.
What payment methods are accepted?
T/T, D/P, Letter of Credit, and cash transactions.
How is machine quality guaranteed?
One-year warranty with lifetime technical support. Customers can inspect machines during test running with immediate optimization implementation.
Do you have CE Certification?
Yes, both our extrusion and recycling machines are CE certified.
What is the typical delivery time?
Approximately 45 days, with specific timelines detailed in the contract.
What does the one-year quality guarantee include?
Free replacement parts for all non-manufacturing defects following machine handover.
How to determine required machine area?
Contact our technical team for detailed layout solutions and installation guidance based on your specific production requirements.
