PVC CPVC UPVC Sewer Drainage Pipe Making Machine
Factory Direct Sale - Complete production line for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameter. Suitable for electrical conduit, agricultural, and construction plumbing applications.
Applications
The produced UPVC pipes are used for electrical conduit, water supply, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance, and cost-effectiveness.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion
- Mould and calibration
- Vacuum and cooling tank
- Spraying cooling machine
- Haul-off machine
- Cutting machine

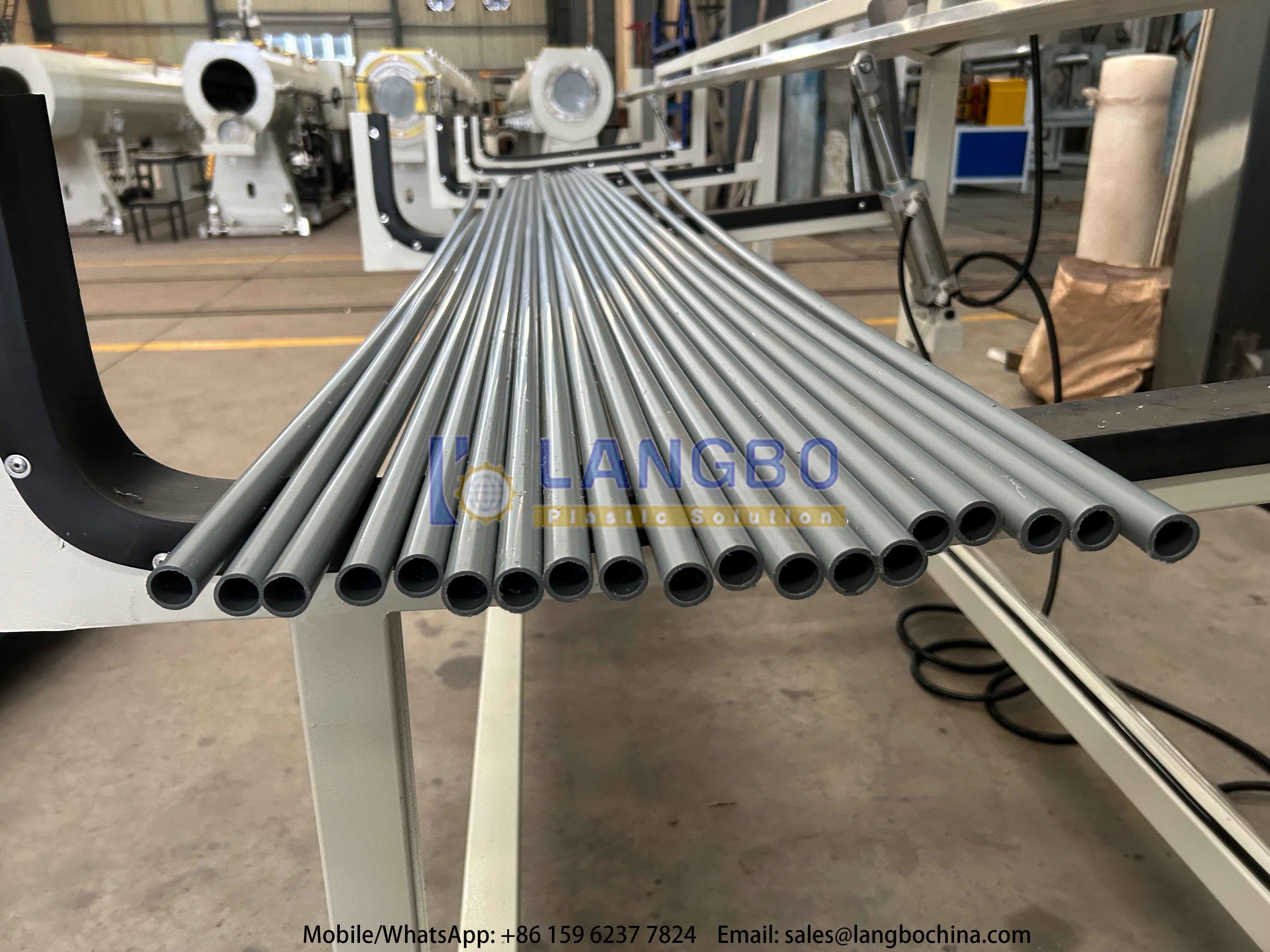

- Discharge rack or pipe belling machine
Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Machine Components
Mixer
Specially designed to reduce raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.

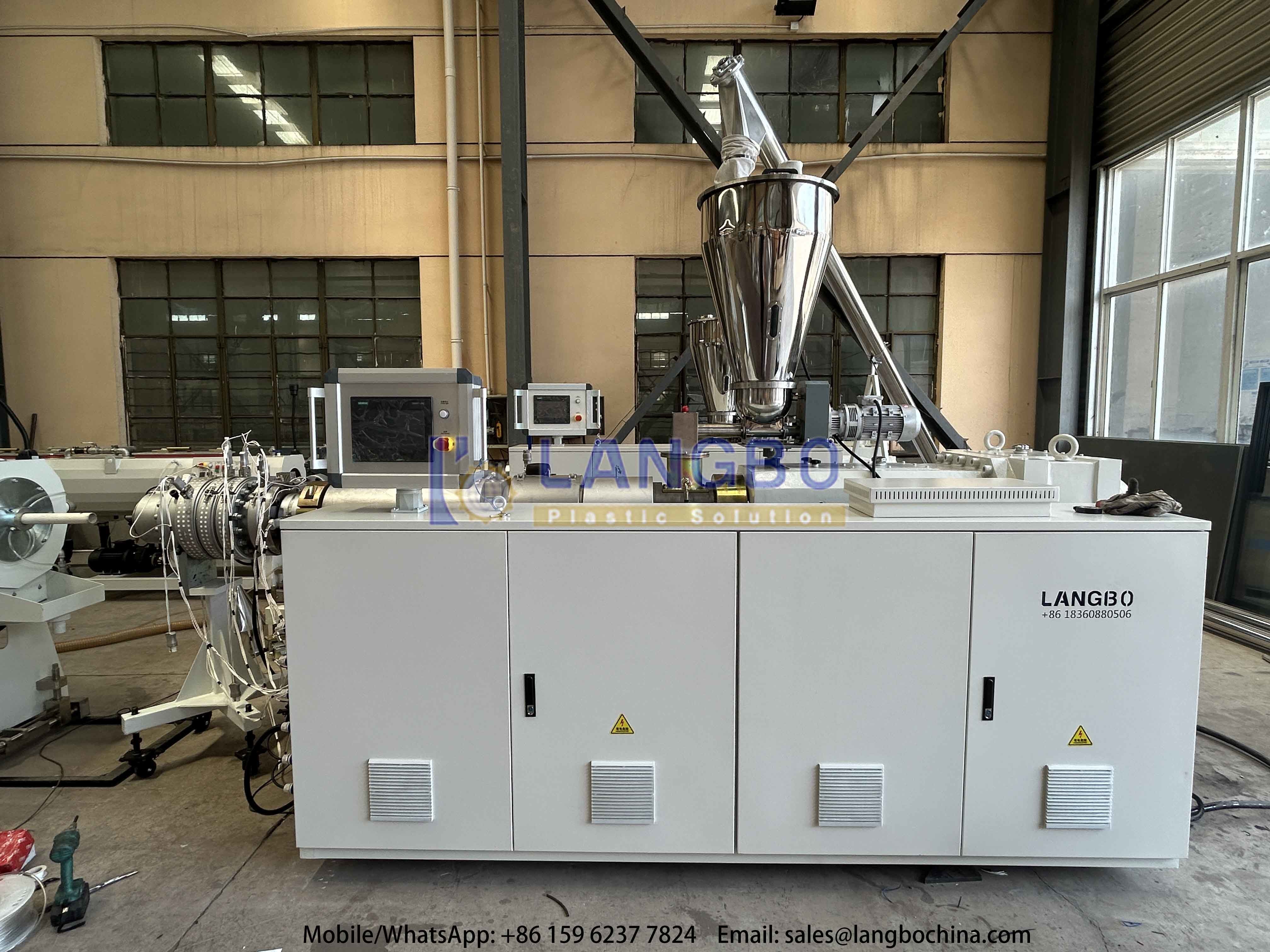

Twin Screw Extruder
Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and conveying efficiency.

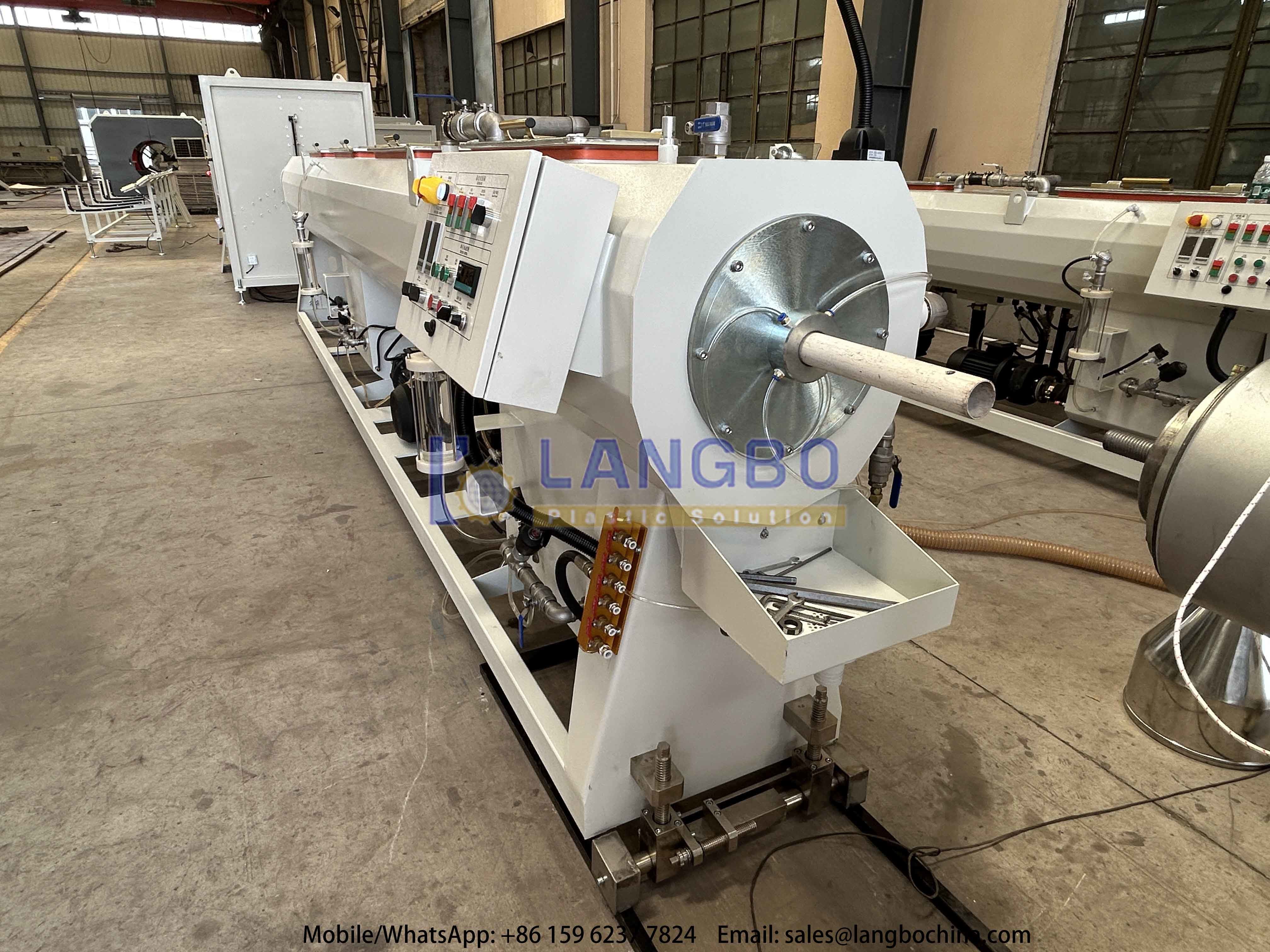

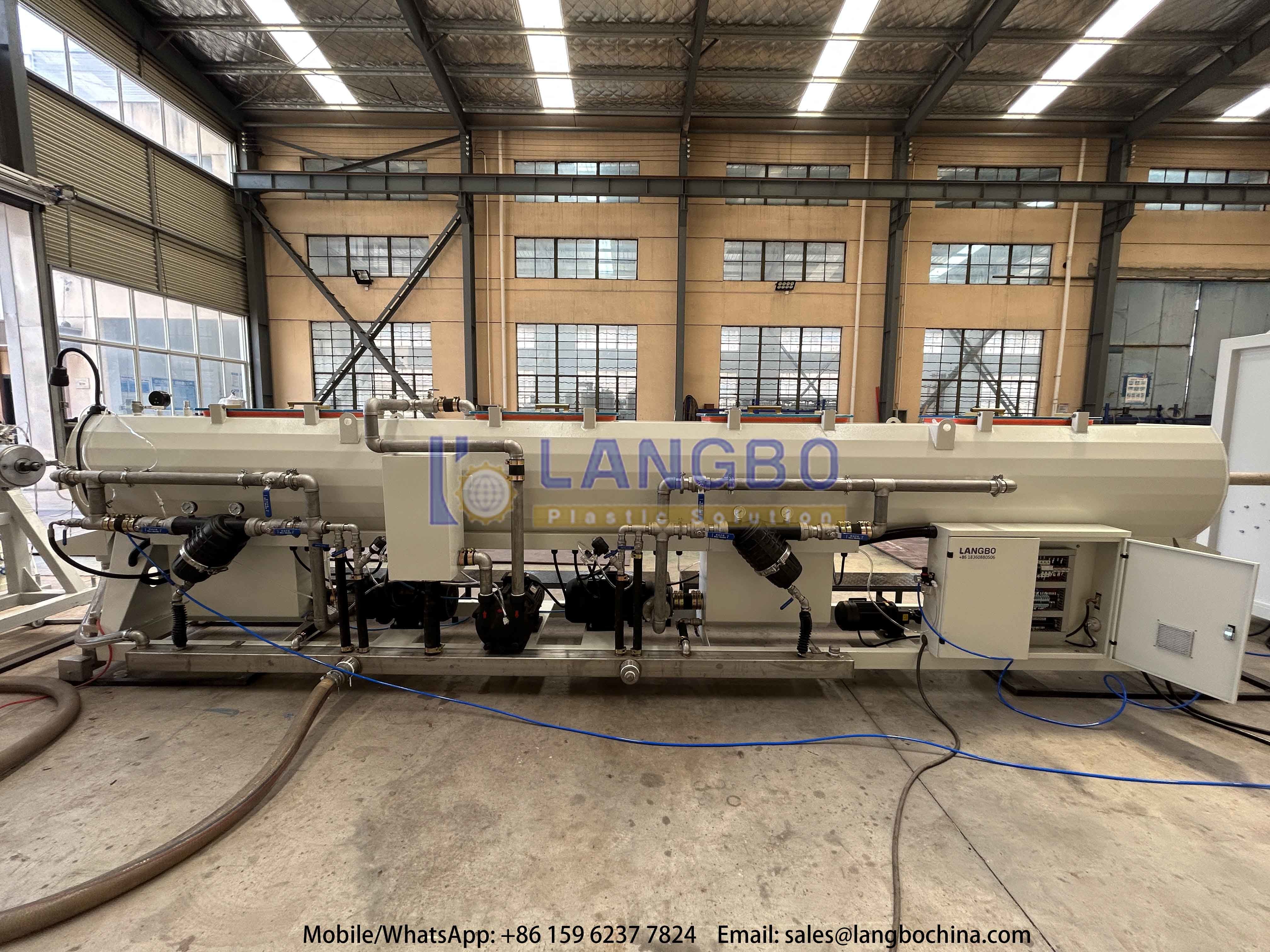

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling parts. Both vacuum tank and spraying cooling tank use stainless 304 steel. Excellent vacuum system ensures precise pipe sizing.

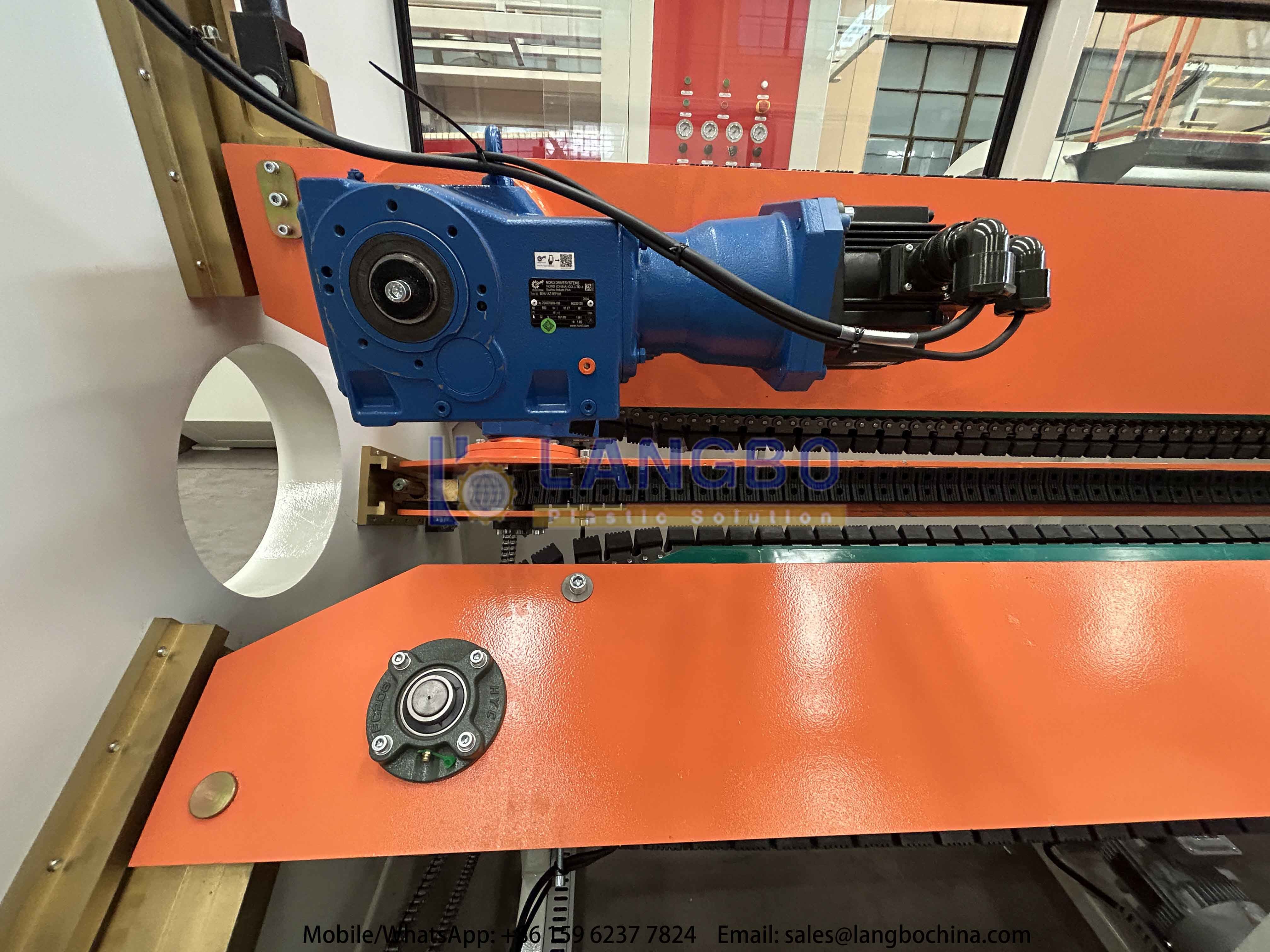

Haul-off Unit
Three crawler tracks ensure stable pipe running. Tailored hauling models can be adjusted through general control based on production requirements.

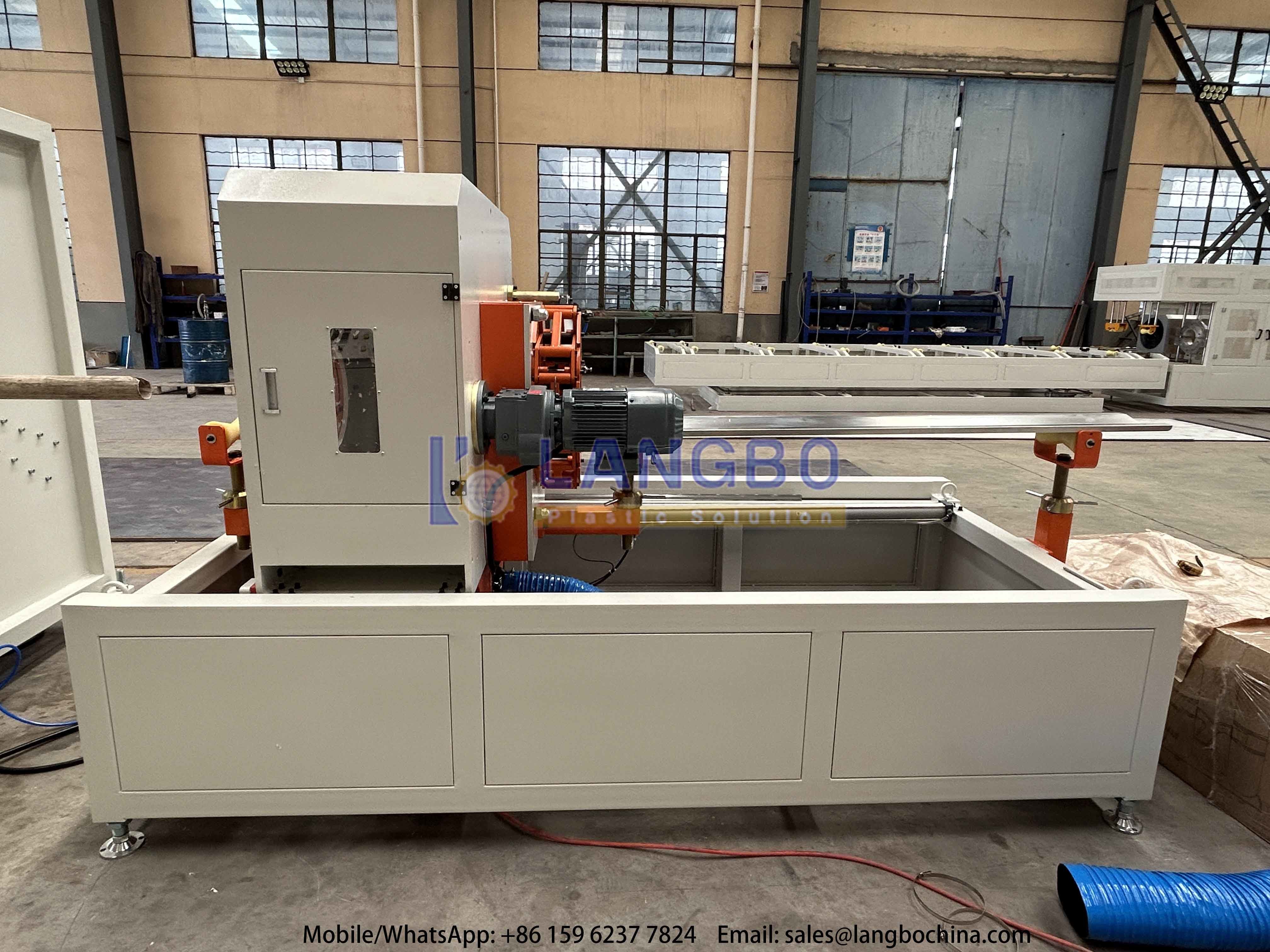

Cutting Unit
High accuracy encoder ensures precise and stable cutting length. PLC control system allows manual operation for specific applications.
Technical Features
- Easy grinding of all Hard & Soft PVC into powder
- Dust collector effectively reduces pollution
- Main fan discharge reduces operator labor intensity
- Accessible door cover for maintenance and cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Siemens motors for long-term operation
- Wide range of optional accessories for customized solutions
Delivery Information
Delivery: 30 days after order
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning by our engineers
- Maintenance guidance and spare parts after warranty
- Operator training services
Product Images
Frequently Asked Questions
Are you a trading company or factory? Can I visit the factory?
We are a direct factory manufacturer. Factory visits are welcome in Zhangjiagang, Jiangsu Province. Pick-up service available for nearby visitors.
How to build trust with Langbo?
We provide working videos from various countries and customer-focused technical suggestions. Factory visits allow face-to-face discussions about our plastic extrusion expertise.
Is shipping cost included in the quotation?
Typically FOB Shanghai. Shipping costs fluctuate and are not included. We can help obtain latest shipping prices for customer decision.
What happens after order confirmation?
Configuration confirmation → Proforma invoice → 30% payment → Test running → Machine confirmation → 70% payment → Delivery preparation → Shipping → Commissioning → Training → Handover → One year guarantee → Lifetime support.
What payment methods are accepted?
T/T, D/P, Letter of Credit, Cash transaction.
How is machine quality guaranteed?
One year guarantee with lifetime technical support. Customers can check machines during test running with immediate optimization.
Do you have CE Certification?
Yes, both extrusion and recycling machines have CE Certification.
What is the delivery time?
Typically 45 days, with exact timing specified in the contract.
What does one-year quality guarantee include?
Free replacement parts for all non-man-made damages after machine handover.
How to get machine area requirements?
Contact us at sales@langbochina.com or WhatsApp: +86 15962377824 for detailed solutions, layouts, and technical guidance for installation specifications.
