Complete production line for PVC/UPVC pipe manufacturing ranging from 16mm to 800mm diameter. This versatile system produces pipes for electrical conduit, agricultural, and construction applications with varying diameters and wall thicknesses.
Applications
The produced UPVC pipes are widely used in industrial and daily life applications including electrical conduit systems, water supply networks, sewage systems, house decoration, chemical transportation, and gas distribution lines. These pipes feature high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety, and cost-effectiveness.
Production Process
- PVC powder + additive mixing
- Material feeding
- Twin screw extrusion

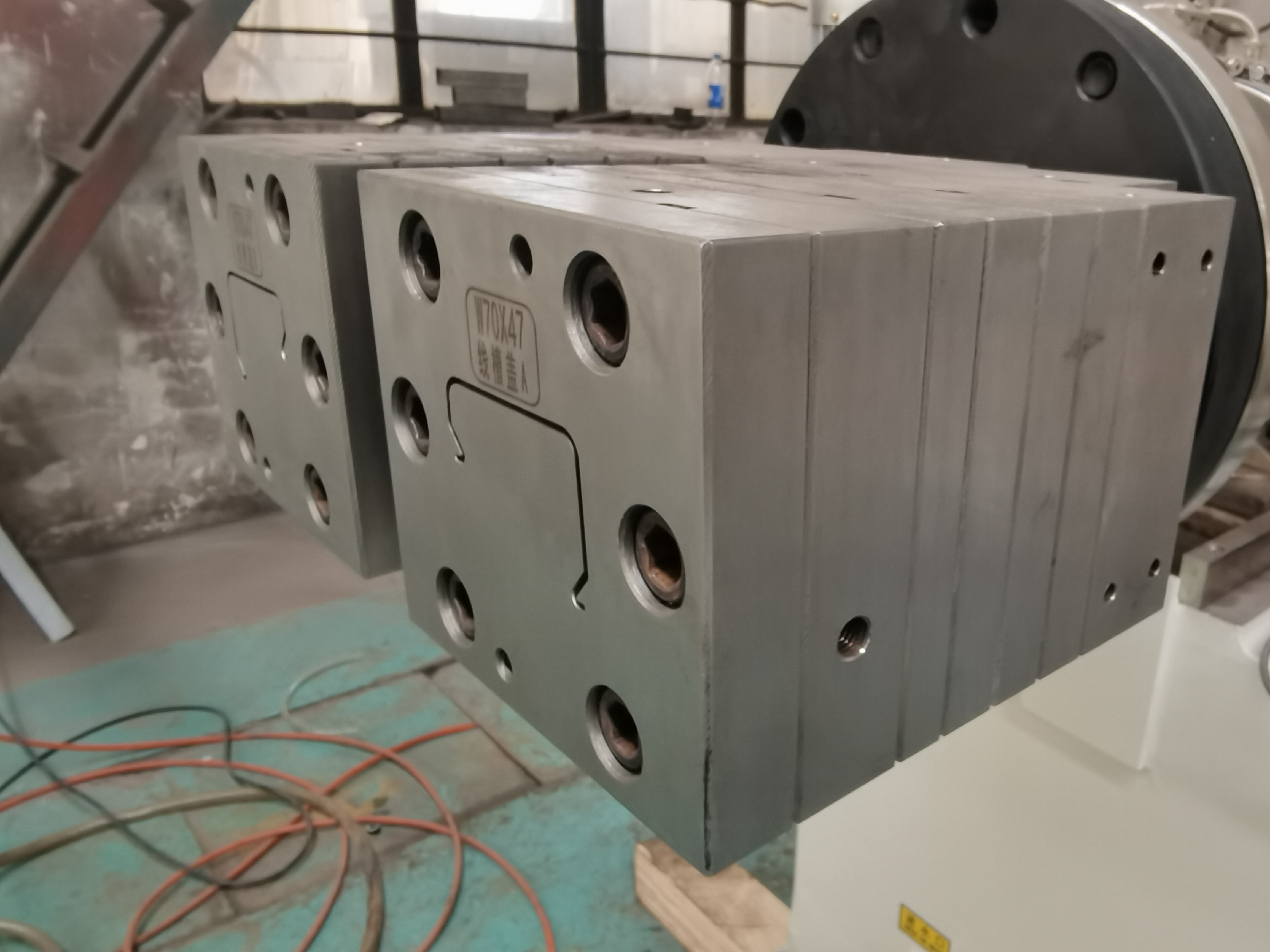

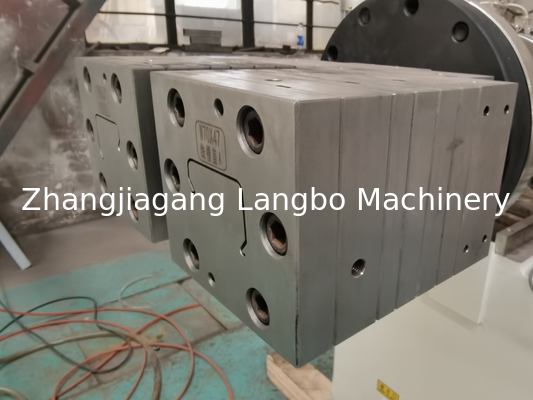

- Mould and calibration
- Vacuum and cooling tank
- Spraying cooling machine
- Haul-off machine
- Cutting machine
- Discharge rack or pipe belling machine
Specifications
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Component Details
Mixer
Specially designed mixer reduces raw material self-friction, improving energy utilization efficiency. Features vacuum suction load with low noise and dust-free operation.

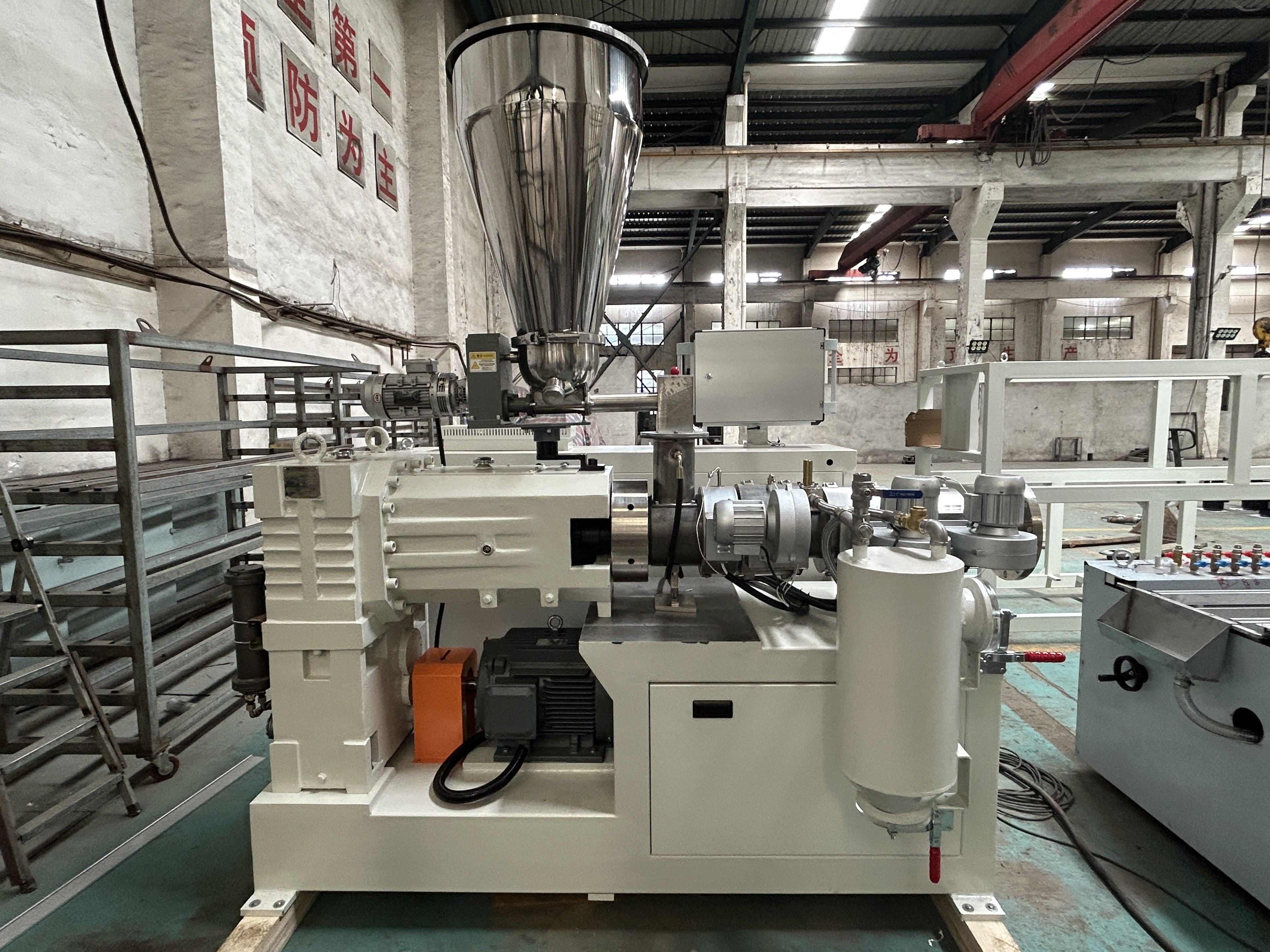

Twin Screw Extruder Machine
Crafted with top brand components for production stability, efficiency, and durability. Conical twin screw design ensures homogeneous mixture, better plastification, and superior conveying efficiency.

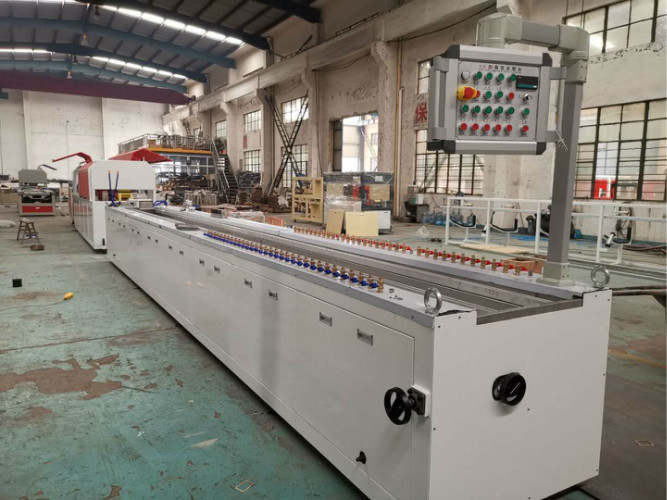

Vacuum Calibration & Cooling
Two-chamber structure with vacuum calibration and cooling sections. Constructed with stainless 304 steel for both vacuum and spraying cooling tanks. Excellent vacuum system ensures precise pipe sizing.

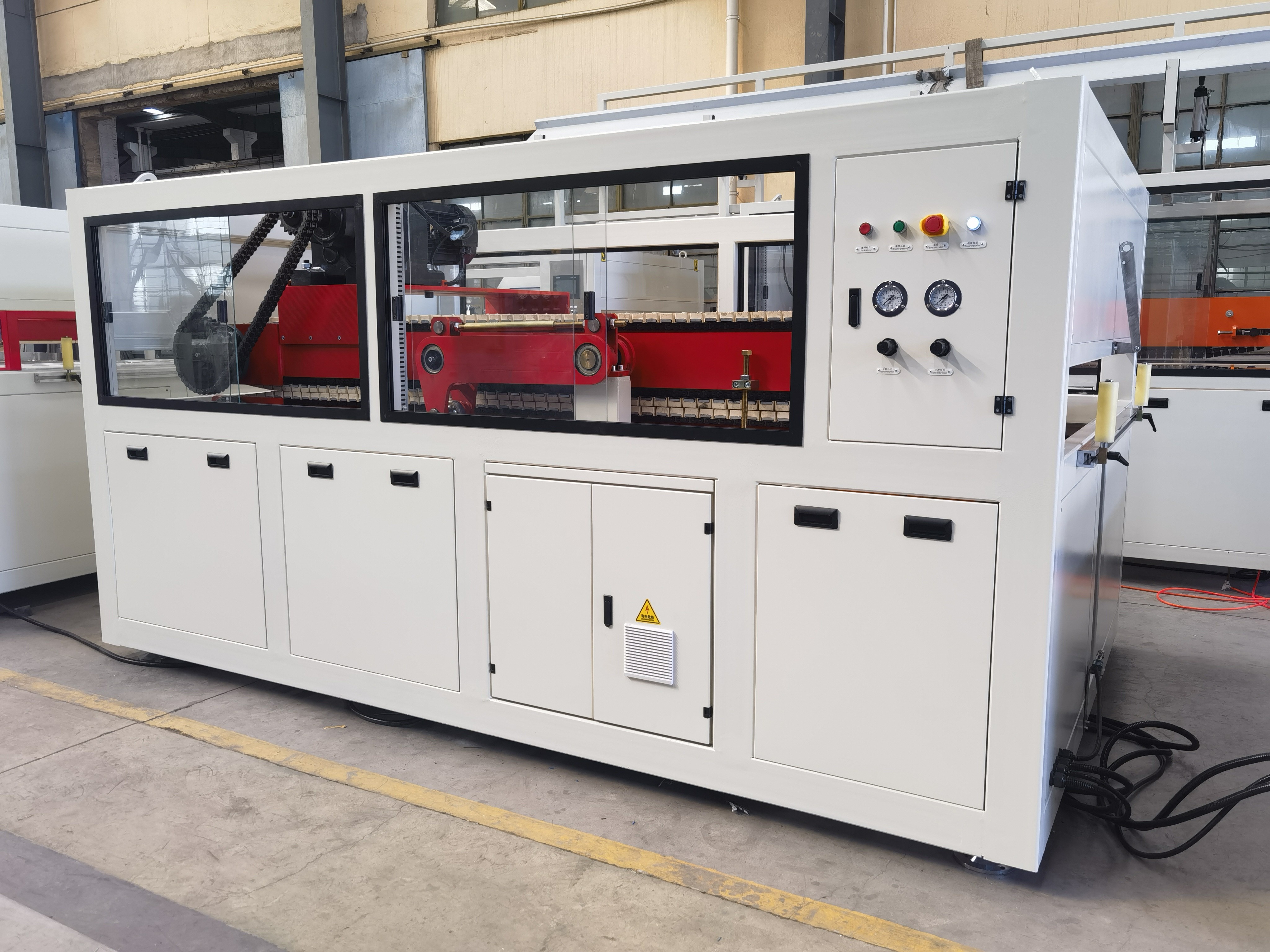

Haul-off Unit
Three crawler track design ensures stable and steady pipe operation. Adjustable hauling models accommodate specific production requirements through general control adjustments.
Cutting Unit
High-accuracy encoder provides precise and stable cutting lengths. PLC control system enables manual operation for specific application requirements.
Technical Features
- Easy grinding of all Hard & Soft PVC materials into powder
- Dust collector effectively reduces pollution
- Main fan discharge reduces operator labor intensity
- Accessible host door cover for maintenance and cutter replacement
- Water and wind double cooling system prevents overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible cleaning
- Premium brand components including Siemens motors for long-term reliability
- Comprehensive optional accessories for customized solutions
Delivery Information
Delivery: 30 days after order confirmation
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case
Our Service
- One year guarantee for complete machine
- 24-hour technical support
- Overseas installation and commissioning by our engineers
- Post-warranty maintenance guidance and affordable spare parts
- Comprehensive operator training services
Frequently Asked Questions
Are you a trading company or factory? Can I visit your facility?
We are a direct manufacturer located in Zhangjiagang, Jiangsu Province near Shanghai and Wuxi. Factory visits are welcome anytime with pick-up service available for nearby visitors.
How to build trust with Langbo?
We provide working videos demonstrating machine performance in various countries and offer customer-focused technical solutions. Factory visits allow direct assessment of our plastic extrusion expertise.
Is shipping cost included in the quotation?
Quotations typically include FOB Shanghai terms. Shipping costs to destination ports fluctuate and are not included. We assist customers in obtaining current shipping prices for informed decisions.
Order Process After Confirmation
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running (on-site or video) → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Operator training → Handover confirmation → One-year guarantee → Lifetime technical support
Payment Methods
T/T, D/P, Letter of Credit, Cash transaction
Quality Assurance
One-year guarantee with lifetime technical support. Customers can inspect machines during test running with immediate optimization of any identified issues.
Do you have CE Certification?
Yes, both our extrusion machines and plastic recycling machines are CE certified.
Delivery Time
Typically 45 days from order confirmation, with exact timing specified in the contract based on project requirements.
After-Sales Services
One-year quality guarantee, quick technical support response, and comprehensive problem analysis for production issues.
One-Year Quality Guarantee Details
Free replacement parts for all non-human-caused damages after machine handover.
Machine Layout and Area Requirements
Contact our technical team at sales@langbochina.com or WhatsApp: +86 15962377824 for detailed machine layout solutions, installation guidance, and specifications tailored to your production needs.
