Industrial Grade PVC Edging Extrusion System Production Line
Product Details
| EXTRUDER TYPE: | 55/110 CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1180MM |
|---|---|---|---|
| MOTOR POWER: | 22KW | RAW MATERIAL: | PVC POWDER & ADDITIVES |
| HAUL-OFFS: | TWO INDEPENDENT TRACKS | CALIBRATION TABLE: | EIGHT MTERS LONG |
| PACKING METHOD: | WOODEN BOX AND FILM PACKAGE | PROFILE SIZE: | ACCORDING TO CUSTOMERS' DRAWING |
| DELIVERY TIME: | WITHIN 90 DAYS | ||
| Highlight |
PVC edging extrusion system production line,Industrial grade PVC edging extrusion system,pvc Edging profile extrusion machine |
||
Product Description
Industrial grade PVC edging extrusion system production line

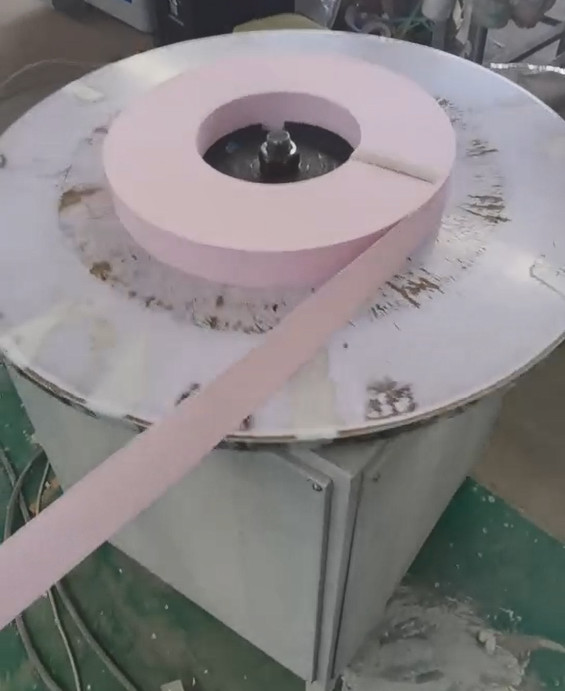

Application product PVC Edge Banding:
PVC edge banding are widely use in furtinure,kitechen utensils and appliance teaching equiprement, laboratory cabinet desk decoration.
Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker
Equipment Features:
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Main Model
| Model | YF120 | YF180 |
| Max. Product with(mm) | 200 | 300 |
| Max. Product height(mm) | 6mm | 10mm |
| Extruder model | SNJZ51/105 | SNJZ65/132 |
| Vacuum pump | no | no |
| Water pump | 1.1kw | 1.1kw |
| Hual-off motor | 1.1kw | 1.5kw |
Machine list

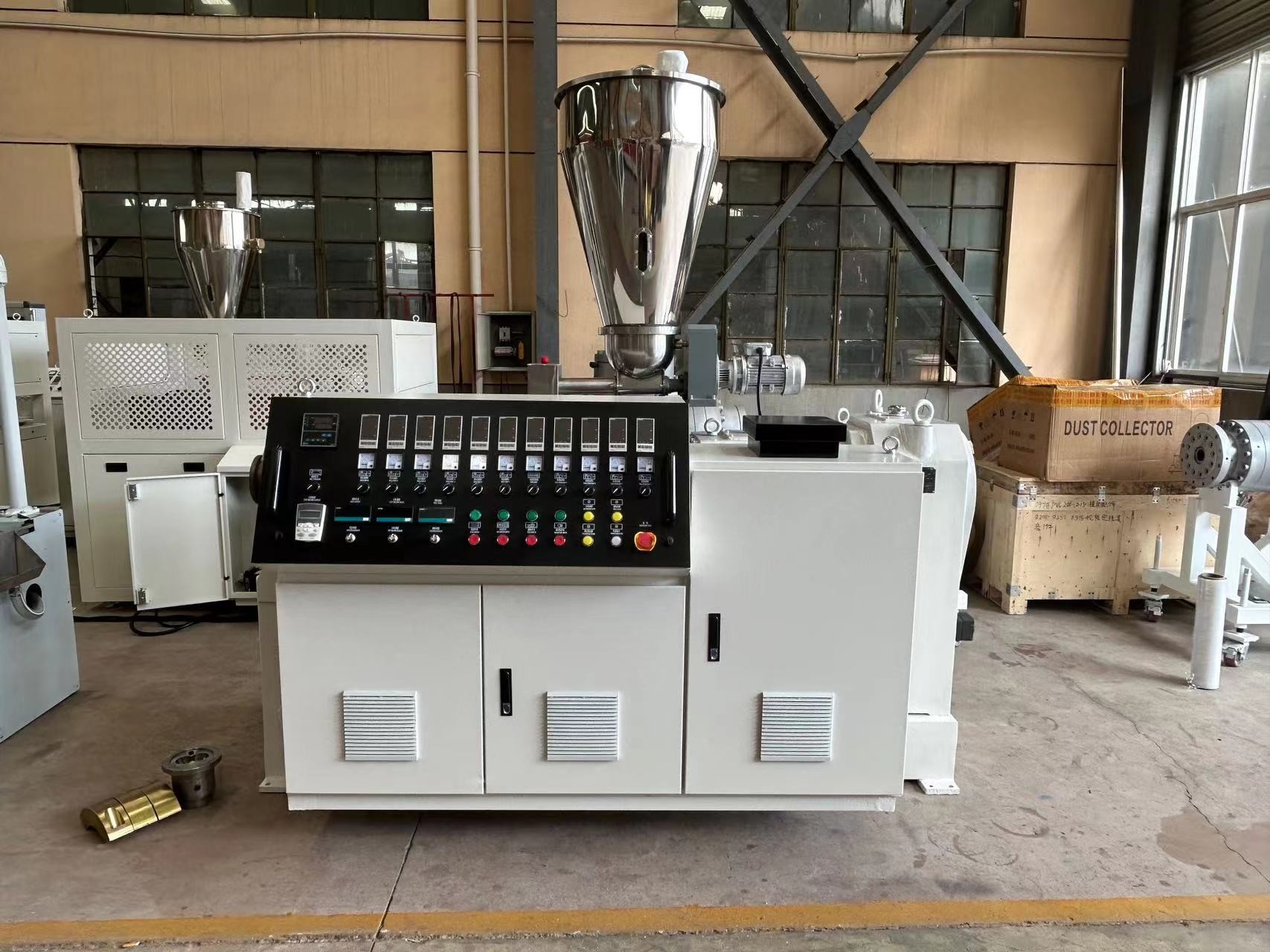

| Feeder | • To feed material into extruder; |
| Extruder | • World famous brand electrical component: , Schneid er, ABB etc; • High torque gearbox with adopts NSK/SK F bearing; • /WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |

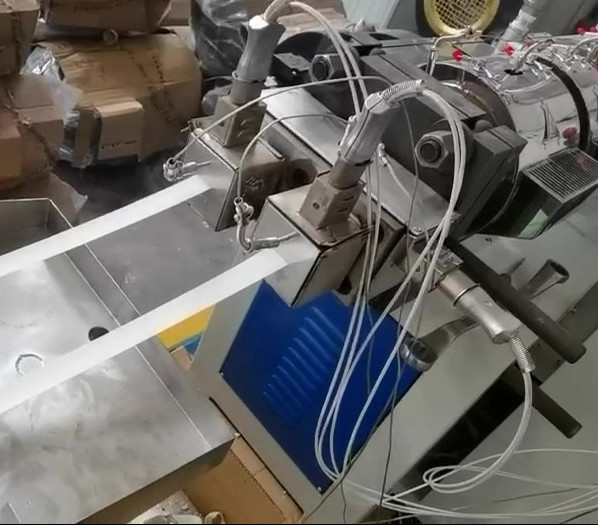

| Die head | • 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile |
| Cooling table | • Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation |

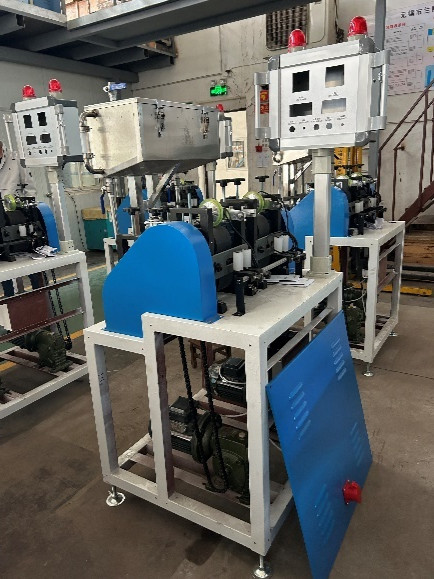

| Haul off | • Upper/lower crawler track driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material |

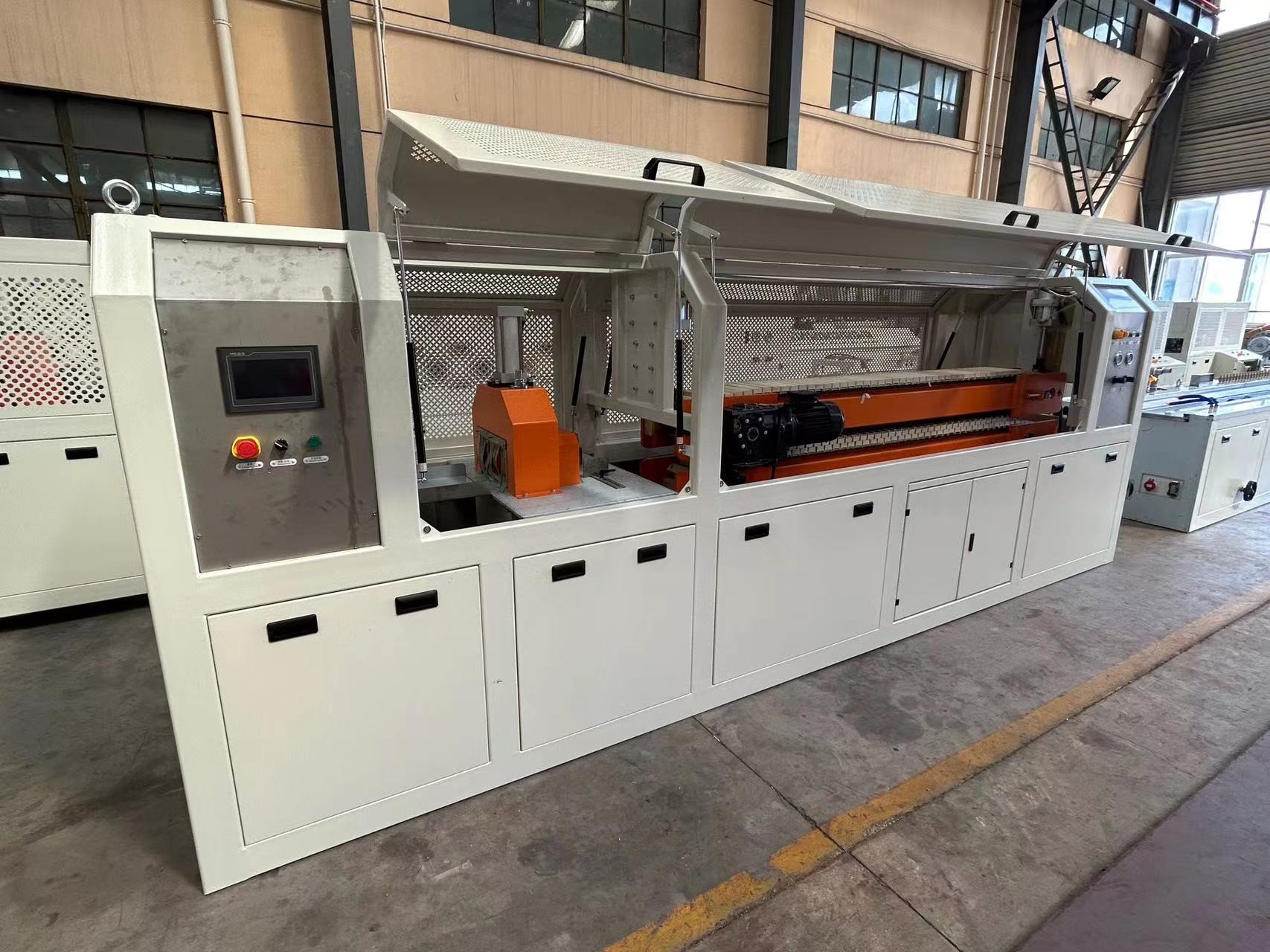

| Cutter | • Lifting saw cutter with adopts double station dust collection system • Synchronous drivingby air cylinder or servo motor control |
| Stacker | • Stainless steel304 as touching material • Discharge driving by air cylinder |
| Hot stamping machine | • Decorative pattern and film protection of product surface |
Technical information
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schnei der brand | |
| 3 | Relay | Schnei der brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | brand | |
| 11 | PLC | Schnei der brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. |
||
| For more technical information please contact us by email. | |||
