Eco Friendly PVC Extruder Machine Low Energy Plastic Profile Line

1 SET
MOQ
USD,EUR
Price
Eco Friendly PVC Extruder Machine Low Energy Plastic Profile Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
EXTRUDER TYPE: 55/110 CONICAL TWIN SCREW EXTRUDER
PROFILE'S SIZE: 1180MM
MOTOR POWER: 22KW
RAW MATERIAL: PVC POWDER & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS
CALIBRATION TABLE: EIGHT MTERS LONG
PACKING METHOD: WOODEN BOX AND FILM PACKAGE
PROFILE SIZE: ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME: WITHIN 90 DAYS
Highlight:

Plastic Profile Line PVC Extruder Machine

,

Low-Energy PVC Extruder Machine

,

Eco-Friendly PVC Extruder Machine
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO9001
Model Number: LB-1180
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Product Description

Eco-Friendly PVC Extruder Machine Low-Energy Plastic Profile Line

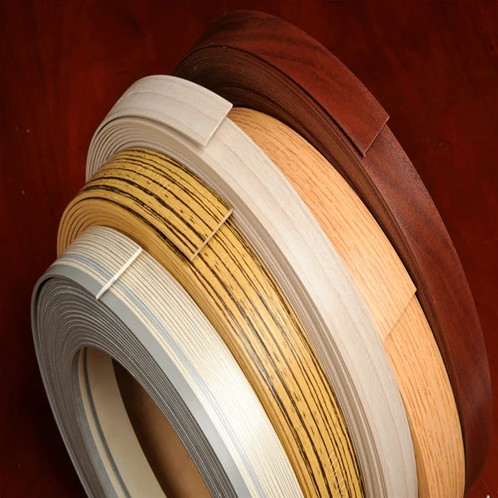

Application product PVC Edge Banding:
PVC edge banding are widely use in furtinure,kitechen utensils and appliance teaching equiprement, laboratory cabinet desk decoration.

Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → Cooling →Printer → Haul-off Unit →cutter →stacker

Equipment Features:
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance

Main Model

Model YF120 YF180
Max. Product with(mm) 200 300
Max. Product height(mm) 6mm 10mm
Extruder model SNJZ51/105 SNJZ65/132
Vacuum pump no no
Water pump 1.1kw 1.1kw
Hual-off motor 1.1kw 1.5kw


Machine list

Feeder • To feed material into extruder;

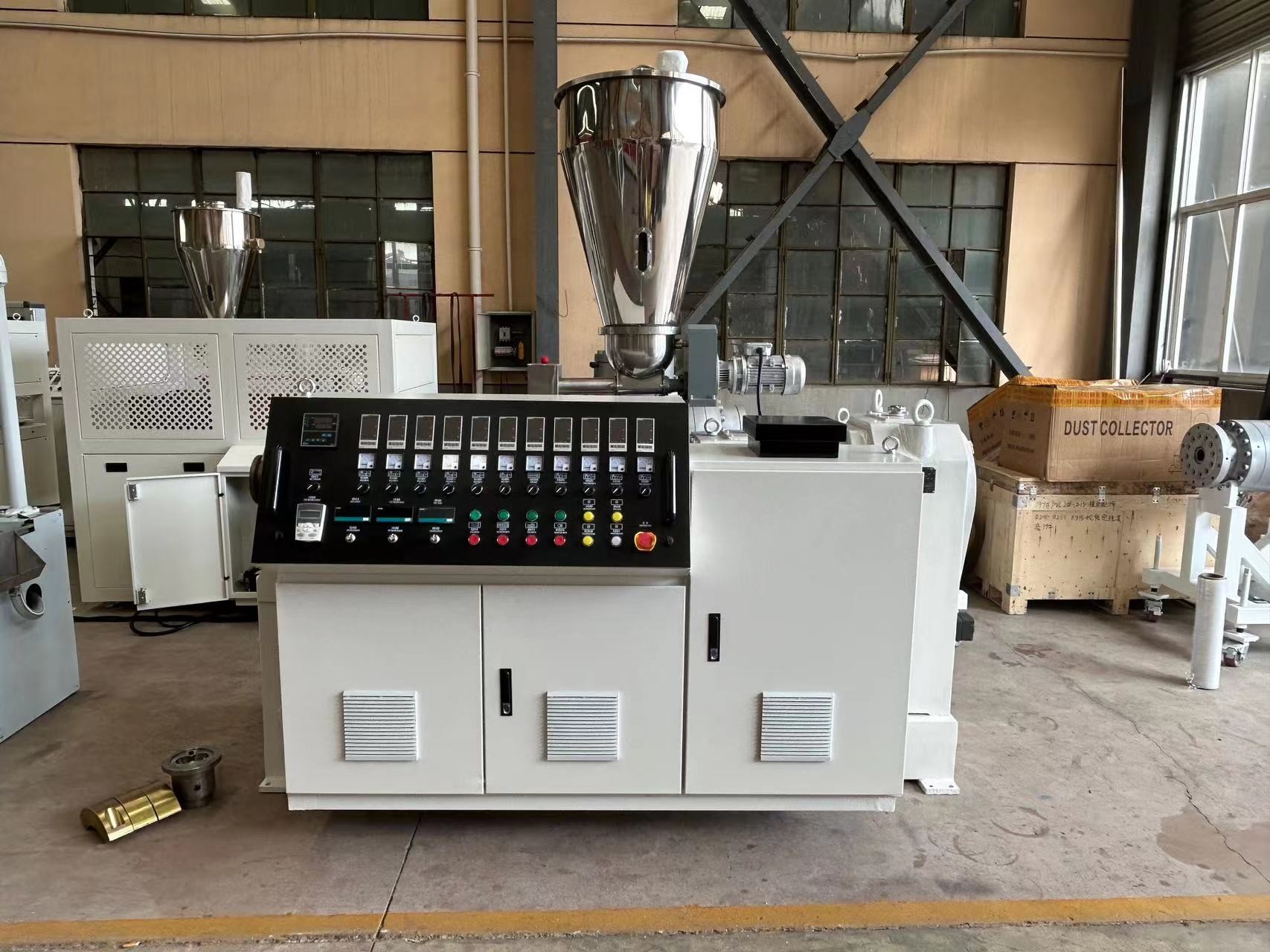

Extruder • World famous brand electrical component: Siemens, Schneid er, ABB etc;
• High torque gearbox with adopts NSK/SK F bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.

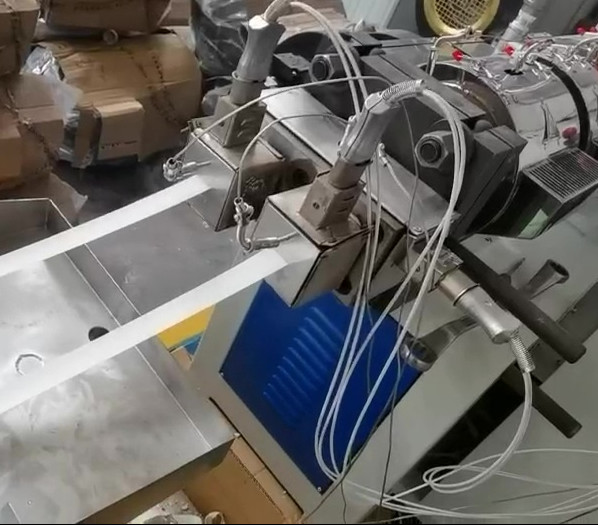

Die head • 3Cr13/3Cr17 material
• Complete set include extrusion die head, calibrator and cooling tank
• Adopt to single, co-extrusion, foam imitation marble profile
Cooling table • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation

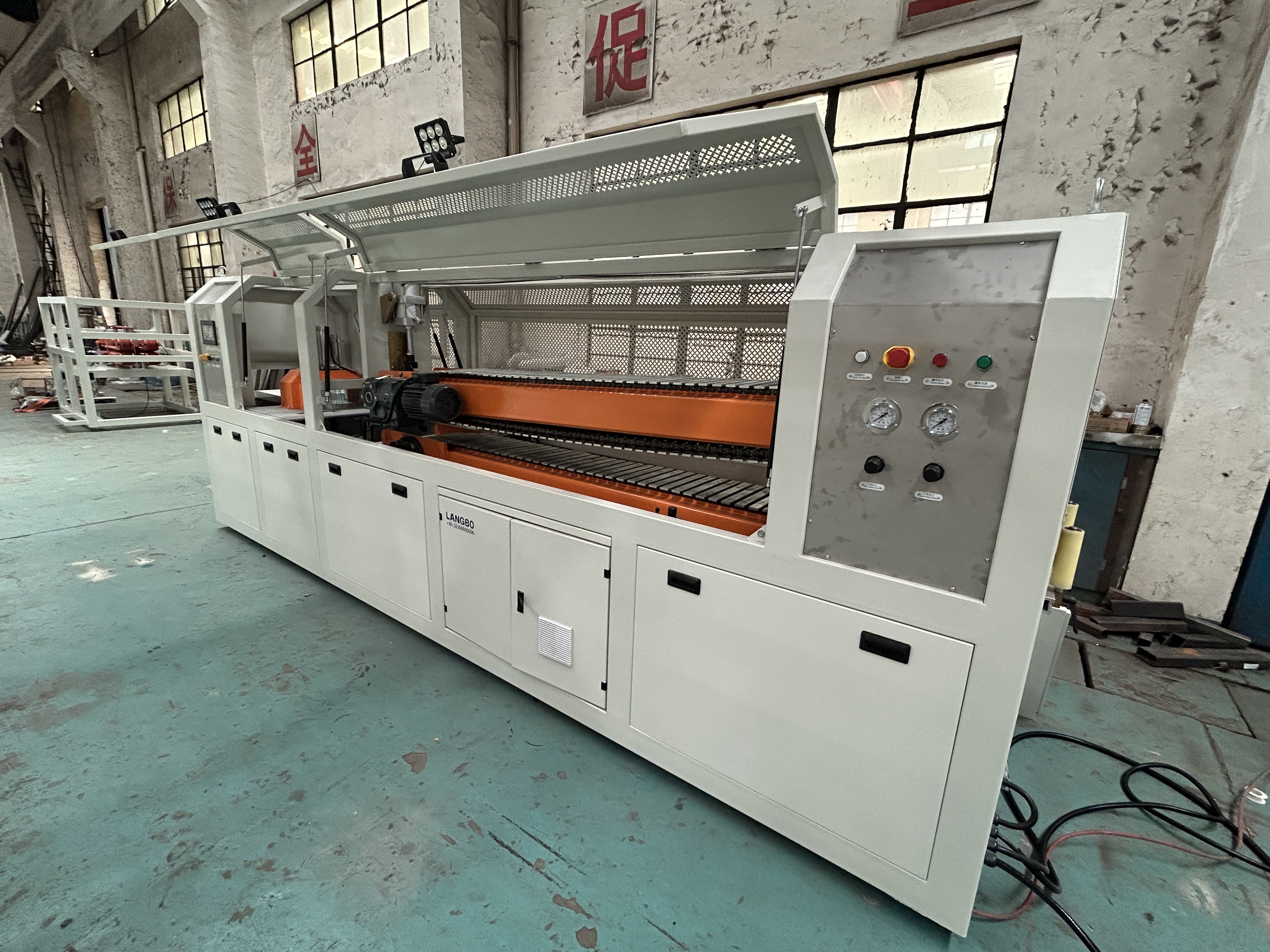

Haul off • Upper/lower caterpillar driven separately and speed control by inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material
Cutter • Lifting saw cutter with adopts double station dust collection system
• Synchronous drivingby air cylinder or servo motor control
Stacker • Stainless steel304 as touching material
• Discharge driving by air cylinder

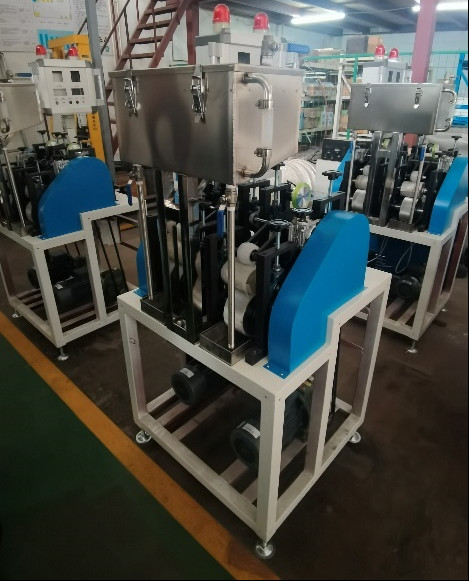

Hot stamping machine • Decorative pattern and film protection of product surface


Technical information

Parts No. Name Brand
1 Screw and barrel 1 Design German design
2 Main materials 38CrMoALA
3 Screw heating Silicon oil heating
4 Barrel heater Cast aluminum heater
5 Barrel has vacuum exhausting system

2 Driving parts 1 Main motor Siemens Brand
  2 Gear box Top brand in China

3 Electric parts 1 Inverter ABB brand
2 Contactor Schnei der brand
3 Relay Schnei der brand
4 Breaker Delixi brand
5 Temperature meter RKC brand
6 Hauling motor Densen brand
7 Hauling gear box Hard surface gear box
8 Vacuum pump Yvhuang brand
9 Water pump Yvhuang brand
10 Cutting motor Siemens brand
11 PLC Schnei der brand

4 Mechanical parts We use CNC machines to ensure the precision of our mechanical parts

5 Protection system We have a whole set of protection system for our machines, such as:
1 Current overload protection
2 Torque overload protection
3 Oil path blocking alarm
4 Vacuum overload alarm, and so on.
For more technical information please contact us by email.
