PE HDPE Pipe Making Line Plastic Extrusion Machine Voltage 380V 50HZ 3 Phase
Product Details
| Extruder Power (kw): | 160KW | PIPE DIAMETER: | 16-1000MM |
|---|---|---|---|
| COLOUR: | BLACK, ORANGE | APPLICATION: | GAS CONDUIT |
| MARK LINE: | YES | SCREW DIAMETER: | 150MM |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Highlight |
HDPE PE Pipe Making Line,380V 50HZ PE Pipe Making Line,3 Phase pe pipe production line |
||
Product Description
Best Price PE HDPE Pipe Making Line Plastic Extrusion Machine
Application:

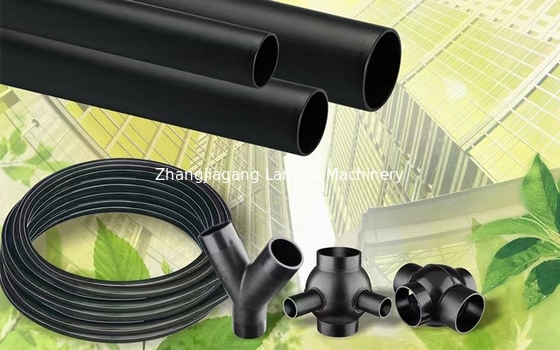

Water and gas supply, micro&sprinkler irrigation system, sewerage pumping and effluent disposal system.
Properties & Advantages:
The pipes produced by this line have excellent hardness and flexibility. Their diameters vary from 16mm to 1200mm. The line consists of control system, extruder, die, vacuum calibration unit, hauling-off and planetary cutting system and stacker.
Two extruders are utilized in this line. The main extruder is used to extrude the large diameter pipes and the other small one is used to extrude the mark line.
Basket or spiral type composite die is used in this line. PLC control system and large chromatic liquid crystal screen make the operation very convenient.
Process flow:
Raw material+master batches--mixing--vacuum feeding--material dryness--single screw extruder--mark line extruder---mould--calibrator---vacuum spray calibration tank---spray cooling water tank---color-ribbon printer--pedrail haul-off--planetary cutter--stacker---finished product inspecting&packing
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER |
| LB-63 | 20-63 | SJ65/33 | 55AC |
| LB-110 | 20-110 | SJ65/33 | 55AC |
| LB-160 | 75-160 | SJ75/33 | 90AC |
| LB-250 | 90-250 | SJ75/33 | 110DC |
| LB-315 | 110-315 | SJ90/33 | 160DC |
| LB-450 | 160-450 | SJ90/33 | 160DC |
| LB-630 | 315-630 | SJ120/33 | 280DC |
| LB-800 | 500-800 | SJ150/33 | 315DC |
| LB-1200 | 710-1200 | SJ150/34 | 400DC |
All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.
| Volumetric and gravimetric dosing units |
| Raw material loading units |
| Belling machines |
| Corrugators |
| Ink jet marking units |
| Winding units |
| Tilting tables |
Product Highlights
