PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine

PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine

Short desciption

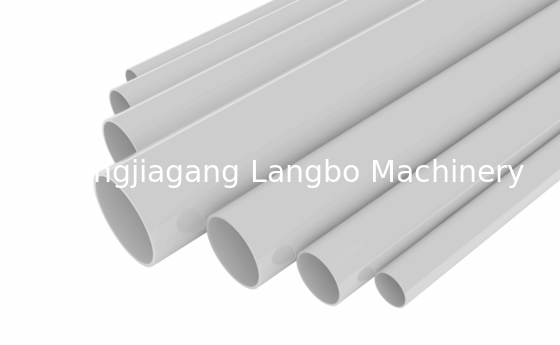

machinery supplies full ranges of PVC pipe making machines, which apply for U-PVC, C-PVC, M-PVC, O-PVC material. The PVC pipe extrusion line includes conical twin screw extruder, spiral die head, vacuum tank, water tank, haul-off, no-dust cutter or planetary cutter, belling machine with O-ring sockets or rectangular sockets or U types of sockets. Our PVC pipe machine can make pipes ranging from 16mm to 630mm, wall thickness range of 1-30mm.

Tech Features & Advantages

1. Special screw structure, efficient plasticization for different type of formula;

2. Flexible use conical and parallel extruder for pipes with different pressure levels and CaCO3 conditions;

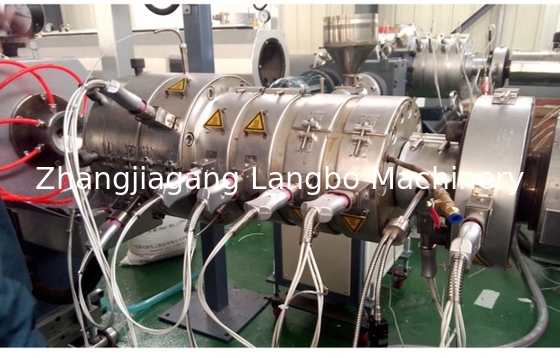

3. Spiral type die reduces the melt seam on pipes, high compression ratio ensures the pipes with high density and good mechanical properties.

4. Use an efficient single or double chambers vacuum and cooling tank;

5. Adopt a Servo/frequency speed controlling and independent multi-track structure haul-off to guarantee the pipe pulling evenly, no deformation;

6. Planetary cutter adopts both mechanical and hydraulic way to feed blades and to cut and chamfer synchronously.

Producting process

PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.

Specifications:



Product detail

Mixer

With specific design of mixer, the self-friction of raw materials is reduced. It is conducive to the efficiency of energy utilization. The Vacuum suction load with low noise and no-dust working situation.

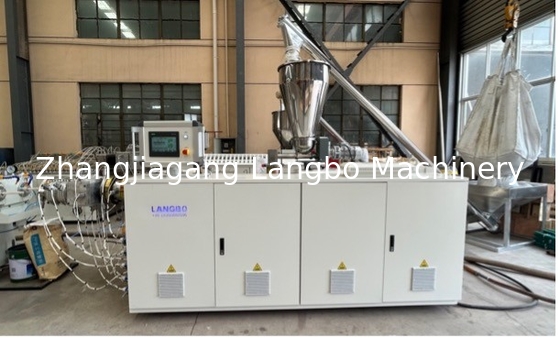

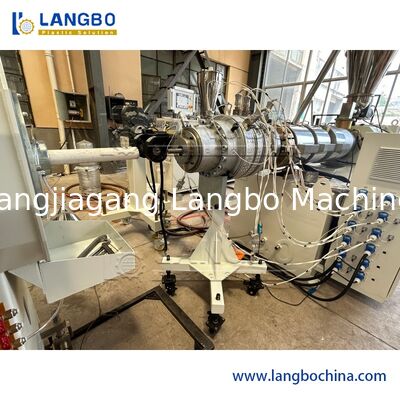

Twin screw extruder machine

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.

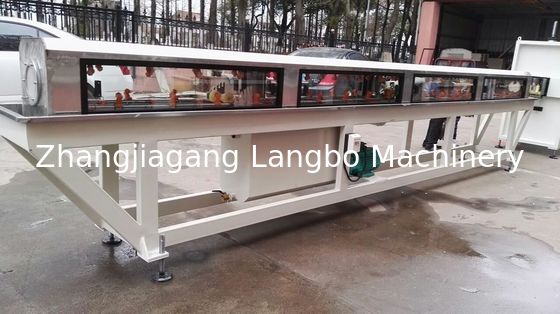

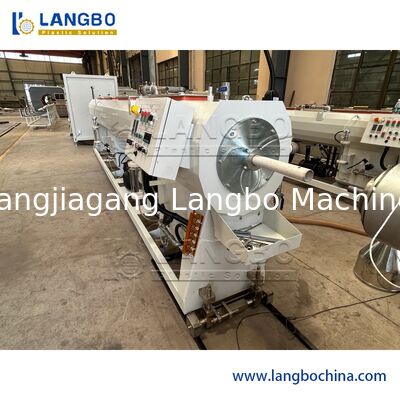

Vacuum Calibration & Cooling

The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

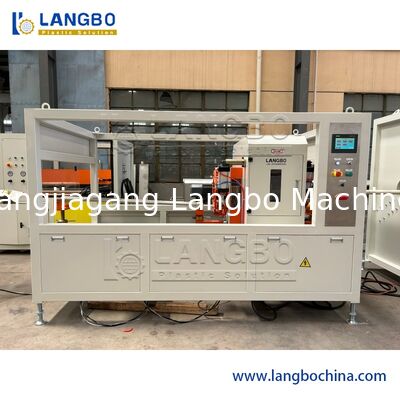

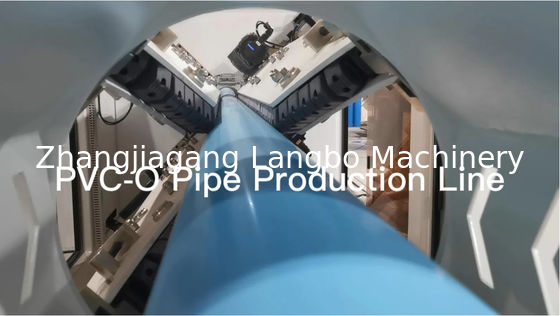

Haul-off Unit

The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

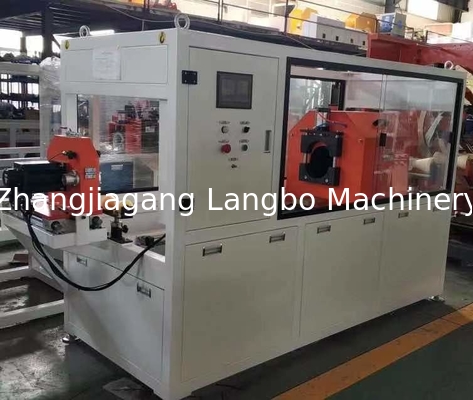

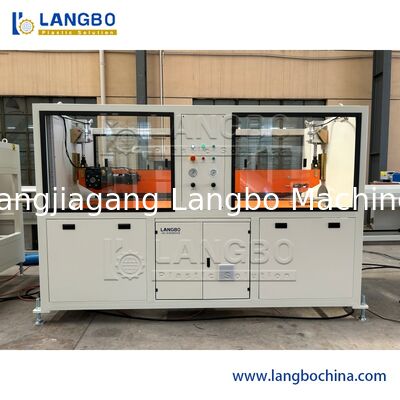

Cutting Unit

The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.



Technical Features:

1. THe plastic pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.

2. The dust collector is added to effectively reduce dust pollution.

3. The discharging of the main fan reduces the labor intensity of operating workers.

4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.

5. The mill uses the water and wind double cooling system, Prevent bearing, and other parts from overheating.

6. The powder mesh is adjustable(15-100mesh).

7. Easy installation and maintenance, just open the door to clean up.

8. Using Well-known brand accessories, such as Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.

9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.



Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case



Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
