16-630mm PE Conduit Pipe Single Screw Extruder Plastic Making Machine For Water Gas Supply

16-630mm PE Conduit Pipe Single Screw Extruder Plastic Making Machine for Water Gas Supply

APPLICATION:

Our PE Pipe Making Machine is a state-of-the-art solution for manufacturing high-quality polyethylene (PE) pipes with precision and efficiency. Designed for both PE materials, this machine ensures smooth extrusion, excellent pipe consistency, and superior strength, making it ideal for water supply, irrigation, gas distribution, and industrial applications.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

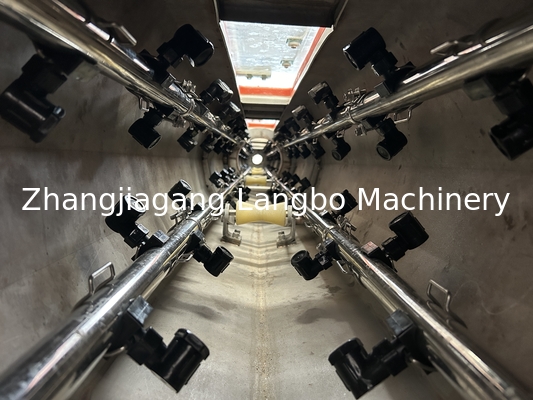

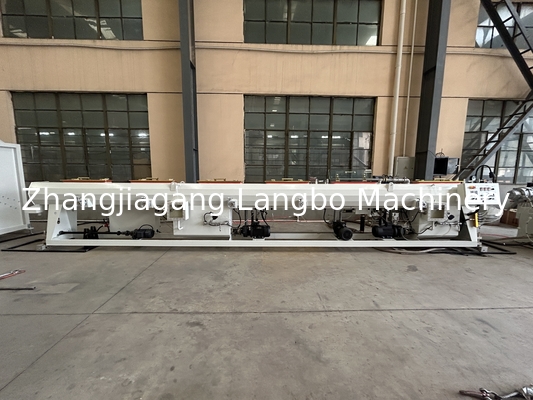

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

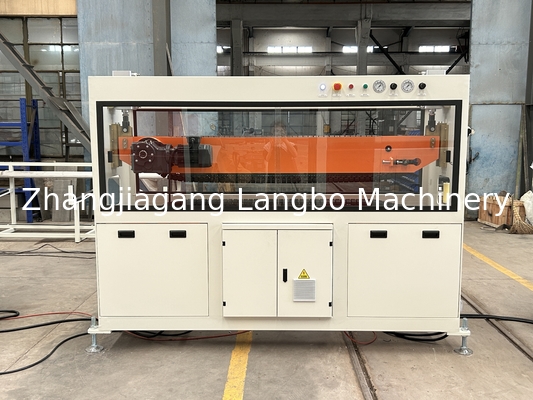

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

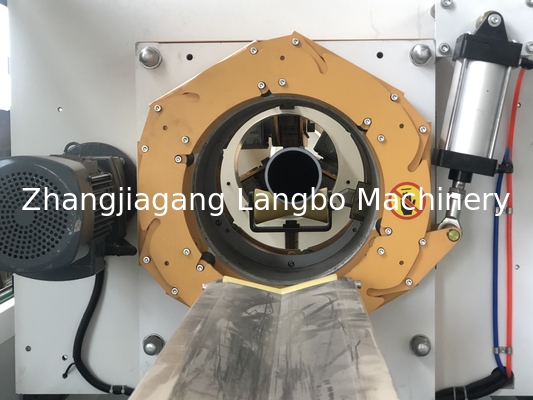

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Optional

Extrusion Die Heads

An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.

Key Advantages of PE Pipe Extrusion Line

1.Advanced extrusion technology ensures stable, high-speed production with consistent pipe quality.

2.Precision-controlled screw and die design guarantee uniform wall thickness and pipe dimensions.

3.Optimized heating/cooling systems reduce energy consumption.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
