Plastic PE Water Pipe Cable Conduit Making Machine Tube Extrusion Production Machine Line
Our advanced Plastic PE Tube Extrusion Machine Line is engineered for high-efficiency manufacturing of PE water pipes, cable conduits, and protective tubing with superior precision and durability. This fully automated production line integrates cutting-edge extrusion technology to ensure consistent wall thickness, smooth surfaces, and excellent mechanical properties.
Application
Designed for high-efficiency manufacturing of PE water pipes, cable conduits, and protective tubing with superior precision and durability.
PE Pipe Production Specifications
| Model |
Pipe Diameter |
Extruder |
Extruder Power |
Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Production Line Features
- High efficiency extruder designed for HDPE pipe, equipped with high-speed, low-noise reducer
- Feeding section with cooling unit and reversing spiral groove
- Different pitch undulant screw for great output, lower melting temperature, and reduced energy consumption
- Distributed spiral composite extrusion die-head ensures even melting pressure and stable flux
- Produces pipes with smooth, glossy surfaces
PE Pipe Production Line Components
Raw material + master batches → mixing → vacuum feeder → material dryer → single screw extruder (small CO-extruder) → mould → vacuum calibration tank → spray cooling tank (water tank) → haul-off unit → cutting machine → stacker

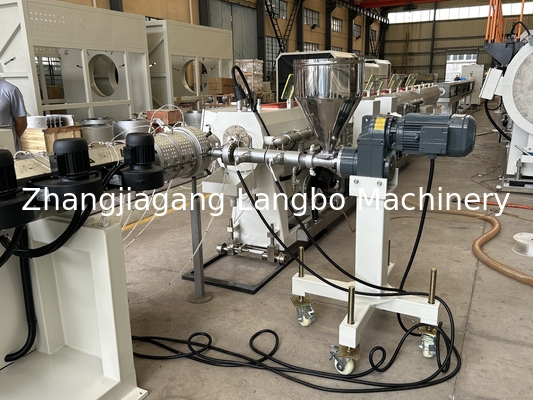

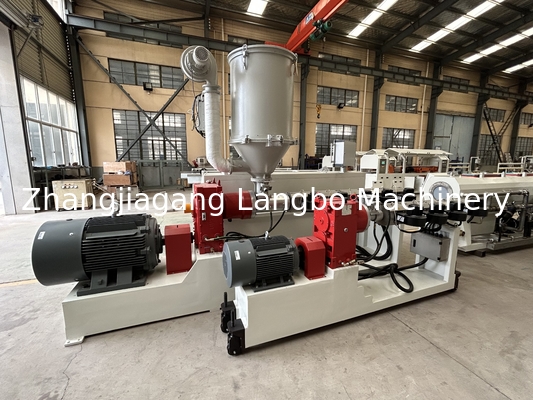

Single Screw Extruder Machine
Utilizes high-efficiency single screws specially designed for PP and PE granule material to ensure uniform plasticization and high extrusion. Stable temperature controlling system guarantees high-quality pipe extrusion.
Pipe Extrusion Mould
Spiral type die head ensures high-speed extrusion and prevents thermal decomposition of amorphous plastics, resulting in high-quality pipes. Features internal heating control system for efficient, easy extrusion. Bronze calibrators enable fast pipe calibration and cooling.

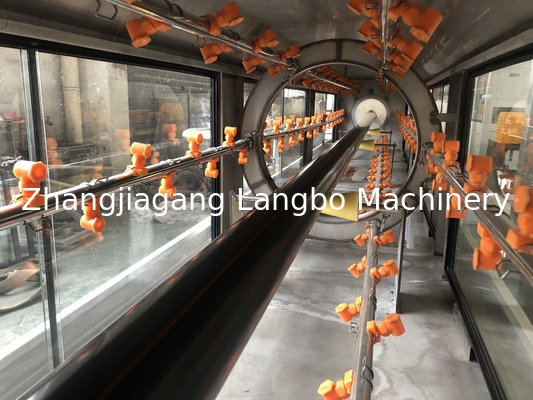

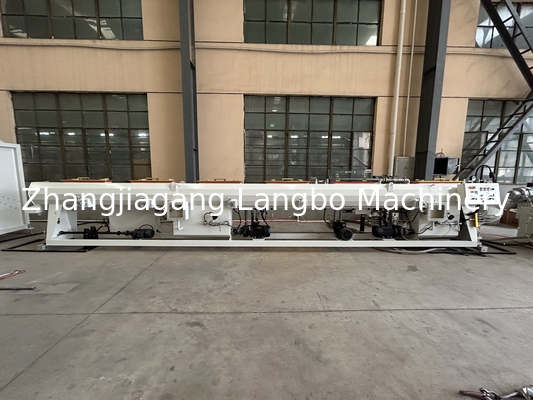

Vacuum Cooling Tank and Spraying Cooling Tanks
Rapid vacuum calibrating system cools hot extruded pipes quickly to obtain final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve enhance pipe sizing, cooling performance, and production speed.

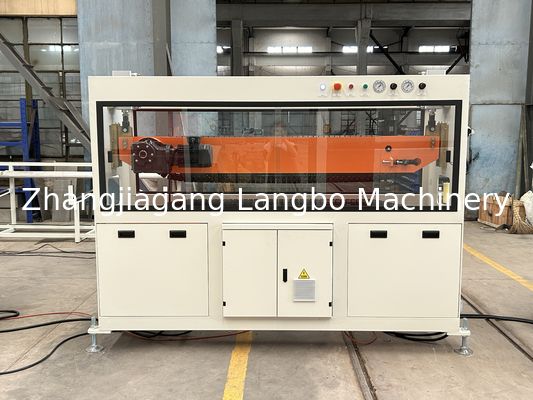

Haul Off Machine
Adopts crawler track type with various claw configurations (two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve-claw) suitable for different pipe sizes. Abrasion-resistant rubber track blocks ensure high, stable hauling speed.

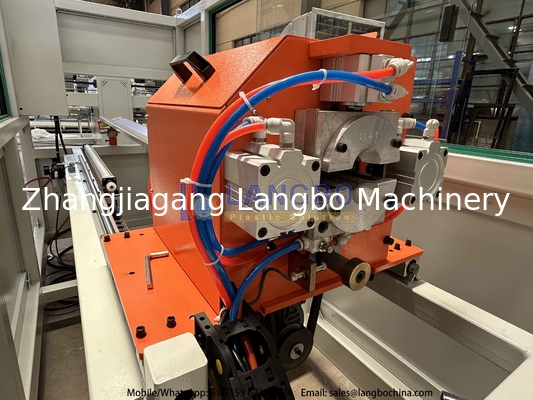

Cutting Machine
Precision machine cutter makes flat, straight cuts at high speed. Powerful suction device collects waste scraps for easy cleaning.
Pipe Stacker or Pipe Coiler
Automatic pipe stacker for packing pipes; pipe coiler for small PE pipes (16-40mm, 16-75mm, 50-110mm).
Key Advantages of PE Pipe Extrusion Line
- Advanced extrusion technology ensures stable, high-speed production with consistent pipe quality
- Precision-controlled screw and die design guarantee uniform wall thickness and pipe dimensions
- Optimized heating/cooling systems reduce energy consumption
Pre- and After-Sale Services
- Extensive industry experience and consistent focus on highest quality
- Complete twin pipe vacuum sizing system
- Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device
- Optional length set and accurate adaption stacker
- Highly motivated team with sophisticated process technology
- Customized solutions for specific requirements
Our Manufacturing Facility
Industry Exhibition Participation
Global Shipping and Logistics
