Customizable PE Single-Screw Pipe Making Machine For Various Customer Requirements

PE Single Wall Pipe Making Machine

APPLICATION:

This extrusion line consists of extruders, die head, corrugation forming machine with modules, coiler etc. and can produce different sizes of corrugated pipes.

PE PIPE PRODUCTION SPECIFICATIONS:

Features:

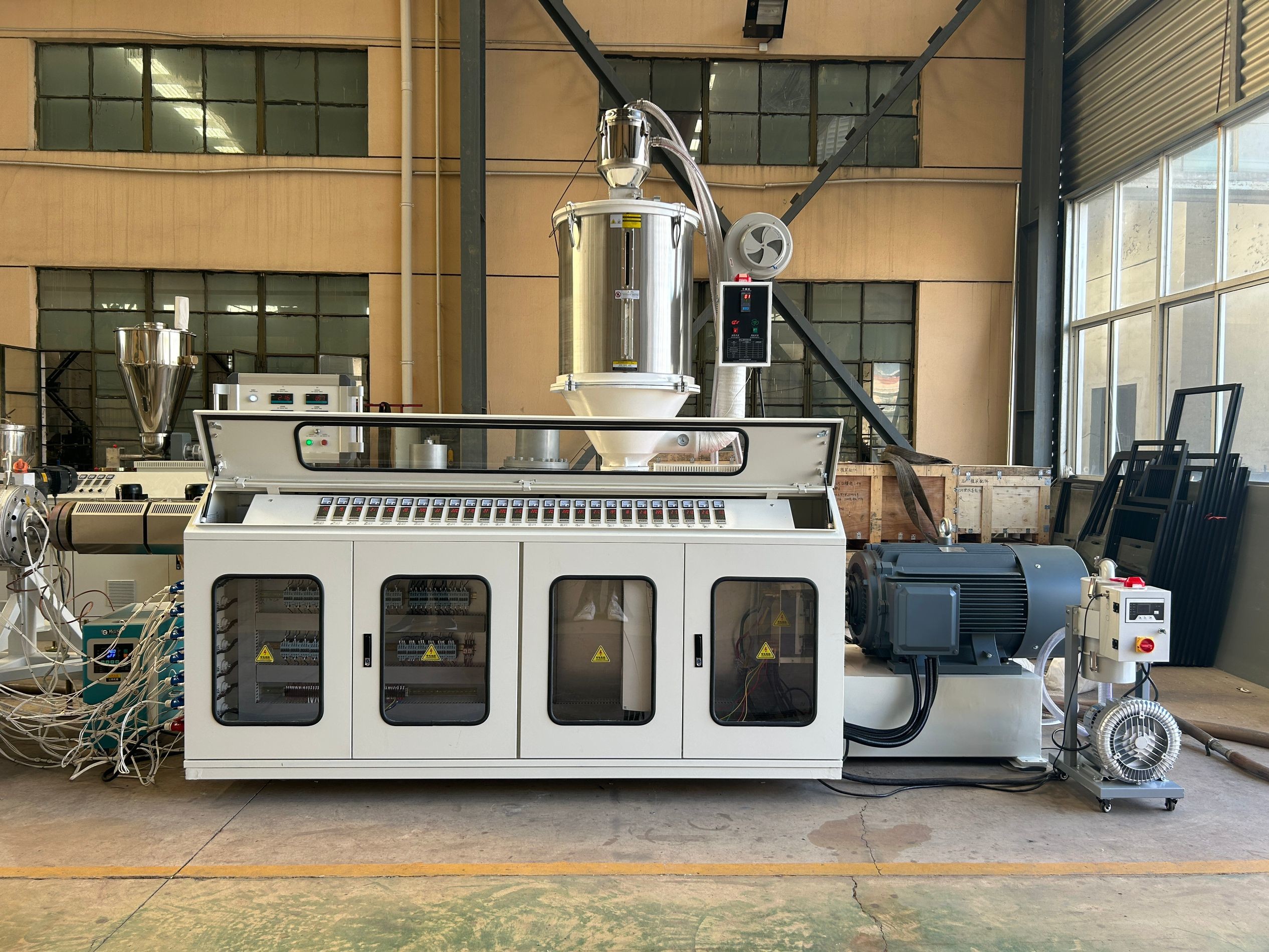

1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.

2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

3.Forming mould: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

4.Coiler :Single position or double position with torque motor.

5.Electrical parts: ABB inverter, contactor, Omron thermo controllers etc.

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

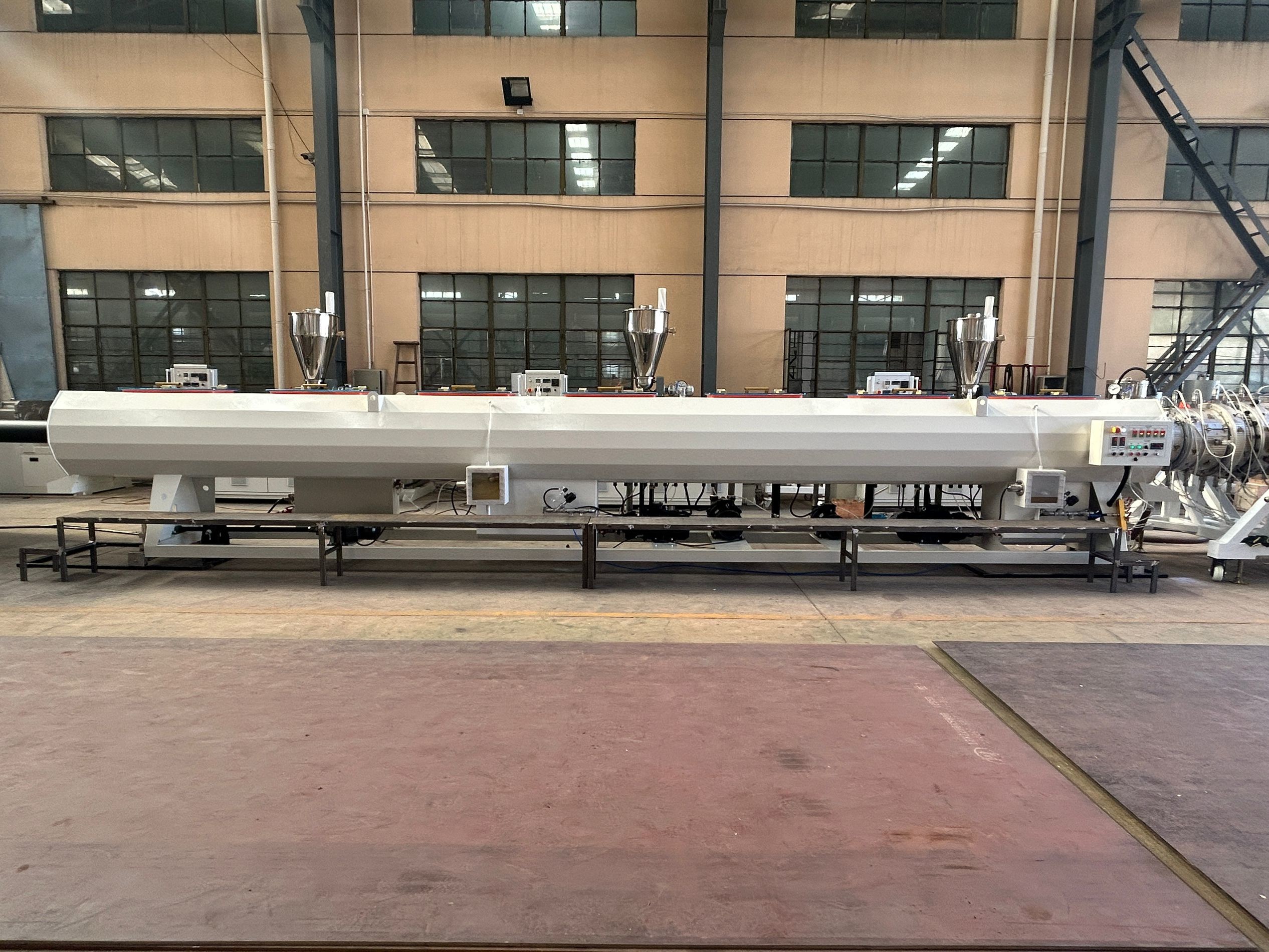

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

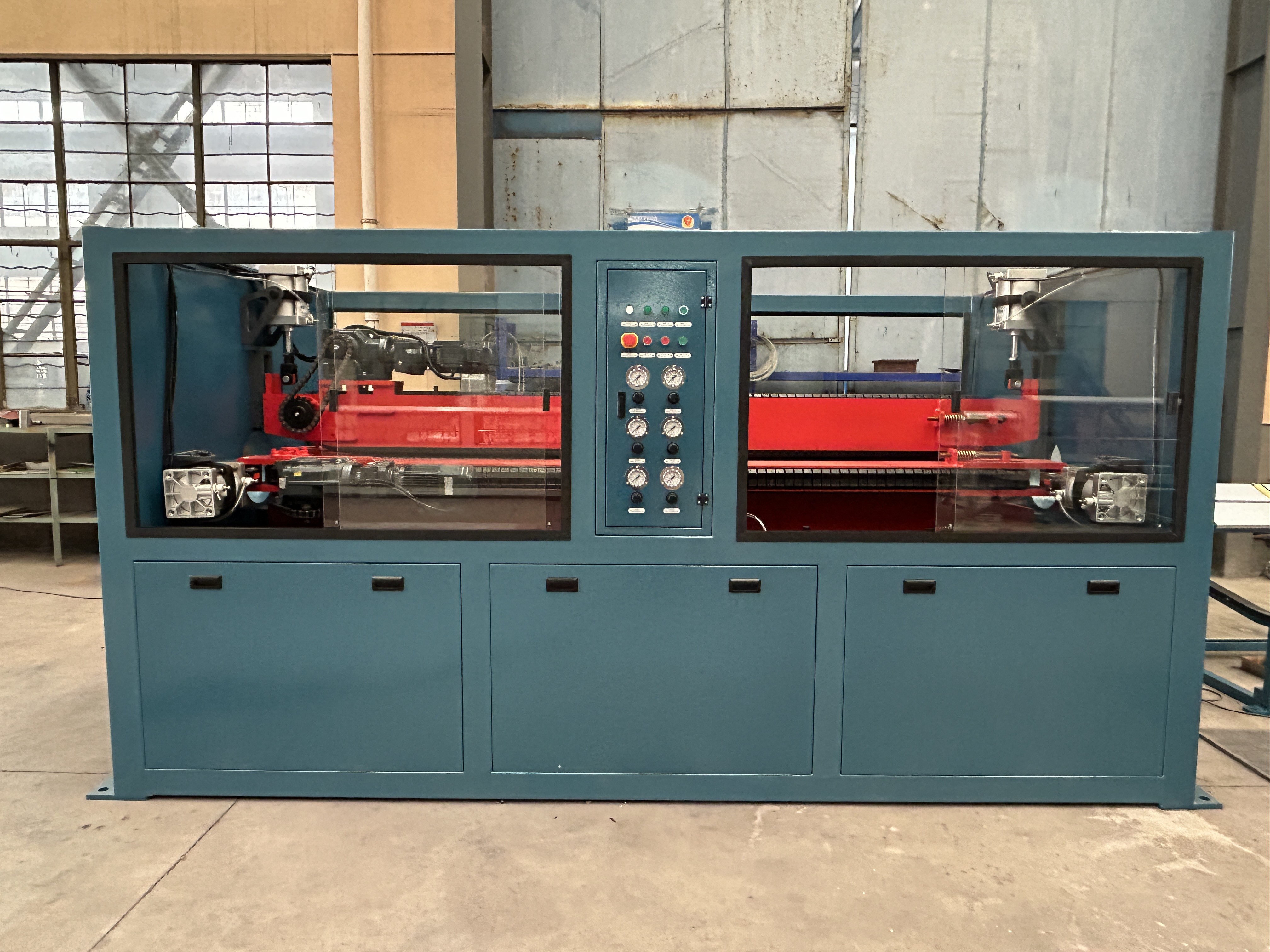

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

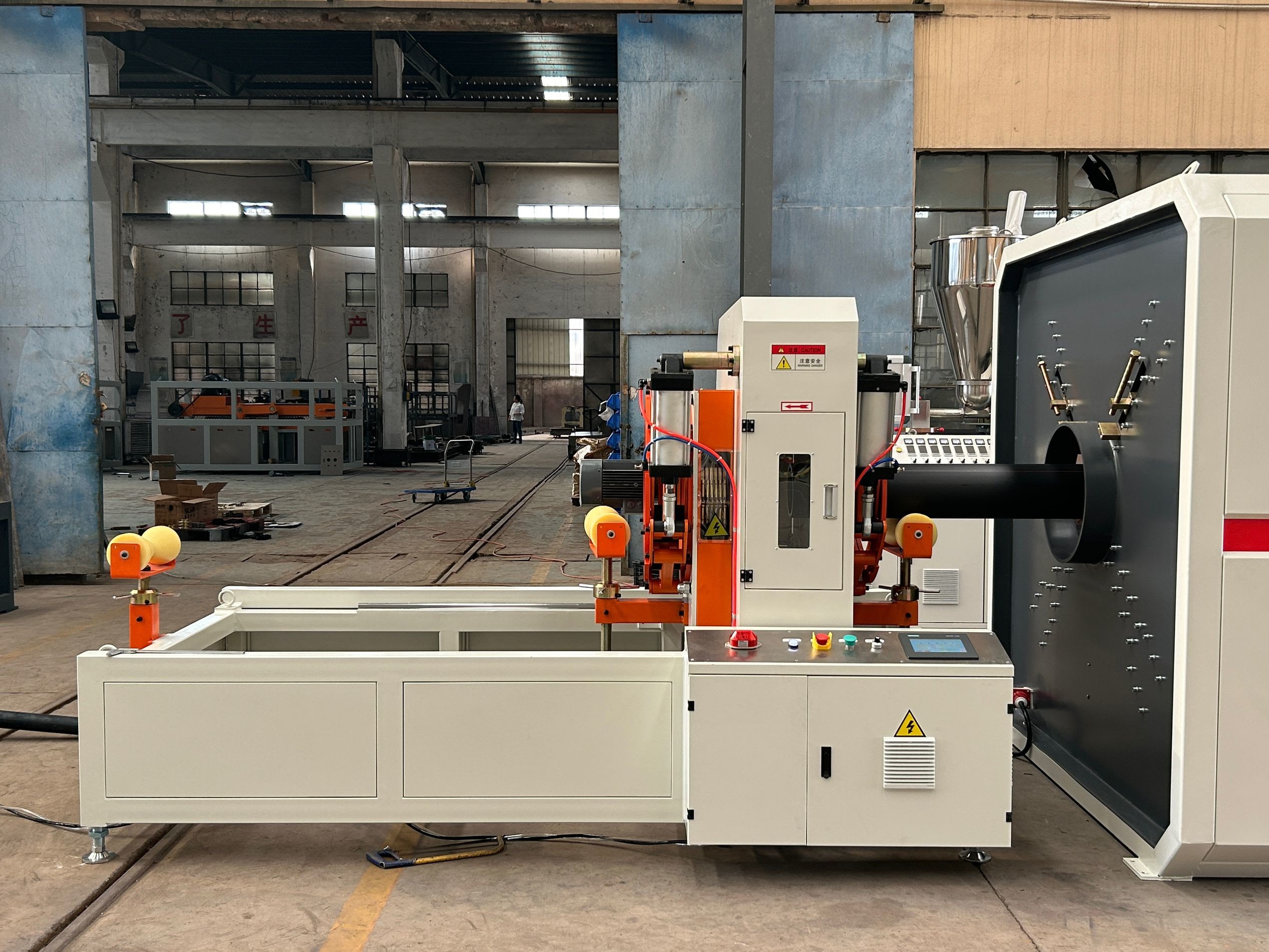

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

Optional

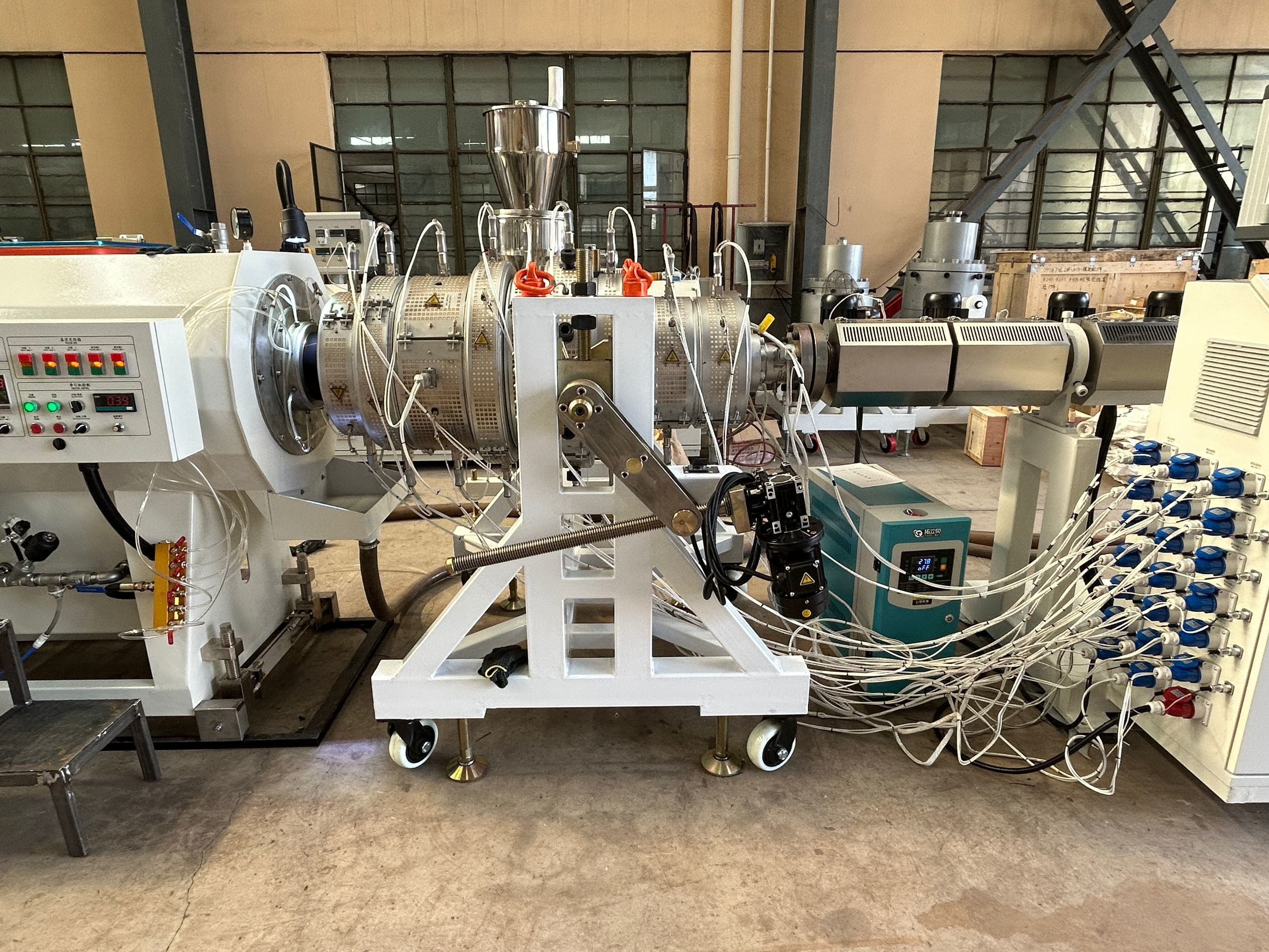

Extrusion Die Heads

An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
