APPLICATION:

PE Pipe Extrusion machine is mainly used for producing gas supplying pipe, water supplying pipe, cable protection pipe etc. The pipe has some excellent features such as low temperature impact resistance, reliable connection, good stress crack resistance, good chemical resistance, good wear resistance, long using life, etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise, Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the precise of the pipes . Turn key solution can be provided, like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.

PE PIPE PRODUCTION SPECIFICATIONS:

Working process

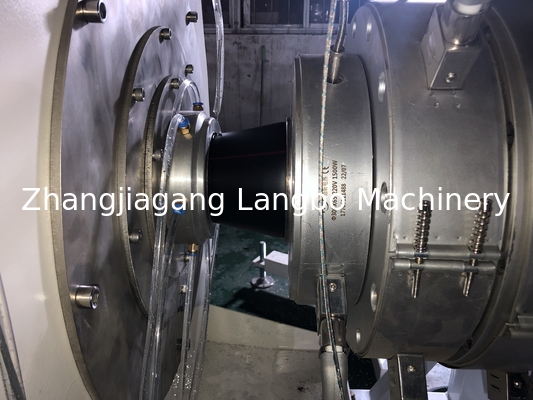

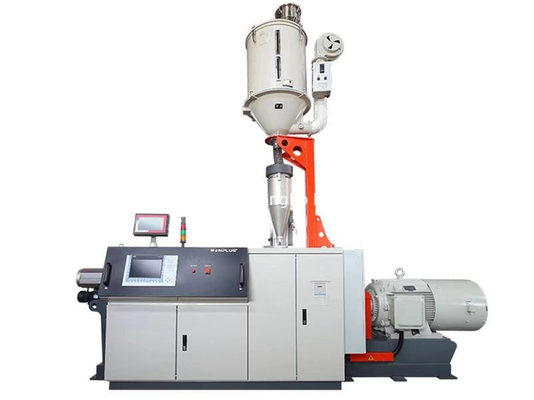

Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

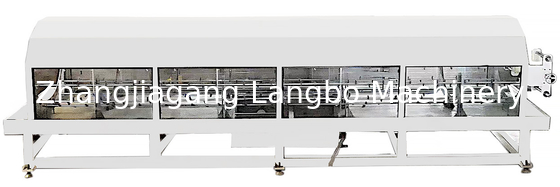

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

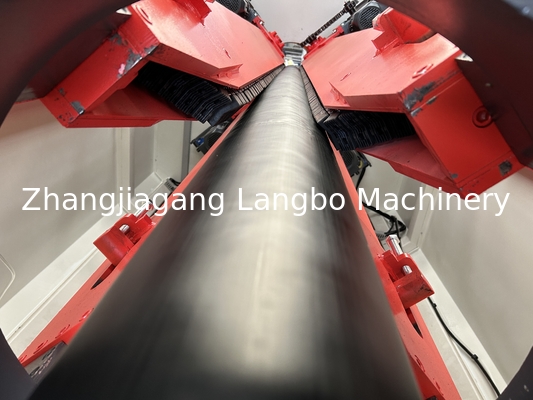

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

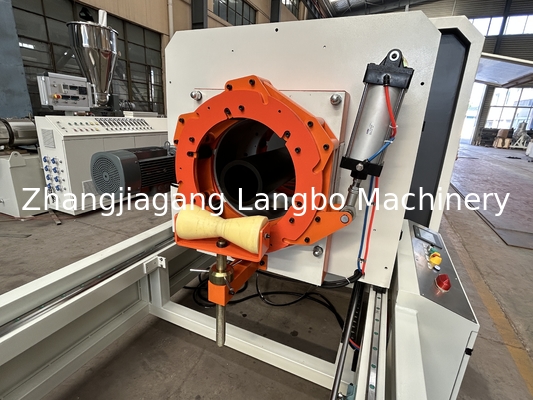

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

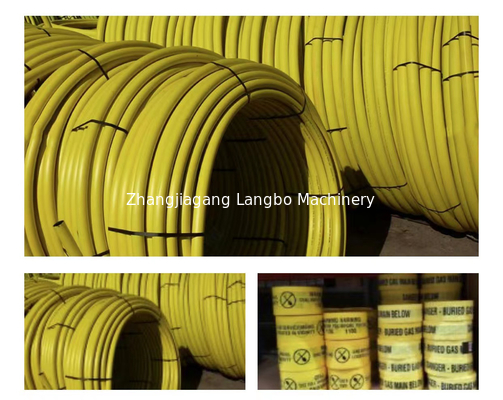

Application of HDPE pipes
1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
