16-63mm PE HDPE Agricultural Irrigation Pipe Making Machine Extrusion Production Line

16-63mm PE HDPE Agricultural Irrigation Pipe Making Machine Extrusion Production Line

APPLICATION:

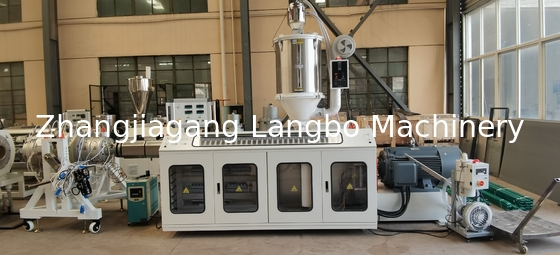

1.The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

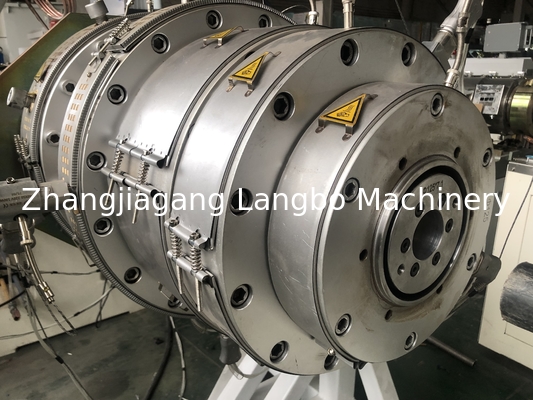

2.Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

3.Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

4. Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

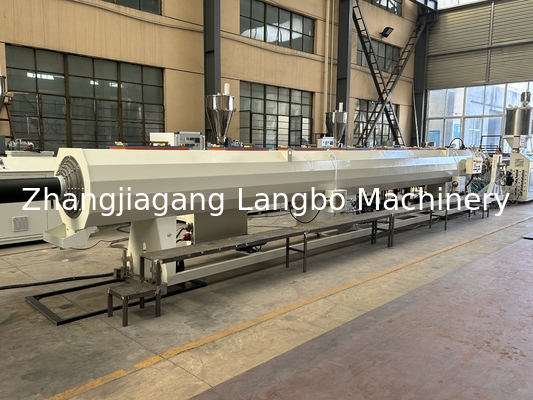

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

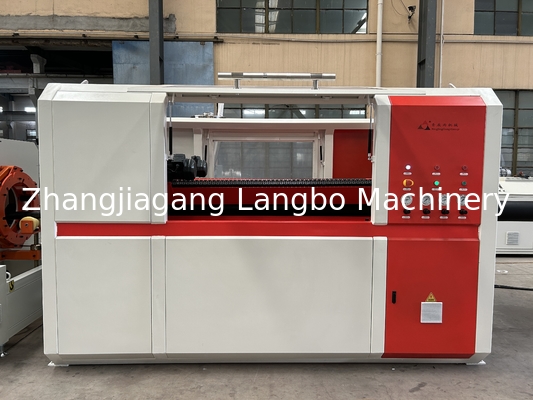

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

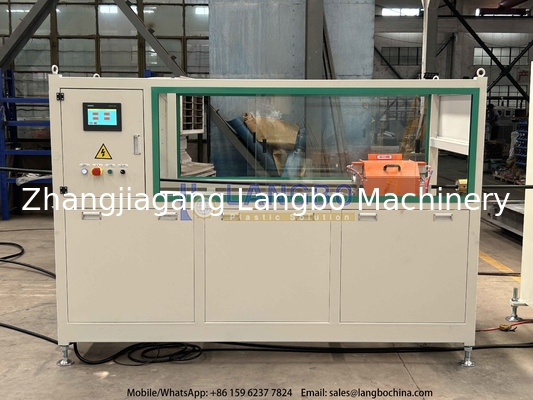

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PE Pipe Extrusion Machine Features:

1. The optimum spiral bush highly improves the output of the pipe extruder

2. Accurate temperature control system ensures material melting performance

3. Unique screw design achieves better plasticizing and high-quality products

4. Precisely designed gearbox with a high torsion guarantees stable running

5. H sharp frame to decrease vibrating of an extruder

6. Advanced PLC operation system realizes synchronization and high-quality products

7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks

8. Offer a stable haul-off unit with 2-12 caterpillars

9. Provide saw &chip free cutting options

10. Low energy consumption, excellent performance, and easy maintenance

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
