Pipe Extruding Machine Plastic Pipe Making Machine for Produce PE Drainage Pipes

Pipe Extruding Machine Plastic Pipe Making Machine for Produce PE Drainage Pipes

APPLICATION:

PE Pipe Extrusion Machine is widely used in the whole country water supply, water sewage, gas supply and house water supply project. machinery adopts most advance technology and develops with its own technical Strategy to ensure unique structure, high configuration, highly automation, easy operation of the whole pipe extrusion machine.
The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.

1. Apply to produce the PP,PE drainage pipes with 4 or 2 identified lines

2. Applicable material: Polyethylene(PE,PP granules)

3. Max output capacity: 80-1800kg/h

4. Pipes specification: Φ16-Φ1200

PE PIPE PRODUCTION SPECIFICATIONS:

Process flow:

Plastic automatic charger→Hopper plastic dryer→Single screw extruder→Mould and calibrator→ Vacuum forming machine→Haul off machine→Cutting machine→Discharging rack

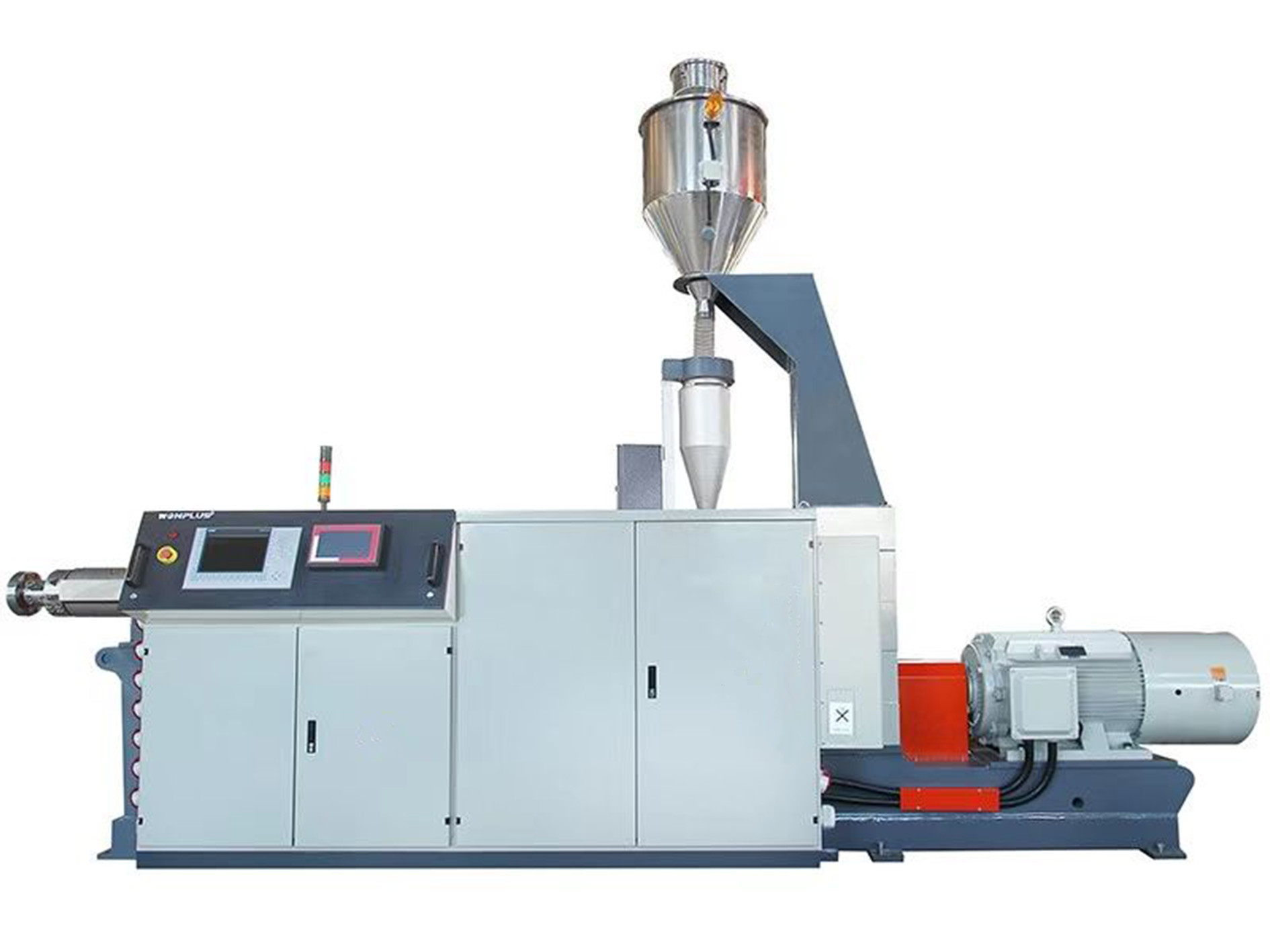

Single Screw Extruder Machine

The pipe extruder machine, the most important part of any production line; it heats, mixes, and extrudes fesh pipe.

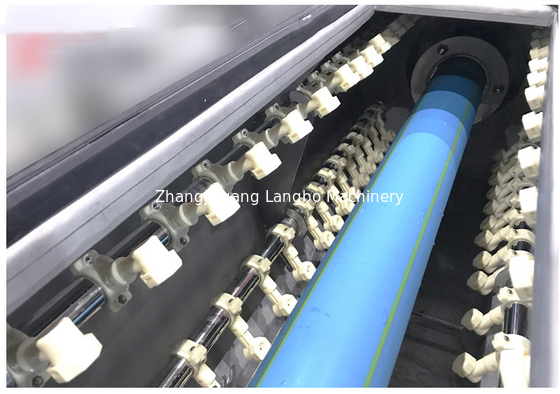

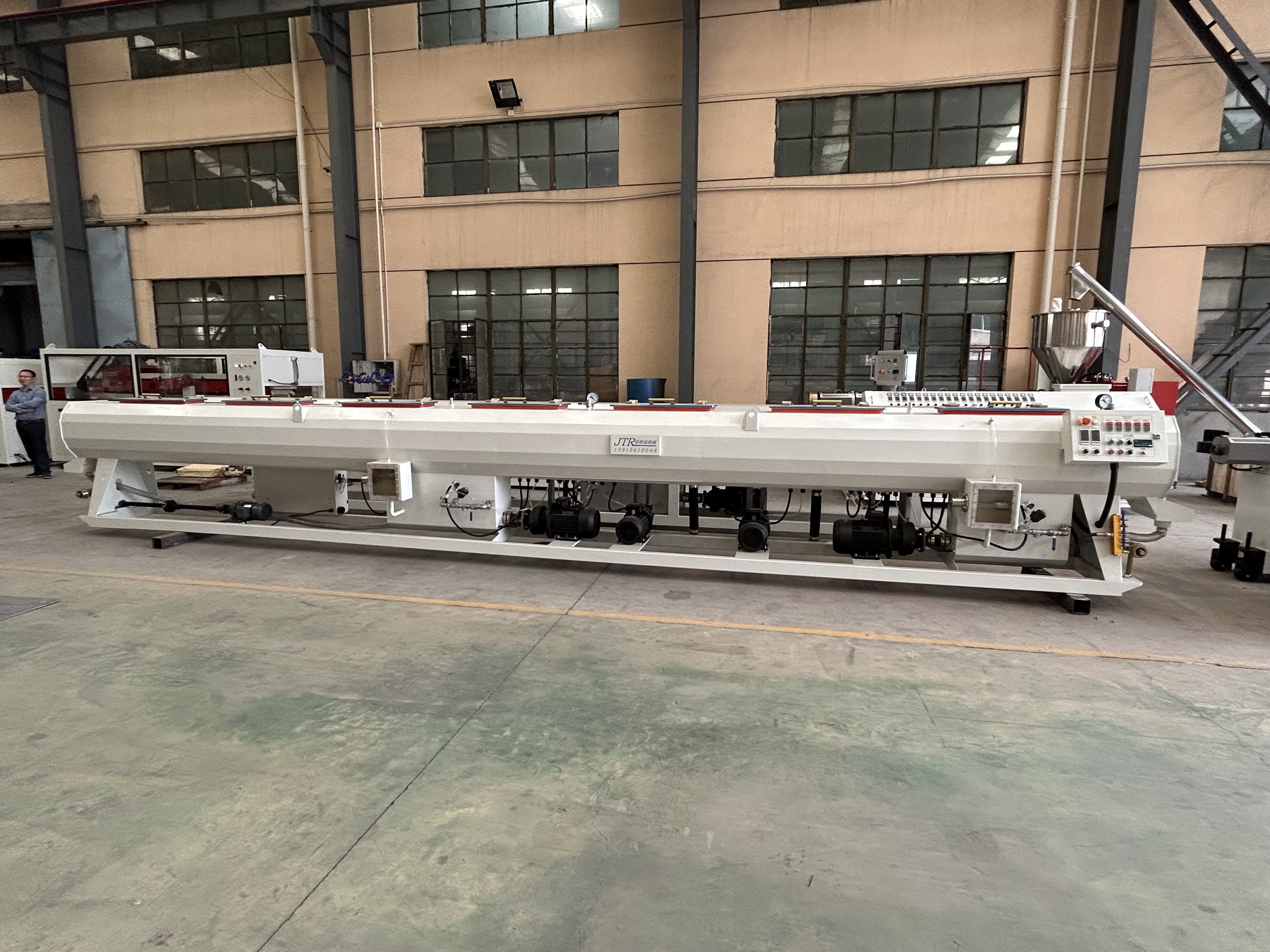

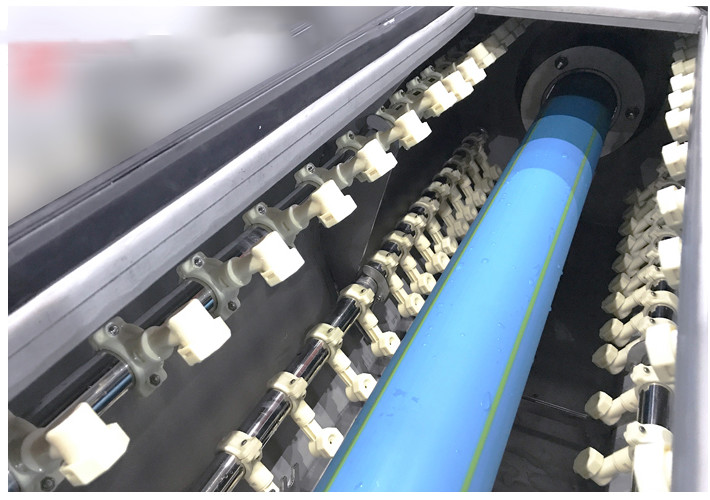

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

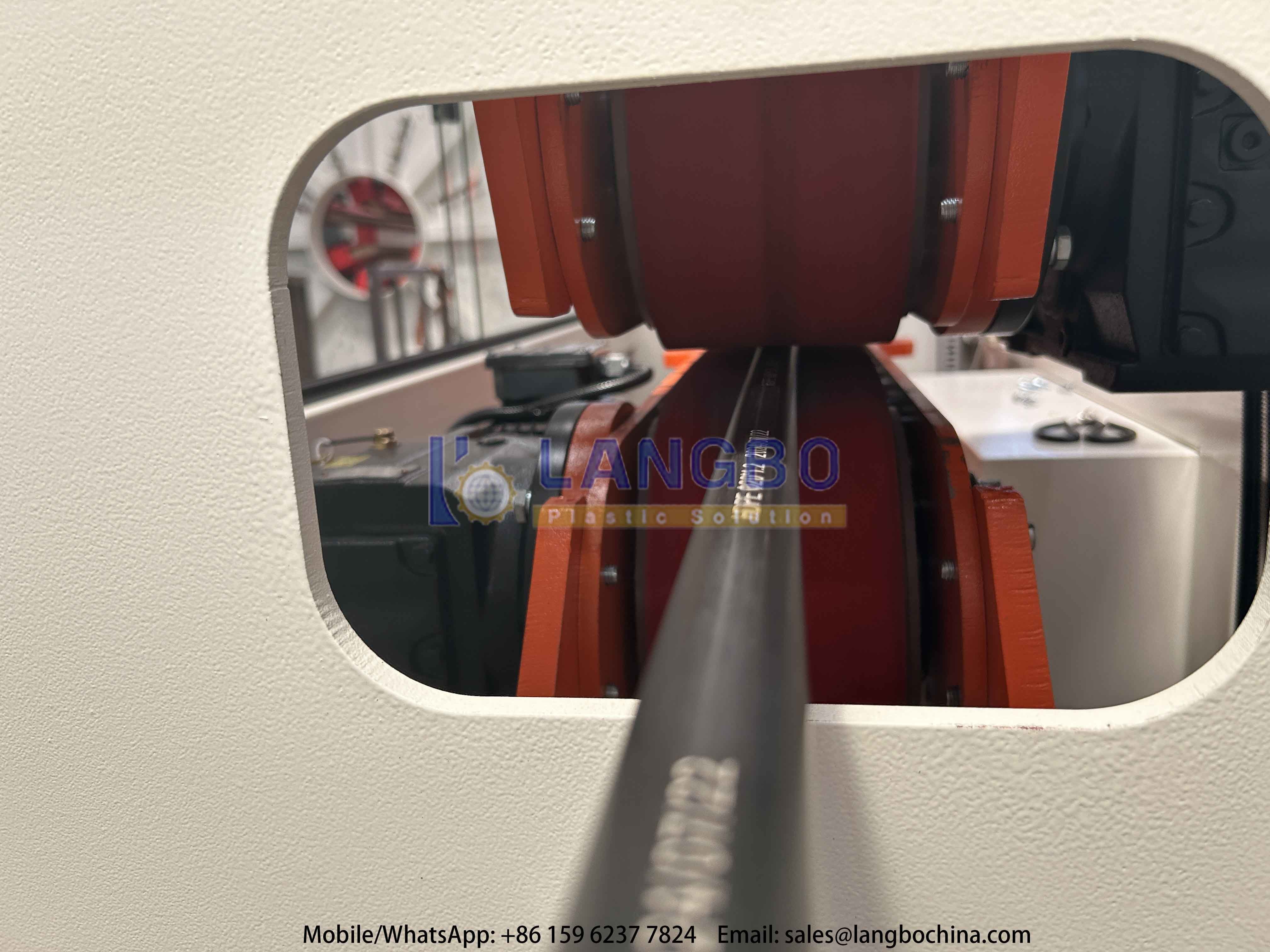

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

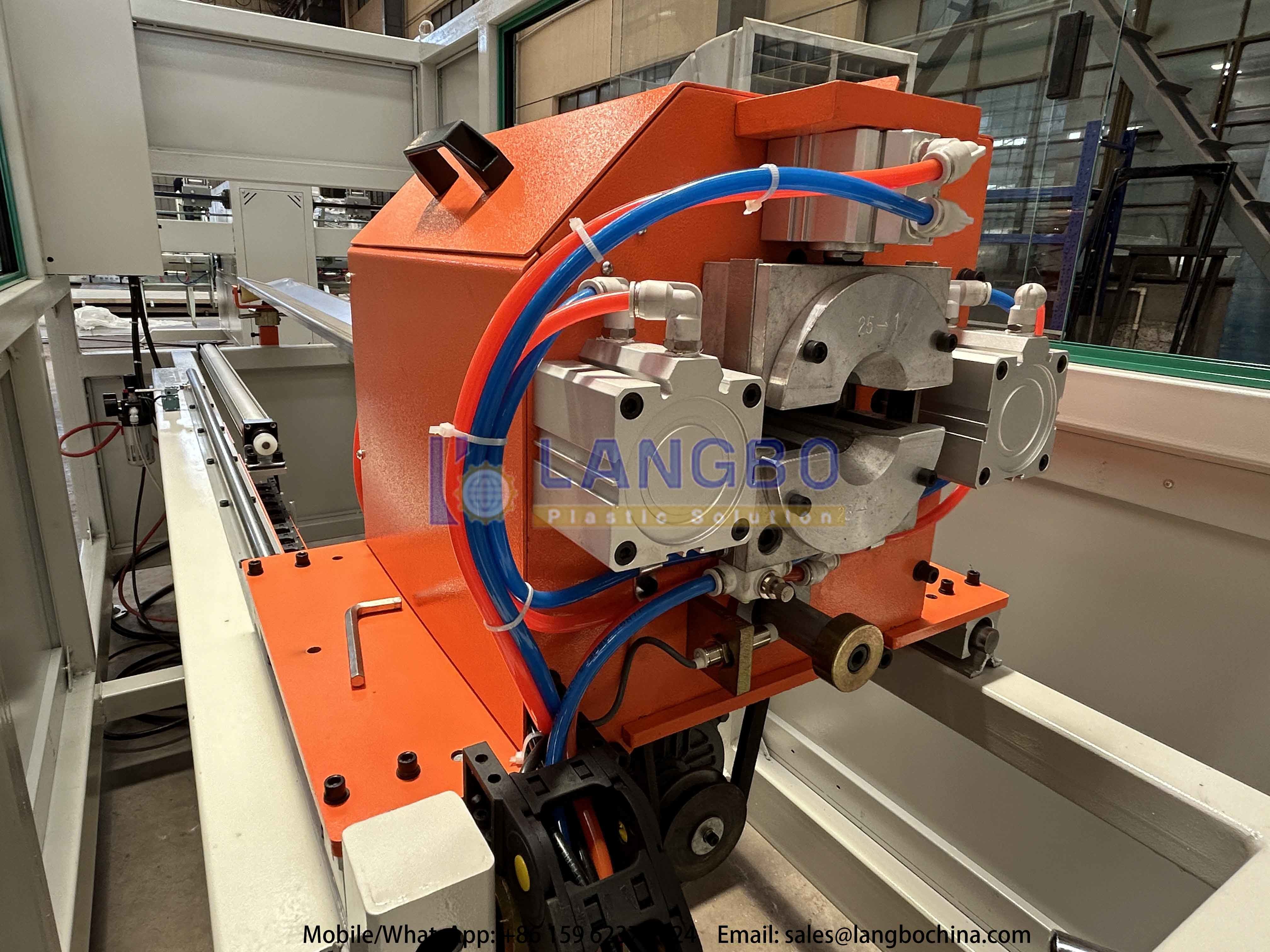

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

Optional

Extrusion Die Heads

An extrusion die head can be added to your existing extruder machine to produce 3 layer pipe with a recycled core, allowing you to save money on raw materials. DRTS always keeps at the forefront of pipe production introducing new technologies that are geared towards our customers benefit. Our technology for the production of 3 layer PE pipe has been a great success among our clients. All DRTS machinery can be also supplied and purchased as a standalone unit providing you with the ability to upgrade machines in your existing production lines.

Tech Features & Advantages

1. Installed with imported termo controllers, imported inverters or converters.

2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life.

3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.

4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.

5. We also can provide a variety of exhaust-type extruder.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
