Single Screw Extruder High Efficient Extrusion Machine for 110mm PE Water Supply Drainage Sewage Pipe Making
Our advanced Plastic PE Tube Extrusion Machine Line is designed for high-efficiency manufacturing of PE water pipes, cable conduits, and protective tubing with superior precision and durability. This fully automated production line integrates cutting-edge extrusion technology to ensure consistent wall thickness, smooth surfaces, and excellent mechanical properties.
All types of extruders are primarily used for PE plastic material extrusion. When equipped with suitable molds and downstream equipment, the extruder can produce plastic sheets, films, profiles, pipes, and other products. Single screw extruders can also be used in pelletizing applications.
PE Pipe Production Specifications
| Model |
Pipe Diameter |
Extruder |
Extruder Power |
Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Single Screw Extruder Main Characteristics
- Advanced computer module control system enables implementation of automatic control on overall production line
- Temperature control system of excellent performance ensures stable output
- Powerful driven system assures durability and easy maintenance
- Design of compulsively water-cooling and feeding grooved sleeve ensures steady production
- Low abrasion design of screw
- High fusion of material
- Gently fusion of material
- Low consumption of energy
- Even chroma and excellent effect of prefabricated mixture production
PE Pipe Production Line Components
Raw material + master batches → mixing → vacuum feeder → material dryer → single screw extruder (small CO-extruder) → mould → vacuum calibration tank → spray cooling tank (water tank) → haul-off unit → cutting machine → stacker

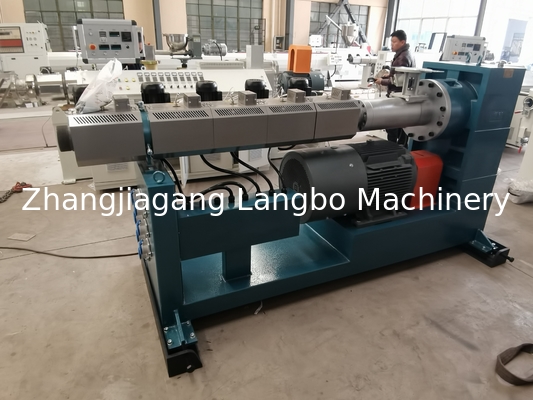

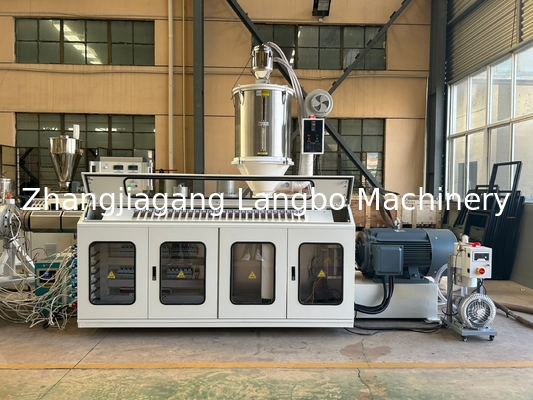

Single Screw Extruder Machine
Using high efficient single screws, specially designed for PP, PE granule material to ensure uniformed plasticization and high extrusion. Stable temperature controlling system guarantees high quality pipe extrusion.
Pipe Extrusion Mould
Spiral type die head ensures high speed extrusion and avoids thermal decomposition of amorphous plastics, resulting in high quality pipes. The mould includes heating control system for high efficiency and easy extrusion. Bronze calibrators enable fast calibration and cooling of pipes.

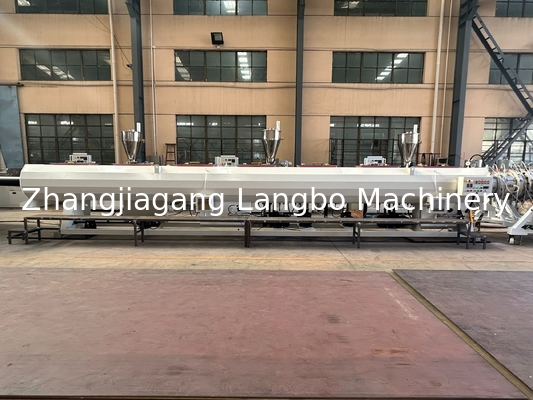

Vacuum Cooling Tank and Spraying Cooling Tanks
Rapid vacuum calibrating system allows hot extruded pipes to be cooled quickly and obtain final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve enhance pipe sizing, cooling performance, and production speed.

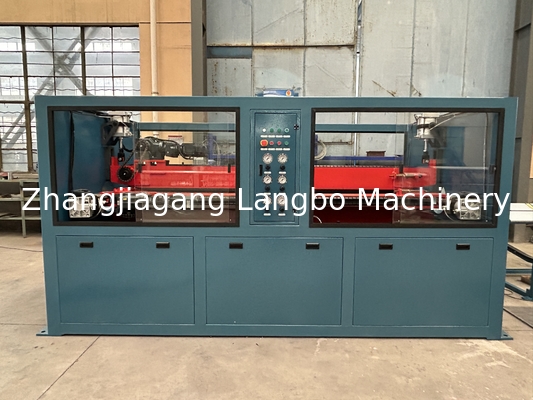

Haul Off Machine
Adopts crawler track type with various claw configurations (two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve-claw types) suitable for different pipe sizes. Haul off crawler track blocks are made of abrasion resistant rubber material for high and stable hauling speed.

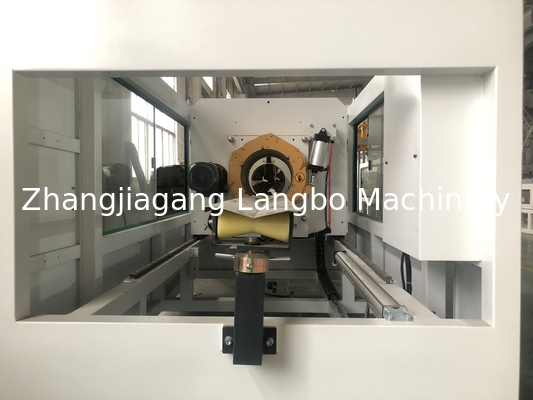

Cutting Machine
Precision machine cutter makes flat, straight cuts into pipes at high speed. Powerful suction device gathers waste scraps after cutting for easy cleaning.
Pipe Stacker or Pipe Coiler
Automatic pipe stacker for packing pipes; pipe coiler for small PE pipes (16-40mm, 16-75mm, 50-110mm).
Product Images
Pre- and After-Sale Services
- Extensive industry experience
- Consistent focus on highest quality standards
- Complete twin pipe vacuum sizing system
- Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device
- Optional length set and accurate adaption stacker
- Highly motivated technical team
- Sophisticated process technology
- Customized solutions for specific requirements
Our Manufacturing Facility
Industry Exhibition Participation
Global Shipping and Logistics
