APPLICATION:

Single screw extrusion uses one screw within a cylindrical barrel to continuously push plastic through a constant profile die. Production rate is typically measured in mass per hour (lb/hour or kg/hour) and is controlled by the screw speed of the machine.Single-screw extruders are used extensively in the plastics industry for melting polymers,incorporating additives (for example fillers, colouring pigments, stabilizers) and delivering a homogenized melt at high pressure to a die prior to shaping processes.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

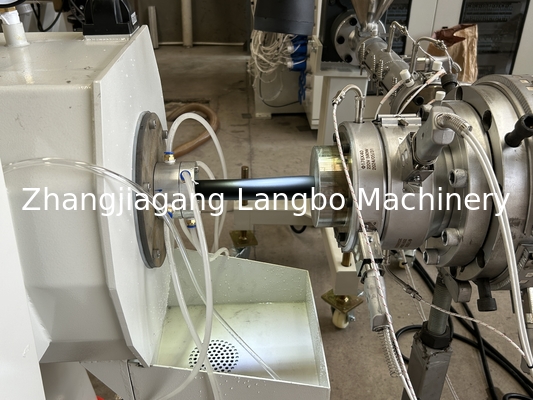

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

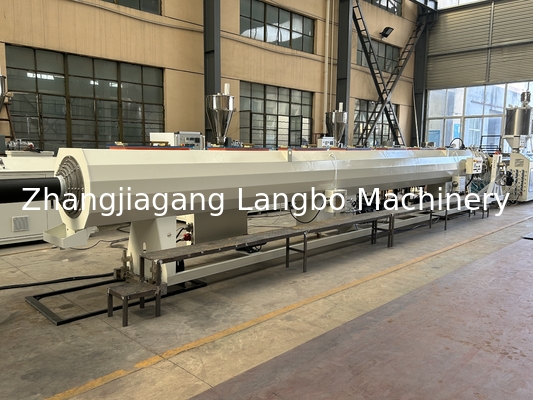

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

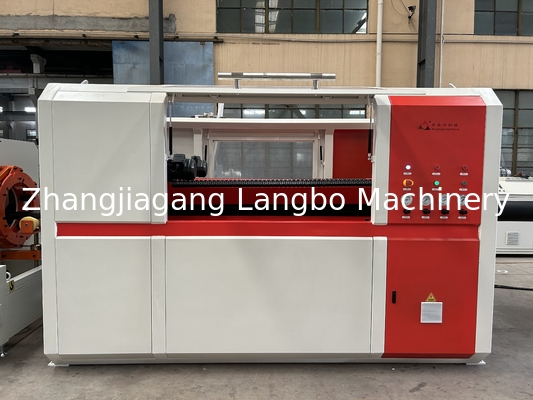

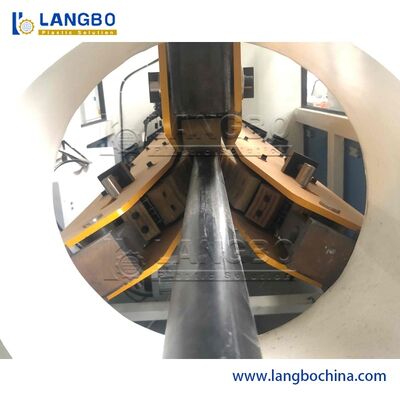

Haul Off (Puller) Machine

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

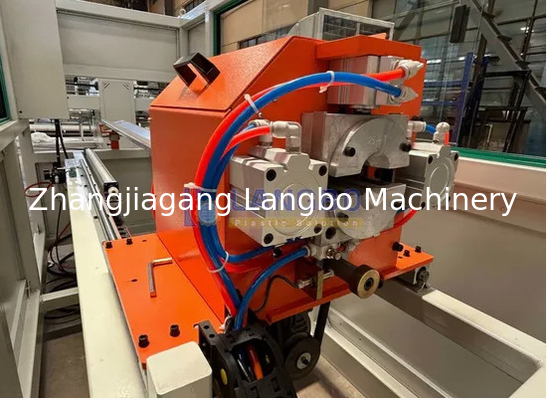

Cutter Machine

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

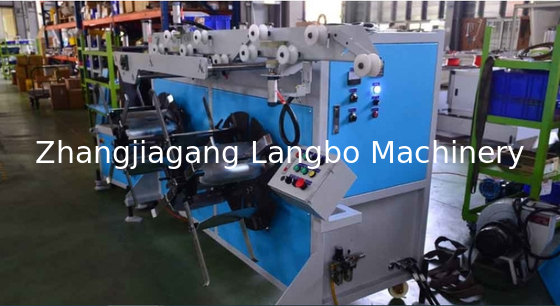

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PE Pipe Extrusion Machine Main Features:

1. Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .
2. Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing, air-cooling hot-cut pelletizing, water-ring pelletizing, under water pelletizing, etc.
3. Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear-resistant.
4. Barrels are made of high quality nitrided steel , corrosion proof and antifriction.
5. Vacuum system fulfills devolatilization to ensure the quality of polymer processing.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
