PE Polypropylene Flexible Single Wall Corrugated Tube Pipe Making Machine
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Flexible Corrugated Tube Making Machine,pe single pipe production line,Polypropylene plastic pipe extrusion line |
||
Product Description
PE Polypropylene Flexible Single Wall Corrugated Tube Pipe Making Machine
APPLICATION:
series plastic single wall corrugated pipe extrusion line can produce PE corrugated pipe.Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, and smooth surface.By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Description of the production process

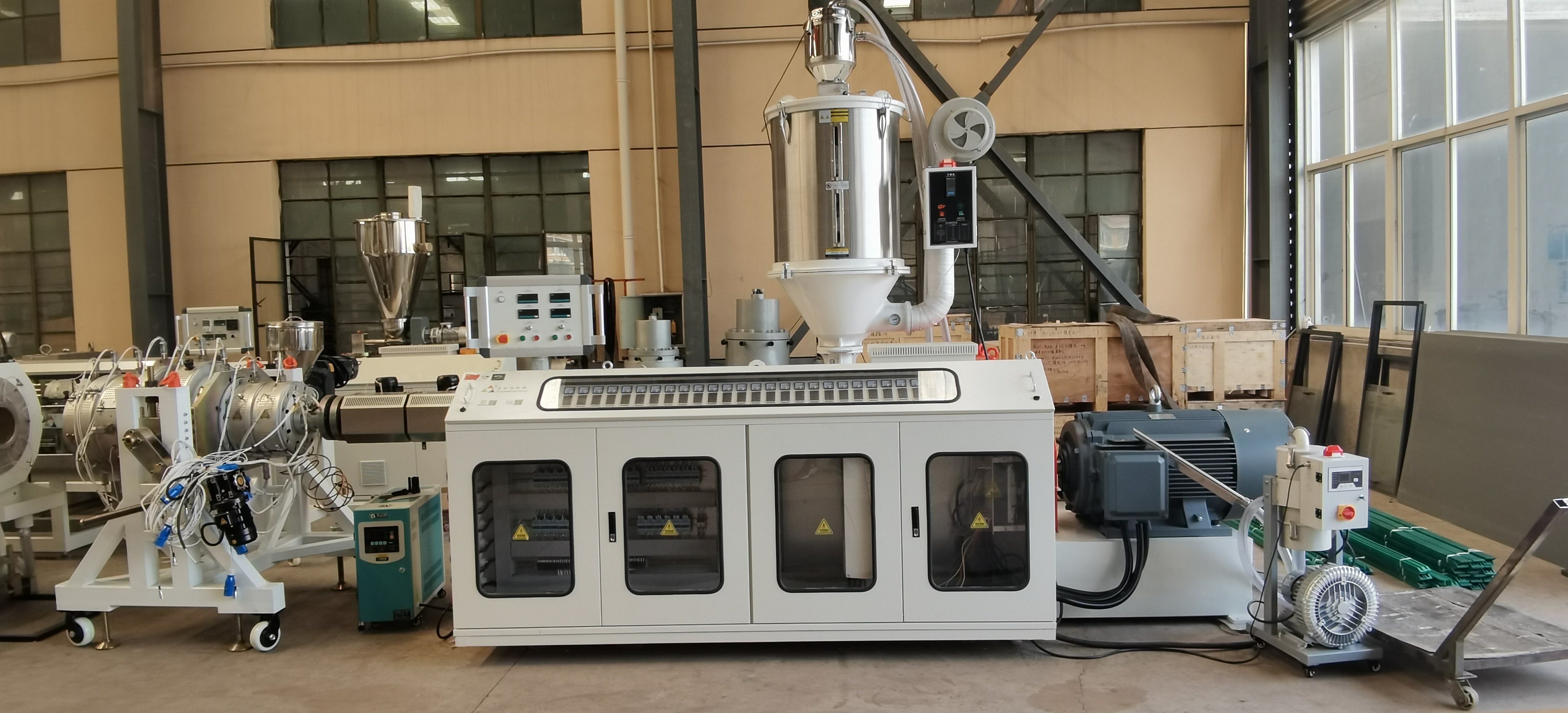

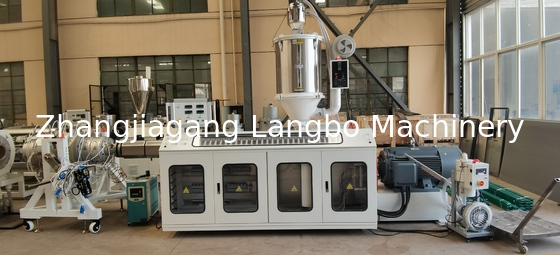

Single screw extruder with auto feeding machine.
Extruder size according to different requirements of pipe diameter.
Pipe forming machine with forming mould
The forming machine can make vacuum type and normal type.
Vacuum type is suitable for making the corrugated pipe which with joint. Like washing machine pipe, shisha hookah hose etc.

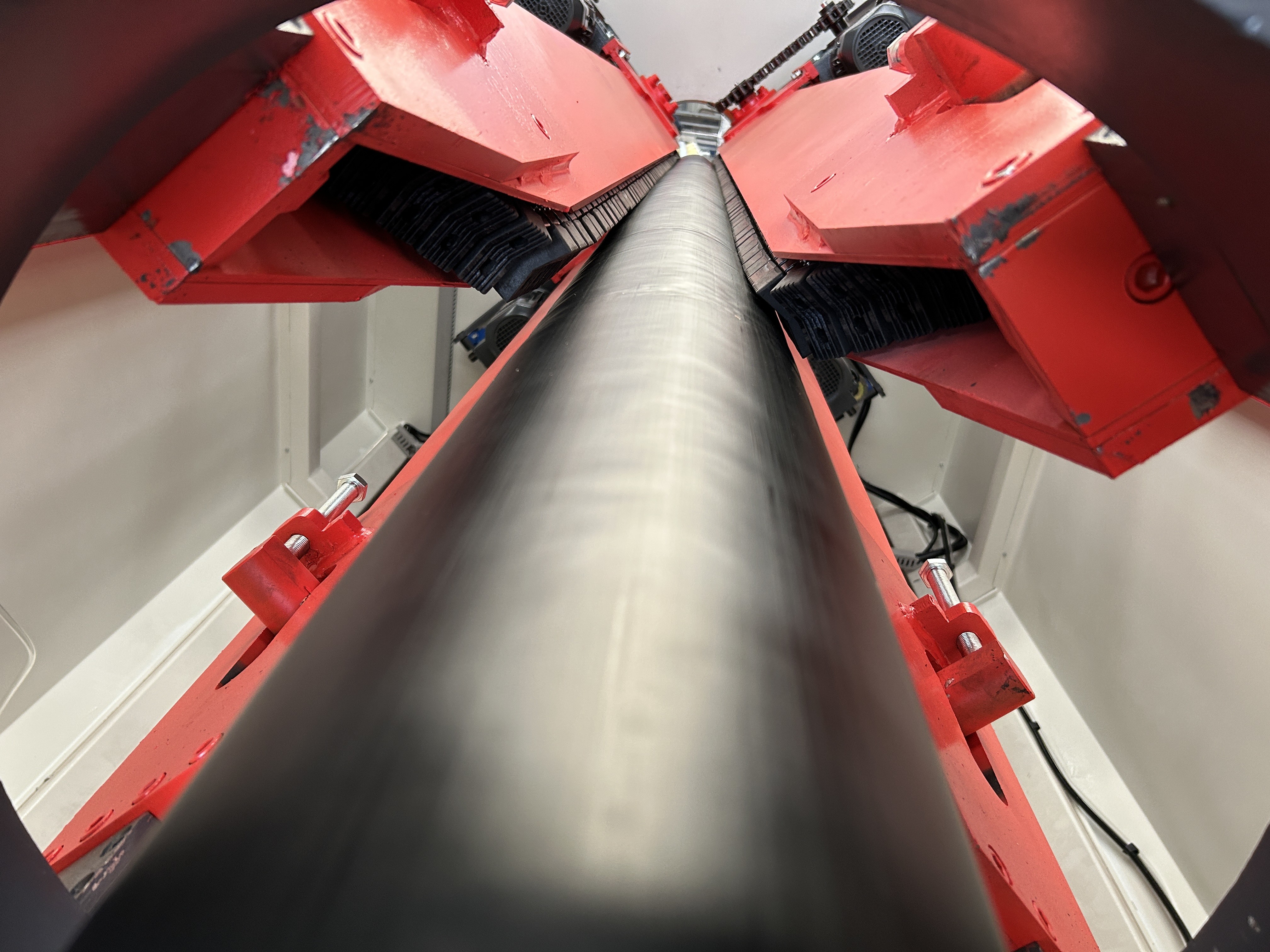

Haul Off (Puller) Machine

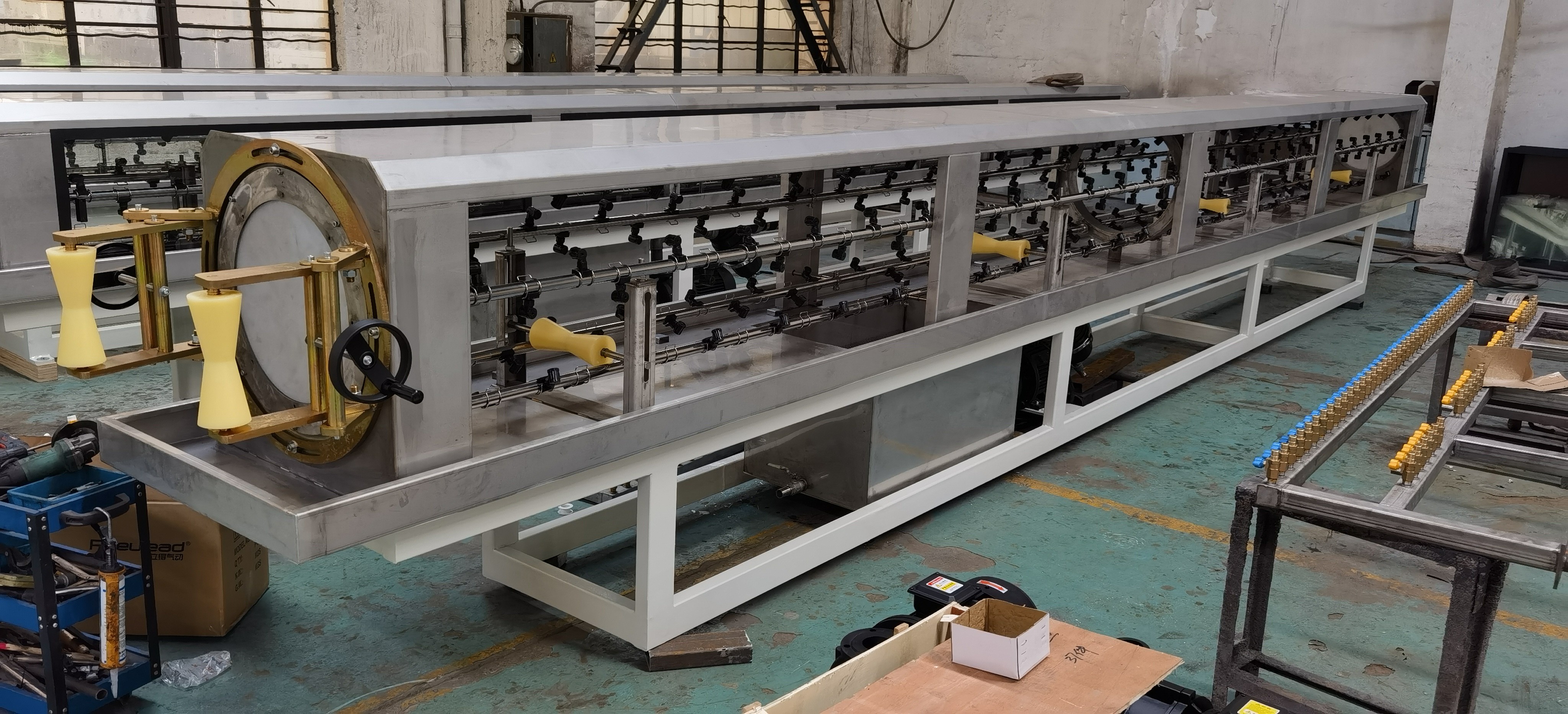

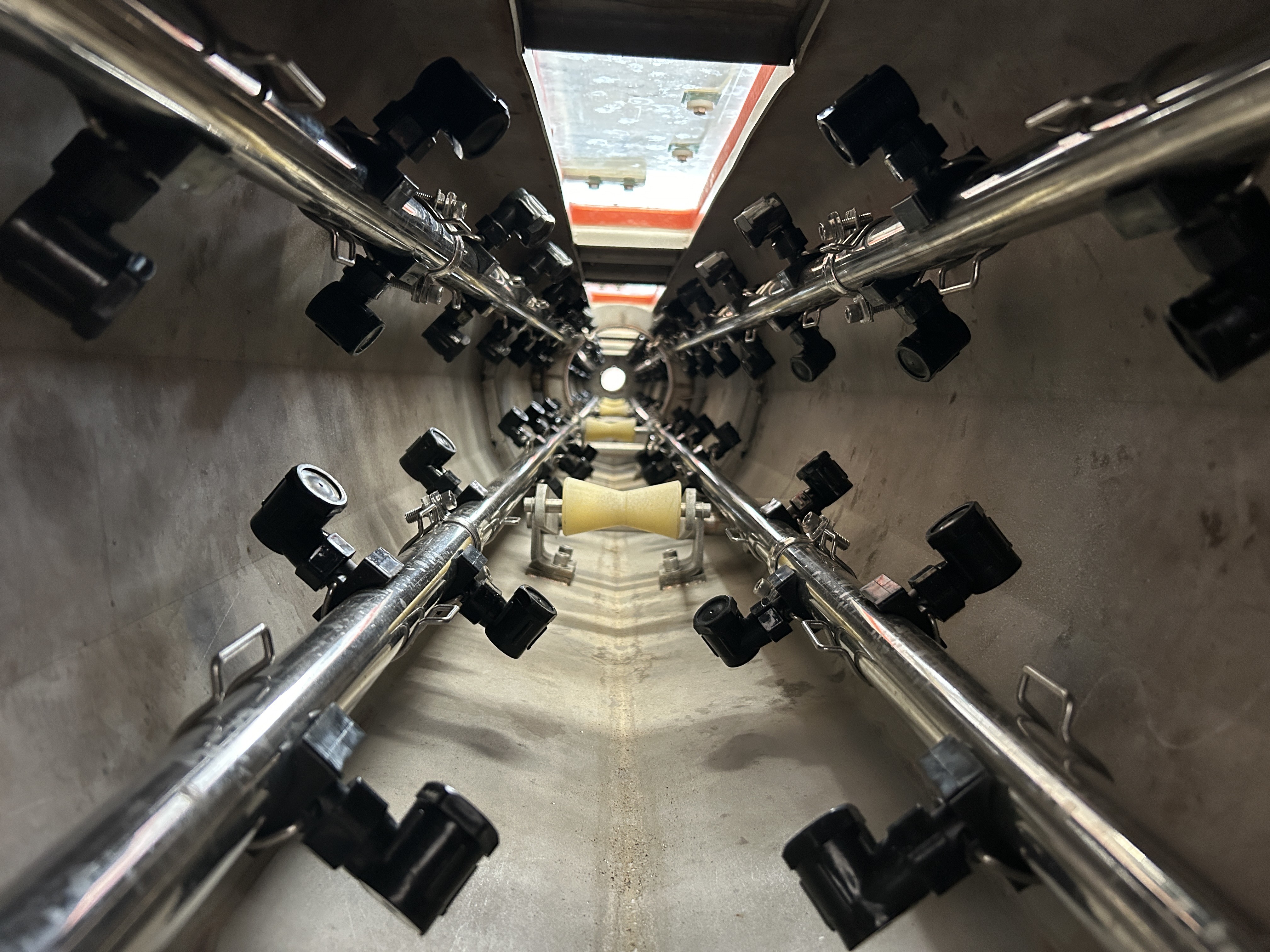

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

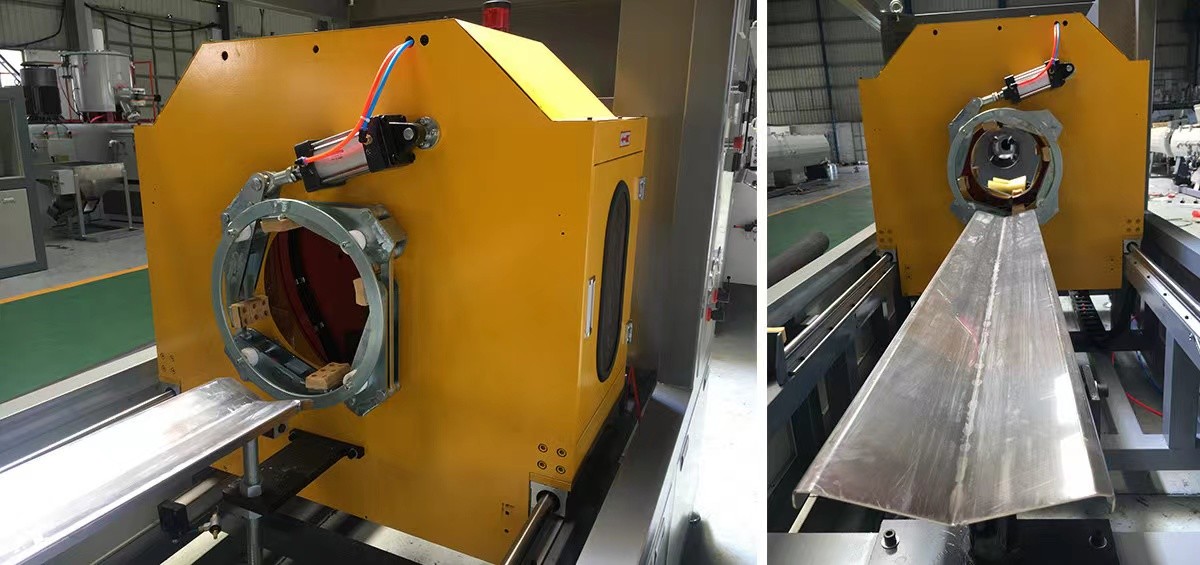

Cutter Machine
The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.
Accumulator Machine
An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.
Coiler Machine
The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

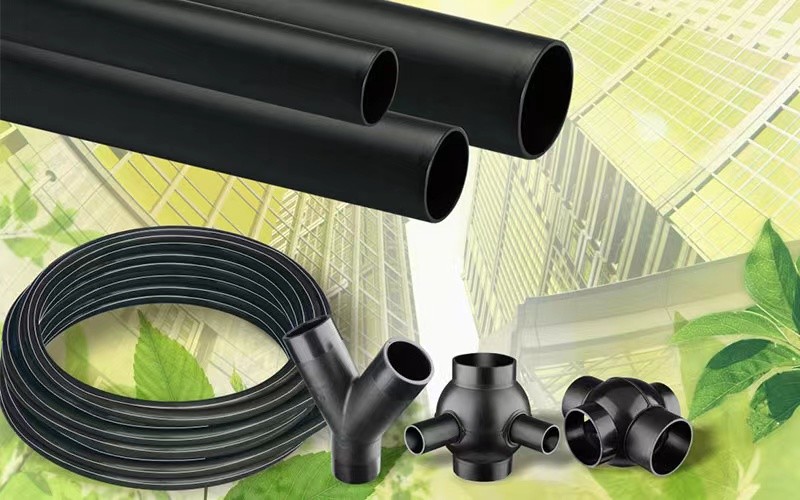

PE Single Wall Corrugated Pipe application
Plastic corrugated pipe has the characteristics of light weight, strong bearing pressure, excellent bending performance and easy construction. Compared with other drainage materials, plastic bellows have the advantages of strong corrosion resistance, strong water permeability and high cost performance.
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
we will offer customers spare parts at cost prices all life long of the machines.
