LD Ratio 33 1 Full Automatic Single Screw Extruder For PE HDPE Pipe Manufacturing
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
Full-automatic Single Screw Extruder,PE HDPE Pipe Manufacturing Extruder |
||
Product Description
Single Screw Extruder PE HDPE Pipe Making Machine
APPLICATION:
It is mainly composed of Main extruder, sub-extruder, die-head, vacuum tank, haul off, and winding machine auto cutting machine and auto stacker
Usage: HDPE pipe making machine can produce one layer/two layers HDPE pipes, good performance and low noise.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Details description
PE pipe production line comes with all the necessary machinery you need to start manufacturing high quality PE pipe. From the single screw extruders comprised of quality components to a high speed servo powered puller machines we offer you everything you need to become a successful pipe manufacturer.

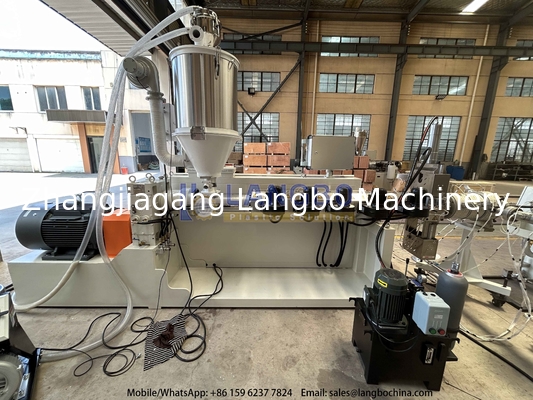

Material Feeding
PE/HDPE raw material is fed into the hopper of the single-screw extruder.
Melting & Extrusion
The material is heated and melted inside the extruder barrel, then pushed through a die head to form a continuous pipe shape.
Vacuum Calibration (Sizing)
The molten pipe passes through a vacuum calibration tank to ensure precise diameter and roundness.

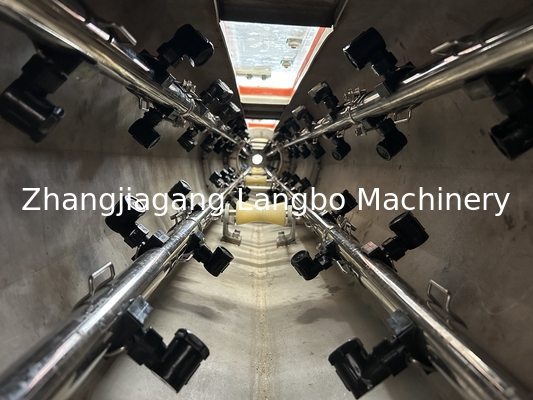

Cooling
The pipe enters a cooling water tank to solidify and maintain its shape.

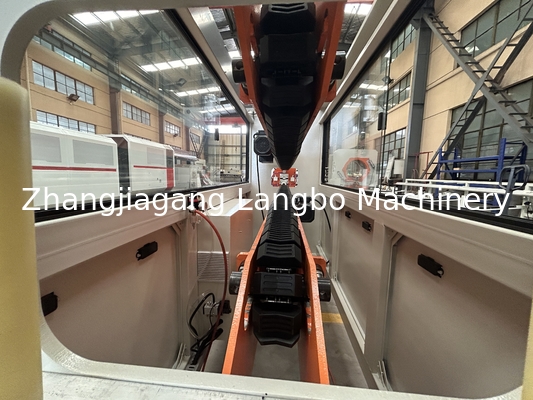

Haul-Off (Pulling)
An automatic haul-off unit pulls the pipe at a controlled speed to maintain consistency.

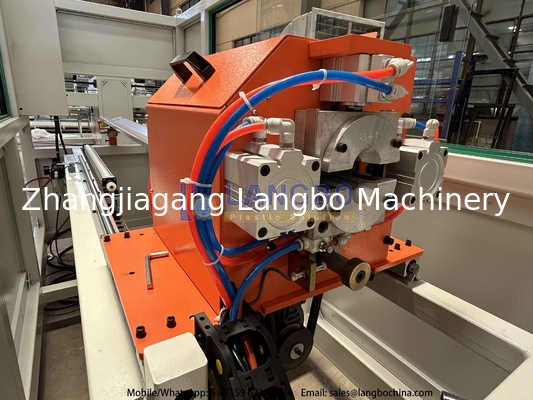

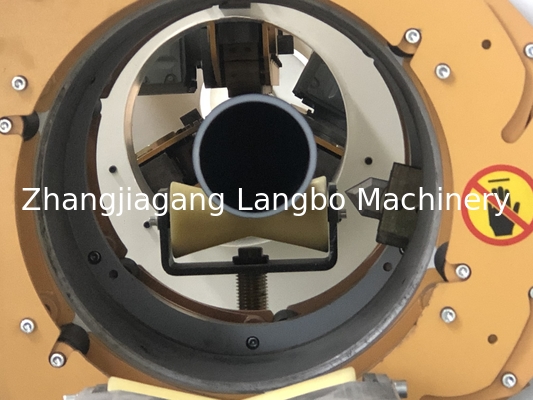

Cutting
A cutting device trims the pipe to the desired length.
Stacking & Packaging
The finished pipes are collected, inspected, and packaged for delivery.
Advantages
Single-Screw extruder with high torque and stable output
Advanced vacuum sizing system for precise diameter control
Efficient cooling system for uniform pipe solidification
Automatic haul-off & cutting unit for consistent pipe length
PLC control system for easy operation and monitoring
Durable construction for long-term reliability
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
