Plastic PE Pipe HDPE Tube Extrusion Extrusion Machine PE Large Pipe Making Machine Production Line

Plastic PE Pipe HDPE Tube Extrusion Extrusion Machine PE Large Pipe Making Machine Production Line

APPLICATION:

Double inverter,the wire tension is adjusted automatic Nil-pulley design, high effeciency Save energy from 20% to 25% compared with tranditional machine Use import componets to keep the quality.

Our PE Pipe Extrusion Production Line is designed for manufacturing high-quality HDPE (High-Density Polyethylene) and PE (Polyethylene) pipes in various diameters, including large-scale pipes for industrial, agricultural, and municipal applications. This advanced extrusion line ensures high precision, durability, and energy efficiency, making it ideal for producing pipes used in water supply, drainage, gas distribution, and irrigation systems.

PE PIPE PRODUCTION SPECIFICATIONS:

Technological processes

[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]

Material Feeding & Drying

High-quality PE resin (HDPE/MDPE) is loaded into the hopper, then dried (if necessary) to remove moisture for optimal extrusion.

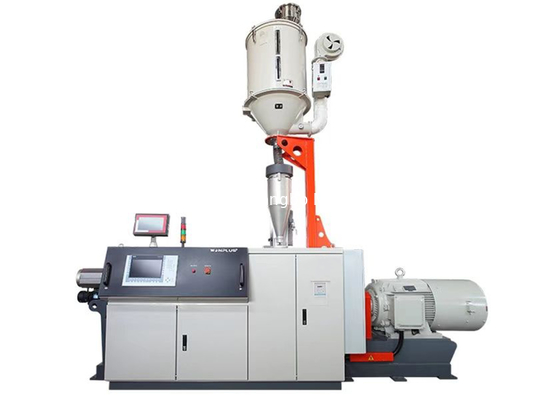

Extrusion & Melting

The material is fed into the extruder barrel, where a rotating screw heats and melts it (160–220°C) into a homogeneous molten state.

Pipe Formation

The molten PE is forced through a die head, shaping it into a continuous pipe with precise diameter and wall thickness.

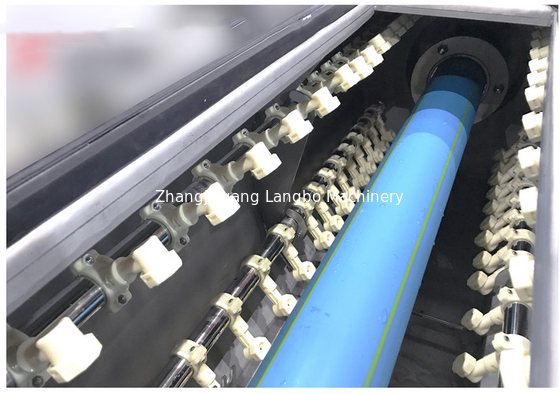

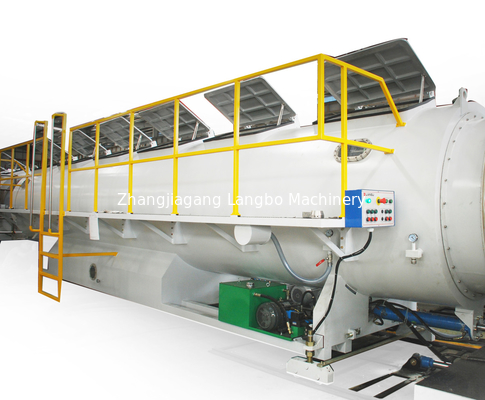

Cooling & Sizing

The pipe enters a vacuum calibration tank for rapid cooling and dimensional stabilization, ensuring consistent size and roundness.

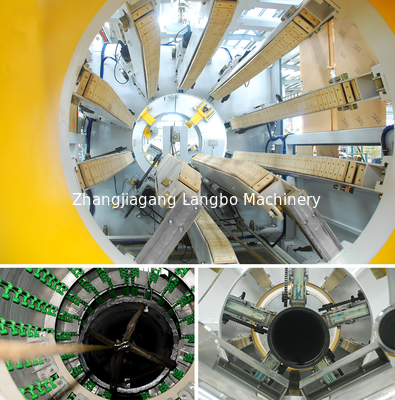

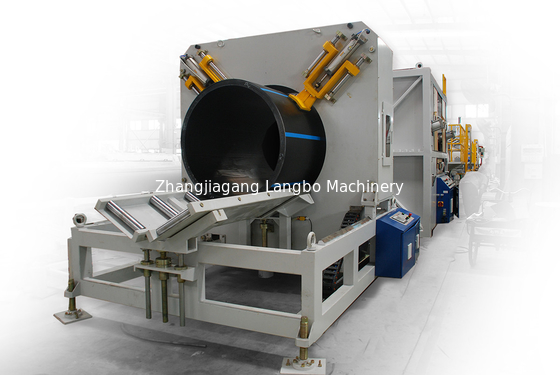

Hauling & Cutting

Pullers grip the pipe, maintaining tension while it’s cut to specified lengths by an automatic saw.

Inspection & Stacking

Pipes undergo quality checks (pressure, thickness, surface finish) before being stacked or coiled for packaging.

Packaging & Storage

Finished pipes are labeled, packed, and stored for shipment.

Advantages:

High-speed extrusion for efficient production

PLC control system for precision operation

Energy-saving design with stable performance

Suitable for HDPE, PE100, PE80, and other polyethylene materials

Customizable for different pipe diameters (from small to large-scale pipes)

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
