315mm PE Drain Tube Plastic Sewage Pipe Making Extruder Machine

315mm PE Drain Tube Plastic Sewage Pipe Making Extruder Machine

APPLICATION:

1. PE HDPE PPR pipe extrusion machine line is a specialized equipment used for manufacturing high-density polyethylene (HDPE) and polypropylene random copolymer (PPR) pipes.
2. This machine line is designed to produce pipes of various diameters and lengths, meeting the specific requirements of different applications.
3. The extrusion process involves melting the raw material, such as PE or PPR granules, and forcing it through a die to create a continuous pipe shape.
4. The machine line consists of several components, including an extruder, a die head, a vacuum calibration tank, a haul-off unit, and a cutting machine.

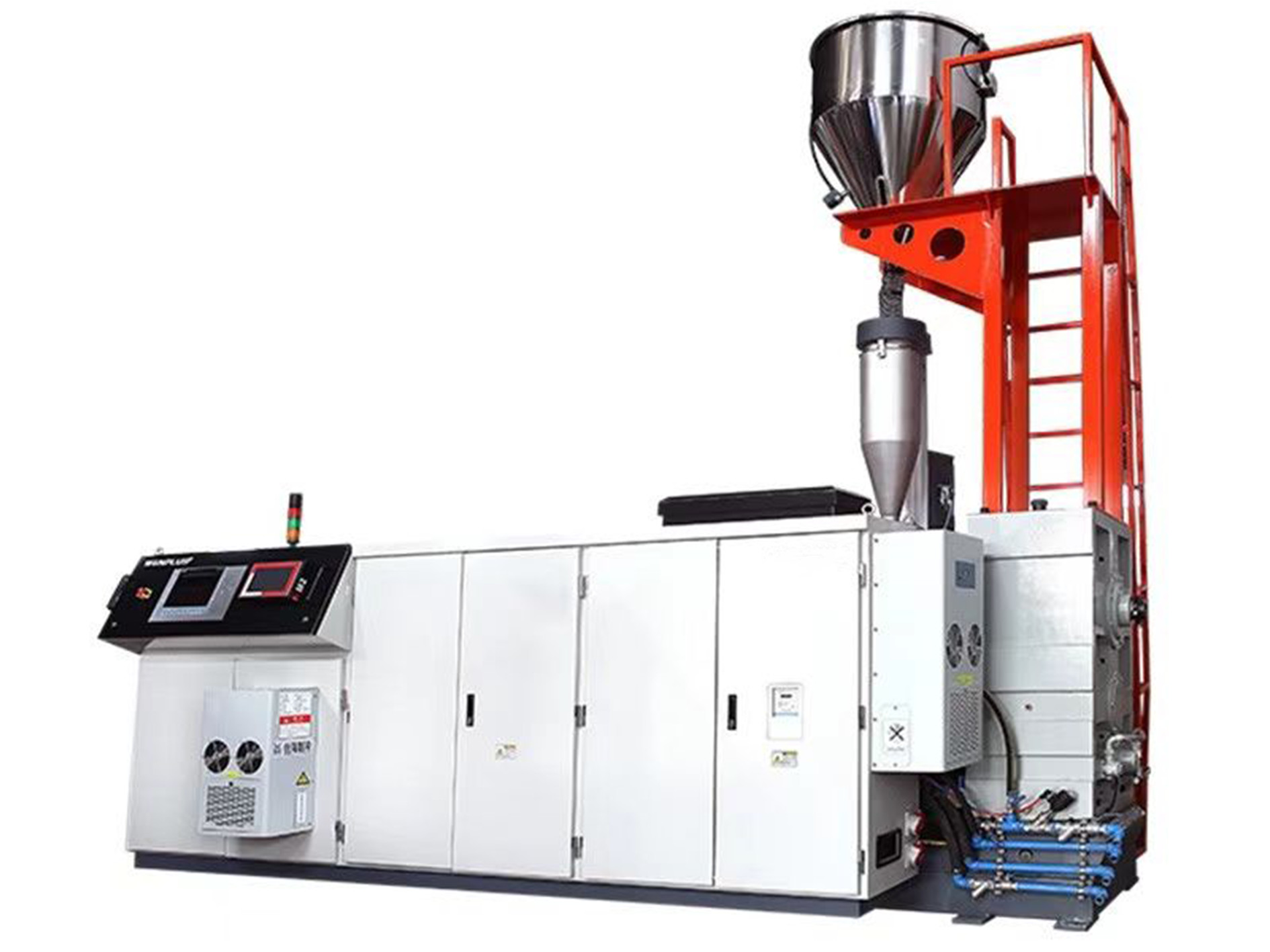

5. The extruder is the main part of the machine, responsible for melting and homogenizing the polymer material before it is extruded through the die.
6. The die head determines the final shape and dimensions of the pipe, and it can be customized to produce pipes of various sizes and specifications.
7. The vacuum calibration tank is used to cool and solidify the extruded pipe, ensuring its dimensional accuracy and preventing deformation.
8. The haul-off unit pulls the pipe at a constant speed, controlling its tension and preventing sagging or stretching during the production process.
9. Finally, the cutting machine cuts the extruded pipe into desired lengths, ready for packaging and distribution.

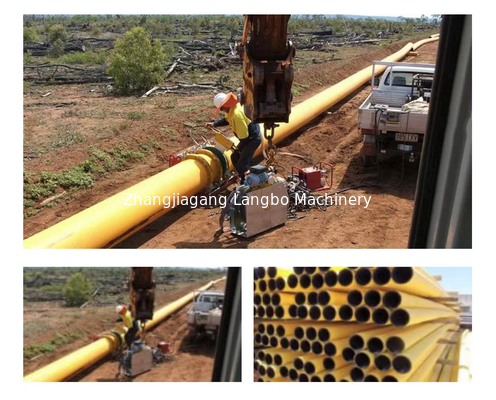

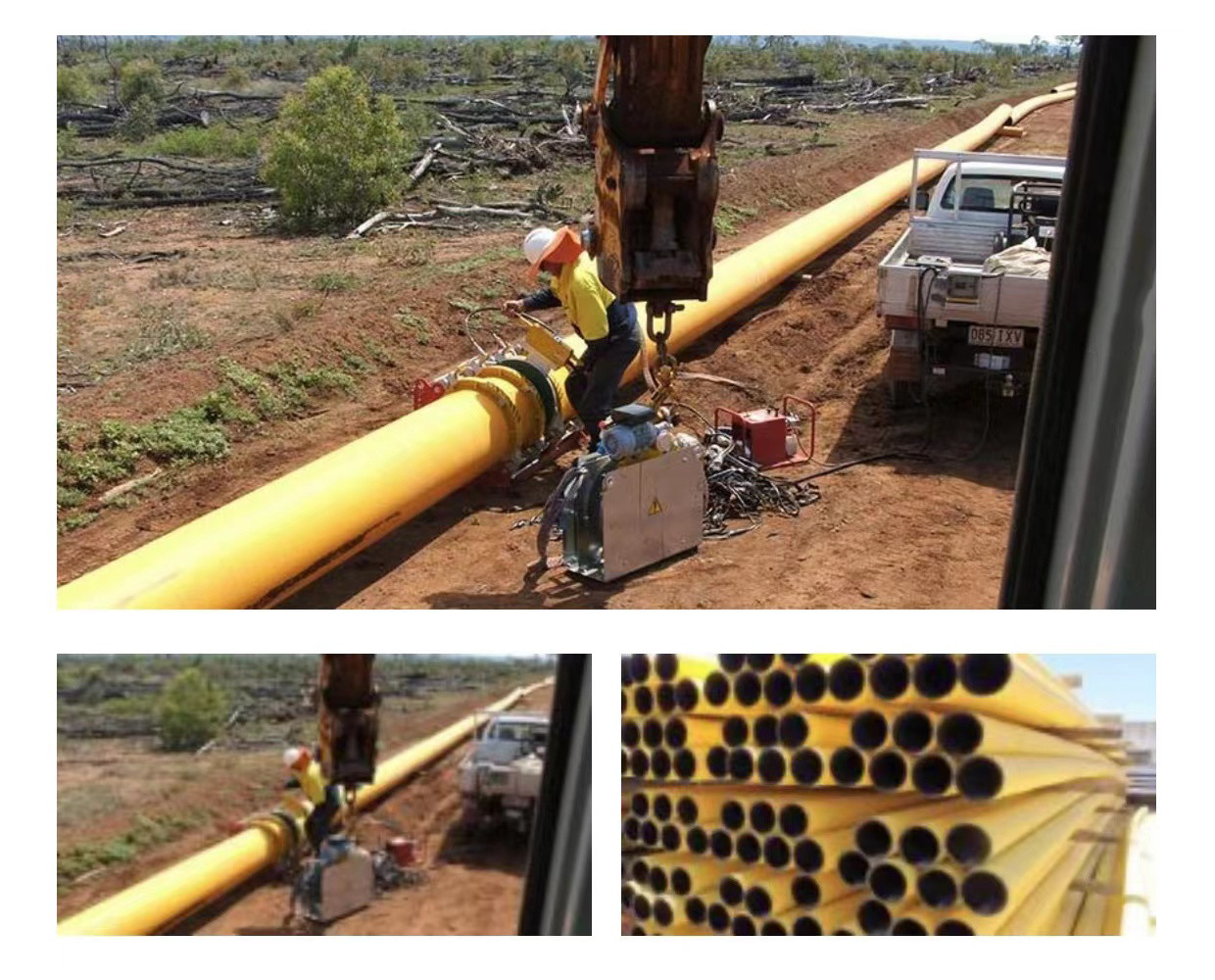

10. PE HDPE PPR pipe extrusion machine line is widely used in industries such as construction, agriculture, and plumbing, providing a cost-effective and efficient solution for pipe manufacturing.

PE PIPE PRODUCTION SPECIFICATIONS:

Technological processes

[Feeding&Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting] → [Marking]

Material Feeding & Drying

High-quality PE resin (HDPE/MDPE) is loaded into the hopper, then dried (if necessary) to remove moisture for optimal extrusion.

Extrusion & Melting

The material is fed into the extruder barrel, where a rotating screw heats and melts it (160–220°C) into a homogeneous molten state.

PE pipe Mold

common speed and high speed design

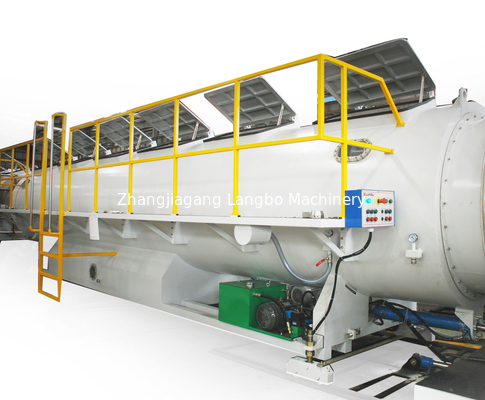

Cooling & Sizing

The pipe enters a vacuum calibration tank for rapid cooling and dimensional stabilization, ensuring consistent size and roundness.

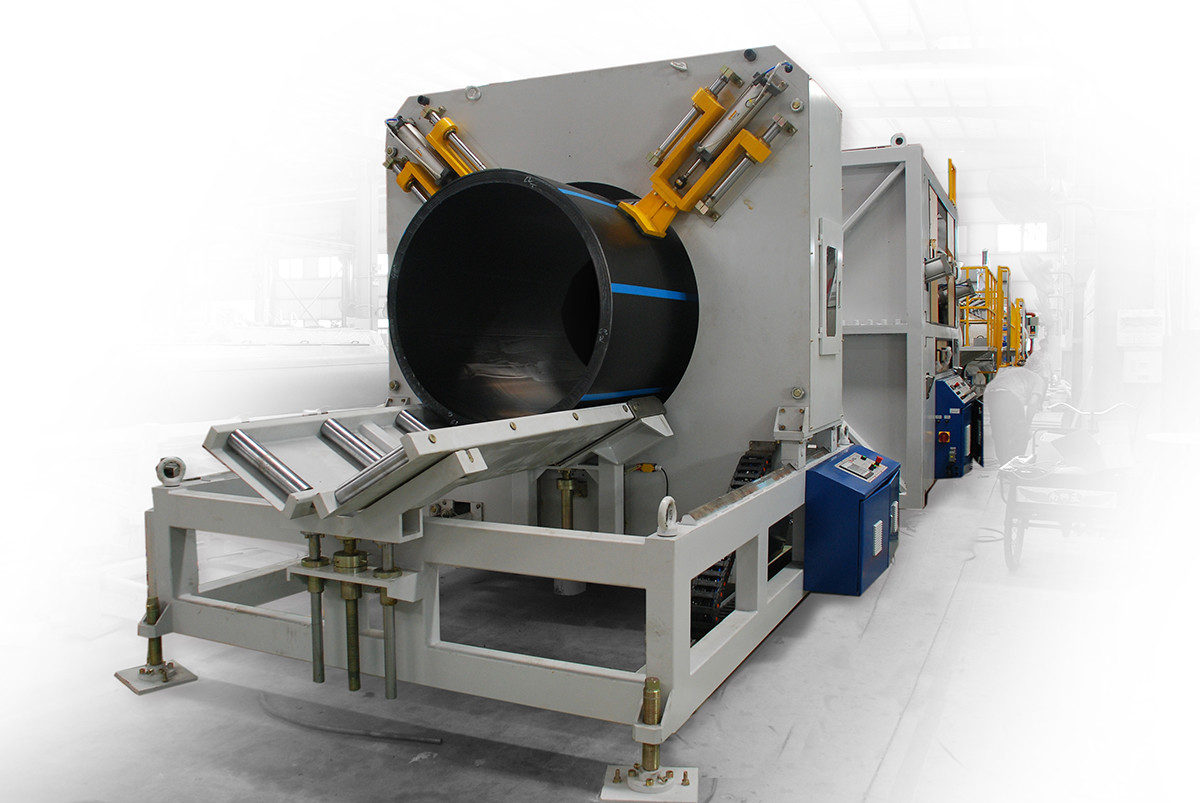

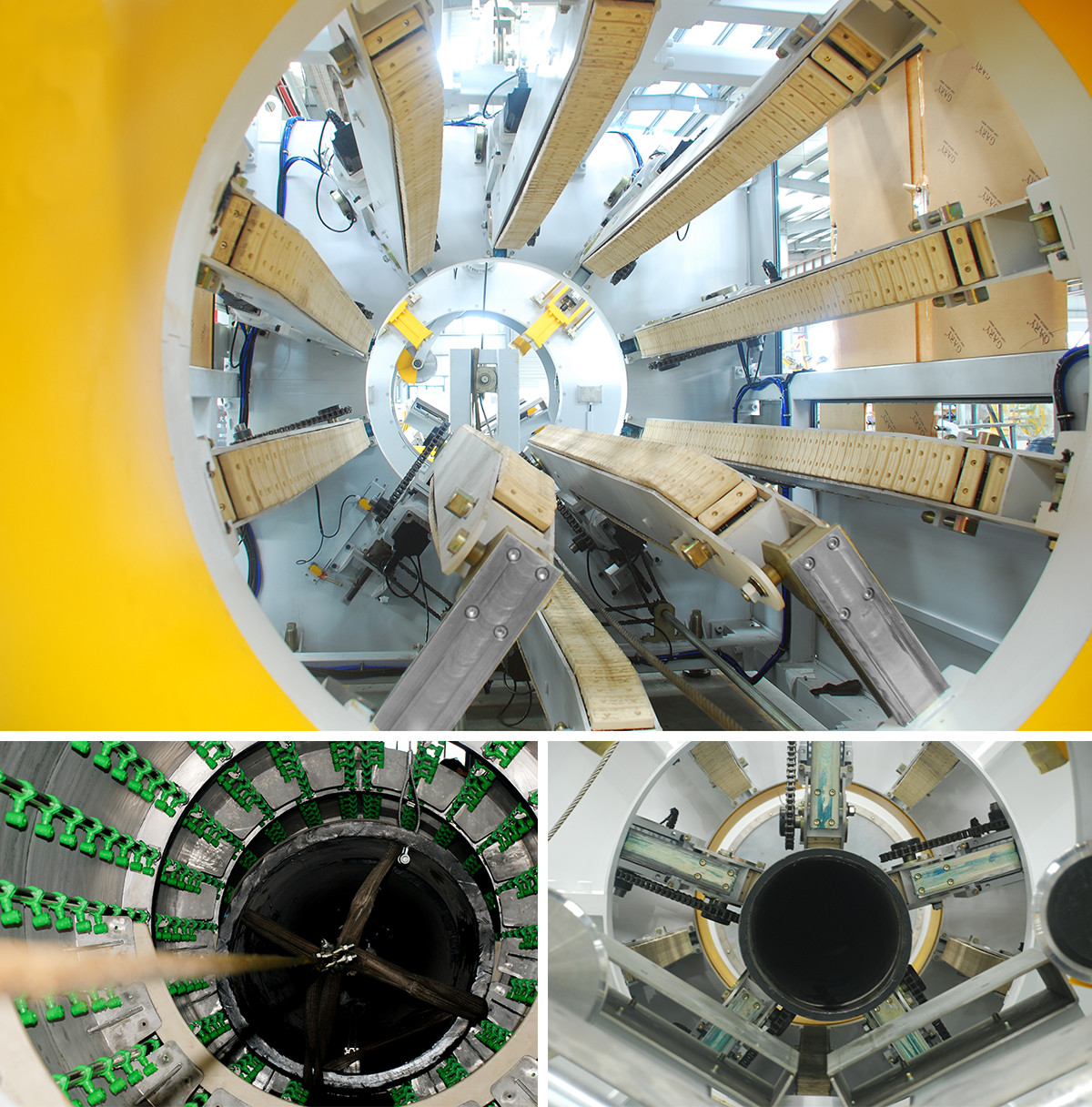

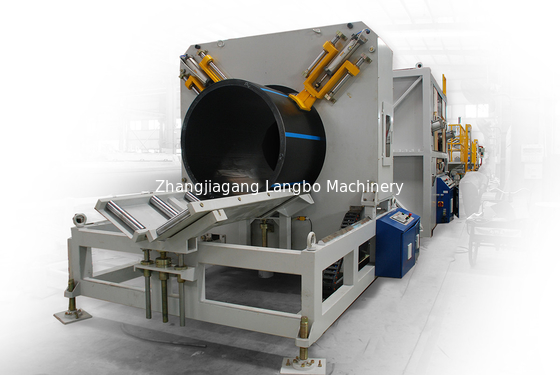

Hauling & Cutting

Pullers grip the pipe, maintaining tension while it’s cut to specified lengths by an automatic saw.

Inspection & Stacking

Pipes undergo quality checks (pressure, thickness, surface finish) before being stacked or coiled for packaging.

Packaging & Storage

Finished pipes are labeled, packed, and stored for shipment.

Advantages:
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world


PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
