Dependable Co Extrusion Crust Foam Celuka Forex Skinning Foam Board Sheet Extruder Line
Product Details
| EXTRUDER MODEL: | SINGLE SCREW EXTRUDET | PROFILE'S SIZE: | MAX. 2140MM |
|---|---|---|---|
| Single Screw Extruder: | SJ 120/35 | RAW MATERIAL: | PP PELLETS |
| CUTTER: | SAW CUTTER | Voltage: | 380V 50HZ 3Phase(Customized) |
| Inverter: | ABB | Application: | CONSTRUCTION |
| Warranty: | 12 Months After Installation In Local Place | COLOR: | Depand On Customers' Demand |
| PACKING METHOD: | FILM OR WOODEN BOXES | ||
| Highlight |
Crust Foam Board Sheet Extruder Line,Dependable plastic production line |
||
Product Description
Co-Extrusion Crust Foam Celuka Forex Skinning Foam Board Sheet Extruder Line
Short description
PP hollow grid corrugated sheet making machine can produce the sheet with the width of 1000-2800mm.We can provide all auxiliary machine for plastic pp hollow sheet to make box,suas as the edge sealing machine,die cutting machine,printing machine,welding machine etc.PP hollow grid corrugated sheet is widely used in fields of machine,electron,appliance,food,advertising,interior decoration material,glass,agricultural product ext packing and transporting.
The technical data of PP hollow grid corrugated sheet making machine
| Model | Sheet width | Sheet thickness | Extruder model | Motor power |
| LB-1400 | 1250mm | 2-6,8-12mm | 100/36 | 55-75kw |
| LB-1860 | 1700mm | 2-6,8-12mm | 120/36 | 75-90kw |
| LB-2300 | 2150mm | 2-6,8-12mm | 120/36 | 90-110kw |
| LB-2600 | 2450mm | 2-6,8-12mm | 120/36 | 90-110kw |
| LB-3000 | 2800mm | 2-6,8-12mm | 150/36 | 132kw |
| LB-2600(F) | 2450mm | 2-6,8-12mm | 120/36&80/36 | 110+37kw |
Main parts of PP hollow grid corrugated sheet making machine

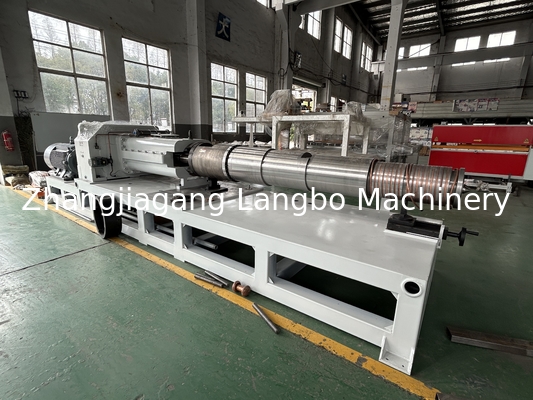

Single Screw Extruder
The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.We also have the co-extrusion type to use the recycled plastic to reduce the cost with high quality products.
High quality mould
Material:high quality alloy steel
Equipped with :Screen changer ,Melting pump ,Accuracy control device
Size can be customized by requirement
High quality mould
Material:high quality alloy steel
Equipped with :Screen changer ,Melting pump ,Accuracy control device
Size can be customized by requirement

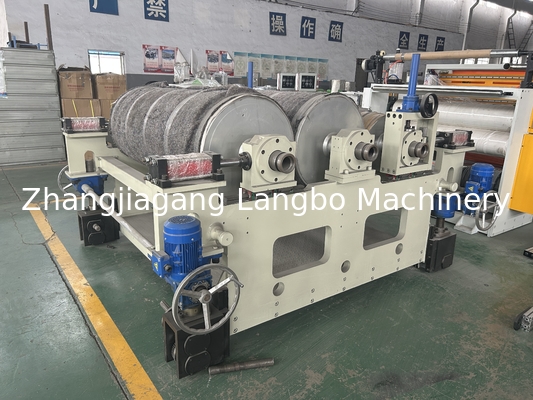

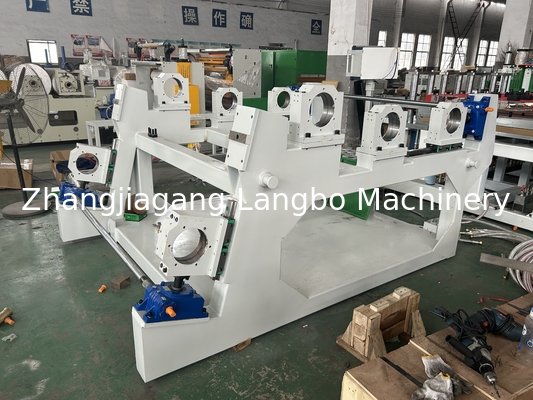

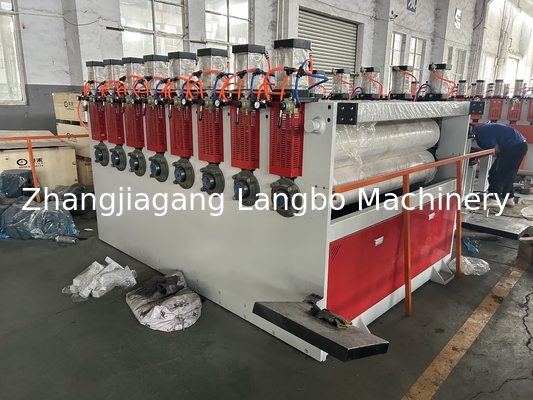

Haul-off device
There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller.
Heating Oven
Material:304 sainless steel
separately temperature control system

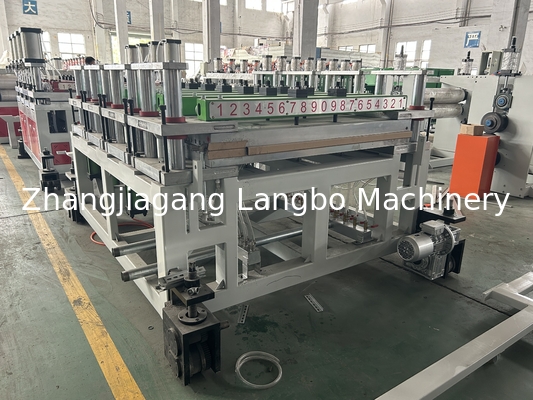

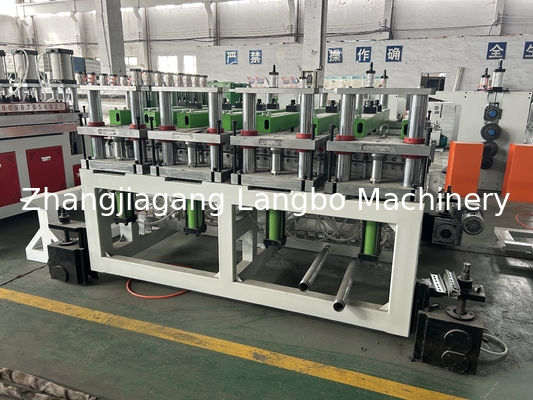

Cooling bracket
Place in the middle of between oven and second haul-off device.
Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.
The advantages of the PP hollow sheet:
The PP hollow grid corrugated sheet is eco-friendly new material in the market.
The PP hollow grid corrugated sheet has the advantage of non-toxic, no smell, pollution-free, anti - moisture, corrosion resistance, light quality, tough - resisting, thermal shock proof, economy and durability, rich colors etc, It possesses other advantages, like folding resistance, stretching resistance, strong bearing force.
The PP hollow grid corrugated sheet is widely used in machinery, electron, appliance, food, advertising, Interior decoration material, glass, agricultural product etc packing and transporting.
The PP hollow grid corrugated sheett container is new packing material in the market, it can be ordered and manufactured by market requirement with different size and form, the container has been used in replacing the paper box and calcium plastic.
The paper industry causes environment pollution and the production cost is going up, by contrast ,the plastic hollow plate production process is non-toxic, non-pollution and one-step forming.
With the developing of e-commerce, the container is used largely more and more, the logistics industry proposes high demand for the packing materials which are easier to use and transport, require simply technology and can be finished in short time.
