APPLICATION:

PE cool and hot water pipe extrusion line is mainly used by single screw extruder for extruding the pipes with various tube diameters and the wall thickness which have been widely applied in the aspects such as the residential water-supply system, industrial-purpose water conveyance etc. In the international tube developing history, PE are the latest popularized goods.
They have the features such as low price, poison less, non-rust, heat-resistant, easy installation etc. The unit is mainly composed of the single screw extruder, vacuum forming table, spray box, extractor, stirring-up rack and so on.

PE PIPE PRODUCTION SPECIFICATIONS:

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Plastic extruder → mould → forming machine →pull off machine → cutter / winder

Material Feeding & Drying

HDPE/LLDPE resin pellets are loaded into the hopper of the extruder.

Optional drying system removes moisture to ensure material quality.

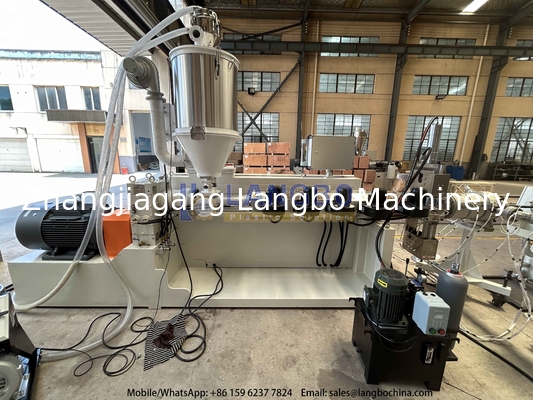

Extrusion Melting & Plasticizing

The material enters the screw barrel, where it is heated, melted, and homogenized by the rotating screw.

Temperature zones are precisely controlled for optimal melting (typically 150°C–220°C for PE).

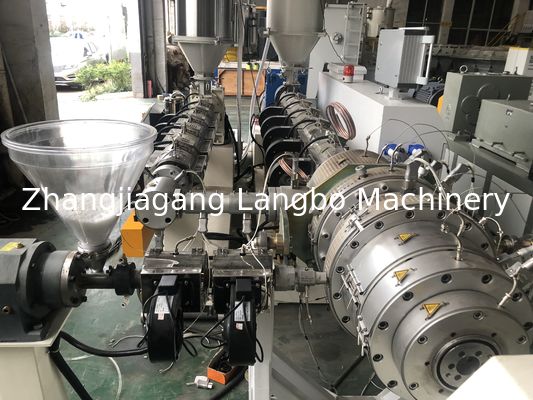

Pipe Die Head (Moulding)

The molten plastic is forced through a pipe die head, shaping it into a continuous pipe with the desired diameter and wall thickness.

Vacuum Calibration (Sizing)

The hot pipe enters a vacuum calibration tank where it is cooled and precisely sized using vacuum pressure.

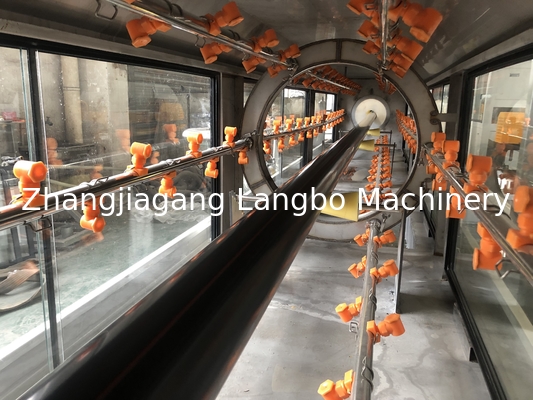

Cooling System

The pipe passes through a water cooling tank (spray or immersion type) to solidify its structure.

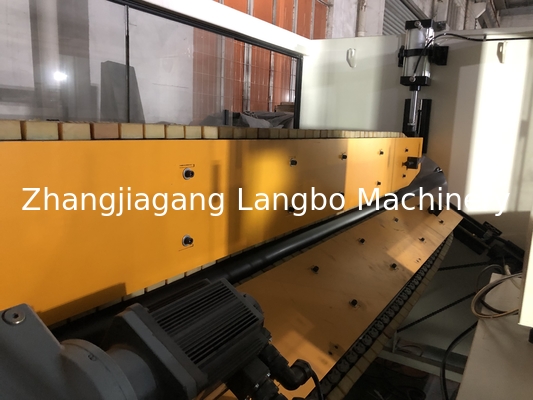

Haul-off (Pulling) Unit

A crawler track haul-off or belt puller grips the pipe, ensuring consistent speed and tension for uniform wall thickness.

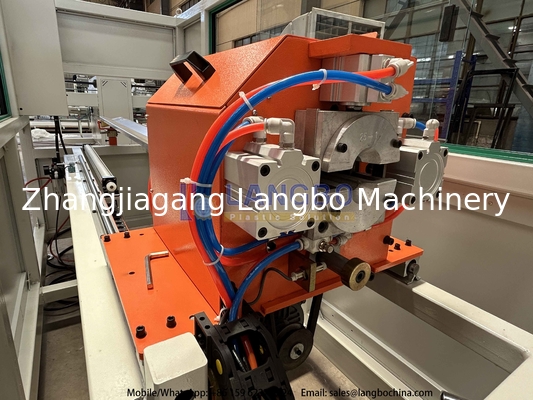

Cutting & Stacking

An automatic cutting machine (saw or guillotine) cuts the pipe to the required length.

Finished pipes are stacked or coiled (for flexible pipes) for storage.

Printing & Marking (Optional)

A printing machine applies product info (size, standards, manufacturer details) if required.

Quality Inspection

Pipes are checked for dimensions, ovality, pressure resistance, and surface smoothness.

Packaging & Storage

Pipes are bundled or packed for shipment.

Key Features:

High precision extrusion & automation

Energy-efficient & low maintenance

Customizable diameters & thicknesses

Durable output for various applications

Advanced cooling & vacuum calibration systems

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
