PE Pipe Machine Extruder Machinery Production Line Single Screw Plastic Extruder

APPLICATION:

The production line can use PE raw materials and adopt a single-screw extruder to produce single or multilayer PE Single Double wall corrugation pipe. The quality and specifications of the produced plates meet the requirements of the demanding company.

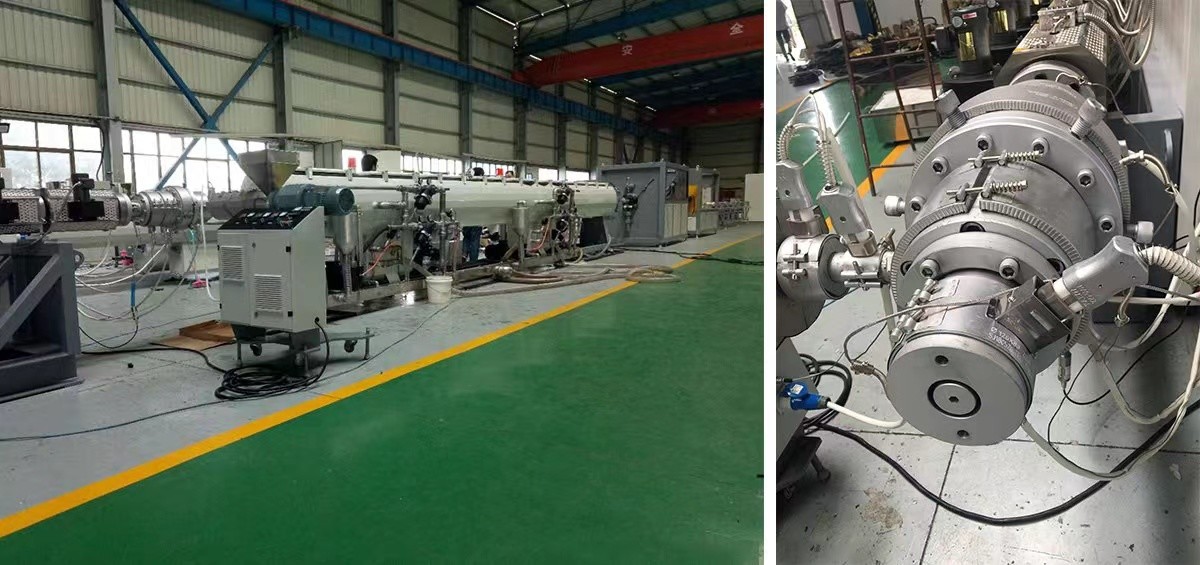

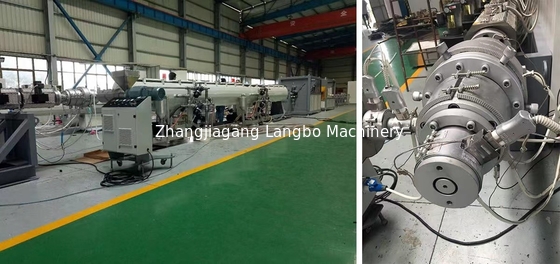

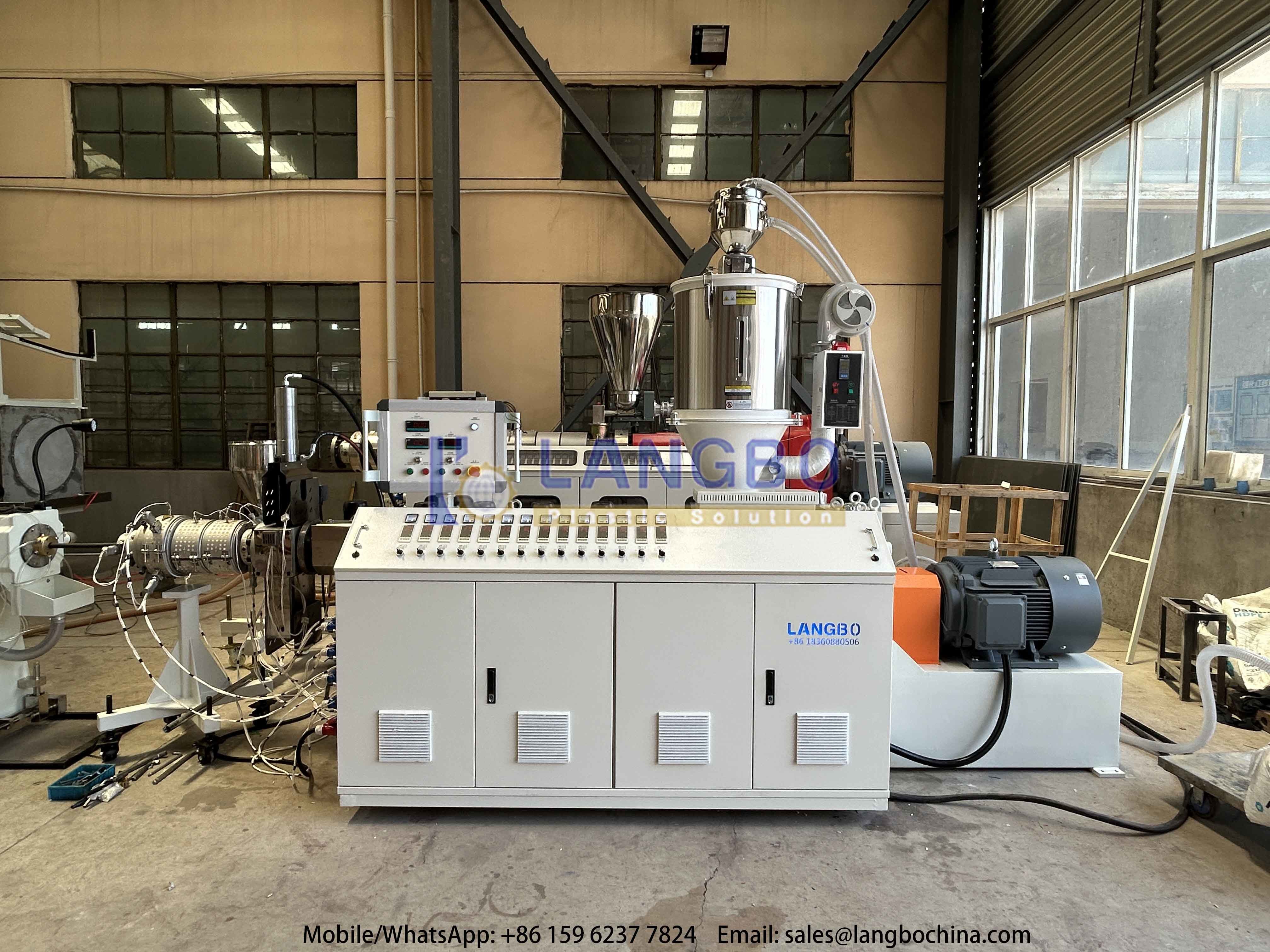

The extrusion machine mainly consists of feeding system, main extruder, extruder vacuum system, screen changer, metering pump, extrusion die, vacuum setting die, water circulation cooling system, setting table vacuuming system, cooling bracket, Traction machine, longitudinal trimming machine, horizontal cutting machine, stacking table, electrical control system, etc.

PE PIPE PRODUCTION SPECIFICATIONS:

Features:

1.The plastic hollow sheet has vast market demand, and it is environment-friendly new material in the market. 2. Adopting components of advanced and famous brand in pneumatic parts ,electric parts and operation parts. 3.High automation, Excellent Configuration, Stable Operation, High Production Efficiency. 4.Easy to operate and learn. High quality mold with special design for PP hollow grid sheet. 5.The reusable time for pp hollow sheet making machine can reach more than 60 times, long service life. 6. Waste products can be recycled and reprocessed, making full use of waste materials. This property can greatly reduce the project cost compared with wooden formwork and bamboo formwork. 7. Environmental protection and energy saving, no pollution. No any poisonous or harmful gas. 8. Demould easily. No need brushing release agent, only tapping, the plywood formwork price will fall off. Shorten working hours and speed up the construction schedule efficiently.

WHAT’S INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw materials→ loader→ extruder→ extrusion mould→ vacuum sizing → on-line hot stamping machine → haulling off→ cutter→ stackor

Mixing unit (Vertical , or Horizontal);

Ribbon mixer;

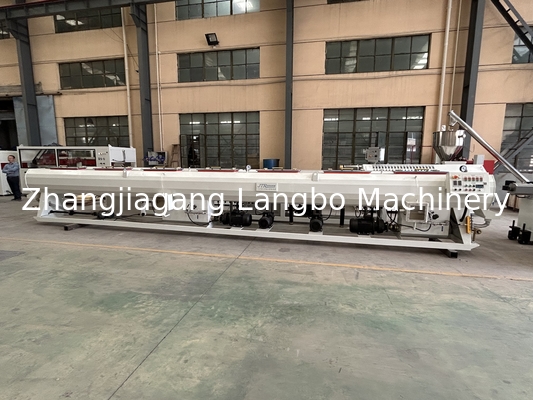

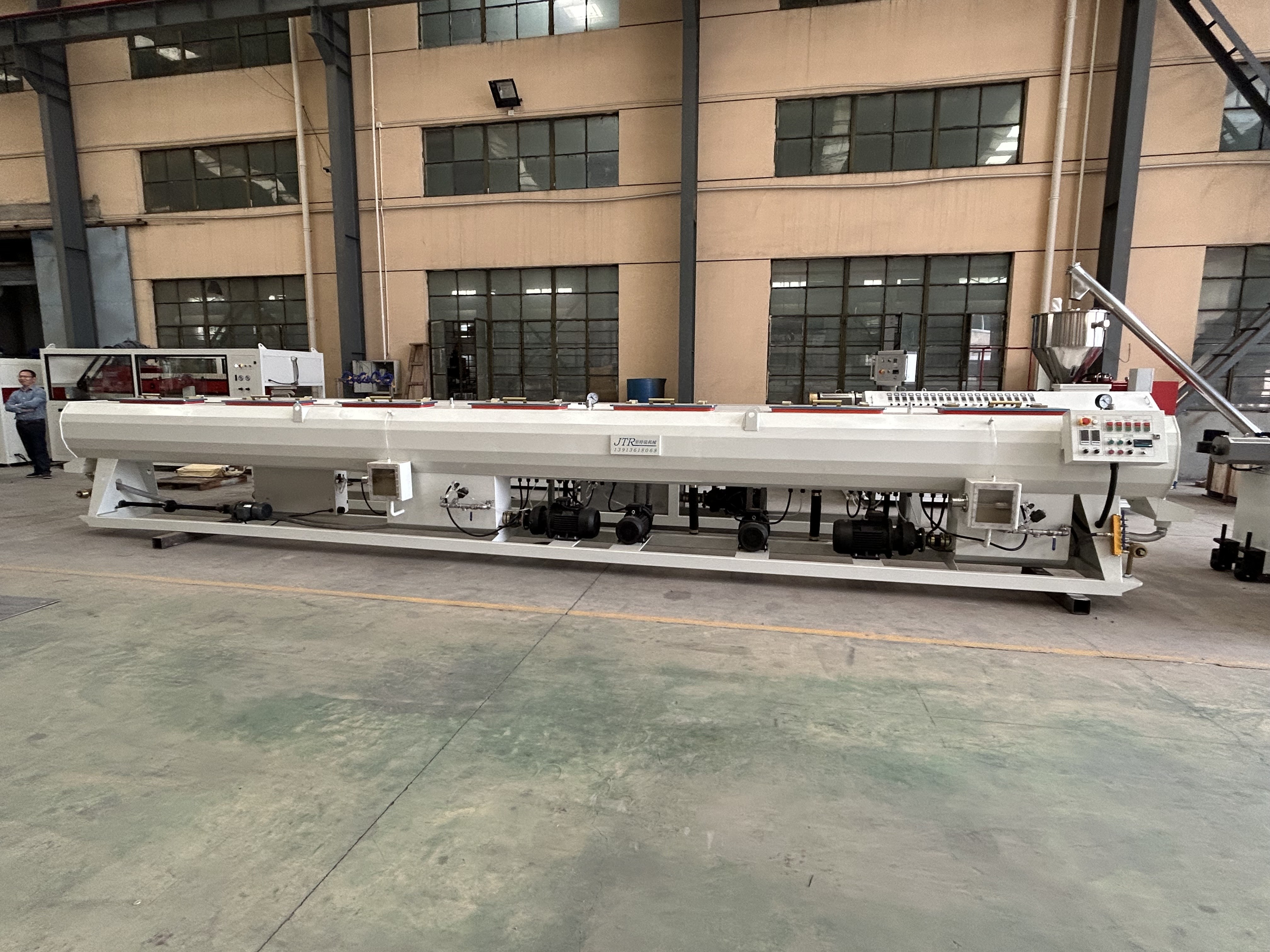

Vacuum & Cooling Tank

The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

Haul Off (Puller) Machine

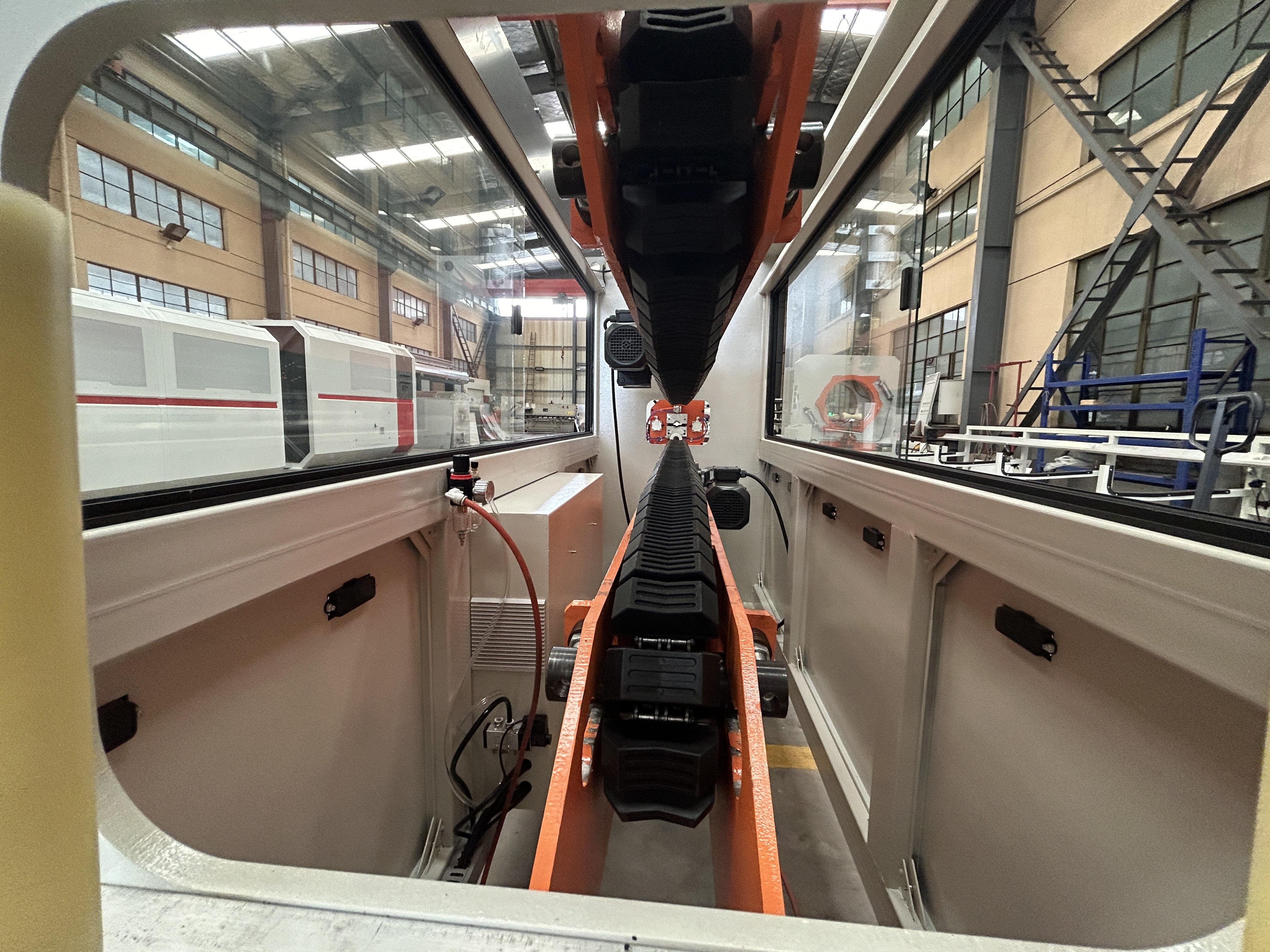

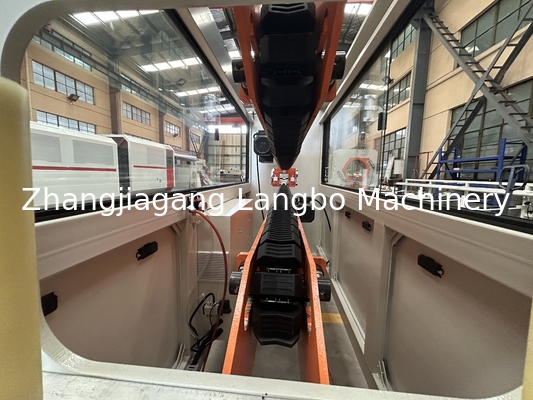

A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

Cutter Machine

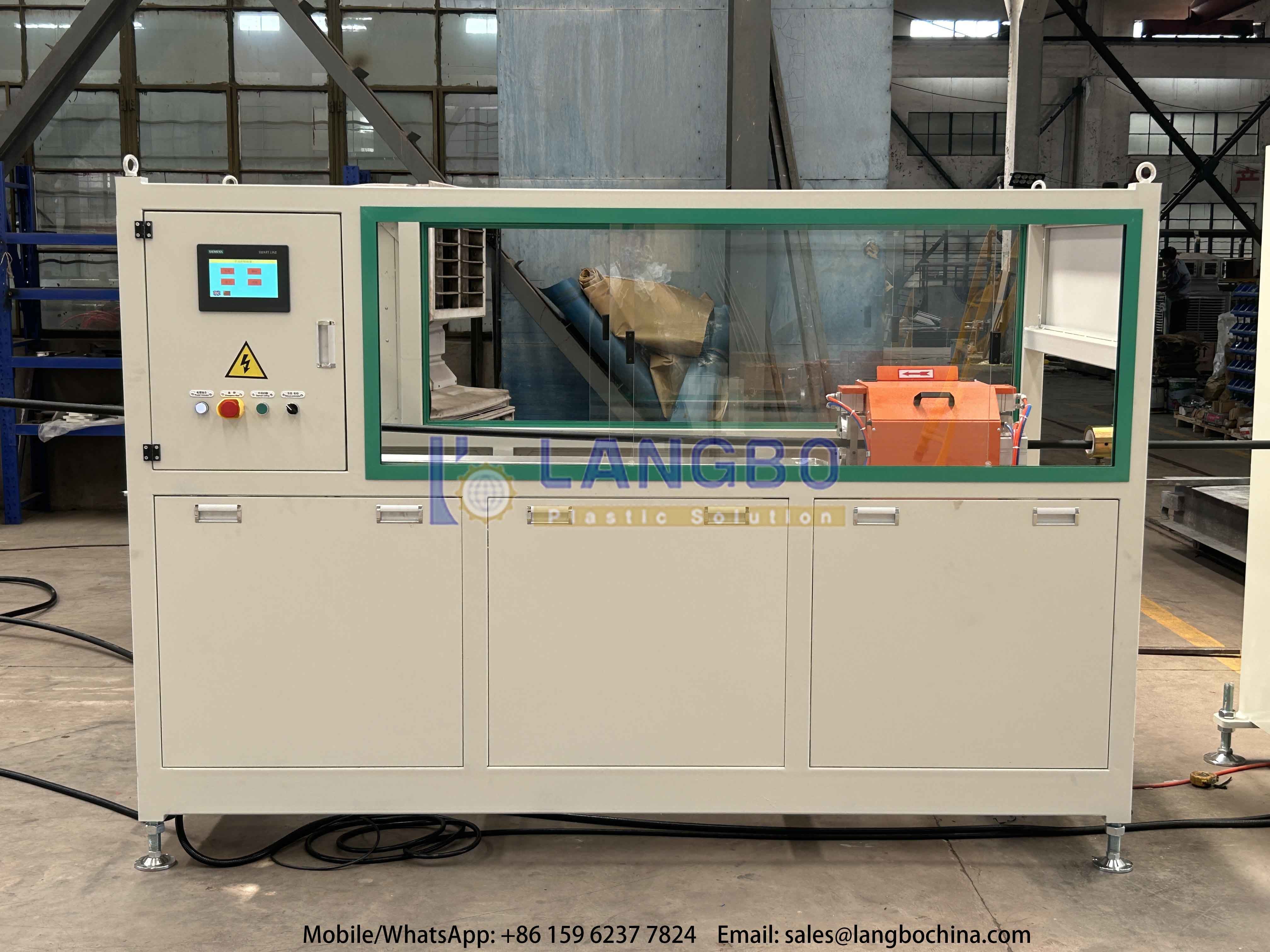

The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.

Accumulator Machine

An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.

Coiler Machine

The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
