PE PVC Single Wall Corrugated Pipe Making Machine With Small Size

PE PVC Single Wall Corrugated Pipe Making Machine with Small Size

APPLICATION:

This PE Single Wall Corrugated Pipe Machine/ Soft Flexible Garden Water machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This HDPE pipe making machine adopts advanced design concept to ensure the efficient extrusion of PP,PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production

PE PIPE PRODUCTION SPECIFICATIONS:

Produce process for PE Pipe :

PE powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker

Single screw extruder:
Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

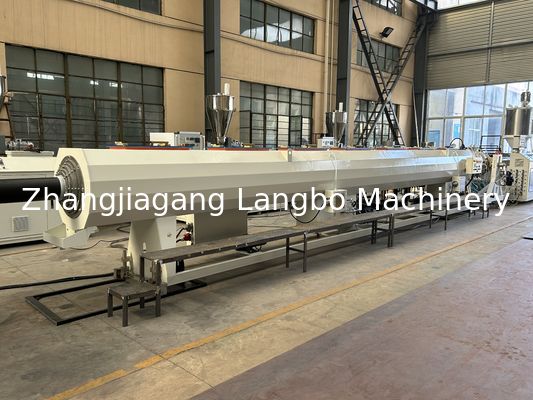

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

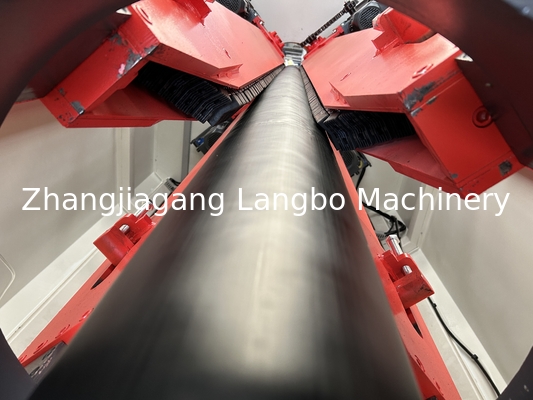

Haul off machine:
Adopts crawler track type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off crawler track blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

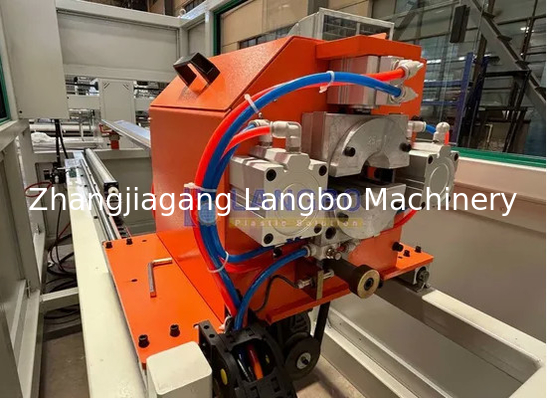

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Features of Pipe Machiner:

2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
