Single Screw Extruder / Extrusion 315mm-450mm PE HDPE Pipe Making Machine

Single Screw Extruder/Extrusion 315mm-450mm PE HDPE Pipe Making Machine

APPLICATION:
1. PE pipe extrusion machine line is a specialized equipment used for manufacturing high-density polypropylene random pipes.
2. This machine line is designed to produce pipes of various diameters and lengths, meeting the specific requirements of different applications.
3. The extrusion process involves melting the raw material, such as PE granules, and forcing it through a die to create a continuous pipe shape.
4. The machine line consists of several components, including an extruder, a die head, a vacuum calibration tank, a haul-off unit, and a cutting machine.

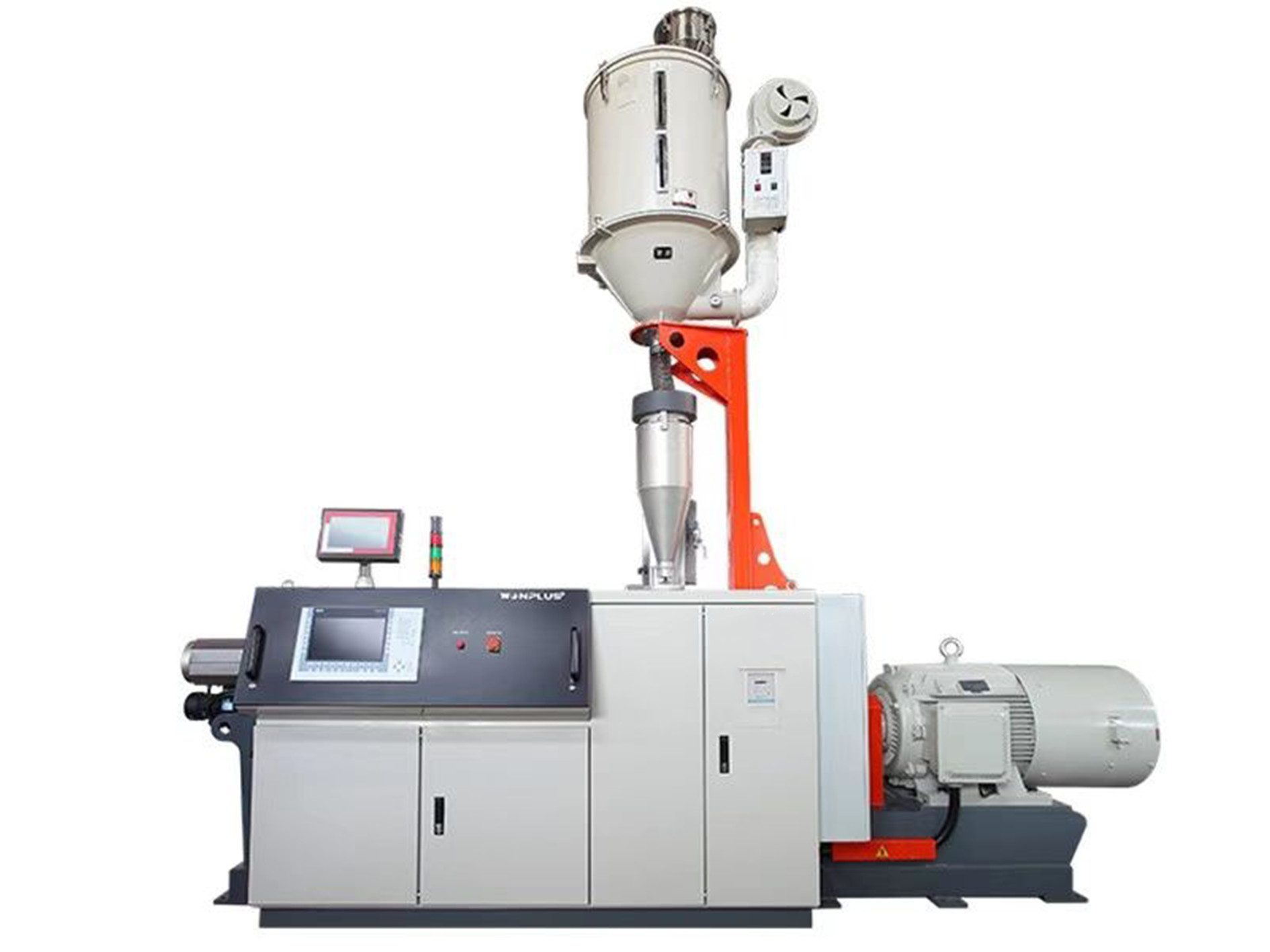

5. The extruder is the main part of the machine, responsible for melting and homogenizing the polymer material before it is extruded through the die.

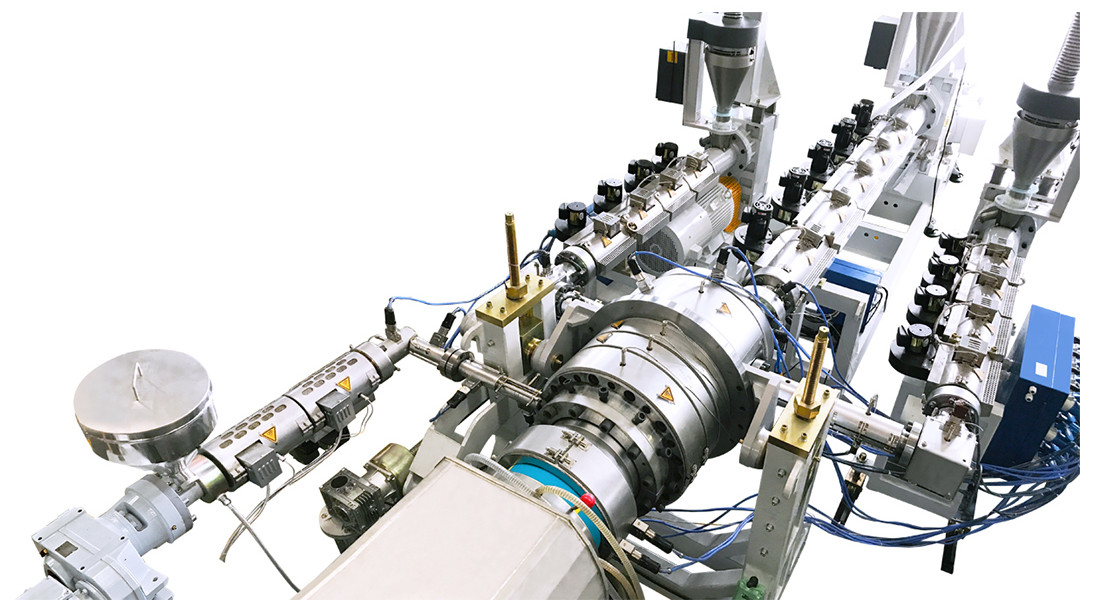

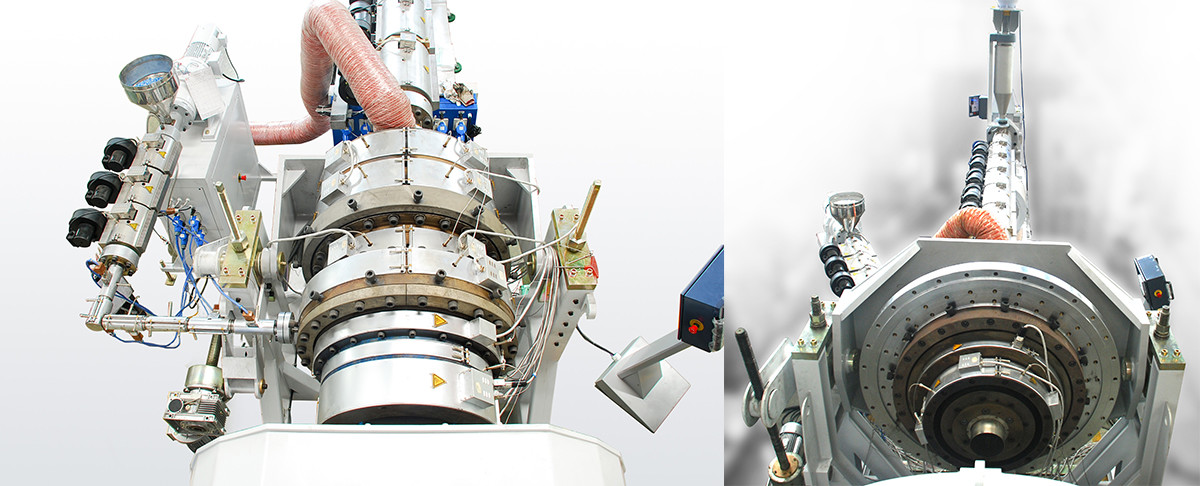

6. The die head determines the final shape and dimensions of the pipe, and it can be customized to produce pipes of various sizes and specifications.
7. The vacuum calibration tank is used to cool and solidify the extruded pipe, ensuring its dimensional accuracy and preventing deformation.
8. The haul-off unit pulls the pipe at a constant speed, controlling its tension and preventing sagging or stretching during the production process.
9. Finally, the cutting machine cuts the extruded pipe into desired lengths, ready for packaging and distribution.
10. PE pipe extrusion machine line is widely used in industries such as construction, agriculture, and plumbing, providing a cost-effective and efficient solution for pipe manufacturing.

PE PIPE PRODUCTION SPECIFICATIONS:


PE Production Flow:
Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Mixing unit (Vertical , or Horizontal);
Ribbon mixer;

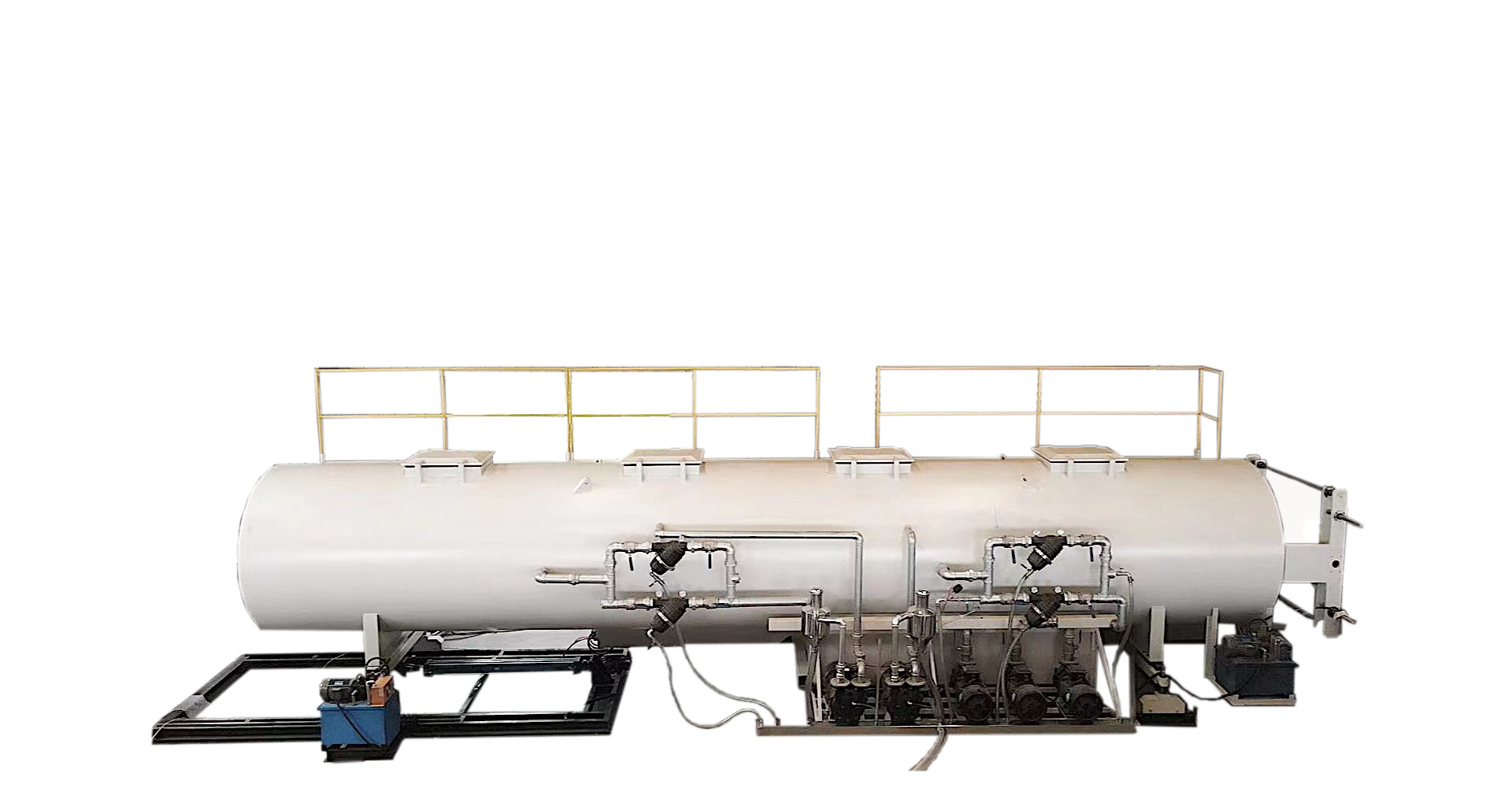

Vacuum & Cooling Tank
The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

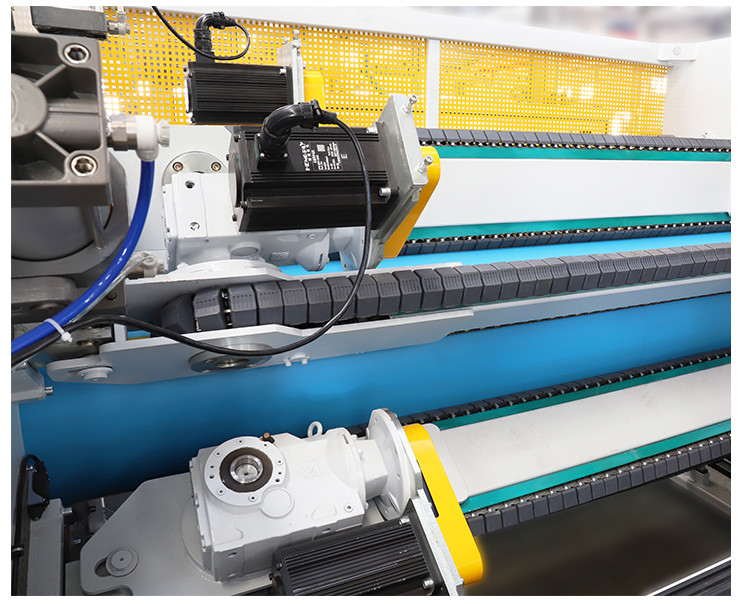

Haul Off (Puller) Machine
A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.

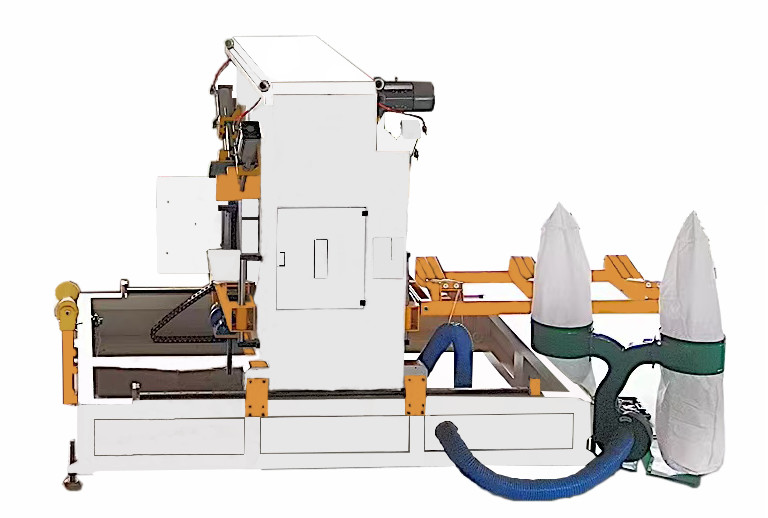

Cutter Machine
The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.
Accumulator Machine
An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.
Coiler Machine
The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).

PE Pipe Extrusion Machine Main Features:
1. Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .
2. Different kinds of pelletizing modes can meet specific material properties: water-cooling strand pelletizing, air-cooling hot-cut pelletizing, water-ring pelletizing, under water pelletizing, etc.




PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
we will offer customers spare parts at cost prices all life long of the machines.
