630mm PE Pipe Making Machine With Single Screw Extruder
Product Details
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | Customer Demand |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Color: | Customised | Control: | PLC+Touch Screen |
| Processing Type: | Extrusion Machine | ||
| Highlight |
630mm PE Pipe Making Machine,PE polyethylene pipe production line,Single Screw PE Pipe Making Machine |
||
Product Description

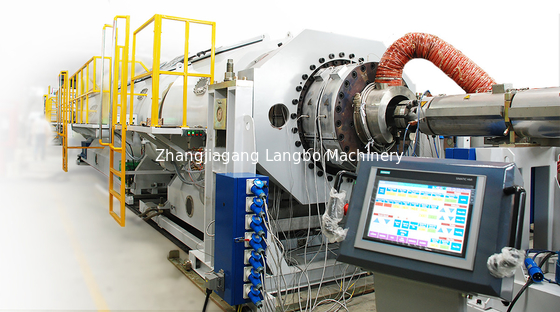

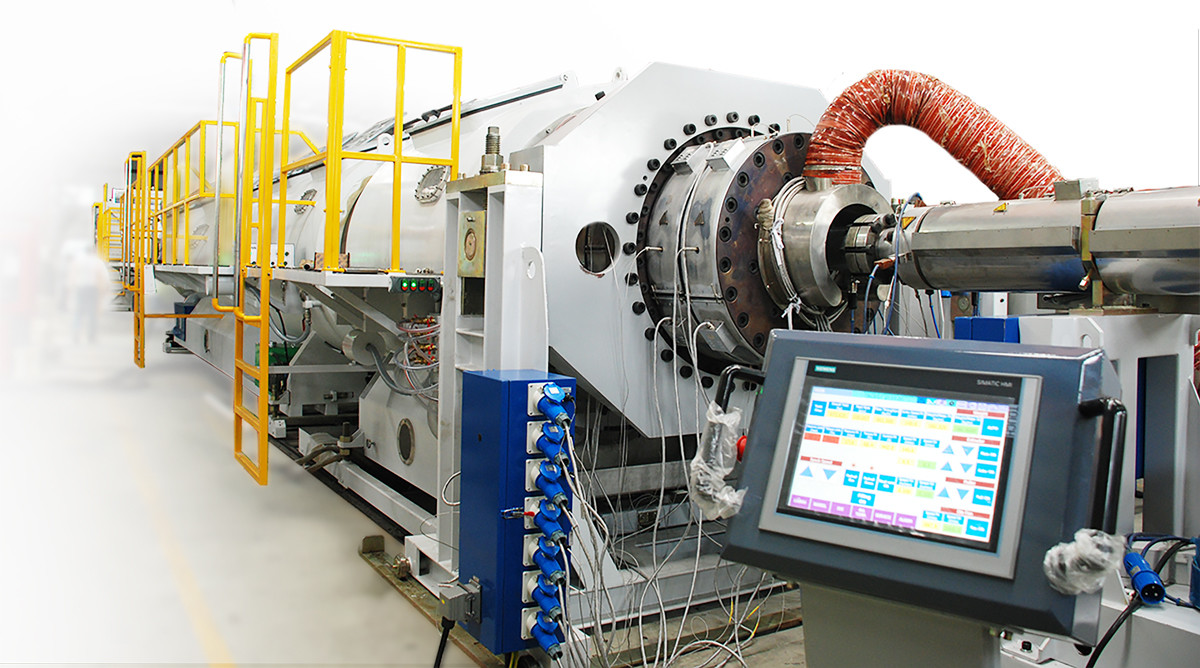

630mm PE Pipe Making Machine with Single Screw Extruder
APPLICATION:
This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
PE PIPE PRODUCTION SPECIFICATIONS:
| Model | Pipe diameter | Extruder | Extruder power | Capacity |
| LB-63 | 20-63 | SJ65/33 | 55AC | 150 |
| LB-110 | 20-110 | SJ65/33 | 55AC | 150 |
| LB-160 | 75-160 | SJ75/33 | 90AC | 280 |
| LB-250 | 90-250 | SJ75/33 | 110DC | 350 |
| LB-315 | 110-315 | SJ90/33 | 160DC | 450 |
| LB-450 | 160-450 | SJ90/33 | 160DC | 450 |
| LB-630 | 315-630 | SJ120/33 | 280DC | 850 |
| LB-800 | 500-800 | SJ150/33 | 315DC | 1100 |
| LB-1200 | 710-1200 | SJ150/34 | 400DC | 1350 |
Flow chart of PE pipe extrusion line:

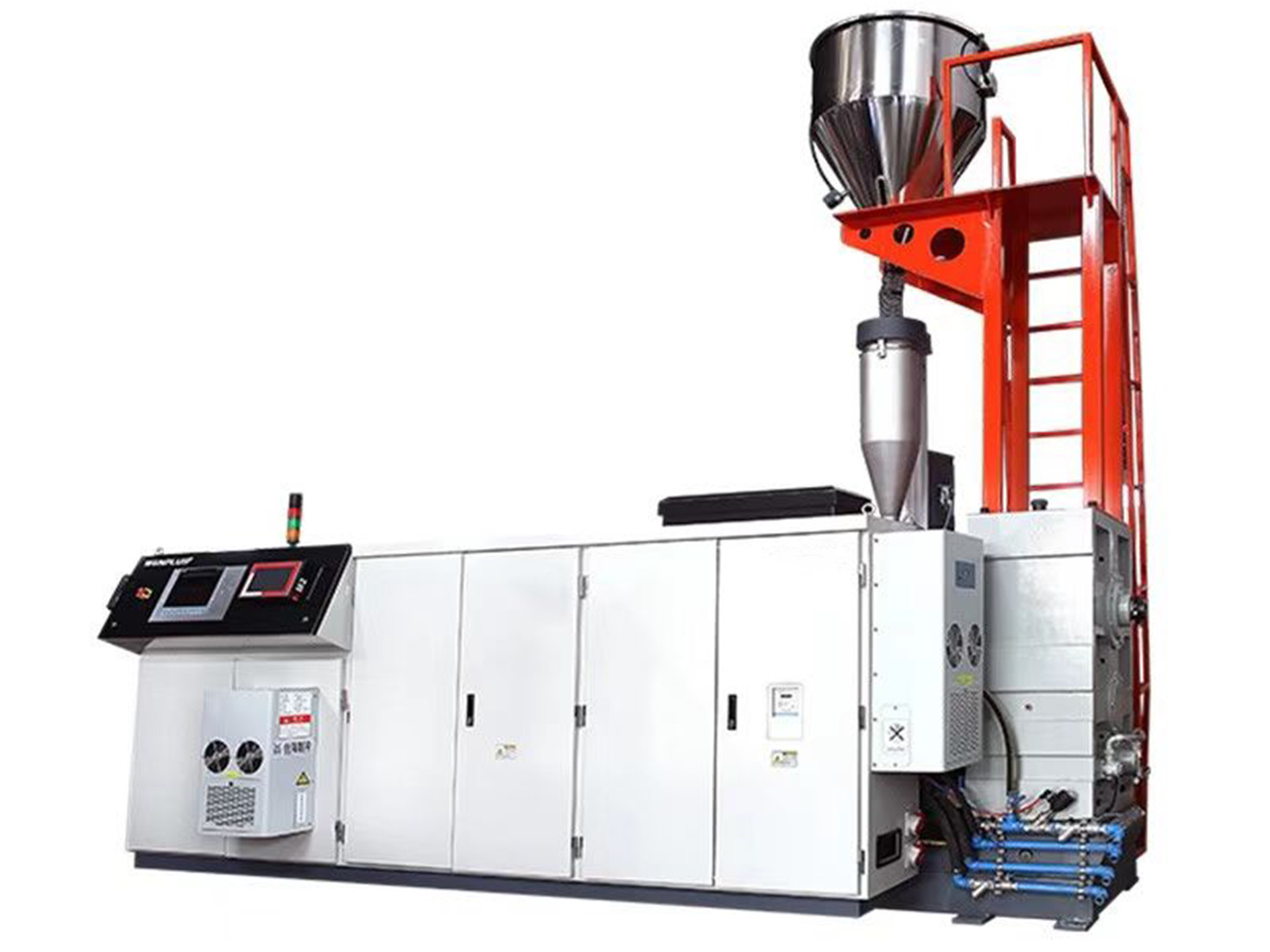

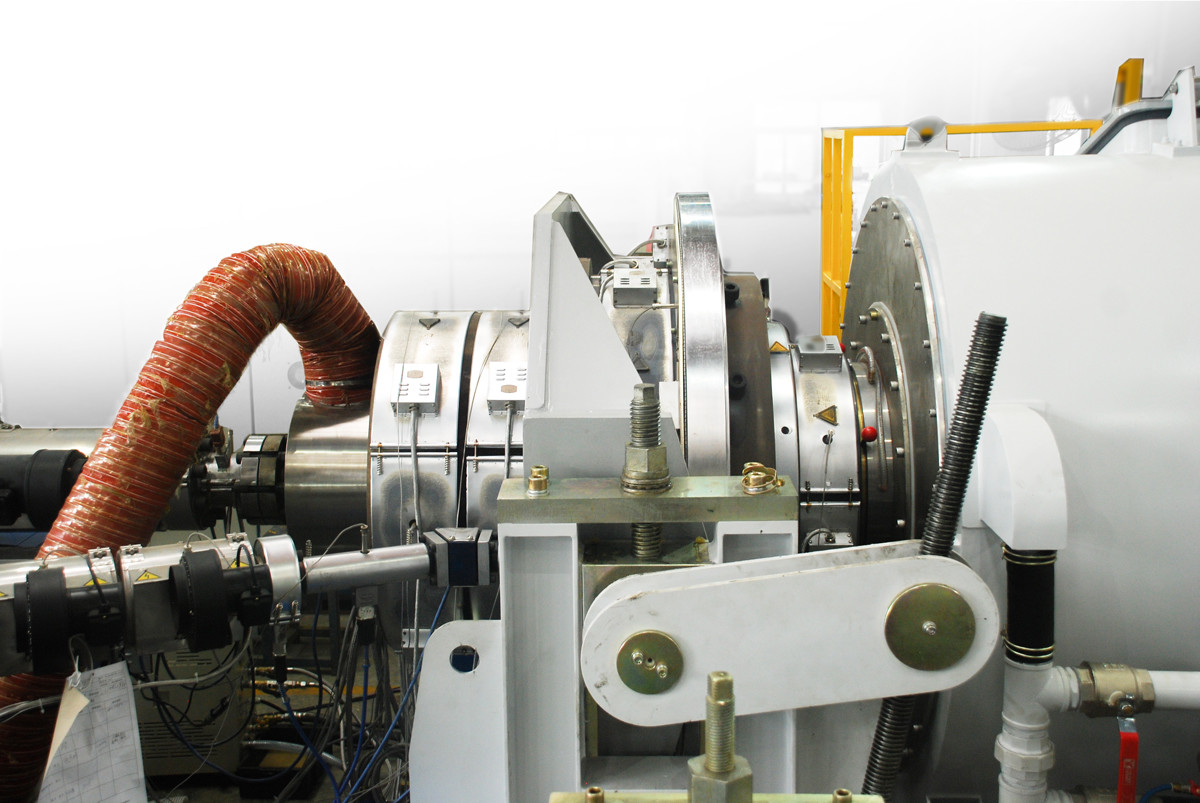

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(or Winding machine)
Mixing unit (Vertical , or Horizontal);
Ribbon mixer;
Vacuum & Cooling Tank
The vacuum and cooling tank cool and dry extruded pipe to help maintain ovality and pipe uniformity.

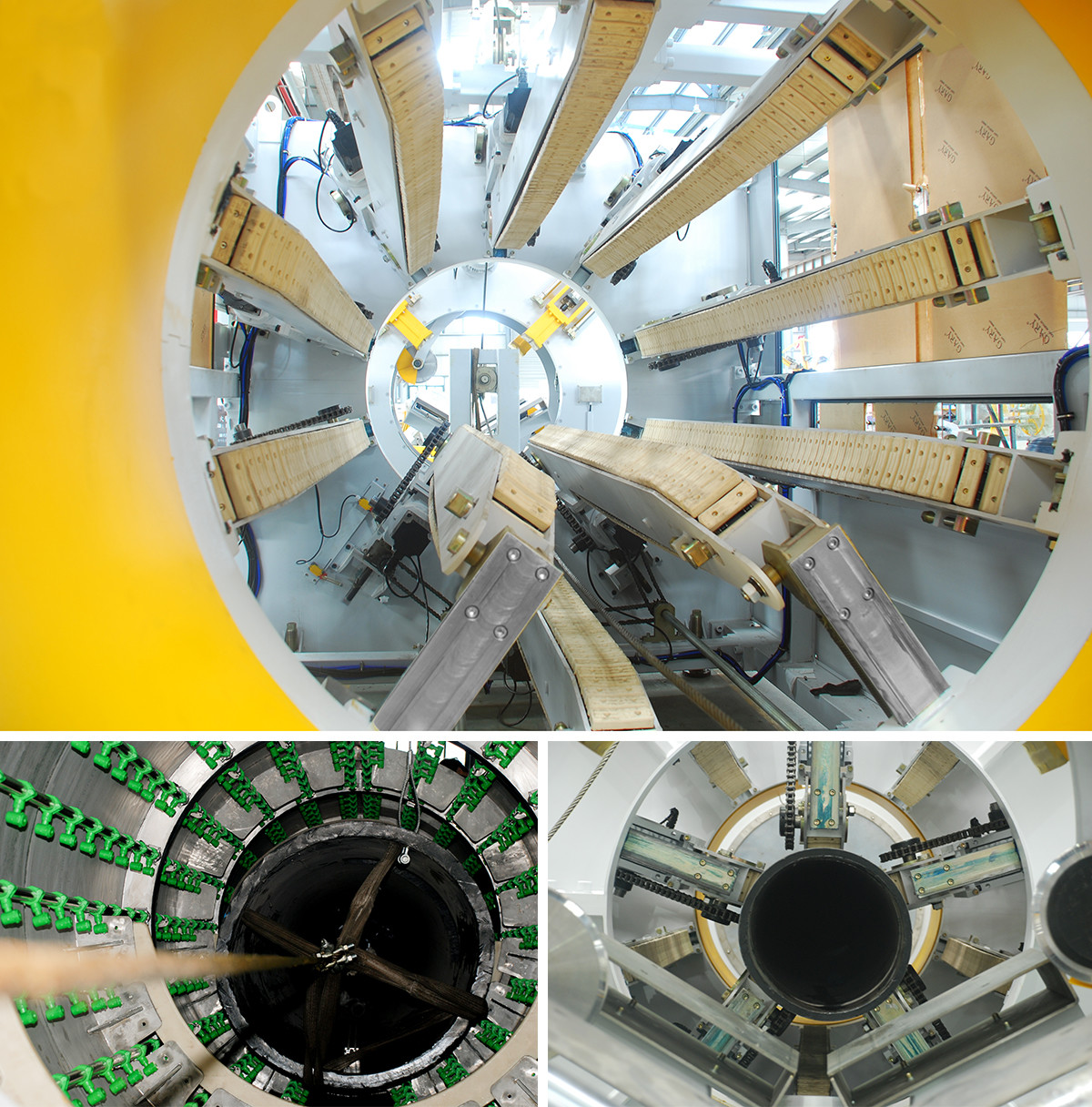

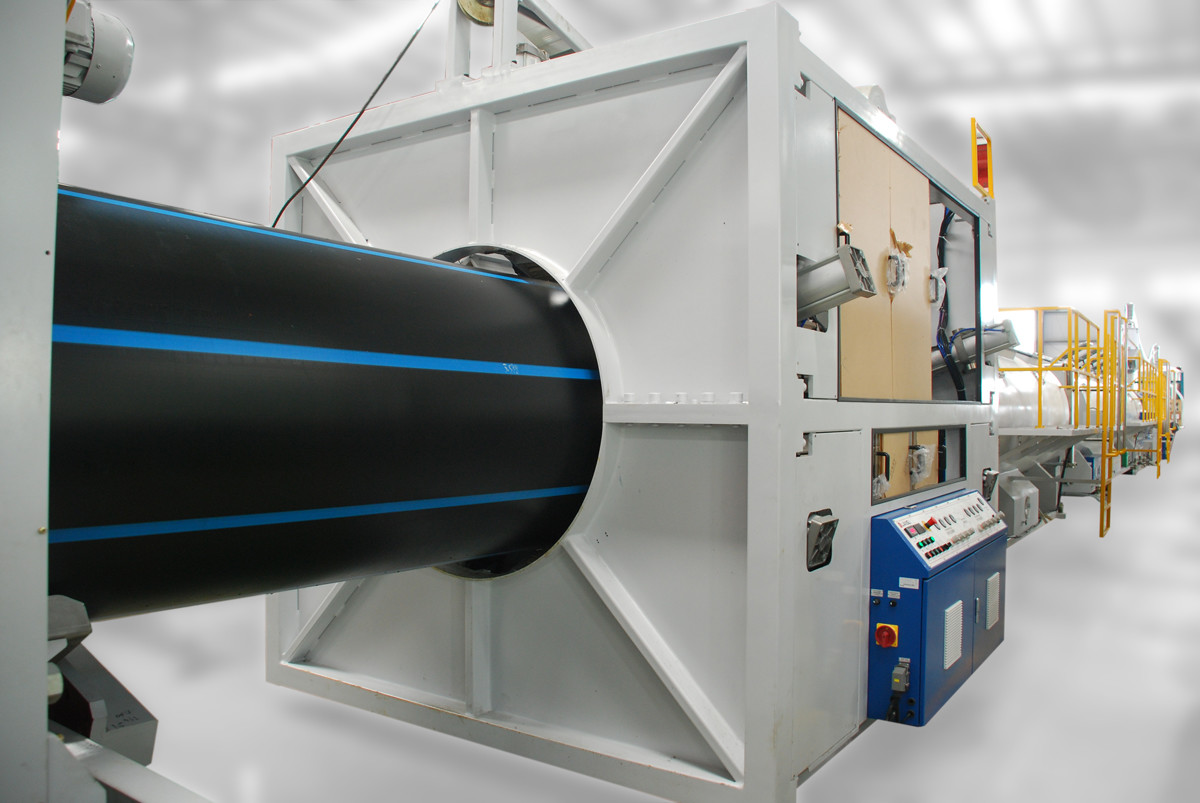

Haul Off (Puller) Machine
A pipe haul off machine pulls fresh pipe from the extruder through the vacuum and cooling tank.
Cutter Machine
The pipe cutter machine cuts PE pipe to the desired length programed into the HMI.
Accumulator Machine
An pipe accumulator machine serves the purpose of maintaining a buffer between the change over of coils.
Coiler Machine
The pipe coiler machine allows you to coil pipe for sale and distribution (See also automatic coiler machine).
PRE- AND AFTER-SALE SERVICES
• A great wealth of experience,
• A consistent focus on the highest quality
• A complete twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
• A highly motivated team
• Sophisticated process technology
• Customized solutions
we will offer customers spare parts at cost prices all life long of the machines.
