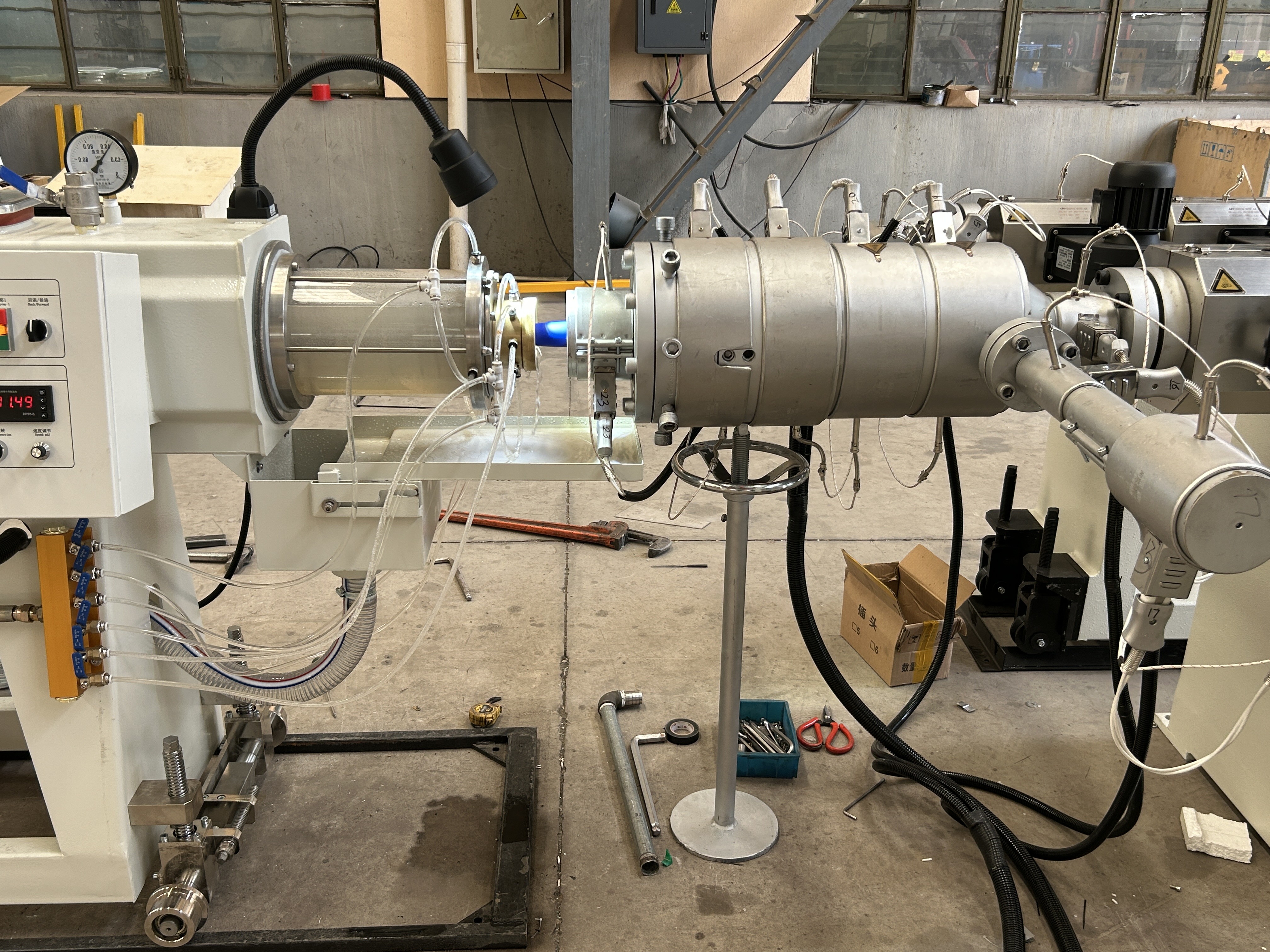

Advanced Solid Wall Automatic Ppr Pipe Extrusion Machine With 2 Years Warranty

Plastic PPR Drip Irrigation Hose Corrugated Sewage Pipe Tube Extrusion Production Making Machine Price

PPR pipe introduction:

PPR double-wall corrugated pipes are widely used. The HDPE double-wall corrugated pipe production line developed by our company is equipped with many patented technologies. PPR adopts new high efficiency single screw extruder, adopts large flat double or cone double extruder, with large extrusion capacity. The forming machine adopts horizontal structure, shuttle drive, sealed water-cooled structure, vacuum forming, and can realize online double-layer flaring. Whole line is controlled by PLC computer.

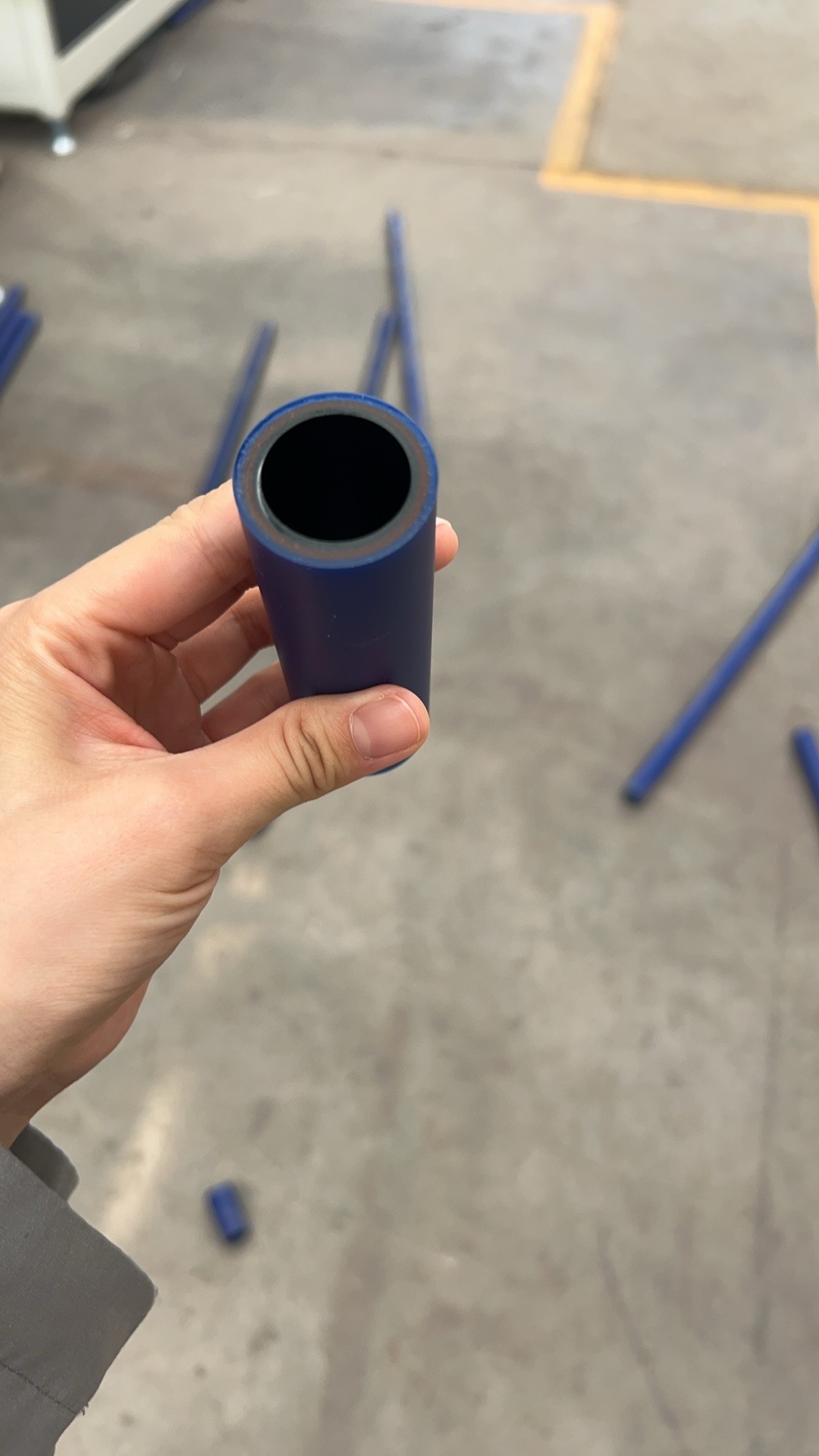

PPR pipe produced from our machine has features as follows:

(1). The pipe is new environmental friendly product.

(2). Has the features of sanitation, non-poison, non-rust, heat resistance and long life.

(3). Mainly used in the fields of water supply and hot water for warm for resident life and industry.

(4). Can replace copper pipe and aluminium pipe.

(5). The machine can be changed to produce PPA/PPC/PP/PE pipe.

PPR pipe production line, PPR plastic pipe making machine​process:

Material + Color Master-batch → Mixing → Vacuum Loading → Raw Material Drying → Single Screw Extruder → Color Line Extruder → Mold →

Vacuum Forming Tank → Spray Cooling Water Tank → Crawler Haul-Off → Planetary Cutter→ Stacker → Completed Product Inspection &

Packaging

Feeder

The Feeder used to feed material into the extruder, usually using a vacuum feeder to feed pellets into the extruder.

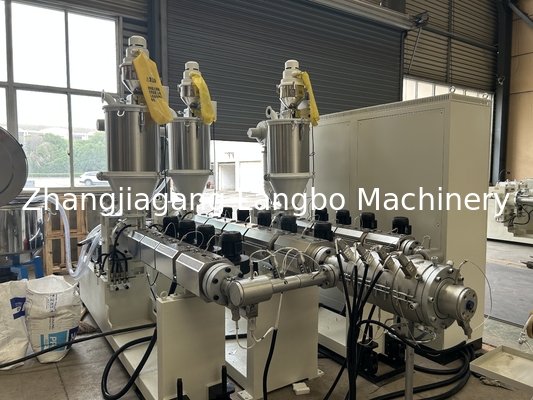

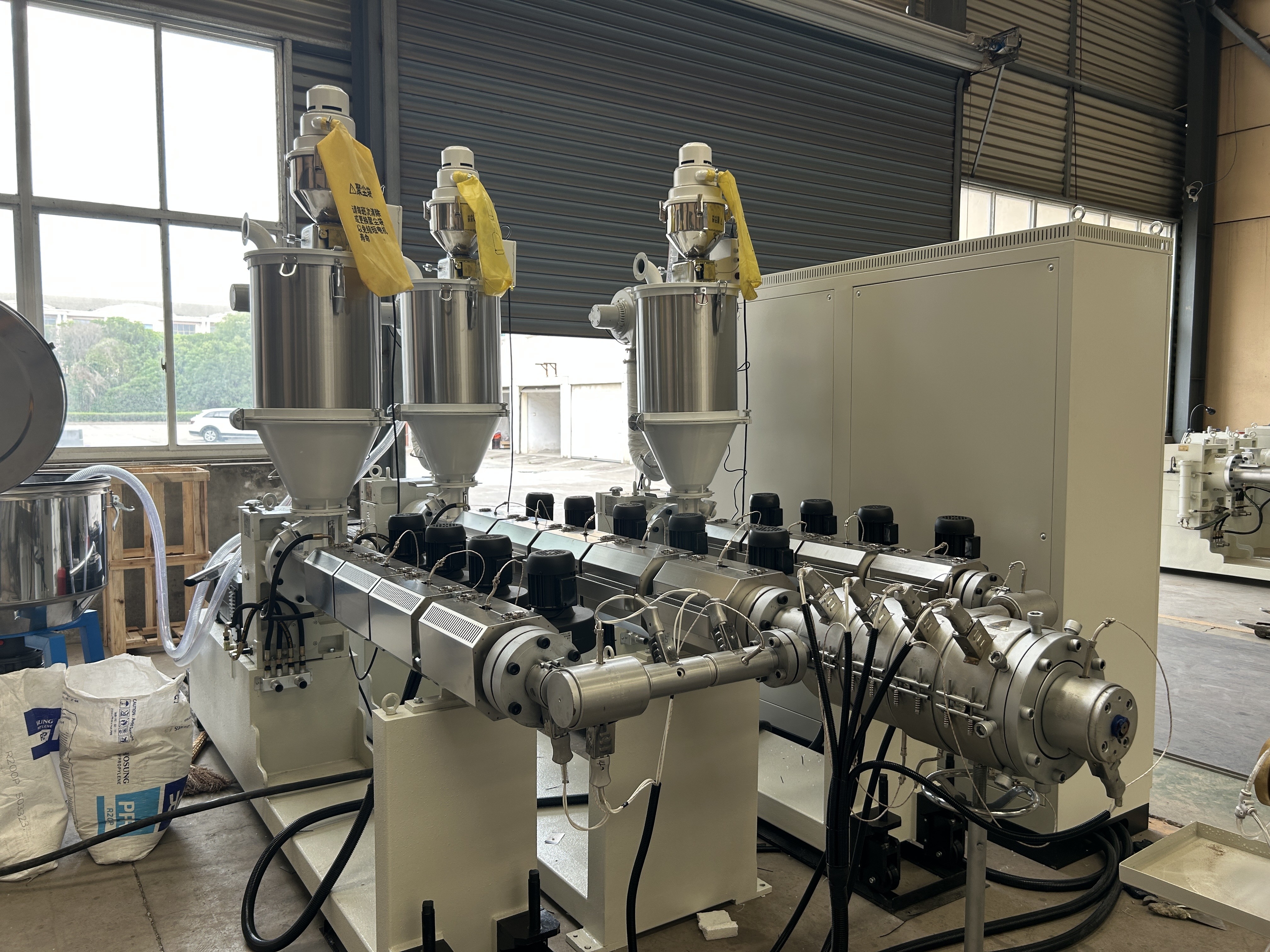

Single Screw Extruder

Usually recommends two single screw extruders in this case: the larger extruder used to extrude the actual pipes while the smaller extruder used to extrude the colored mark line. This is the integral part of the entire extrusion line and Yurefon only uses the finest quality extruders to insure reliability and performance.

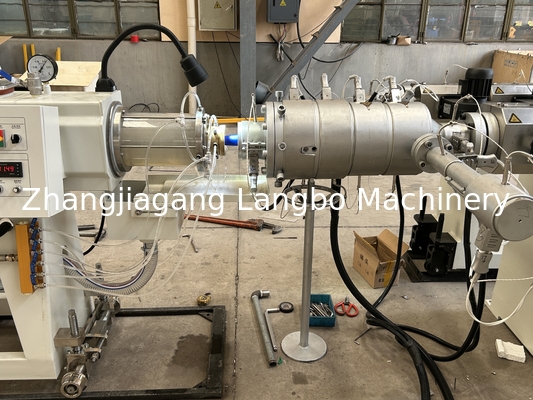

Mould (Die Head)

The mould is another essential part of the HDPE extrusion line. Mould defines the shape and diameter of the PE pipes. The quality of the extruded pipes are largely depending on quality of the mold (die head).

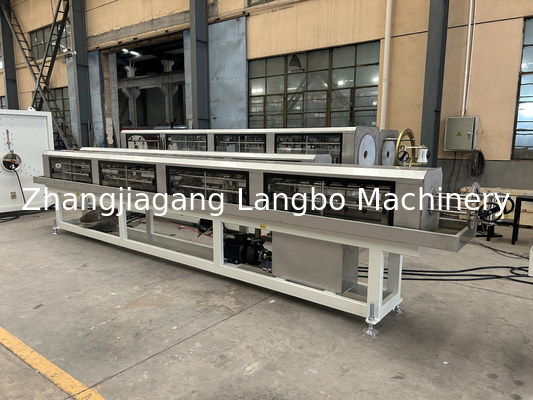

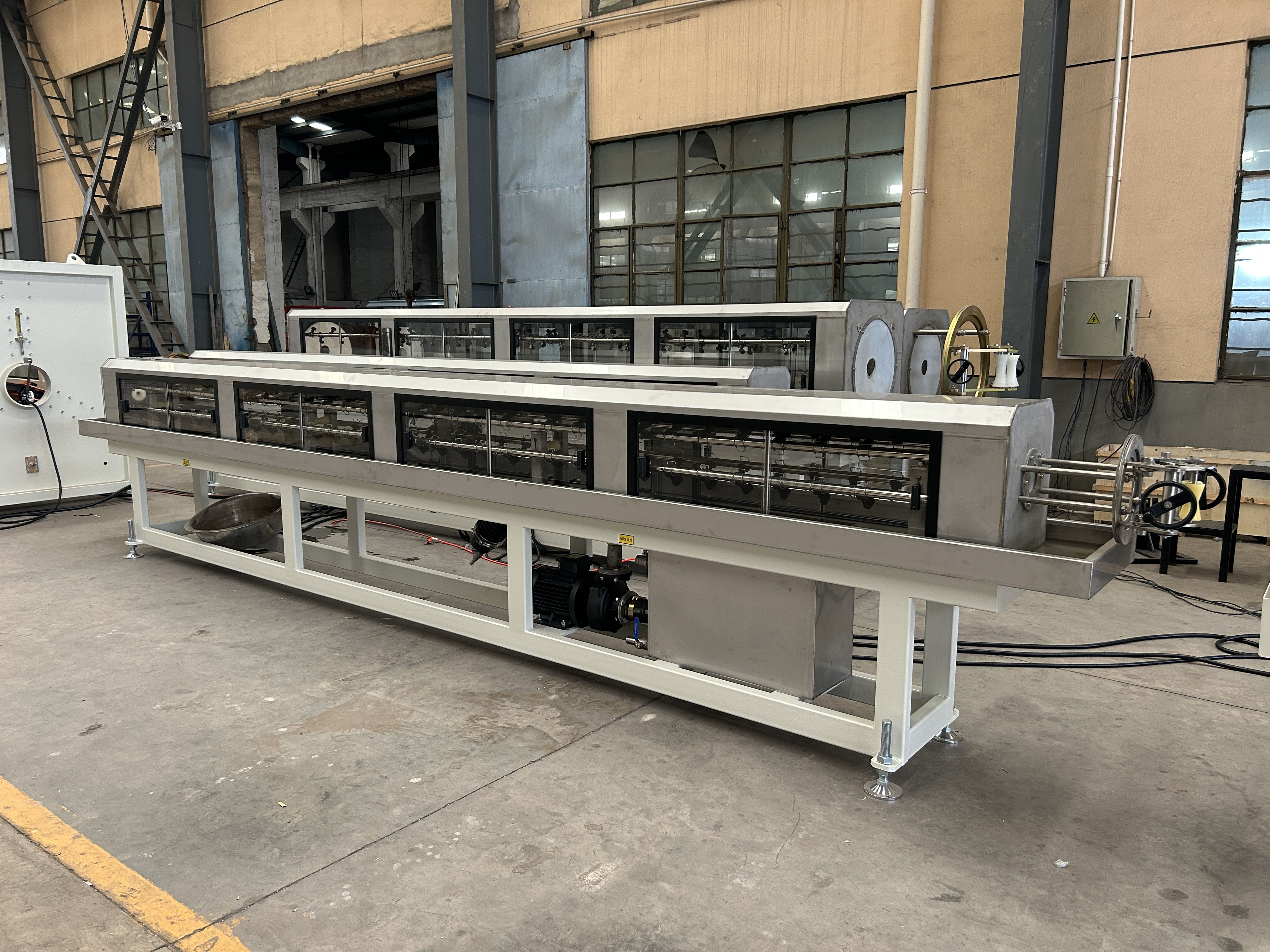

Vacuum Calibrating and Cooling Tanks

High quality Vacuum calibration and the cooling tanks give produced PE pipes a better looking exterior. An extra set of vacuum calibrators and cooling tanks are required when extruding pipes with larger diameters.

Water Cooling Tanks

The pipes extruded from the mould (die head) is extremely hot. Even after going through vacuum calibration and the cooling tanks, they will still need to be further cool. The water cooling tanks in this case further cool down the pipe through water. Usually, the larger the diameter of the pipes been extruded, the larger the water-cooling tank will need to be.

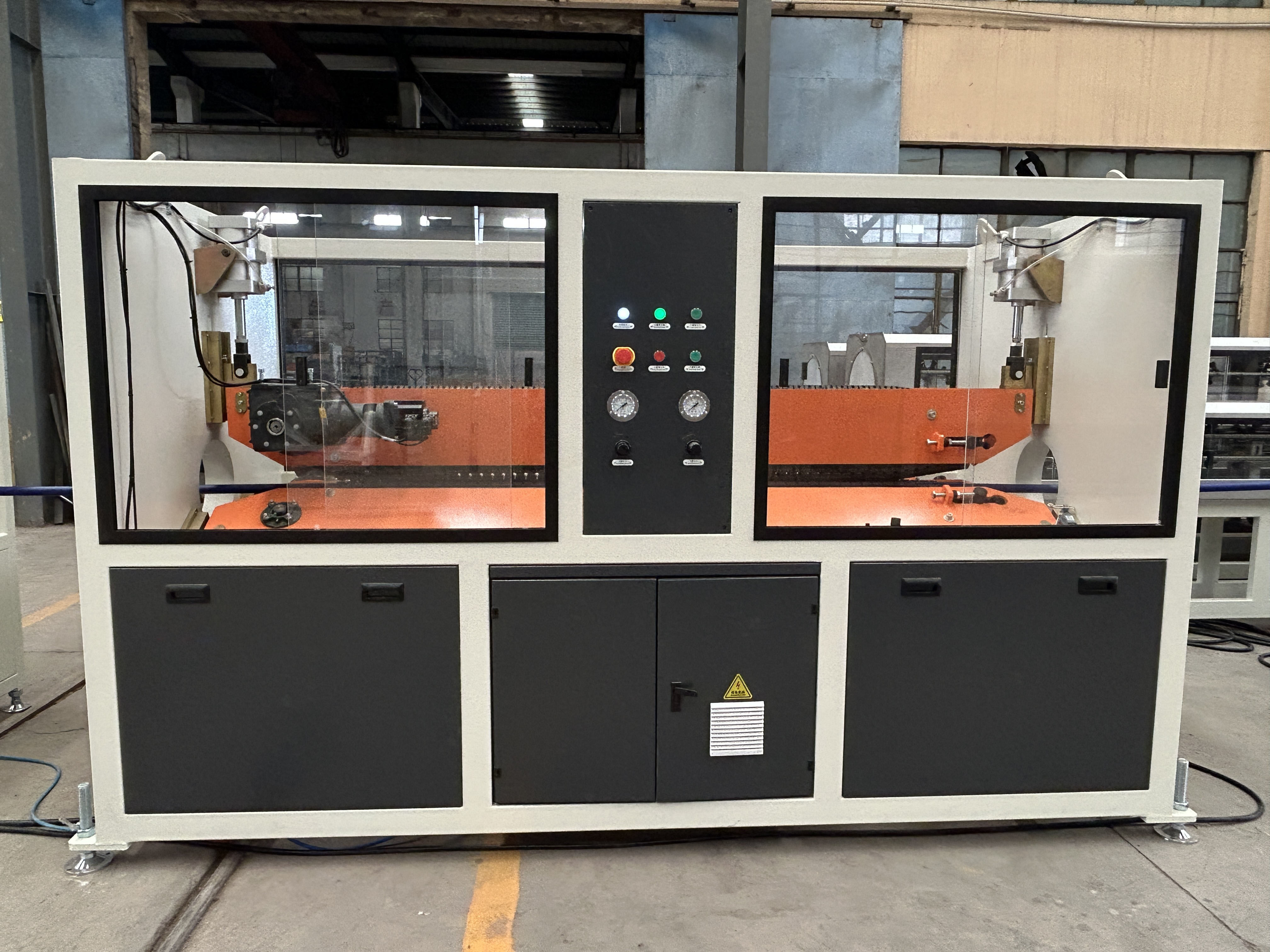

Haul-off Unit

The Haul-off unit used to move the pipe forward, the particular make and model of the haul-off unit depends on the quantity of the claws.

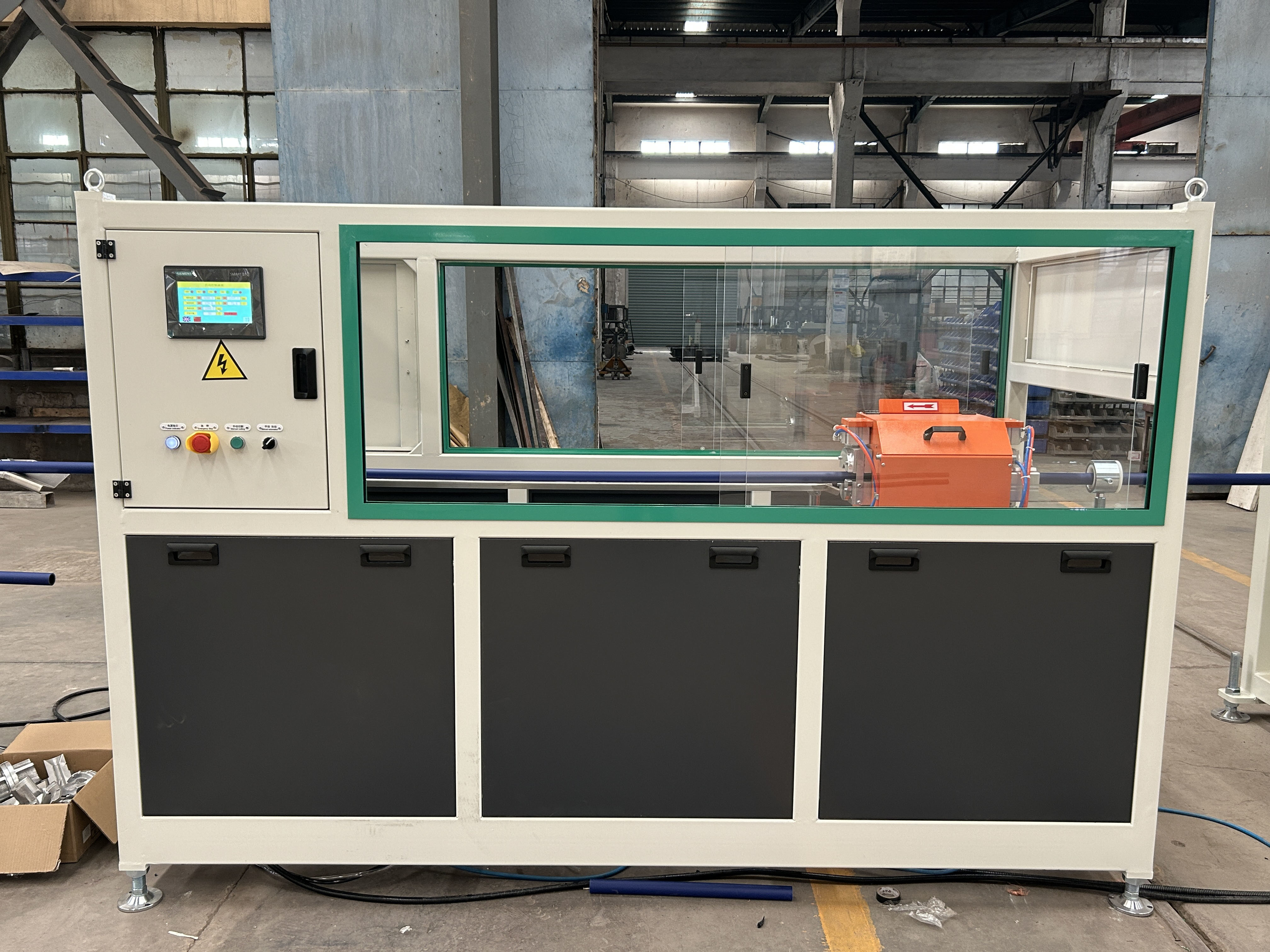

Cutter

LB ’s pipe machine cutter completed automated and controlled digitally. The interface designed for ease to use and with great performance in mind.

Winder or Stacker

A winder used in smaller diameter PE pipes production, those small diameter PE pipes are flexible enough to coil around a winder, and thus

essentially allow unlimited length for produced pipe.

A stacker is recommended in larger diameter case, usually above 63 mm, in this case produced PE pipes are stacked together efficiently on stacker, waiting for final packaging and transportation.

AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
