PVC Sewer Drainage Plastic Pipe Cable Duct Water Supply Solid Wall Extrusion Making Machine
This complete machine group consists of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, and auxiliary equipment. The single screw extruder and haul-off unit utilize imported A/C inverters, while both vacuum pump and driving motor incorporate high-quality components.
Machine Configuration Options
The drawing machine is available in multiple configurations: two-claw type, three-claw type, four-claw type, six-claw type, and eight-claw type. Cutting options include saw cutting or planetary cutting, with additional length measuring meters and thickness increasing devices. The machine group offers reliable performance and high production efficiency.
Production Capabilities
With specialized attachments, this system can produce inner wall spiral pipes, inner wall hollow pipes, and core layer bulpo pipes. It also processes various materials including PP, PE, ABS, PPR, PEX, silicon core pipes, and other pipe materials. The planetary cutting machine features fully automatic computer digital control with simple operation and reliable performance, meeting world advanced standards.
Technical Features & Advantages
- Special screw structure enables efficient plasticization for different formula types
- Flexible use of conical and parallel extruders for pipes with varying pressure levels and CaCO3 conditions
- Spiral type die reduces melt seams on pipes, with high compression ratio ensuring high density and superior mechanical properties
- Efficient single or double chambers vacuum and cooling tank system
Production Process
PVC powder + additive → mixing → material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine
Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F |
16-32 (FOUR PIPE) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
Detailed Production Components
Raw Material Feeding
PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

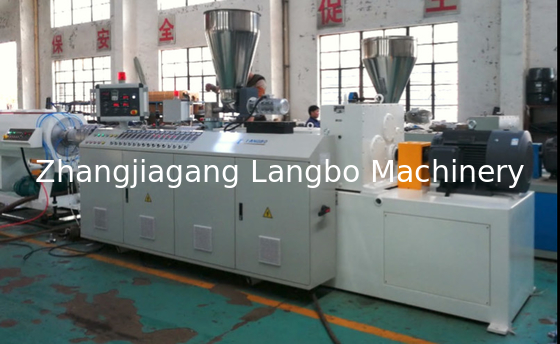

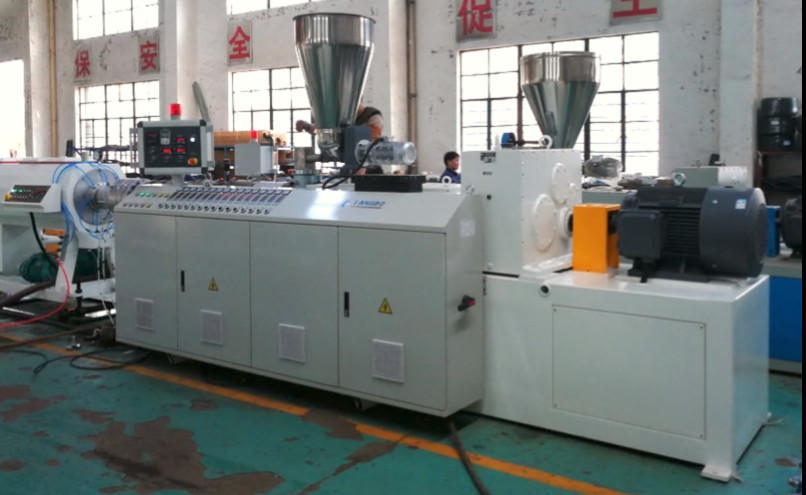

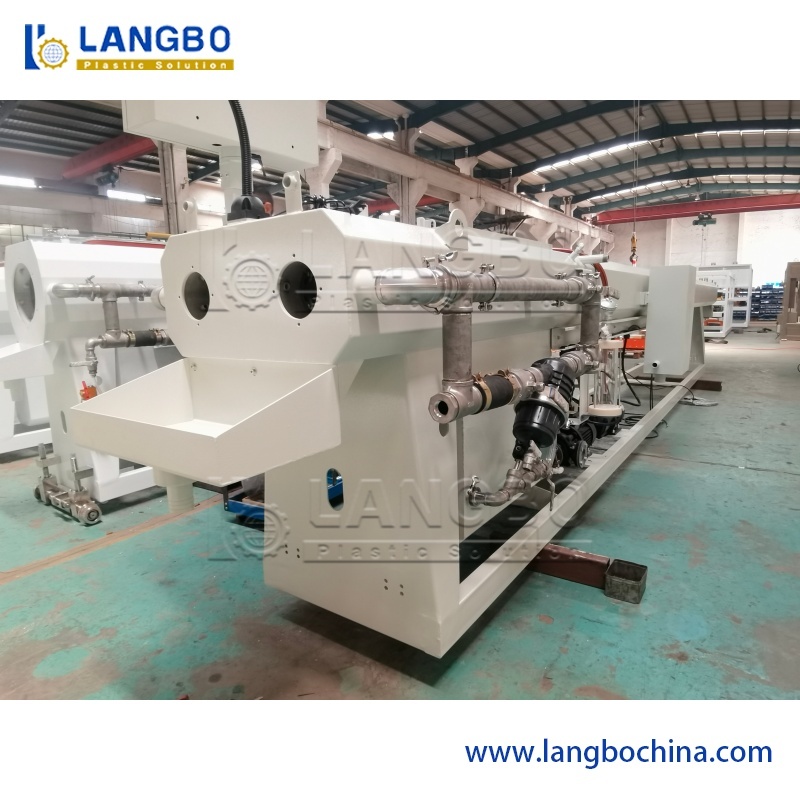

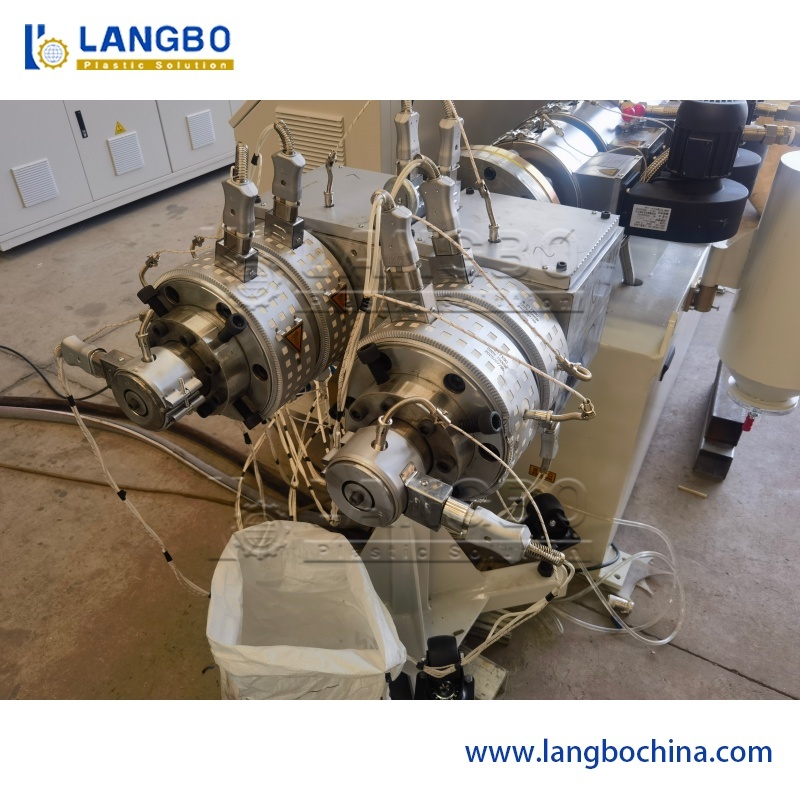

Twin Screw Extruder Machine
The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.
Vacuum Calibration & Cooling

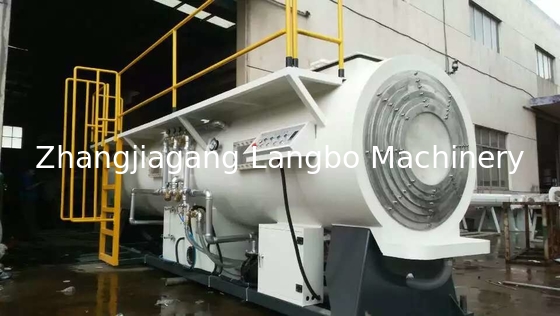

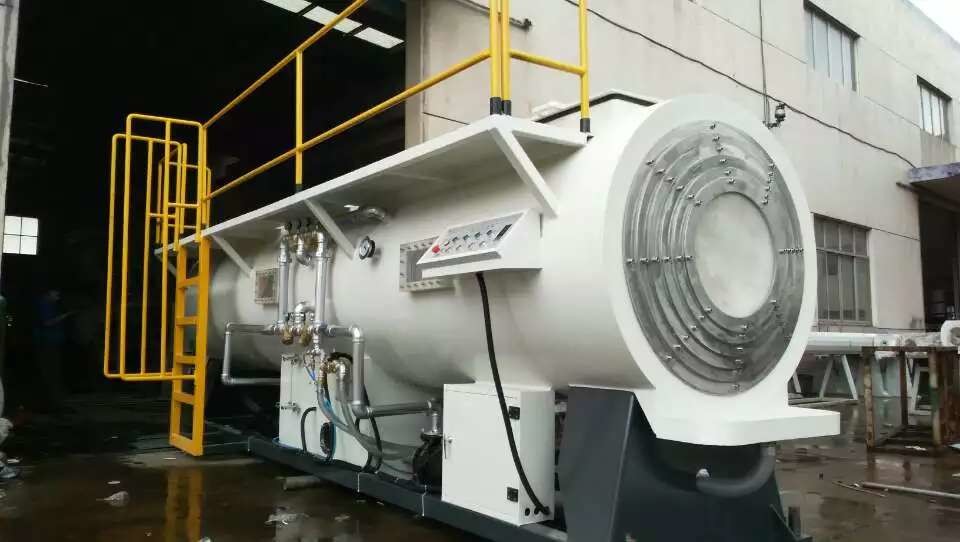

The vacuum calibration tank adopts two-chamber structure with vacuum calibration and cooling sections. Both vacuum tank and spraying cooling tank utilize stainless 304 steel. The excellent vacuum system ensures precise pipe sizing.

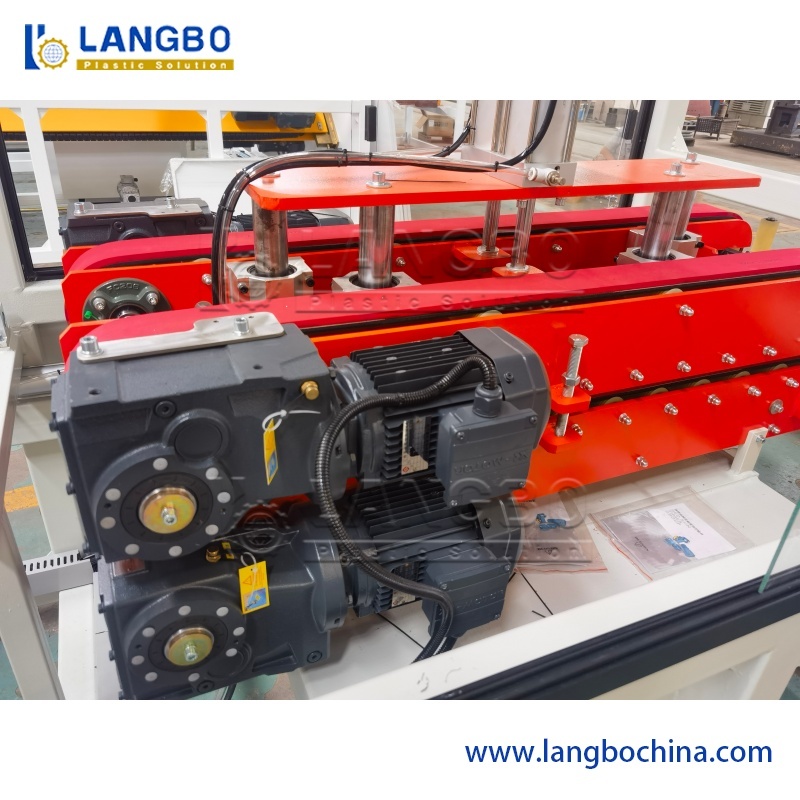

Haul-off Unit
Three crawler tracks on the haul-off machine ensure stable and steady pipe operation. The haul-off units can be tailored to specific production requirements through general control adjustments.

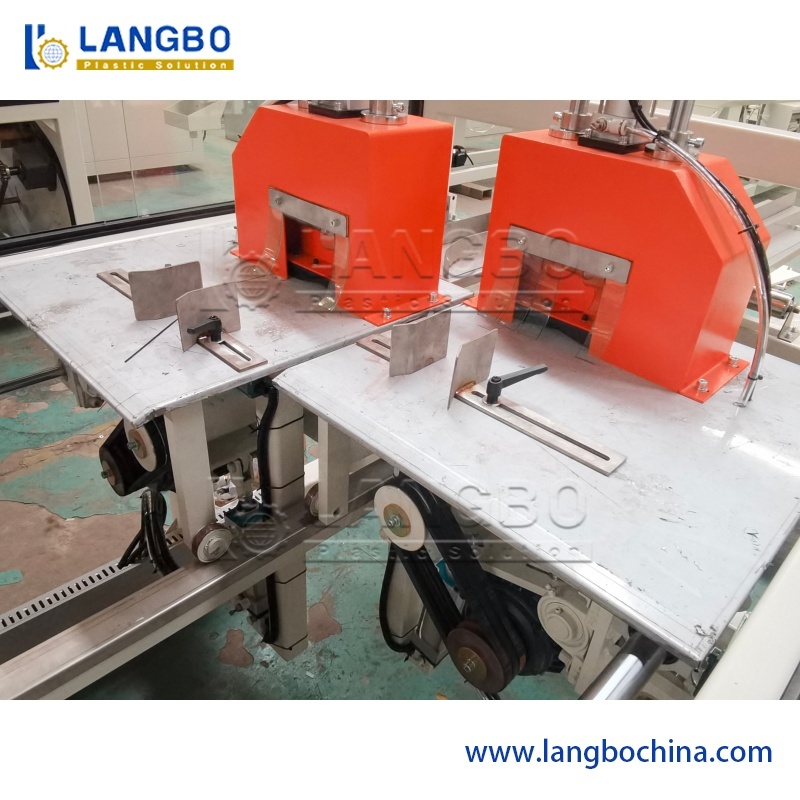

Cutting Unit
High-accuracy encoders ensure precise and stable cutting lengths. With PLC control system, cutting can be performed manually according to specific applications.
Additional Technical Features
- Plastic pulverizer easily grinds all types of Hard & Soft PVC into powder
- Dust collector effectively reduces dust pollution
- Main fan discharging reduces operator labor intensity
- Host door cover opens for convenient maintenance and cutter replacement
- Water and wind double cooling system prevents bearing and component overheating
- Adjustable powder mesh (15-100mesh)
- Easy installation and maintenance with accessible door cleaning
Delivery Information
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
Our Service Commitment
- One year guarantee for complete machine
- 24 hours technical support
- Overseas installation & commissioning by our engineers
- Post-warranty maintenance guidance and competitively priced spare parts
- Comprehensive training services for optimal machine operation
Product Images
Our Manufacturing Facility
Industry Exhibition Participation
Global Shipping Capabilities
