Conduit Water Supply And Garden Hose PVC Pipe Making Machine With Customized Color
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
Conduit PVC Pipe Making Machine,Garden PVC Pipe Making Machine,Customized PVC Pipe Making Machine |
||
Product Description
Plastic PVC Pipe Making Machine Production Line Conduit Water Supply Garden Hose
Short desciption
Plastic PVC pipe making machine is used to produce PVC pipe with diameter from 16 up to 800mm, which is used for electric conduit, building drainage, sewage pipe, water supply pipe, well casing pipe, agricultural irrigation pipe and so on.It's mainly composed by conical twin screw extruder, mould, vacuum calibration tank, haul off machine, cutting machine, stacker, belling machine.By changing dorn or mould lip, it can produce several diameter or wall thickness on same machine.
Tech Features & Advantages
1. Ensuring long-time stable operation & long service life
2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation
3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.
4. PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.
Producting process
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Mixing & Feeding
PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.
- The blended material is fed into the hopper of the extruder.

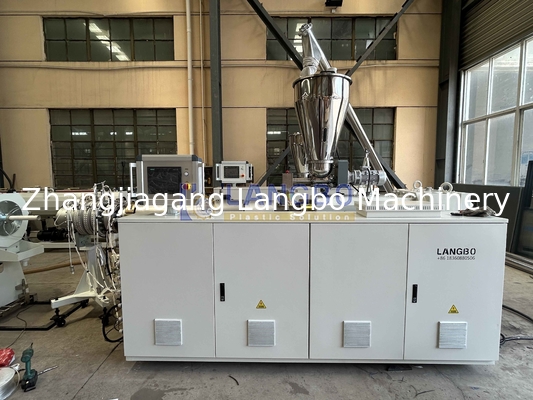

2. Extrusion & Pipe Forming
- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.
- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.

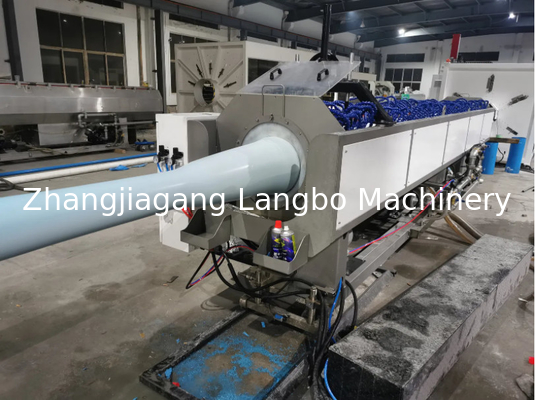

3. Vacuum Sizing & Cooling
- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.
- It then enters a cooling water tank to solidify the structure and maintain shape stability.

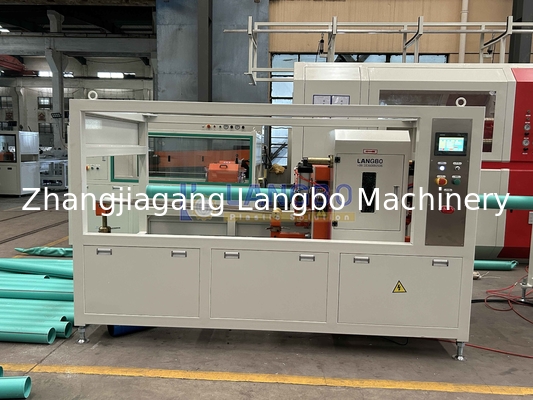

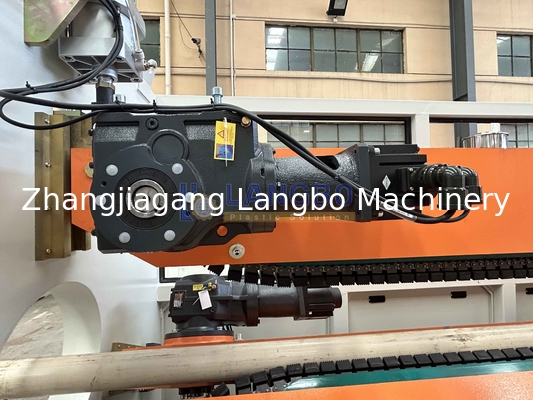

4. Hauling & Cutting
- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging
- The finished pipes are automatically stacked and packed for storage or shipment.
