Name: Customizable PVC Pipe Extruder Production Line For Agricultural Irrigation Conduit Contactor SIEMENS Or SCHNIDER
Brand: Zhangjiagang Langbo Machinery Co. Ltd.
SKU: LB-110
Price: 25,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

PIPE DIAMETER: 75-250

EXTRUDER'S POWER: 55KW

COLOUR: CUSTOMIZED

PIPE UMBERS: SINGLE PIPE

RAW MATERIAL: PVC POWDER & ADDITIVES

APPLICATION: WATER SUPPLY PIPE

Voltage: 380V 50Hz Or Customized

Automatic Grade: Full-automatically

Screw Design: Twin Screw And Barrel

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support

Warranty: 18 Months

Inverter: ABB

Color: Customizable

Raw Material: PVC Powder

Motor: SIEMENS Brand

Contactor: SIEMENS OR SCHNIDER

Screw And Barrel: Conical Twin Screw Extruder

Screw Diameter: 65/132

Pipe Application: Water Supply

Packages: Film And Boxes

Payment: T/T, L/C, Western Union

Delivery Time: 60 Days

Highlight:

Agricultural Irrigation PVC Pipe Extruder

Customizable PVC Pipe Extruder

SIEMENS PVC Pipe Extruder

Basic Infomation

Place of Origin: ZHANGJIAGANG, JIANGSU

Brand Name: LB

Certification: CE ISO9001

Model Number: LB-110

Payment & Shipping Terms

Packaging Details: NORMAL PACKAGE

Delivery Time: 30 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 15 SETS PER MONTH

Gallery

Customizable PVC Pipe Extruder Production Line For Agricultural Irrigation Conduit Contactor SIEMENS Or SCHNIDER

Product Description

Plastic PVC Pipe Extruder Production Line Agricultural Irrigation Conduit

Short desciption

Our PVC Pipe Extruder Production Line is a high-efficiency, fully automated system designed for manufacturing high-quality PVC pipes used in agricultural irrigation, drainage, and water supply systems. The production line ensures precise dimensions, excellent durability, and smooth surface finish, making it ideal for demanding agricultural applications

Tech Features & Advantages

1. Ensuring long-time stable operation & long service life
2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation
3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.
4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.

Producting process

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Specifications:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

Product detail

1. Raw Material Mixing & Feeding

PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.

- The blended material is fed into the hopper of the extruder.

2. Extrusion & Pipe Forming

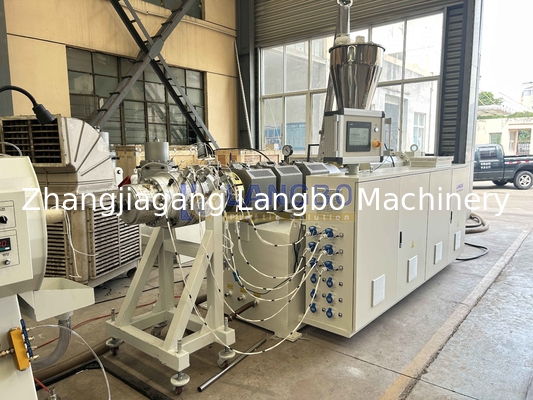

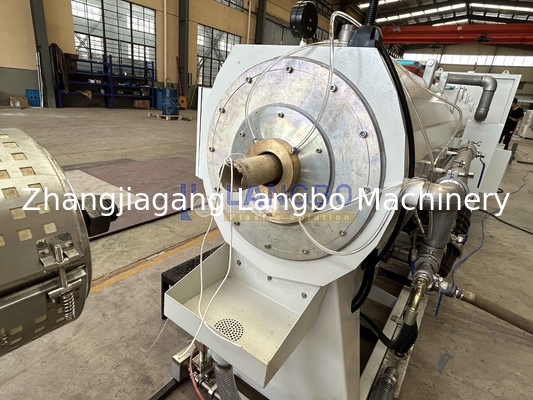

- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.

- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.

3. Vacuum Sizing & Cooling

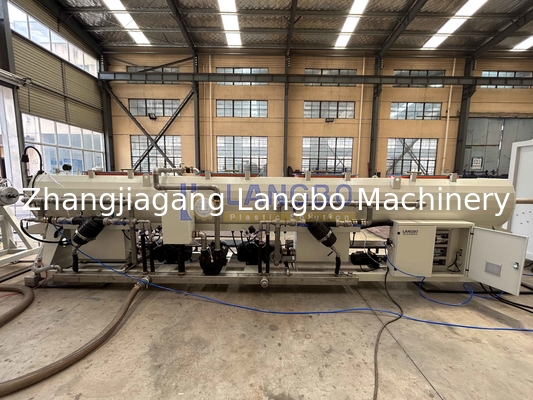

- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.

- It then enters a cooling water tank to solidify the structure and maintain shape stability.

4. Hauling & Cutting

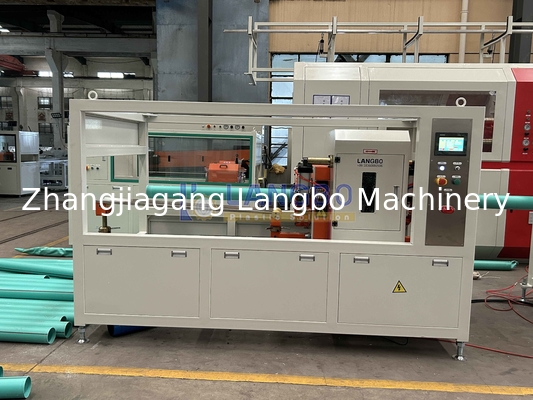

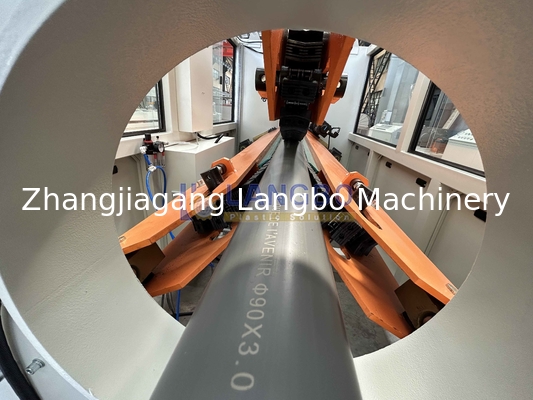

- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging

- The finished pipes are automatically stacked and packed for storage or shipment.

Technical Features:

High Output & Energy Efficiency – Advanced extrusion technology ensures stable production with low energy consumption.
Fully Automated Control – PLC system with touch-screen interface for easy operation and monitoring.
Uniform Pipe Quality – Precision extruder and vacuum calibration system guarantee consistent wall thickness and roundness.
Durable & Corrosion-Resistant – Produces UV-stabilized, chemical-resistant PVC pipes suitable for harsh environments.
Customizable Sizes – Capable of producing pipes from Φ16mm to Φ315mm (or as per customer requirements).
Low Maintenance – Robust construction with high-quality components for long-term reliability.

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.
