16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line

1 SET
MOQ
USD EUR
Price
16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
PIPE DIAMETER: 75-250
EXTRUDER'S POWER: 55KW
COLOUR: CUSTOMIZED
PIPE UMBERS: DOUBLE PIPE
RAW MATERIAL: PVC POWDER & ADDITIVES
APPLICATION: WATER SUPPLY PIPE
Voltage: 380V 50Hz Or Customized
Automatic Grade: Full-automatically
Screw Design: Twin Screw And Barrel
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support
Warranty: 18 Months
Inverter: ABB
Color: Customizable
Raw Material: PVC Powder
Motor: SIEMENS Brand
Contactor: SIEMENS OR SCHNIDER
Screw And Barrel: Conical Twin Screw Extruder
Screw Diameter: 65/132
Pipe Application: Water Supply
Packages: Film And Boxes
Payment: T/T, L/C, Western Union
Delivery Time: 60 Days
Highlight:

16-32mm Conduit Extruder

,

Pipe Extrusion Line

,

PVC Conduit Extrusion Machine

Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE ISO9001
Model Number: LB-32
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Product Description

16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line



Short desciption

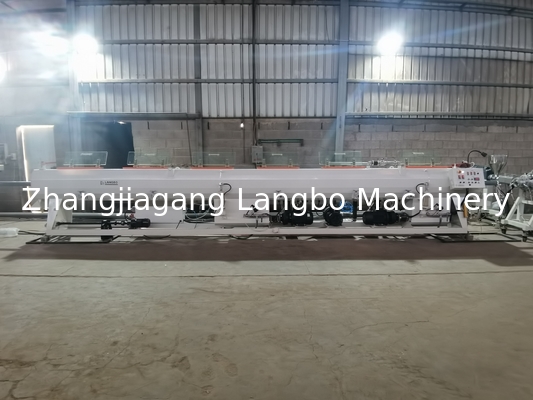

This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.



Application

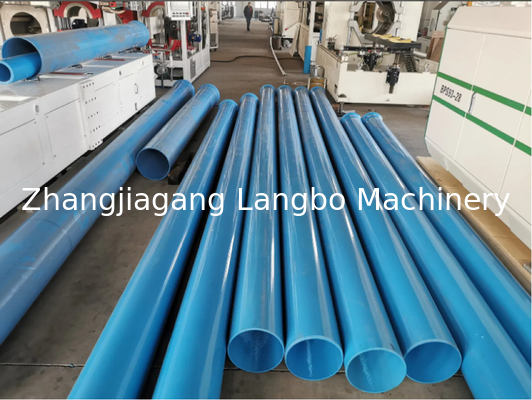

The final produced UPVC pipe is used for the electrical conduit pipe, water supply pipe, sewage pipe, house decoration, chemical transportation, gas distribution line and so on. It has widely used in the industrial and daily life. The pvc pipe has the features of high strength and rigidity, structural integrity, excceleent chemical resistance,durability,thermal stability,non-toxic and safe,low maintenance and cost-effective.



Producting process

PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker



Specifications:



MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC



Product detail

Mixer

With specific design of mixer, the self-friction of raw materials is reduced. It is conducive to the efficiency of energy utilization. The Vacuum suction load with low noise and no-dust working situation.

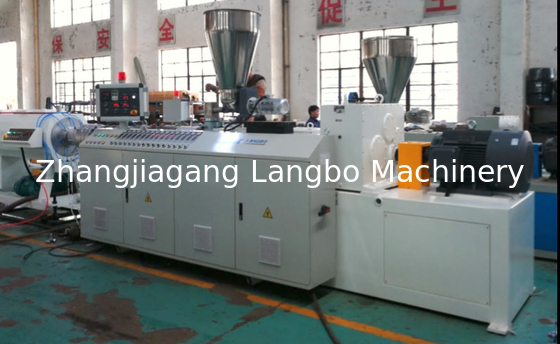

Twin screw extruder machine

The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.



Vacuum Calibration & Cooling

The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.



Haul-off Unit

The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.



Cutting Unit

The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.


Technical Features:
1. Extruder controlled by Digital display control instrument, or PLC control system with HMI touch screen control panel,
2. Vertical type integrated gearbox, with high torque, accuracy and durable performance.
3. Bimetallic screw and barrel; Screw inner temperature controlled by thermo oil pump system; Equipped with degassing zone; Optimized double screw material feeding system for stable production of PVC powder.
4. High production capacity: Under the premise of ensuring product quality, the four outlet PVC pipe extrusion line can reach about 12000kg per 24 hours.
5. Small water and air consumption: WONPLUS optimized cooling water channel and air circuit make the water and air consumption reduce at least 25% than traditional type.
6. Low noise pollution: WONPLUS machine use Dust free cutter, almost none sound while working.
7. Low dust pollution: The traditional saw cutter makes serious dust pollution while working, and too much material wasted after cutting. But WONPLUS dust free cutter use Alloy knife, almost none dust while working.

Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 0 16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 116-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 2 16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 3
16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 4 16-32mm PVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line 5
F & Q:

Are you a trading company or factory? Can I have a factory visiting?

We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.

How to build trust with Langbo

We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.



For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.

Is the shipping cost included in the quotation?

Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.



What will happen after order confirmation

confirmation of Configuration

Sign of Proforma invoice

30% of total price pre-payment for production starting

Test running in the house, customers on-site or video connecting

Confirmation of machine condition

70% of the total price for delivery preparation

Confirmation of Delivery date

Shipping to customer

On-site commissioning

Training in machine operation and maintenance

Confirmation of handover

One year guarantee

Whole lifecycle service and technical support

What is the Payment Method?

T/T, D/P, Letter of credit, Cash transaction

How to guarantee the machine quality made by Langbo

We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.

How can customers get the exact machine as they wish?

Factory visiting before order

Product sample posting to Langbo for a better understanding of customer’s expectations and configuration communication

On-site checking during test running

Do you have CE Certification?

Yes. Both our extrusion machine and plastic recycling machine have CE Certification.

What is the delivery time between order confirmation and delivery?

Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.

What are services for after-sale

One-year quality guarantee.

Quick response for technical support

Problem analysis for production problems

What means one-year quality guarantee

After the handover of the machine, Langbo provides free new parts for every non-man-made damage.



How to get the required area of the machine?



For a new plant, you can contact me. (sales@langbochina.com/ whatsapp:8615962377824) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
