Pvc Water Supply Double Pipe Production Line Extruder Machine

PVC Double Pipe Production Line Extruder Machine

Short desciption

The PVC Double Pipe Production Line Extruder Machine is a state-of-the-art system designed for manufacturing high-quality dual-layer PVC pipes used in water supply, drainage, irrigation, and industrial applications. This advanced production line integrates twin-screw extrusion technology, precision molding, and automated control to ensure consistent pipe quality, high efficiency, and energy-saving performance.

Tech Features & Advantages

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.

Producting process

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Specifications:



Product detail

Raw Material Feeding

PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

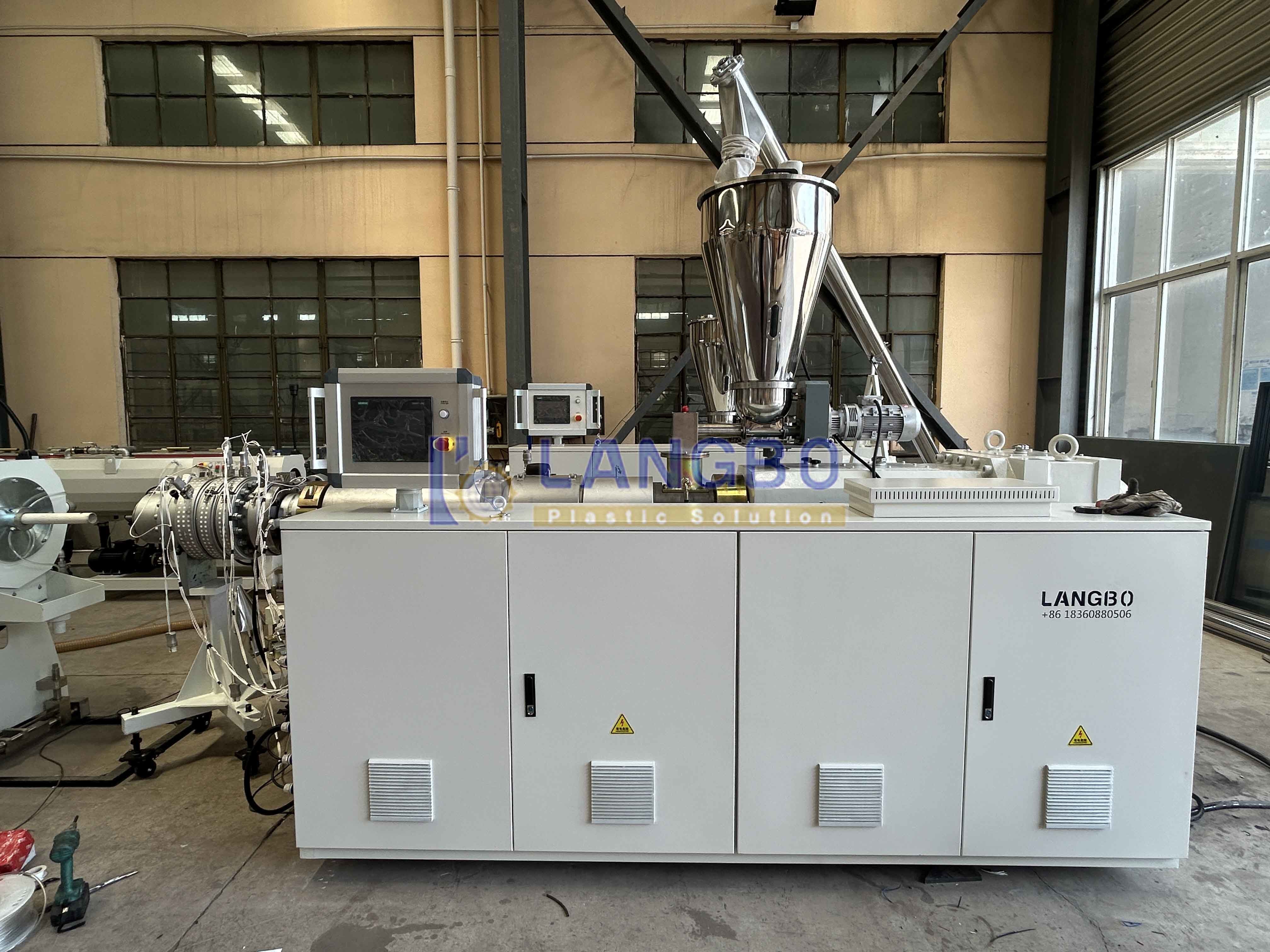

Twin screw extruder machine

The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

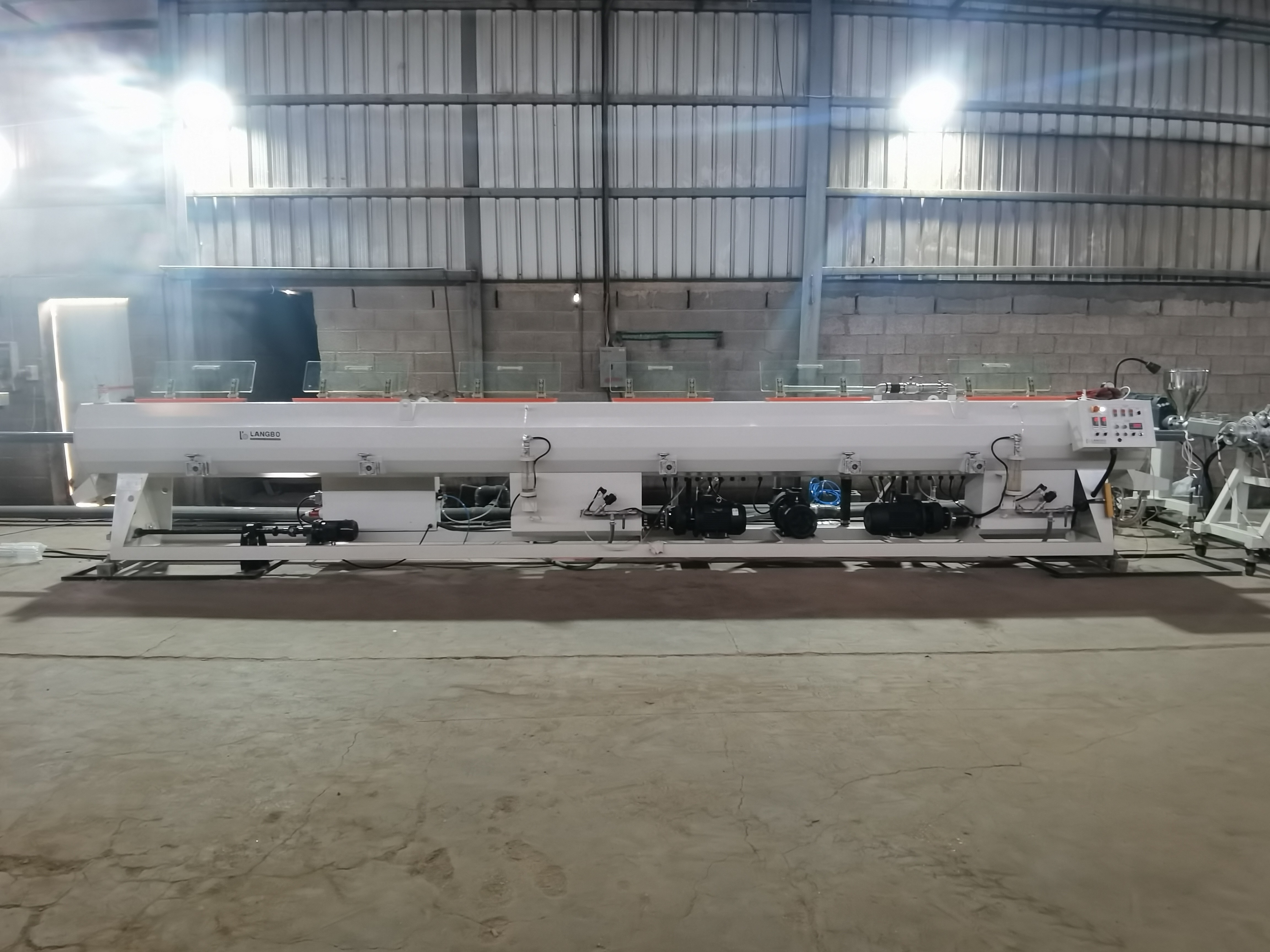

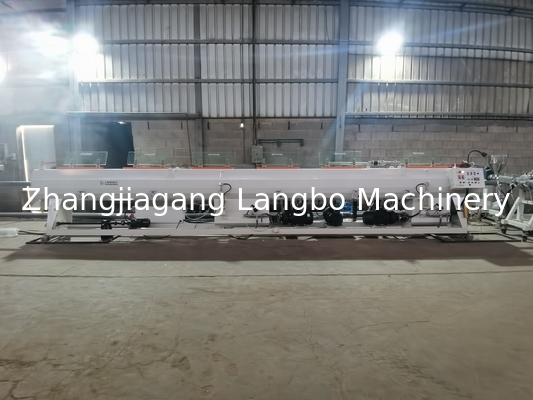

Vacuum Calibration & Cooling

The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

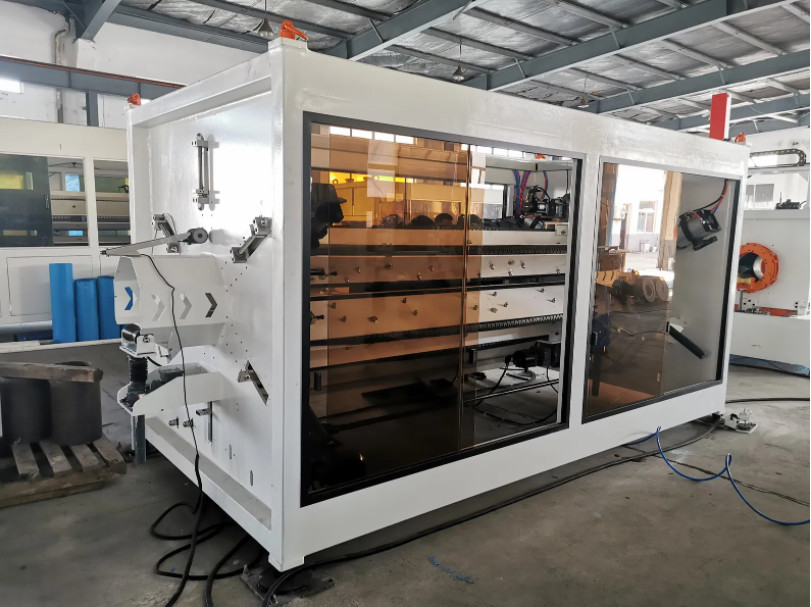

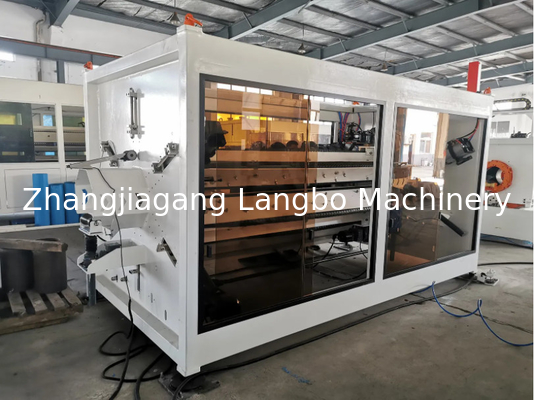

Haul-off Unit

The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

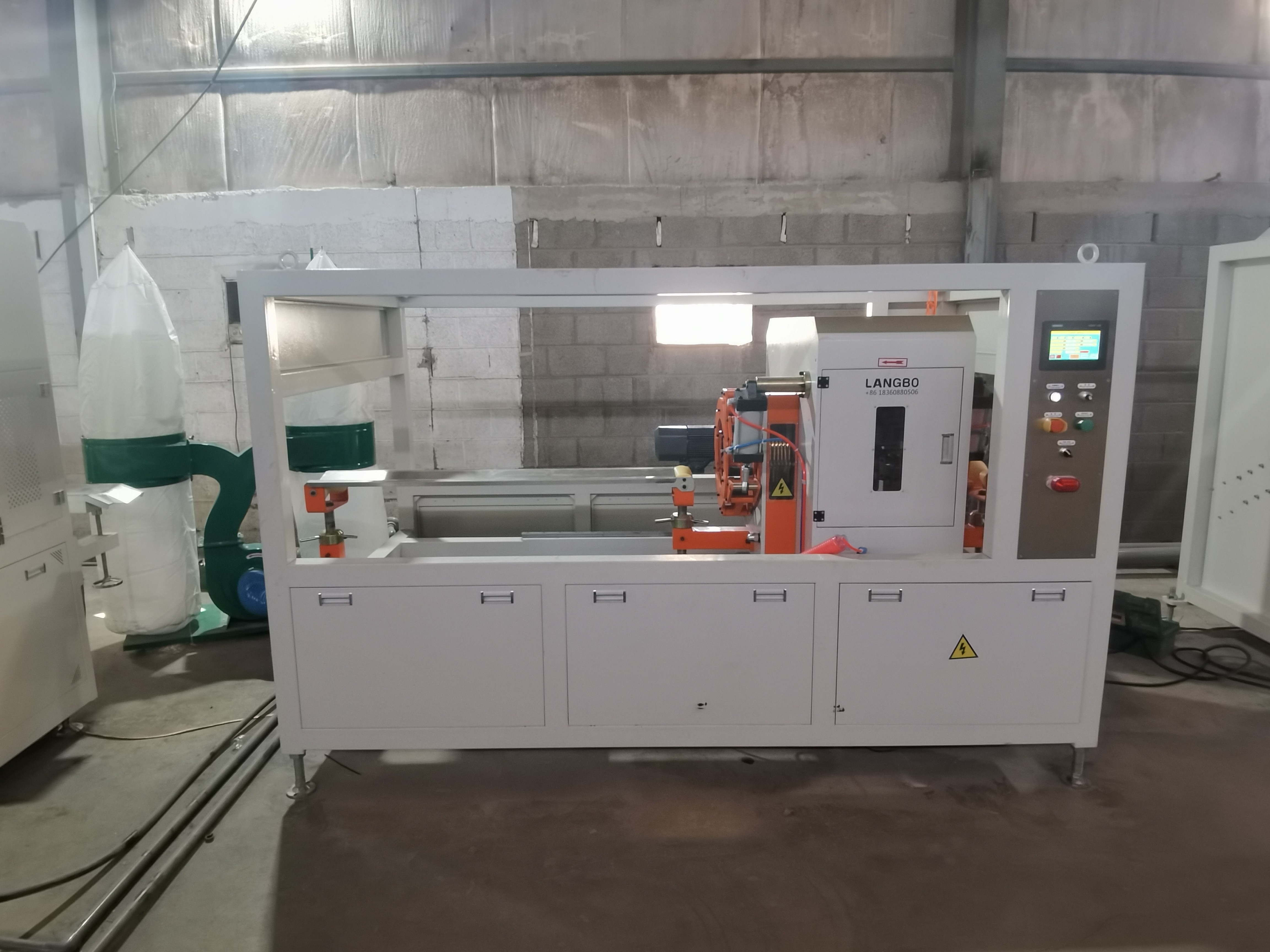

Cutting Unit

The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.



Technical Features:

1. THe plastic pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.

2. The dust collector is added to effectively reduce dust pollution.

3. The discharging of the main fan reduces the labor intensity of operating workers.

4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.

5. The mill uses the water and wind double cooling system, Prevent bearing, and other parts from overheating.

6. The powder mesh is adjustable(15-100mesh).

7. Easy installation and maintenance, just open the door to clean up.



Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case



Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.







Our factroy



Our Exhibition



Our Goods Shipping
