16-110mm Plastic PVC Double Pipe Making Machine
PVC Plastic pipe making machine is designed for production of agricultural water supply & discharge systems, architectural water supply & discharge systems, wire laying systems, and related applications.
Complete Production Line Configuration
The unit consists of a conical (parallel) double screw extruder, PVC pipe mold, vacuum forming tank, haul-off machine, cutting machine, and stacker/belling machine. The line can be equipped with comptroller thickening instruments or computer ink-jet printers for high-grade tubing production.
Technical Features & Advantages
- Complete production machinery according to customer requirements
- Comprehensive factory layout and setup assistance
- Raw material supply available upon request
- Professional machine installation and operator training
- Lifetime after-sales service with one-year quality guarantee
- High-quality equipment with competitive pricing for turnkey projects
Production Process
Screw Loader for Mixer → Mixer unit → Screw Loader for Extruder → Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/Tripping Table → Final Product Inspecting & Packing
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Production Process Details
Raw Material Feeding: PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

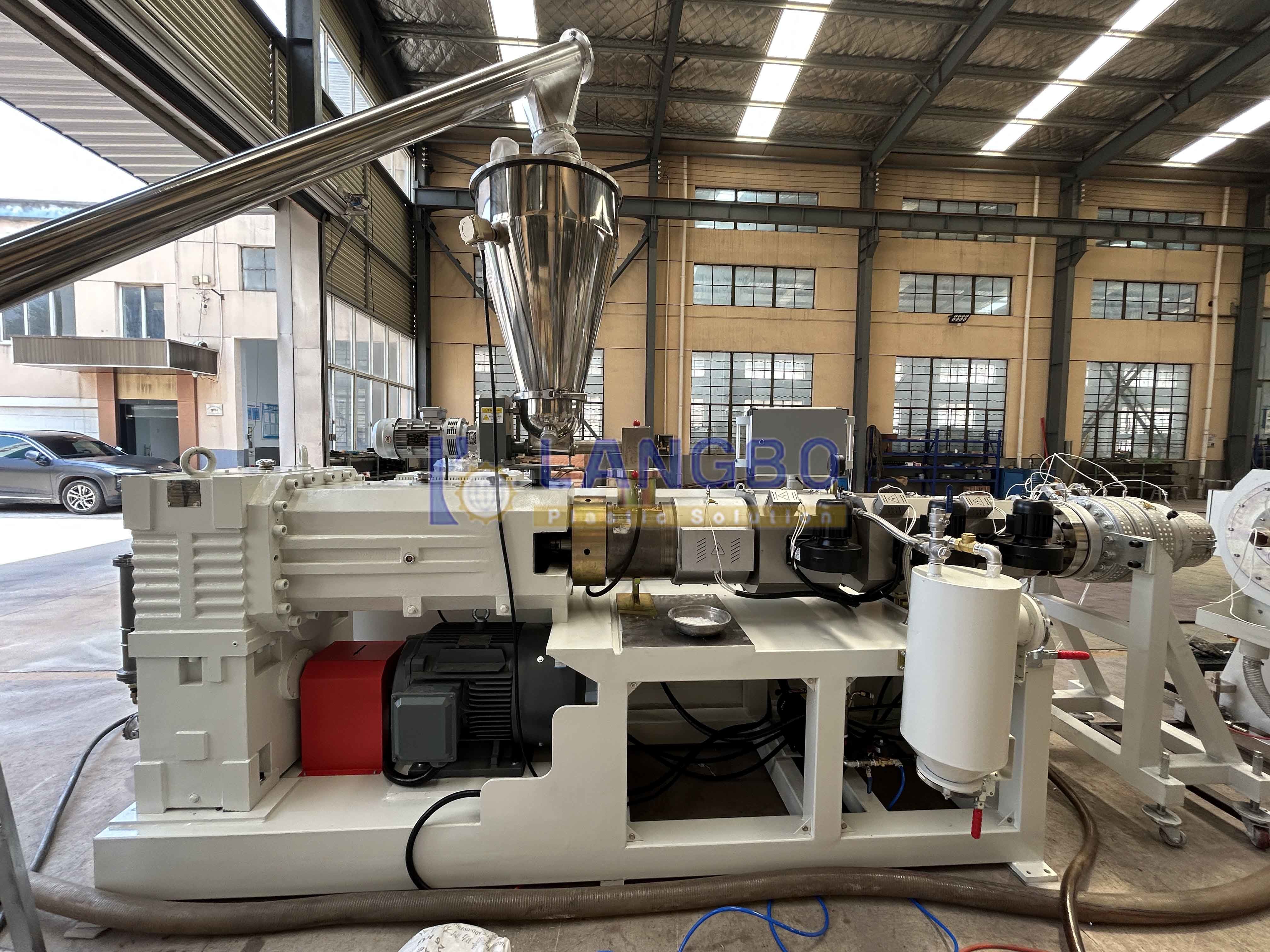

Twin Screw Extruder Machine: The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

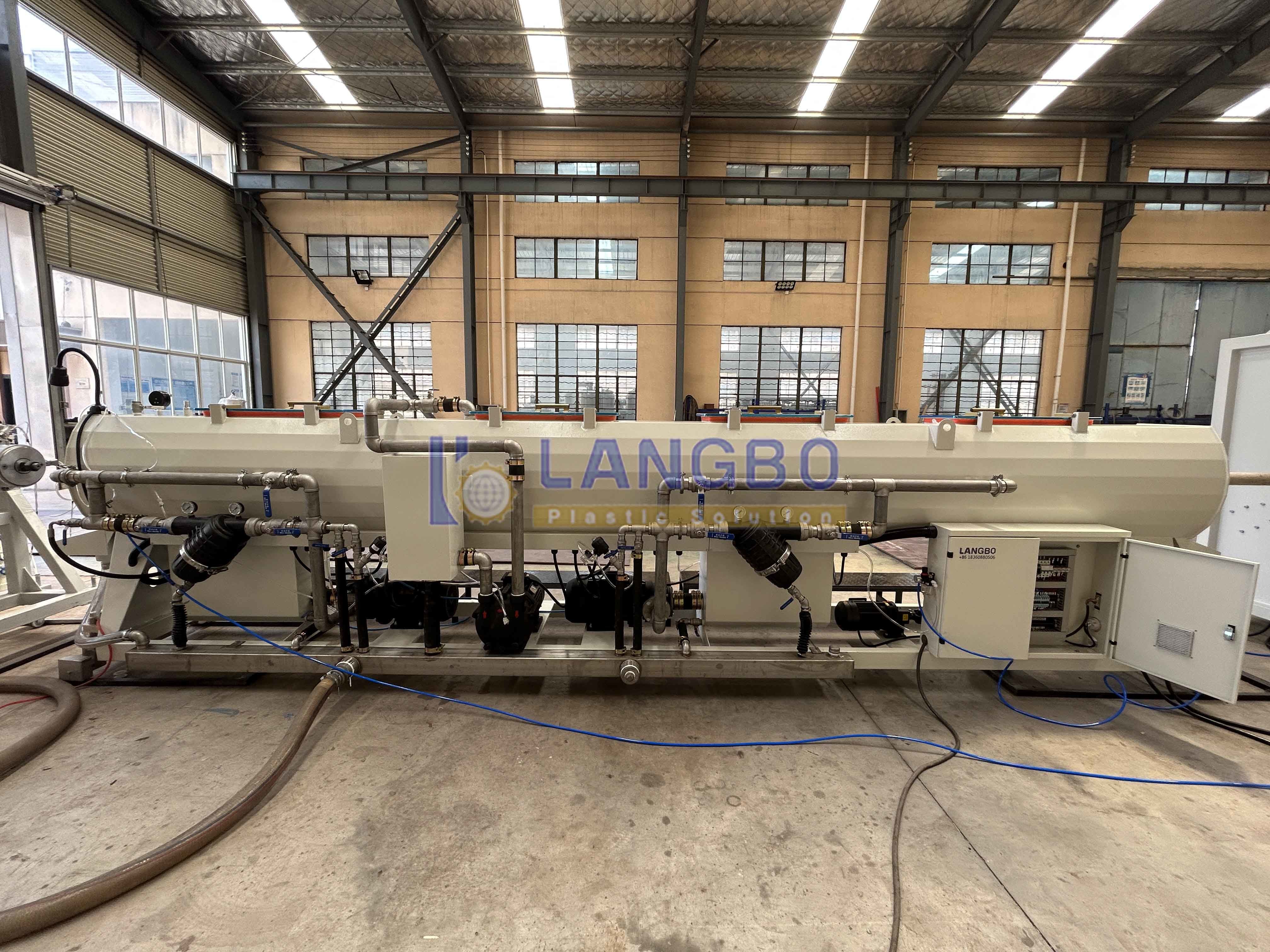

Vacuum Calibration & Cooling: The vacuum calibration tank features two-chamber structure with vacuum calibration and cooling parts. Both vacuum tank and spraying cooling tank utilize stainless 304 steel. The excellent vacuum system ensures precise pipe sizing.

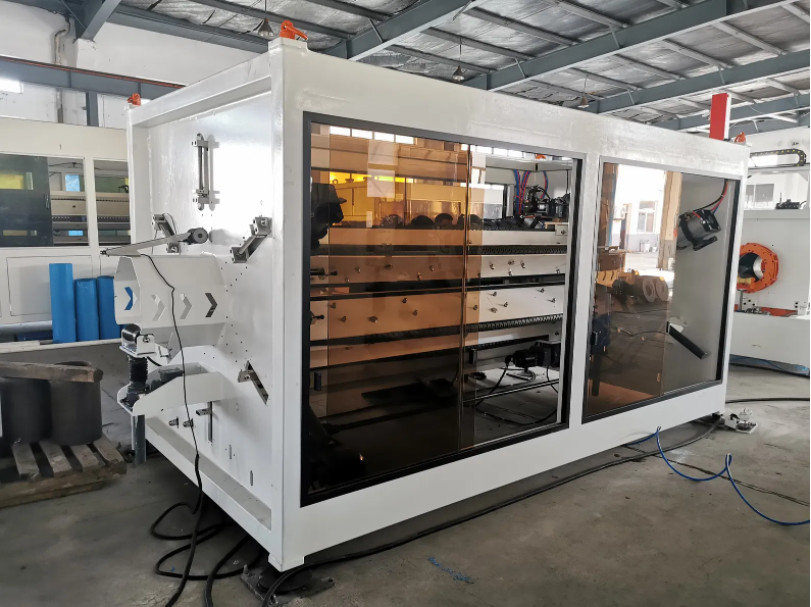

Haul-off Unit: Three crawler tracks ensure stable and steady pipe running. Haul-off units provide tailored hauling models based on production requirements through general control adjustments.

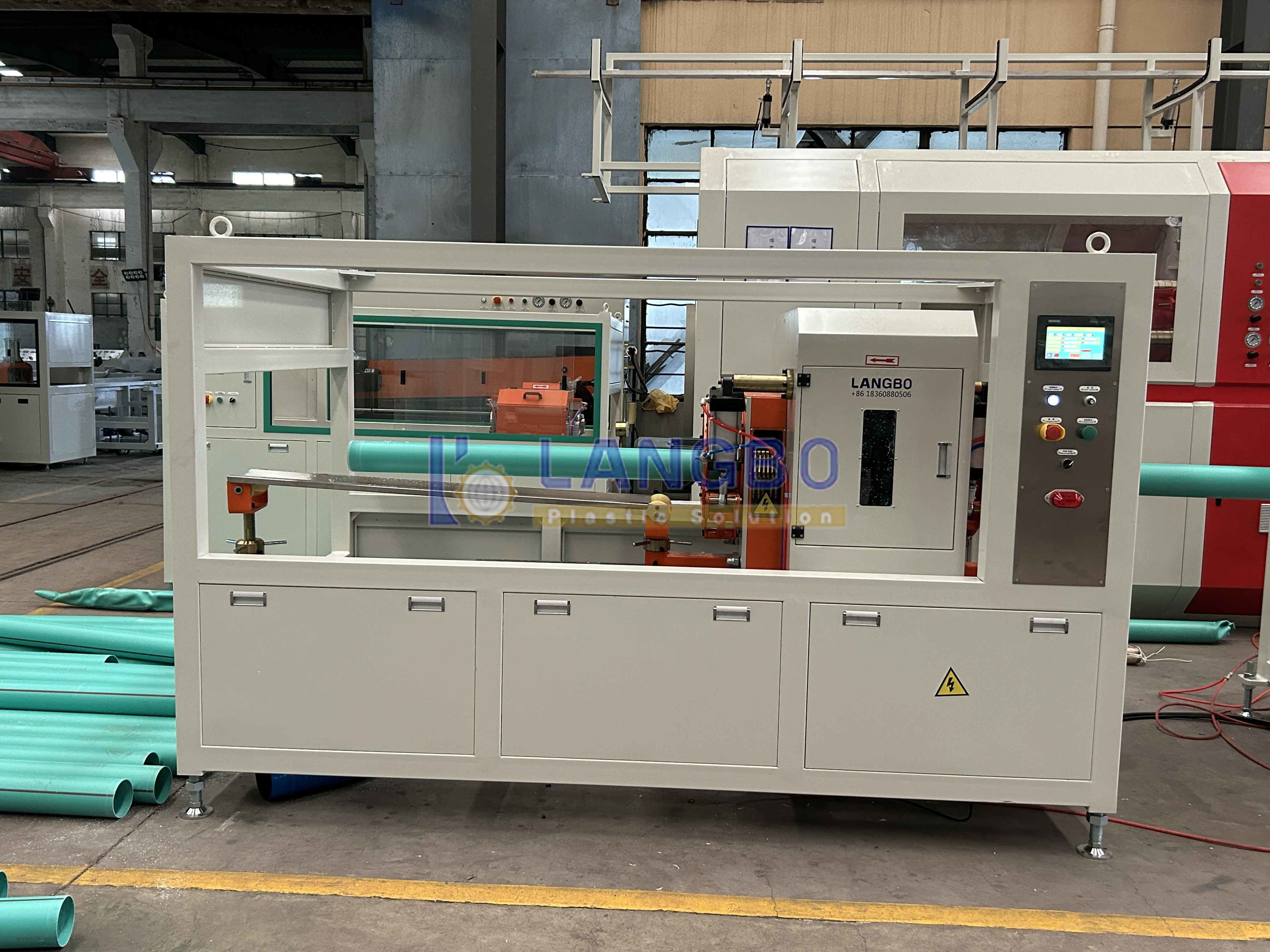

Cutting Unit: High-accuracy encoder ensures precise and stable cutting length. PLC control system enables manual operation cutting according to specific applications.
Advanced Technical Features
- Plastic pulverizer easily grinds all types of Hard & Soft PVC into powder
- Dust collector effectively reduces dust pollution
- Main fan discharging reduces operator labor intensity
- Host door cover opens for convenient maintenance and cutter replacement
- Water and wind double cooling system prevents bearing and component overheating
- Adjustable powder mesh (15-100 mesh)
- Easy installation and maintenance with accessible door cleaning
Delivery & Payment Terms
Delivery: 30 days after order confirmation
Warranty: 12 months comprehensive coverage
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden cases
Comprehensive Service Support
- One-year guarantee for entire machine
- 24-hour technical support availability
- Overseas installation & commissioning by qualified engineers
- Post-warranty maintenance guidance and competitively priced spare parts
- Professional operator training for optimal machine handling
Product Gallery
Our Manufacturing Facility
Industry Exhibition Participation
Global Goods Shipping
