75-250mm Pvc Complete Production Line Plastic Water Pipe Extruder Machine
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
Plastic Water Pipe Extruder Machine,250mm Pvc Complete Production Line,75mm Pvc Complete Production Line |
||
Product Description
Short desciption

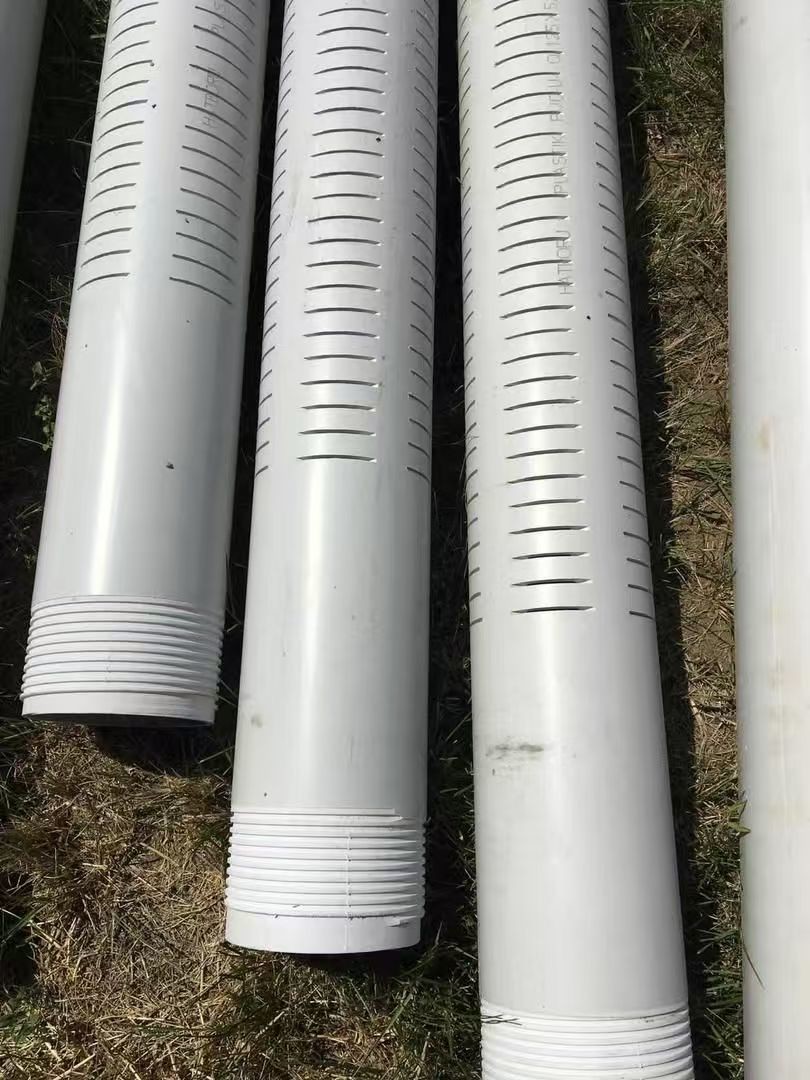

It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing cable laying etc. Our PVC pipe extrusion line has features of low consumption, high output, stable running.
The whole PVC pipe production line include: Material auto loader, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, auto cutter and stacker; pipe printer and PVC Pipe Belling machine for customers optional choice.
SRL-Z series PVC Powder heating cooling mixing unit, SWP series Plastic Crusher, SMF series Plastic Milling Machine/ Pulverizer are necessary auxiliary equipments.
Clients also can choose double PVC pipe production line to make small size PVC pipes from 16mm up to 50mm.
Tech Features & Advantages
Construction: Drainage, sewerage, and ventilation systems.
Agriculture: Irrigation pipes, greenhouse frameworks.
Utilities: Potable water distribution, electrical conduits.
Industrial: Chemical-resistant piping, cable protection.
Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
Raw Material Feeding
PVC resin, stabilizers, plasticizers, and additives are pre-mixed and fed into the extruder hopper.

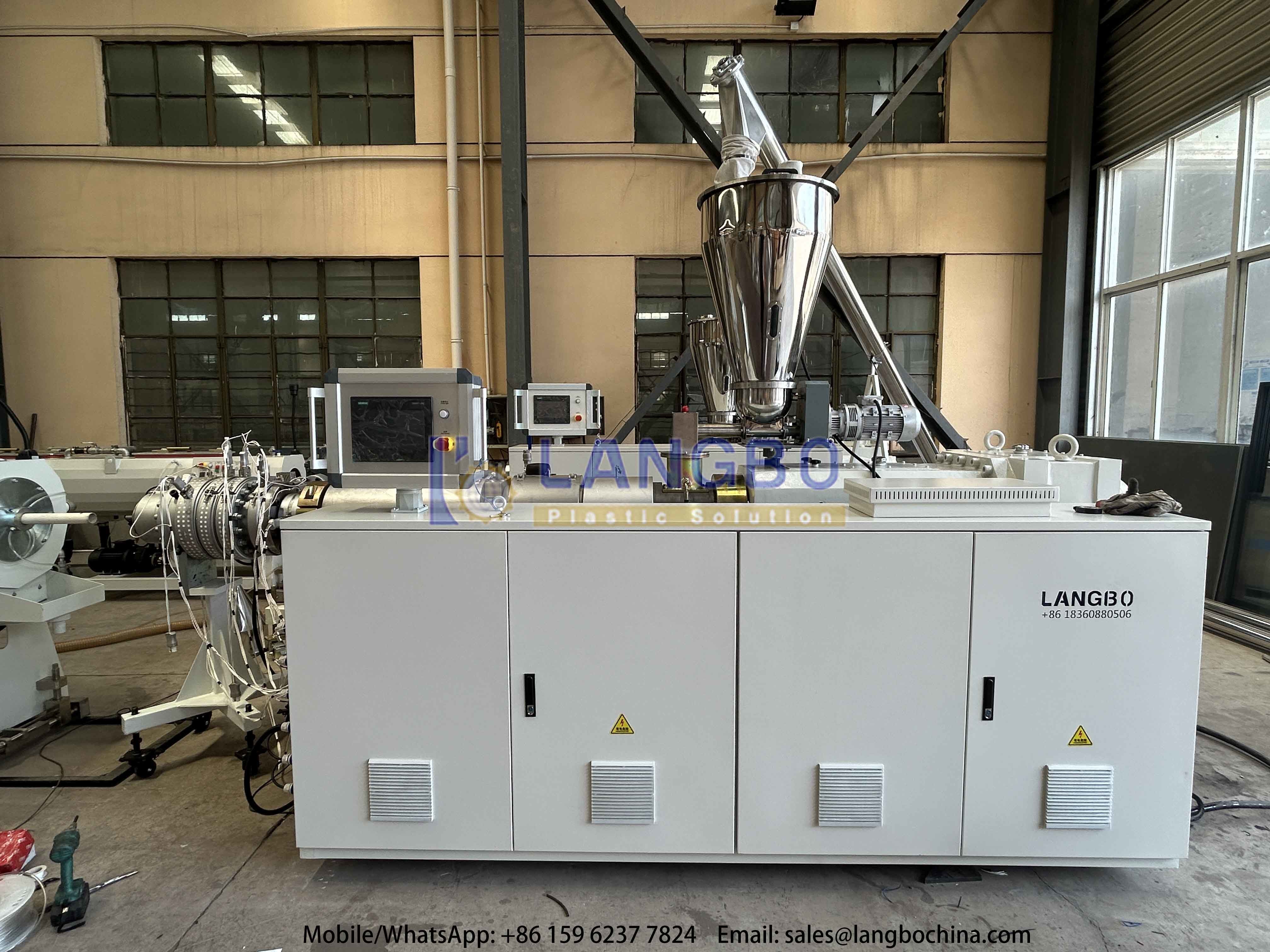

Twin screw extruder machine
The twin-screw extruder conveys, compresses, and melts the PVC mixture under controlled heating zones.

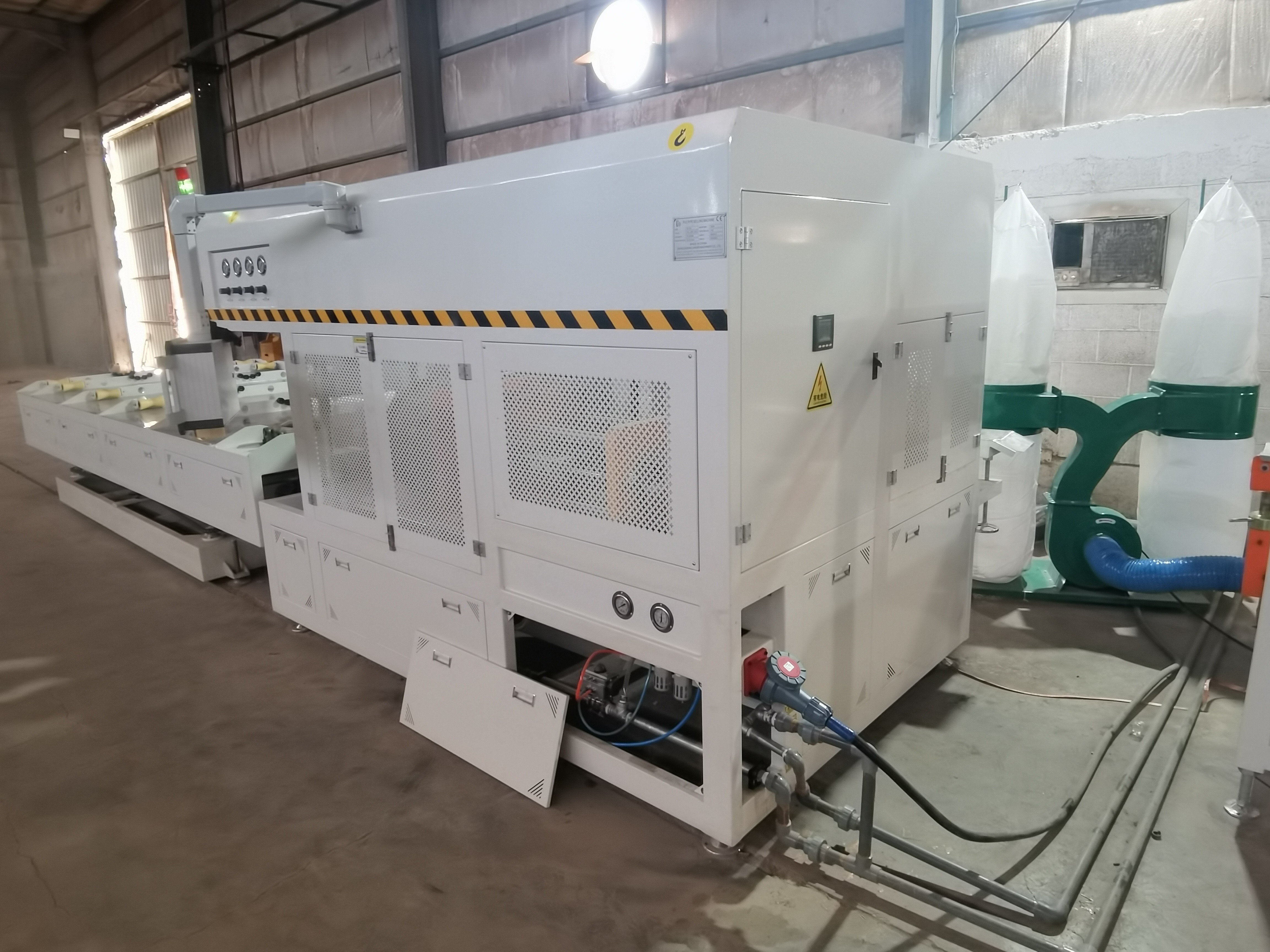

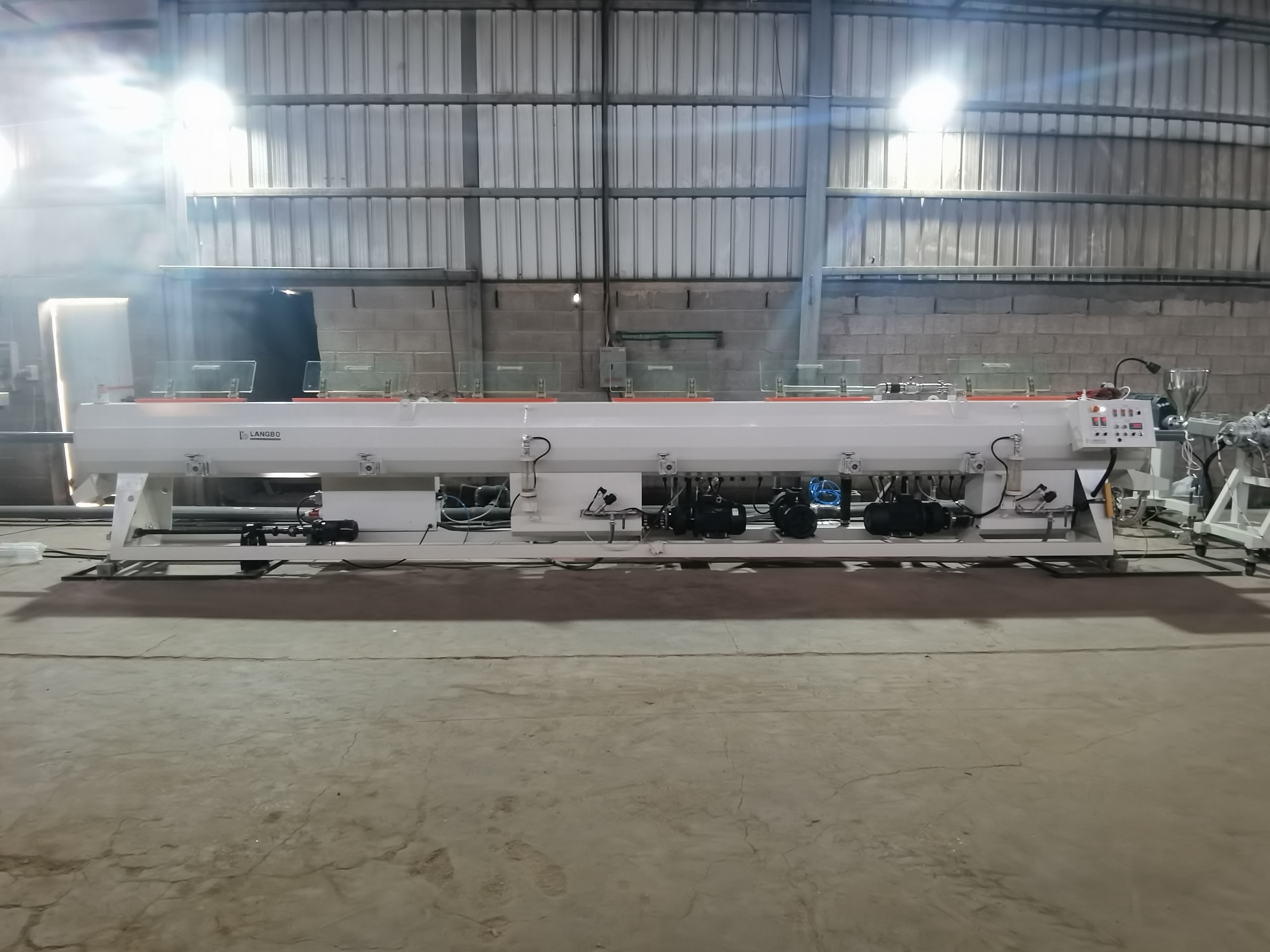

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.
Haul-off Unit
The three crawler track on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

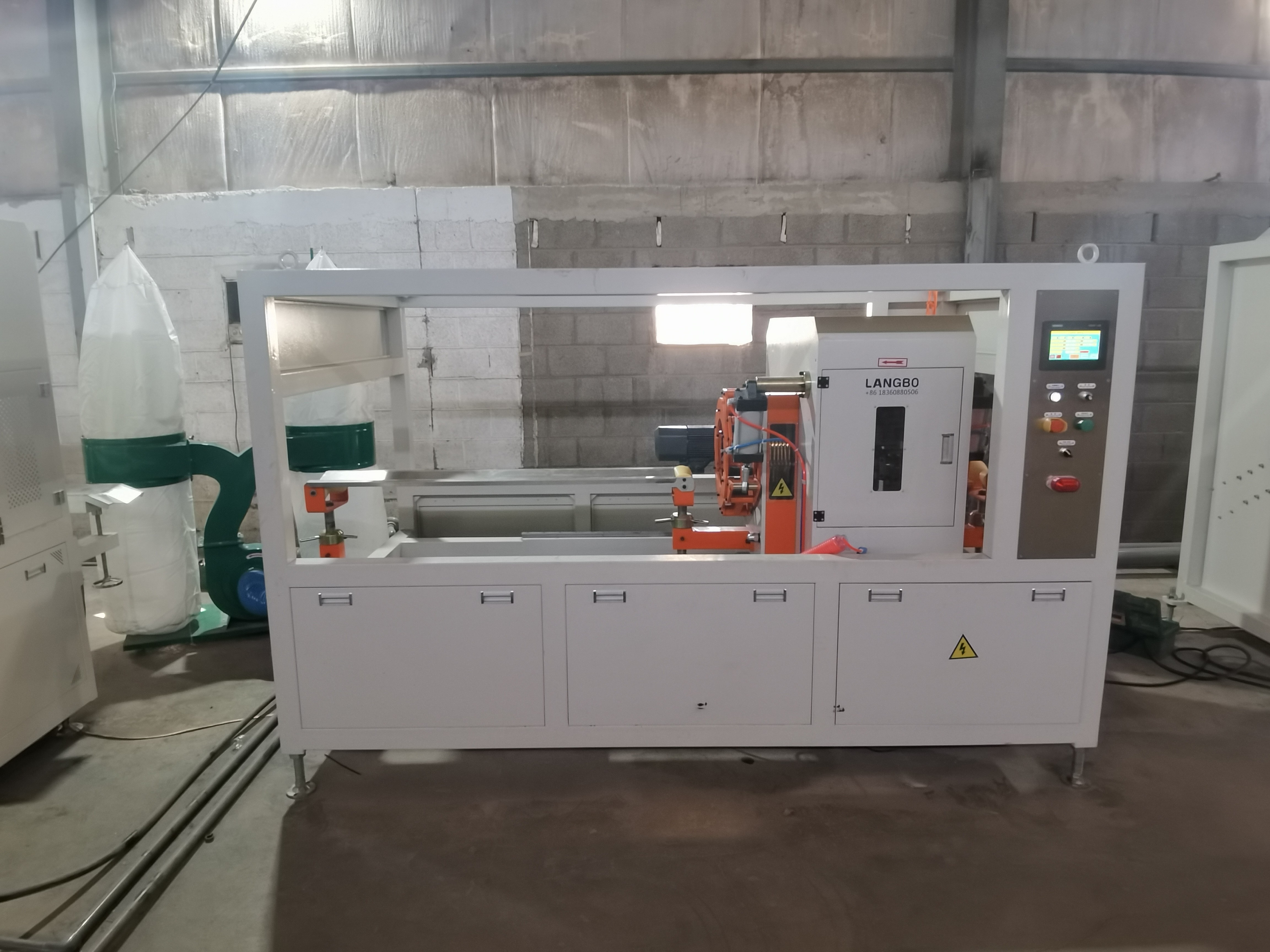

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.
The whole PVC pipe production line include: Material charger, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, cutter and stacker; pipe printer and PVC Pipe Belling machine for customers optional choice.
SRL-Z series PVC Powder heating cooling mixing unit, SWP series Plastic Crusher, SMF series Plastic Milling Machine/ Pulverizer are necessary auxiliary equipments.
Clients also can choose double PVC pipe production line to make small size PVC pipes from 16mm up to 50mm.
