20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm PVC Pipe Extrusion Line Plastic Tube Production Extrusion Line
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
PVC pipe extrusion line with multiple sizes,plastic tube production extrusion machine,PVC pipe extrusion equipment with warranty |
||
Product Description
20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm PVC Pipe Extrusion Line Plastic Tube Production Extrusion Line
Short desciption
Our PVC Pipe Extrusion Line is designed for manufacturing rigid and flexible PVC pipes in diameters ranging from 20mm to 110mm, catering to plumbing, irrigation, electrical conduits, and industrial applications. The extrusion line ensures high precision, durability, and energy efficiency, producing smooth, uniform pipes with excellent dimensional stability.
Tech Features & Advantages
Construction: Drainage, sewerage, and ventilation systems.
Agriculture: Irrigation pipes, greenhouse frameworks.
Utilities: Potable water distribution, electrical conduits.
Industrial: Chemical-resistant piping, cable protection.
Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Preparation
- PVC compound (resin + additives) is mixed in a high-speed mixer to ensure homogeneity.
- The mixture is cooled and fed into the extrusion hopper.
2. Extrusion Process

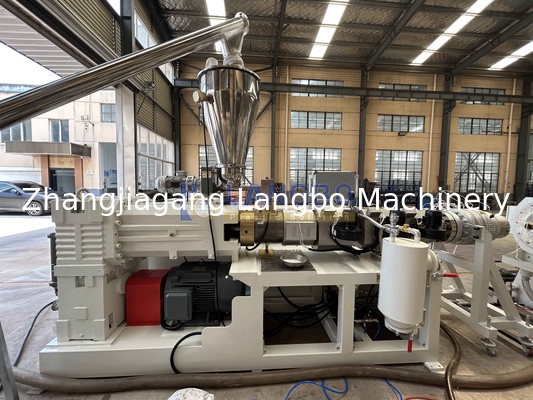

- Single/Dual-Screw Extruder melts and compresses the PVC mix at controlled temperatures (160°C–200°C).

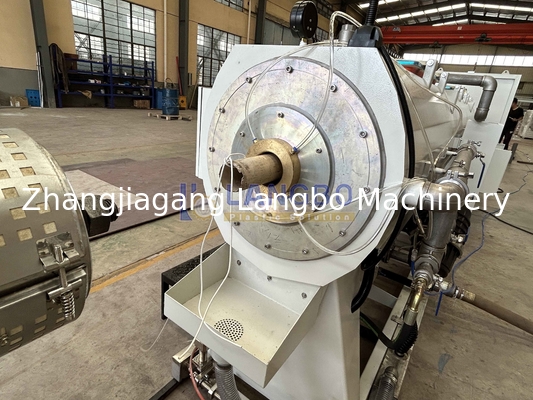

- The molten PVC is forced through a die head, shaping it into a pipe.
3. Sizing & Calibration

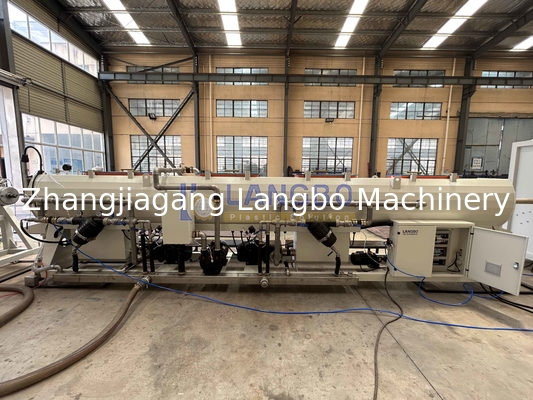

- The hot pipe passes through a vacuum calibrator to achieve precise diameter and wall thickness.
- Cooling tanks (spray or water bath) solidify the pipe.

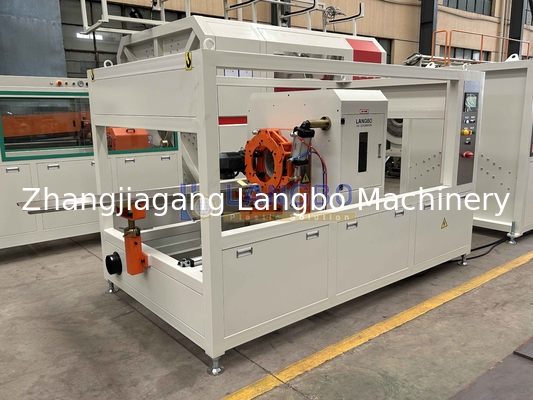

4. Pulling & Cutting
- A haul-off unit pulls the pipe at a synchronized speed.

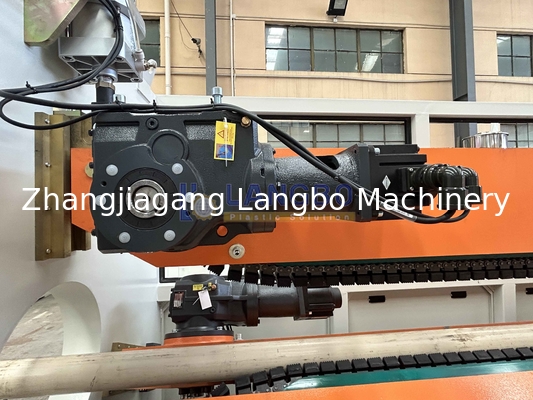

- An automatic cutter** trims pipes to required lengths (e.g., 4m or 6m).
5. Stacking & Packaging
- Pipes are stacked by a conveyor system or robotic arm.
- Bundled and labeled for shipment.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.
