Plastic PVC Electric Conduit Drainage Water Gas Suppy Tube Extrusion Production Line Making Machine
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
PVC pipe extrusion machine,plastic conduit production line,PVC drainage tube making machine |
||
Product Description
Plastic PVC Electric Conduit Drainage Water Gas Suppy Tube Extrusion Production Line Making Machine
Short desciption
1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.
2. Saw cutter and planetary cutter for choice.
3. Changing some parts can also produce M-PVC pipe, C-PVC pipe, inner spiral wall pipe, inner hollow wall pipe, formed core pipe.
4. Coincal twin screw extruder and parallel twin screw extruder for choice
5. Double-strand for four-strand for choice for small pipes
Tech Features & Advantages
It can process various soft and rigid PVC, especially process powder directly into pipe shape. It consists conical twin-screw extruder, vacuum calibration tank, haul-off unit, stacker or belling machine, etc.
The screw extruder and haul-off unit adopt AC inverters. All electric parts are international well-known brand products, which guarantee quality of machine. The PLC and big true-color screen panel make control system with high automation.
Producting process
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration
Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Preparation
- PVC compound (resin + additives) is mixed in a high-speed mixer to ensure homogeneity.
- The mixture is cooled and fed into the extrusion hopper.

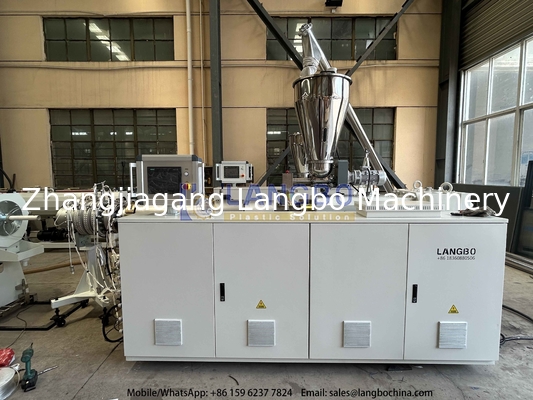

2. Extrusion Process
- Single/Dual-Screw Extruder melts and compresses the PVC mix at controlled temperatures (160°C–200°C).
- The molten PVC is forced through a die head, shaping it into a pipe.
3. Sizing & Calibration

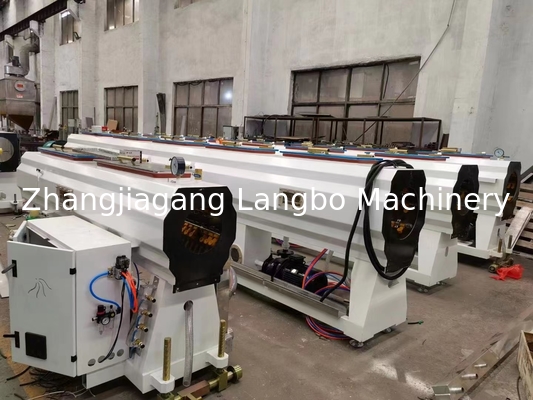

- The hot pipe passes through a vacuum calibrator to achieve precise diameter and wall thickness.
- Cooling tanks (spray or water bath) solidify the pipe.

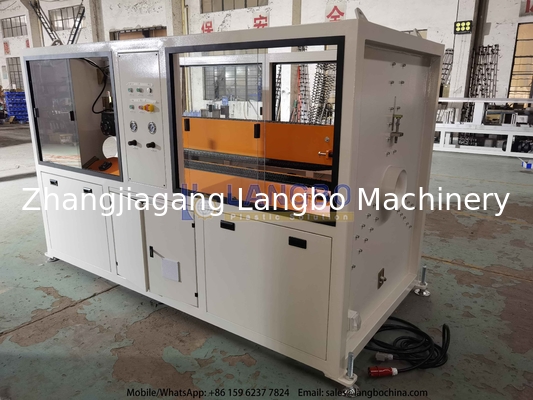

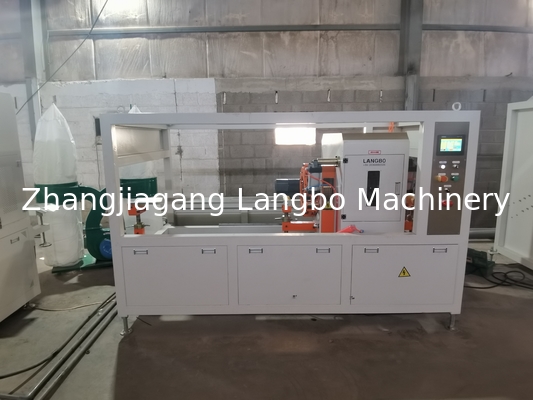

4. Pulling & Cutting
- A haul-off unit pulls the pipe at a synchronized speed.
- An automatic cutter** trims pipes to required lengths (e.g., 4m or 6m).

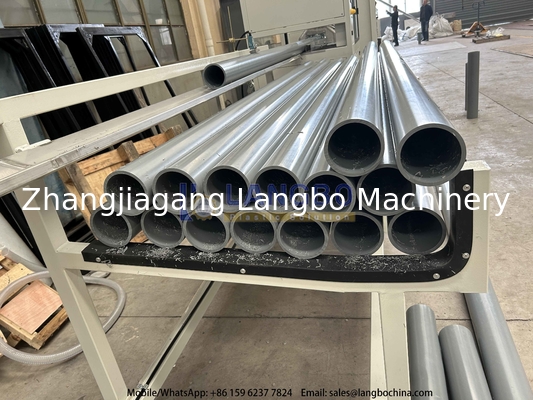

5. Stacking & Packaging
- Pipes are stacked by a conveyor system or robotic arm.
- Bundled and labeled for shipment.
- Precision Control – Advanced PLC system for temperature, speed, and thickness regulation.
- Durable Construction – Corrosion-resistant materials for long service life.
- Energy Saving – Optimized motor and heating system to reduce power consumption.
- Multi-Layer Extrusion – Optional co-extrusion for reinforced pipes.
- Easy Maintenance – Modular design for quick cleaning and part replacement.
