Plastic PVC Drainage Pipe Extruder Machine Production Line
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
PVC drainage pipe extruder machine,plastic PVC pipe production line,PVC pipe extrusion line with warranty |
||
Product Description
Plastic PVC Drainage Pipe Extruder Machine Production Line
Short desciption
PVC pipe production line typically includes material mixing, extrusion, cooling, cutting, and packaging. Key equipment involves a twin-screw extruder, vacuum calibrator, cooling tank, haul-off machine, and cutter. The process starts with blending PVC resin, stabilizers, and additives, then extruding molten material through a die to form pipes. Precise cooling ensures dimensional stability, followed by automated cutting to specified lengths. Designed for efficiency, the line produces durable, corrosion-resistant pipes widely used in construction, irrigation, and industrial systems. Advanced controls ensure consistent quality and customization for varying diameters and pressure ratings.
Tech Features & Advantages
Plumbing and Water Supply Systems (potable water distribution, drainage).
Sewer and Wastewater Systems (municipal sewer networks, underground drainage).
Electrical Conduits (protecting cables and wiring in construction).
Agricultural Irrigation (water transport for crop fields and greenhouses).
Industrial Piping (chemical transport, ventilation, and compressed air systems).
Producting process
PVC powder + additive — mixing—material feeder—twin screw extruder—mould and calibrator—vacuum and cooling tank—spraying cooling machine—haul-off machine—cutting machine—discharge rack or pipe belling machine.
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Mixing & Feeding
PVC resin, stabilizers, plasticizers, and other additives are precisely weighed and mixed in an automatic mixer.
- The blended material is fed into the hopper of the extruder.

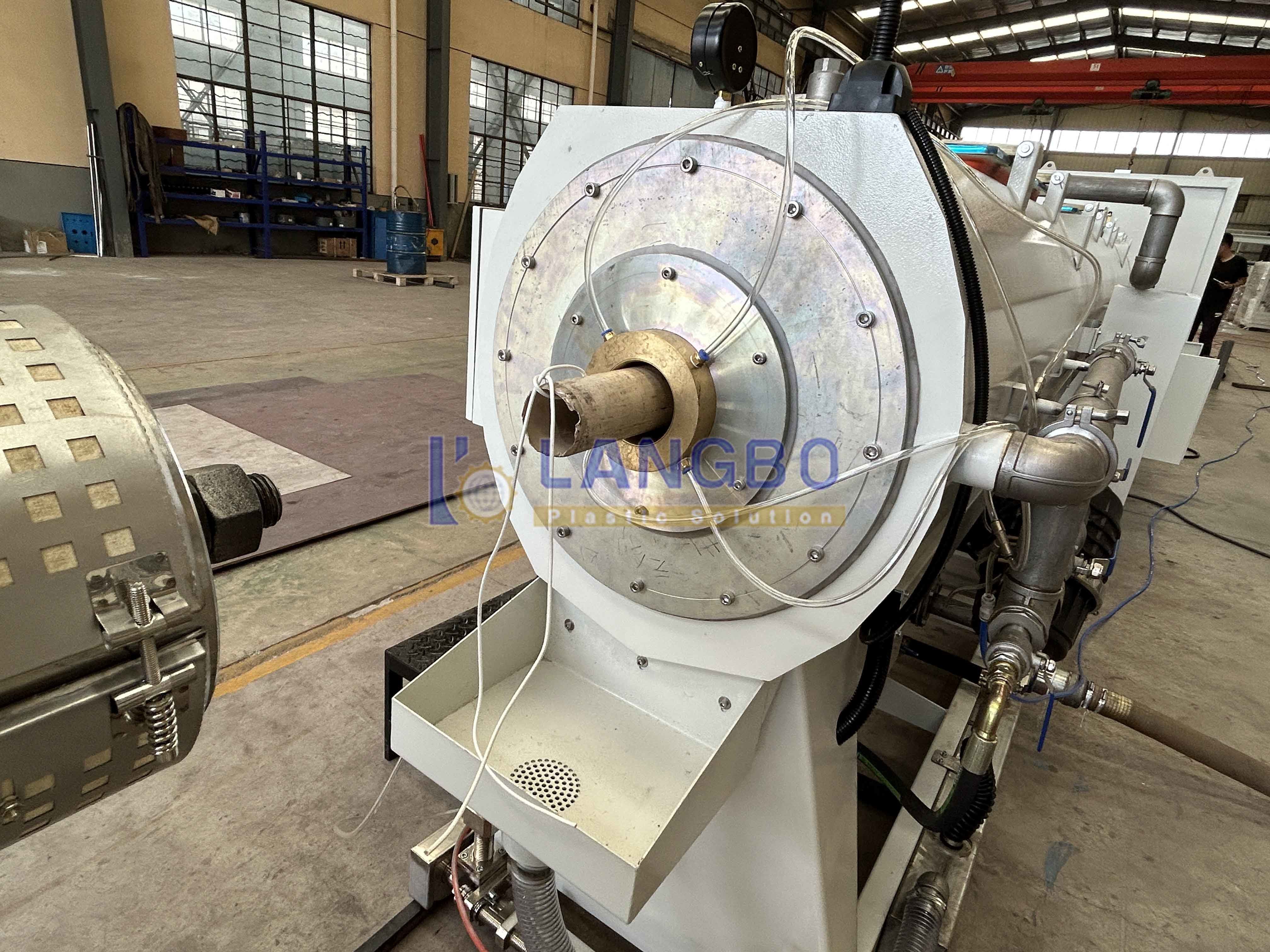

2. Extrusion & Pipe Forming

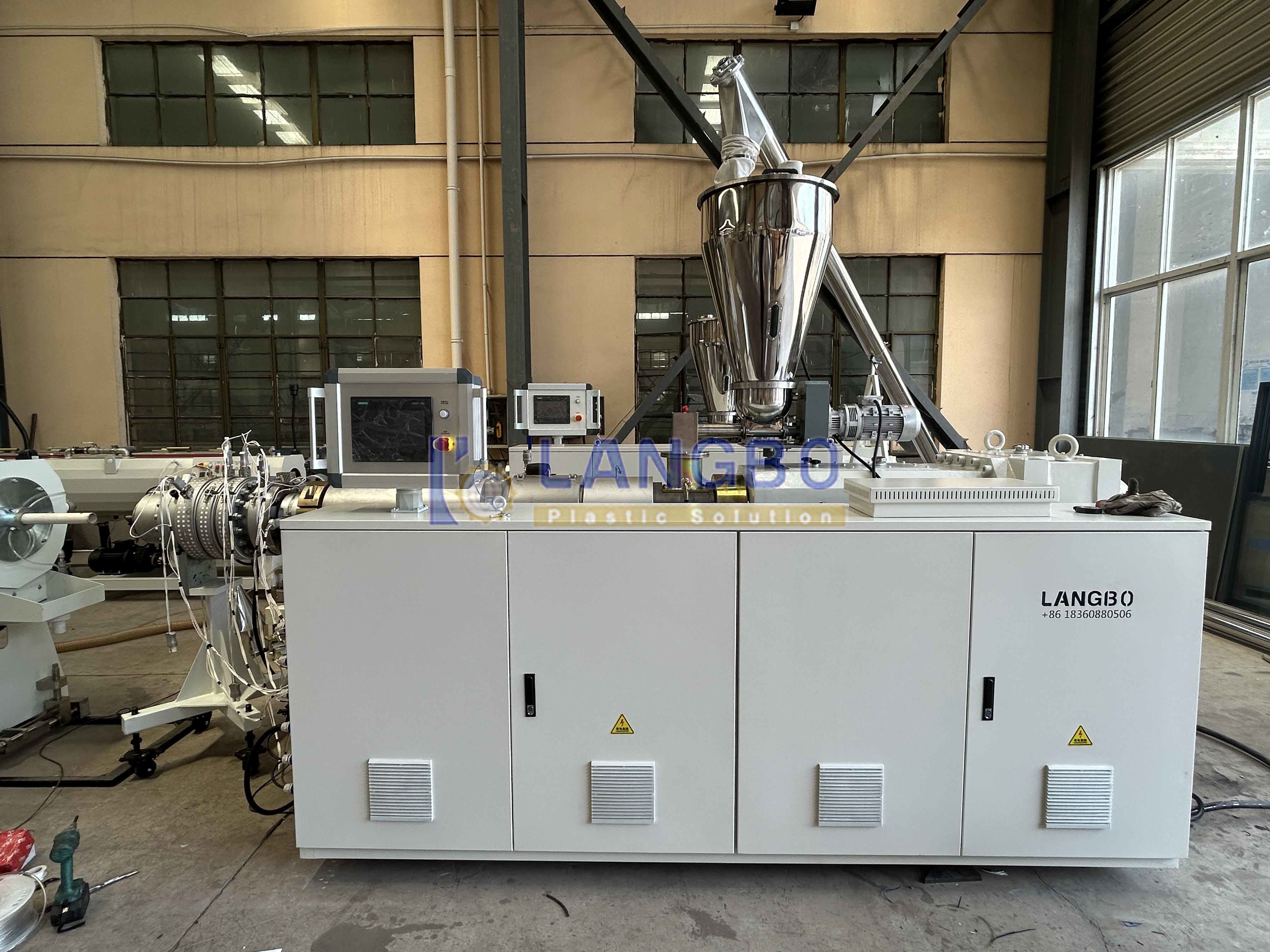

- The twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous pipe shape.
- The pipe diameter and wall thickness are controlled by the extrusion die and sizing sleeve.

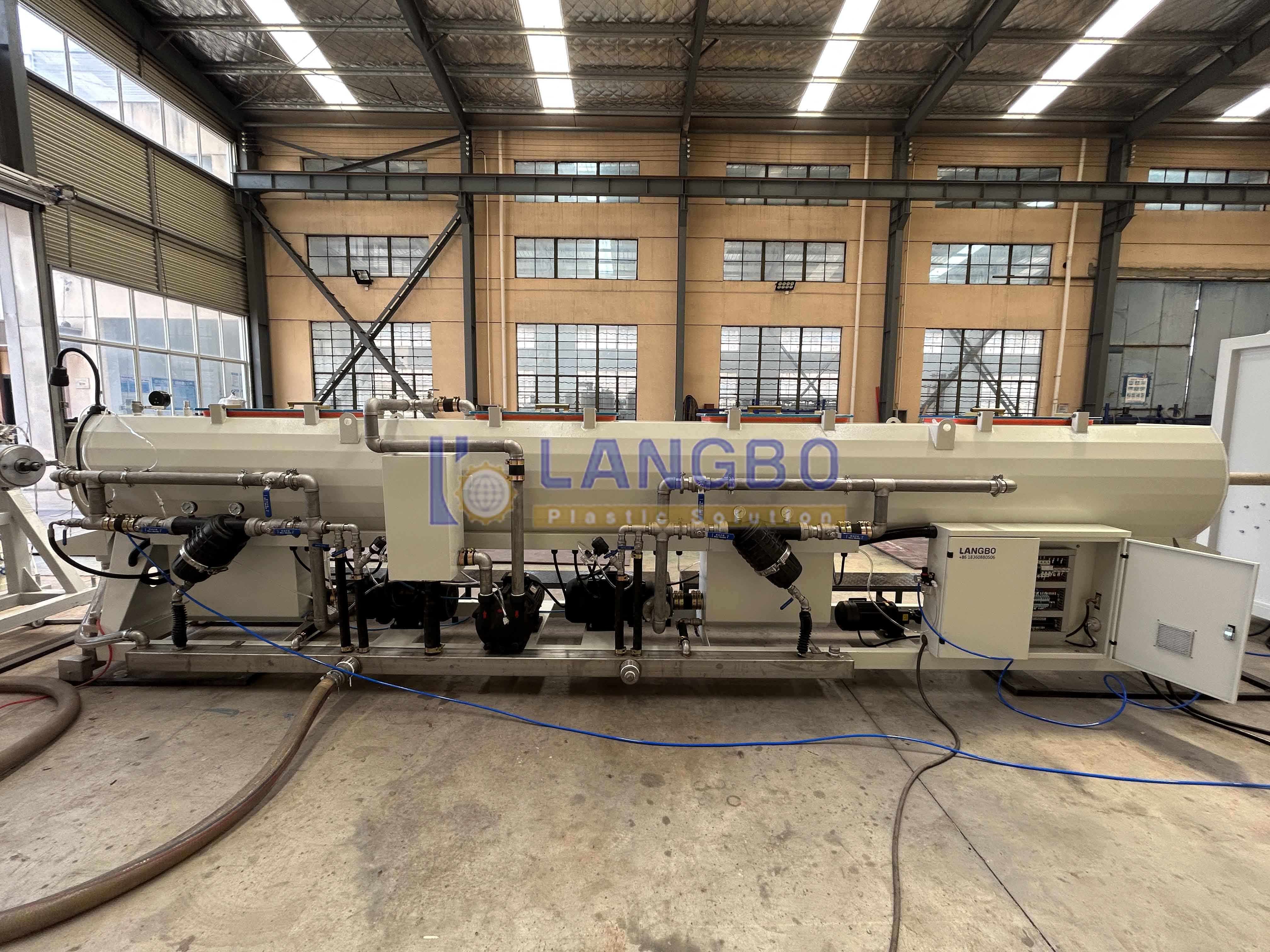

3. Vacuum Sizing & Cooling
- The newly formed pipe passes through a vacuum sizing tank to ensure precise dimensions.
- It then enters a cooling water tank to solidify the structure and maintain shape stability.

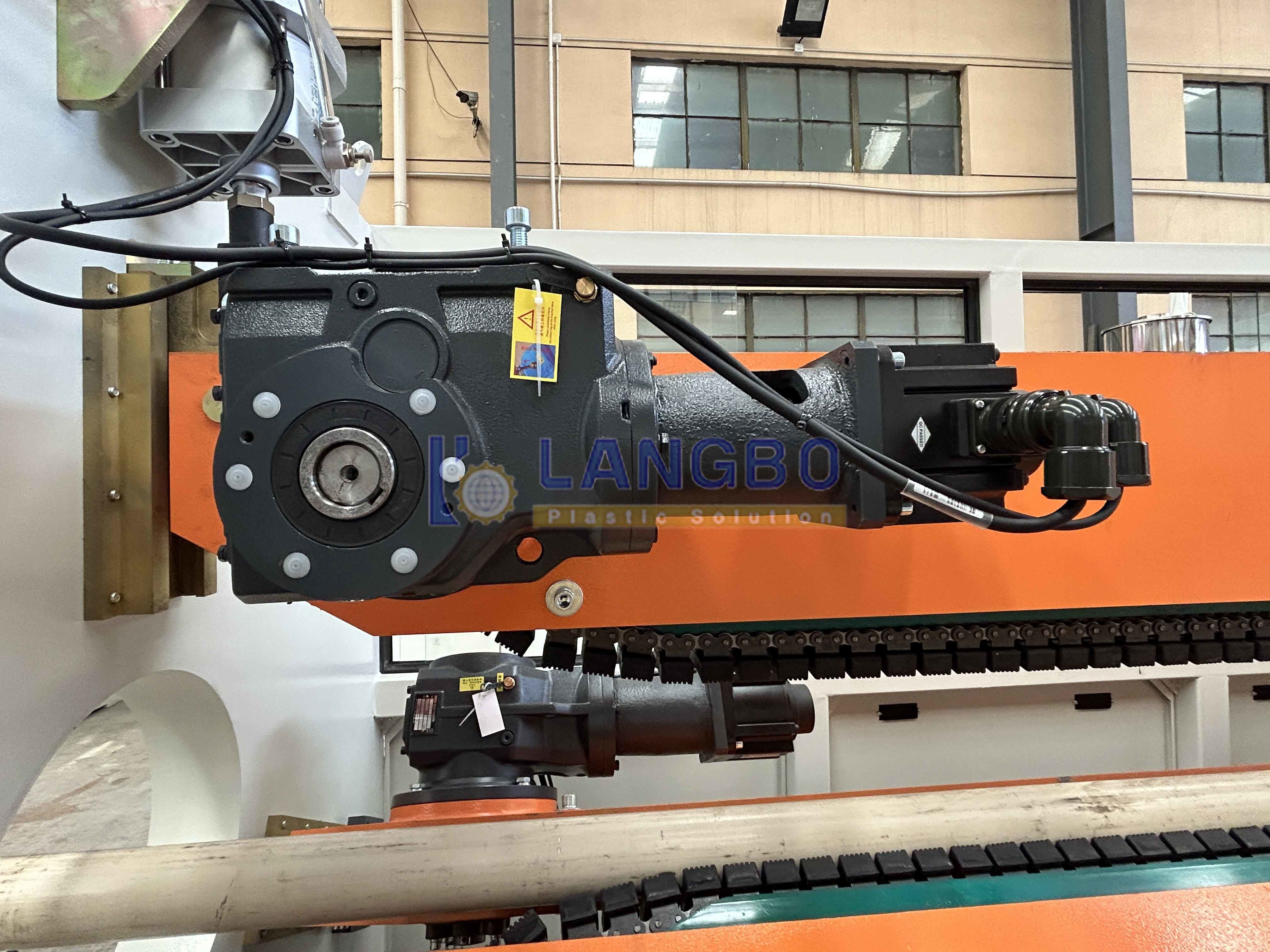

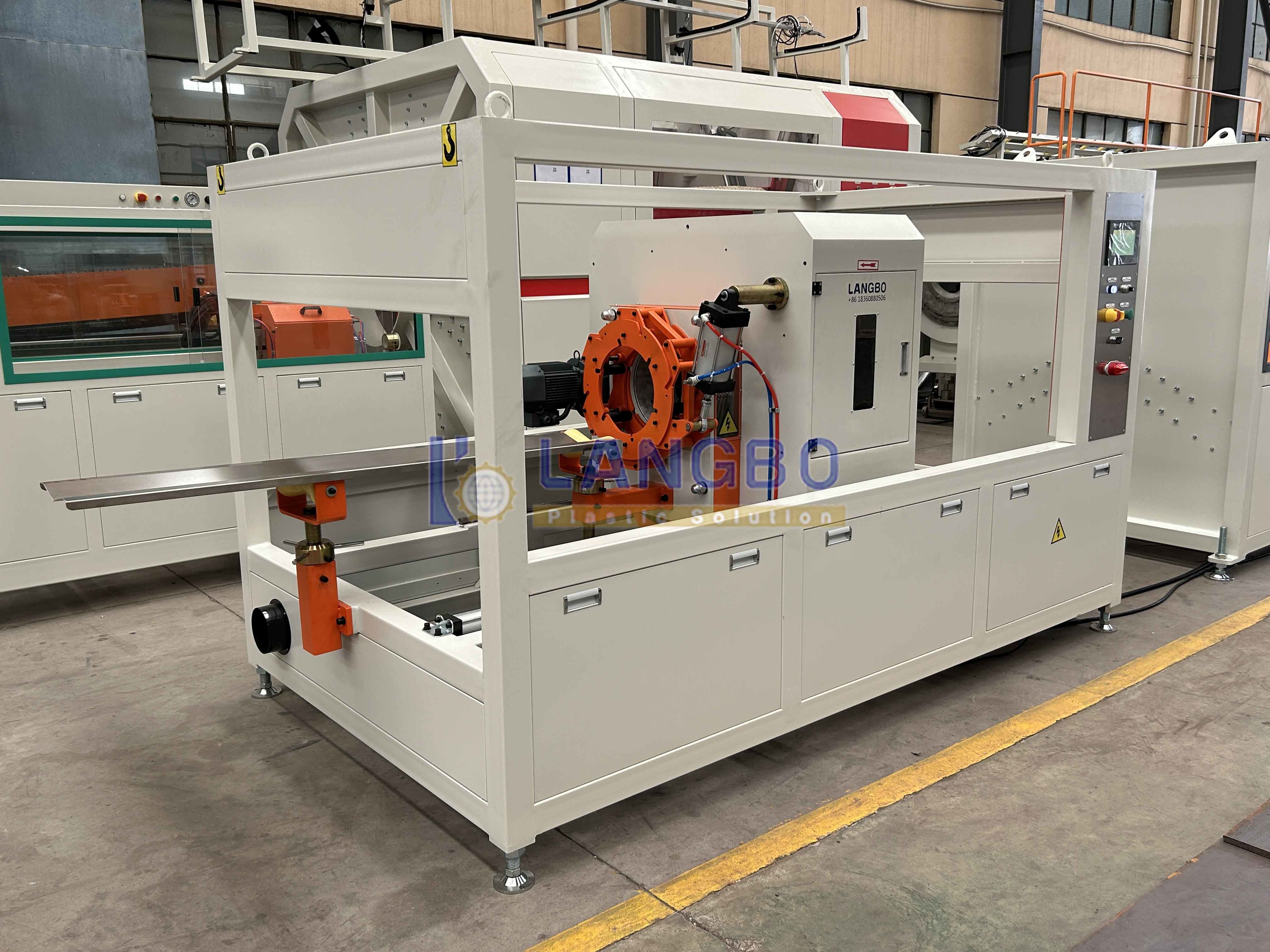

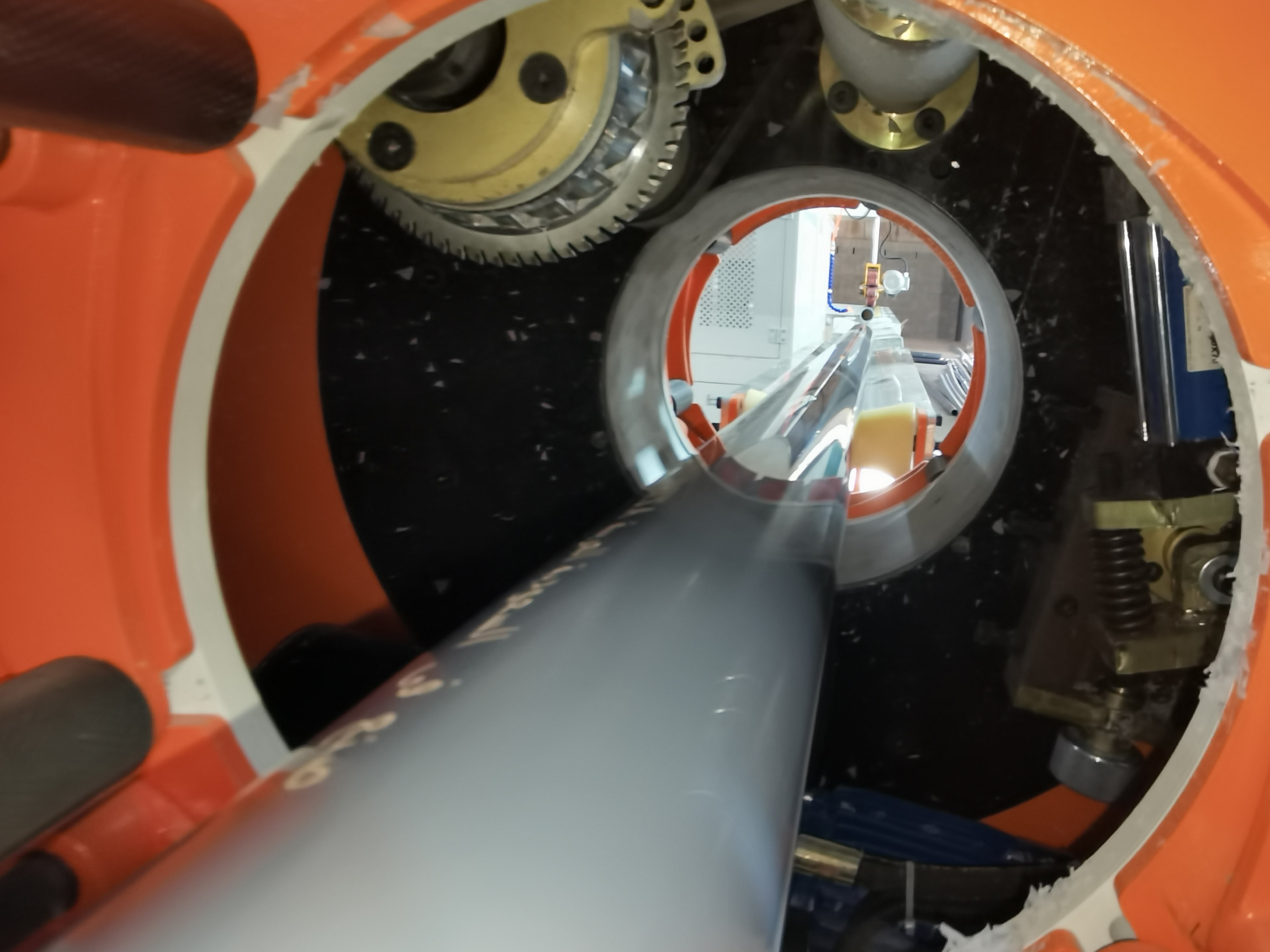

4. Hauling & Cutting
- A haul-off machine pulls the pipe at a controlled speed to maintain consistency. - An automatic cutting machine cuts the pipe into desired lengths (e.g., 4m, 6m). 5. Stacking & Packaging
- The finished pipes are automatically stacked and packed for storage or shipment.
