Plastic PVC Water Drainage Agricultural Drip Irrigation Hose Tube Extrusion Making Production Machine Line
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | SINGLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
PVC drip irrigation hose machine,agricultural drainage tube production line,PVC pipe extrusion line with warranty |
||
Product Description
Plastic PVC Water Drainage Agricultural Drip Irrigation Hose Tube Extrusion Making Production Machine Line
Short desciption
Our PVC Water Drainage & Agricultural Drip Irrigation Hose Tube Extrusion Production Line is a high-efficiency, fully automated manufacturing system designed for producing durable and flexible PVC hoses used in agricultural drip irrigation, water drainage, and other fluid transfer applications.
This advanced production line ensures precise diameter control, uniform wall thickness, and high-quality surface finish, making it ideal for manufacturing corrugated, smooth, or perforated PVC tubes with excellent pressure resistance and long-term durability.
Tech Features & Advantages
1.The production line is used in producting pvc reinforced pipe, which is widely used in the fields of industry,agriculture, forest, architecture etc.
2.Completed with two single screw extruders, one yarn braid machine and other auxiliary.
3.With different dies,it can produce different soft pipes.The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid.
4.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
Producting process
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
Specifications:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Product detail
1. Raw Material Feeding
- PVC resin, stabilizers, plasticizers, and additives are mixed and fed into the hopper of the extruder.

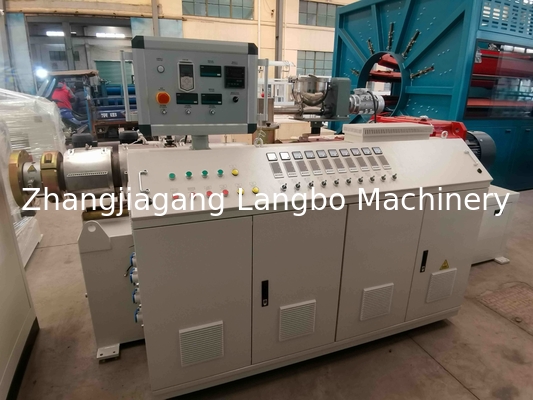

2. Extrusion & Melting
- The single/twin-screw extruder heats and melts the PVC mixture, pushing it through a die head to form a continuous tube.
3. Molding & Shaping
- For corrugated hoses, the molten PVC passes through a vacuum sizing tank and corrugator molds.
- For smooth tubes, a calibrator ensures precise diameter control.

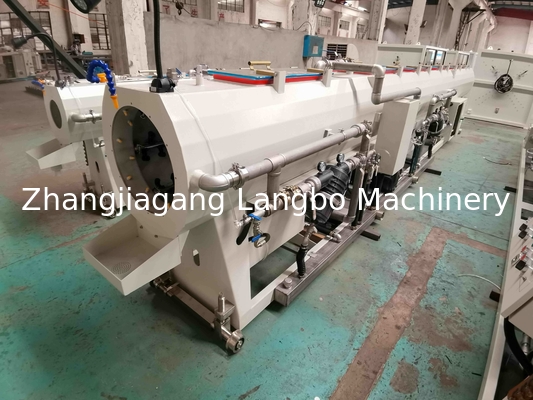

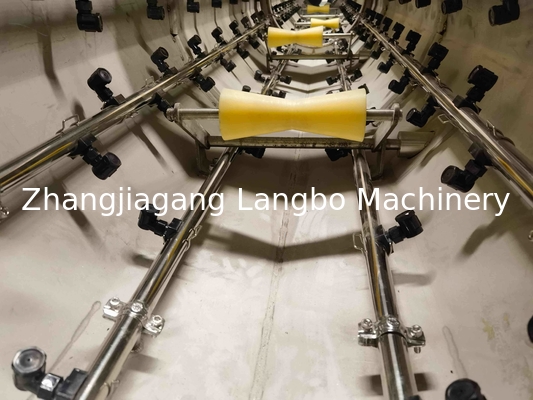

4. Cooling & Solidification
- The shaped hose enters a water cooling tank to harden and stabilize its structure.
5. Perforation (Optional for Drip Irrigation Hoses)
- A punching unit creates evenly spaced holes for drip irrigation applications.
6. Traction & Length Control
- A puller maintains consistent speed, ensuring uniform hose length.

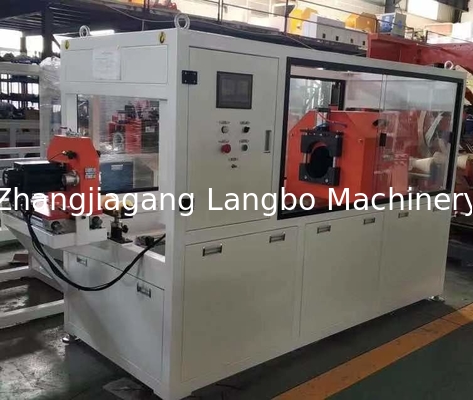

7. Cutting & Coiling
- An automatic cutter slices the hose into desired lengths, followed by winding into rolls or straight packing.
8. Quality Inspection & Packaging
- Final inspection for leak-proofing, pressure resistance, and dimensional accuracy before packaging.

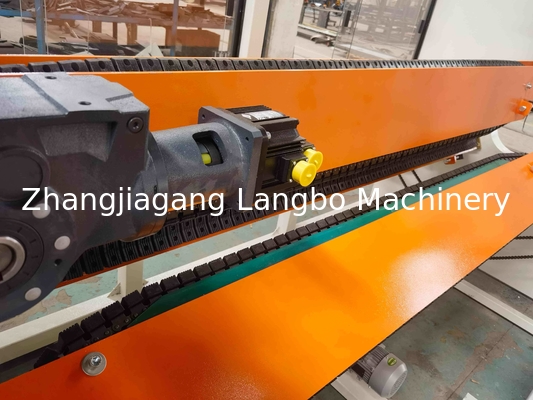

crawler track haul-off structure with sliding tempered glass is beautiful and practical. Traction device with V type rubber block crawler track and controlled by imported inverter can steadily haul pipe. It also features compact structure and free-maintenance.
