55KW Twin Screw Extruder PVC Pipe Extrusion Line for Medical Industrial Conduit Pipes
Product Details
| PIPE DIAMETER: | 75-250 | EXTRUDER'S POWER: | 55KW |
|---|---|---|---|
| COLOUR: | CUSTOMIZED | PIPE UMBERS: | DOUBLE PIPE |
| RAW MATERIAL: | PVC POWDER & ADDITIVES | APPLICATION: | WATER SUPPLY PIPE |
| Voltage: | 380V 50Hz Or Customized | Automatic Grade: | Full-automatically |
| Screw Design: | Twin Screw And Barrel | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Online Support,Video Technical Support |
| Warranty: | 18 Months | Inverter: | ABB |
| Color: | Customizable | Raw Material: | PVC Powder |
| Motor: | Brand | Contactor: | OR SCHNIDER |
| Screw And Barrel: | Conical Twin Screw Extruder | Screw Diameter: | 65/132 |
| Pipe Application: | Water Supply | Packages: | Film And Boxes |
| Payment: | T/T, L/C, Western Union | Delivery Time: | 60 Days |
| Highlight |
PVC catheter production line machine,medical conduit pipe extruder,PVC pipe extrusion line with warranty |
||
Product Description
Complete production line for manufacturing PVC plastic catheter and conduit pipes for medical and industrial applications.
We provide comprehensive plastic pipe production lines capable of manufacturing pipes from 16-1200mm in diameter, including PVC/UPVC, HDPE, PP/PPR, and double-wall/single-wall corrugated pipes. These lines produce pipes for water supply, drainage, gas supply, and electrical conduit applications.
UPVC pipes are extensively used in industrial and daily scenarios including:
- Electrical conduits
- Water supply pipes
- Sewage pipes
- Home decoration
- Chemical transportation
- Gas distribution lines
Features include high strength and rigidity, excellent chemical resistance, durability, thermal stability, non-toxic safety, low maintenance, and cost-effectiveness.

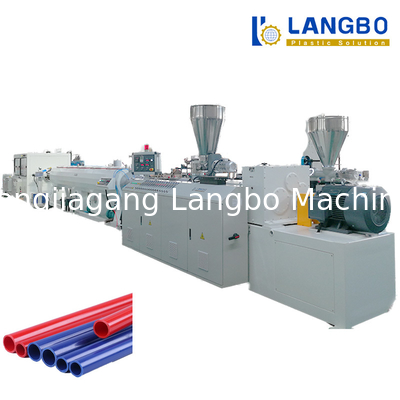

PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
|---|---|---|---|
| LB-32F | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| LB-32E | 16-32 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-32W | 16-32 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-40E | 16-40 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-40W | 16-40 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-50E | 16-50 (DOUBLE PIPE) | SJSZ51/105 | 22 AC |
| LB-50W | 16-50 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
| LB-63W | 16-63 (DOUBLE PIPE) | SJSZ65/132 | 37 AC |
Specialized design reduces raw material self-friction, enhancing energy utilization efficiency. Equipped with vacuum suction loading system for low-noise, dust-free operation.
Crafted with top-brand components for stable production, high efficiency, and long-term durability. Conical twin-screw design enables homogeneous mixing, superior plastification, and efficient conveying.

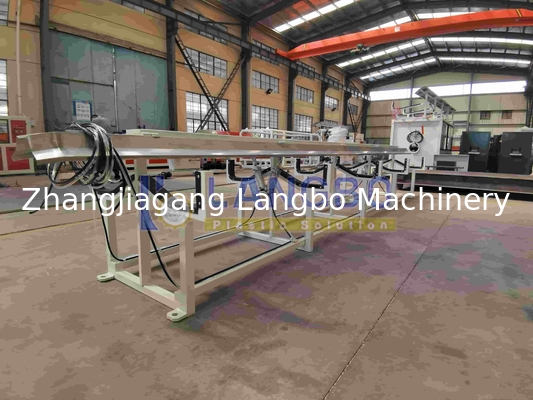

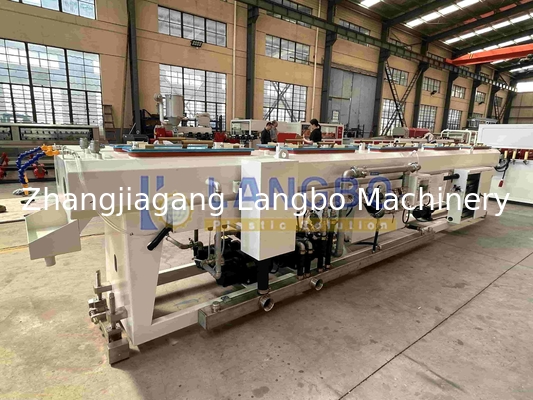

Two-chamber vacuum calibration tank integrates vacuum calibration and cooling functions. Constructed with 304 stainless steel. High-performance vacuum system ensures precise pipe sizing.
Three-belt design ensures stable pipe movement. Customizable hauling modes through general control adjustments.

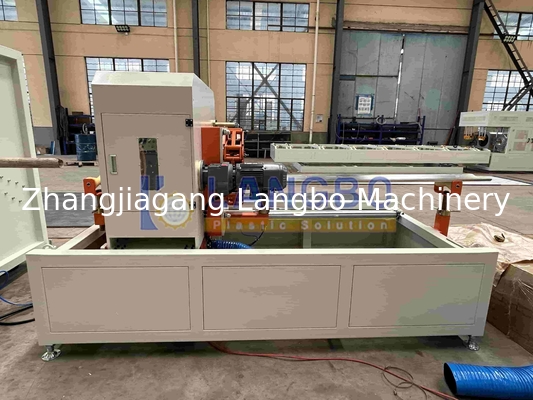

High-precision encoder ensures accurate cutting lengths. PLC-controlled system supports manual operation for specific application needs.
- PLC control, high degree of automation
- Special screw and barrel for optimal performance
- Compound spiral engine head eliminates material memory function
- Easy operation with minimal workforce requirements
- Convenient maintenance
- Delivery: 30 days after order
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
- One year guarantee for whole machine
- 24 hours technical support
- Overseas installation & commissioning by our engineers
- Maintenance guidance and spare parts after warranty
- Comprehensive operator training services
We are a factory that produces machines directly for customers. Our production plant in Zhangjiagang, Jiangsu Province is available for visits anytime. Pick-up service is available for nearby visitors.
We provide working videos showing machines operating in various countries and offer customer-focused technical suggestions. Factory visits allow direct assessment of our plastic extrusion capabilities.
Quotations typically include FOB Shanghai terms. Shipping costs fluctuate and are not included. We can help customers obtain current shipping prices.
Configuration confirmation → Proforma invoice signing → 30% prepayment → Test running → Machine condition confirmation → 70% payment → Delivery preparation → Shipping → On-site commissioning → Training → Handover confirmation → One year guarantee → Lifetime support
T/T, D/P, Letter of Credit, Cash transaction
One year guarantee with lifetime technical support. Customers can inspect machines during test running with immediate optimization of any issues.
Yes, both our extrusion and recycling machines have CE Certification.
Typically 45 days, with exact timing specified in the contract.
One-year quality guarantee, quick technical support response, and production problem analysis.
Free replacement parts for all non-man-made damages after machine handover.
For new plant planning, contact us for detailed machine solutions and layout specifications. We provide comprehensive technical guidance for installation and operation.
Email: sales@langbochina.com
WhatsApp: +86 1596 2377 824
Product Highlights
Fully automatic PVC catheter production line with conical twin-screw extruder (55KW). Produces 75-250mm double pipes for medical/industrial conduits. Features ABB inverter, customizable colors/voltage, 18-month warranty. Includes overseas installation & training support.
