Product Overview
We provide comprehensive plastic pipe production lines including 16-630mm PVC/UPVC pipe lines, 16-1200mm HDPE pipe lines, and specialized lines for PP/PPR pipes, HDPE/PP/PVC double-wall corrugated pipes, and single-wall corrugated pipes. These production lines manufacture pipes for diverse applications including water supply, drainage, gas distribution, and electrical conduit systems.
Applications
UPVC pipes produced by this line are extensively used in industrial and residential applications including electrical conduits, water supply systems, sewage pipelines, home decoration, chemical transportation, and gas distribution networks. These pipes offer exceptional strength, structural integrity, chemical resistance, durability, thermal stability, non-toxic safety, low maintenance requirements, and cost-effectiveness.
Production Process
PVC powder + additives → Mixing → Spring feeding → Twin-screw extruder → Mould and calibrator → Vacuum forming machine → Haul-off machine → Cutting machine → Stacker
Technical Specifications
| MODEL |
PIPE DIAMETER (MM) |
EXTRUDER MODEL |
MOTOR POWER (KW) |
| LB-32F |
16-32 (FOUR PIPE) |
SJSZ65/132 |
37 AC |
| LB-32E |
16-32 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-32W |
16-32 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-40E |
16-40 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-40W |
16-40 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-50E |
16-50 (DOUBLE PIPE) |
SJSZ51/105 |
22 AC |
| LB-50W |
16-50 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
| LB-63W |
16-63 (DOUBLE PIPE) |
SJSZ65/132 |
37 AC |
Component Details
Mixer: Features specialized design that reduces raw material self-friction, enhancing energy utilization efficiency. Equipped with vacuum suction loading system for low-noise operation and dust-free working environment.

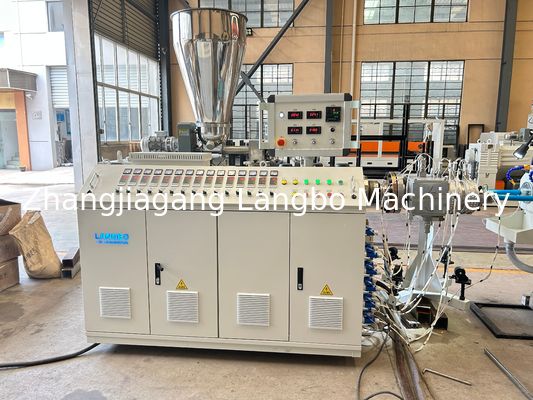

Twin Screw Extruder: Manufactured with premium components to ensure stable production, high efficiency, and long-term durability. Conical twin-screw design is optimized for raw material characteristics, enabling homogeneous mixing, superior plastification, and efficient conveying.

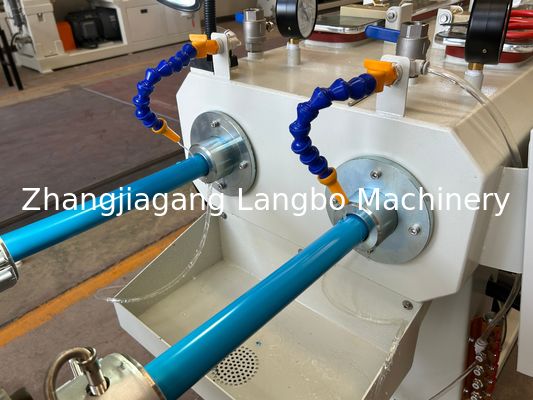

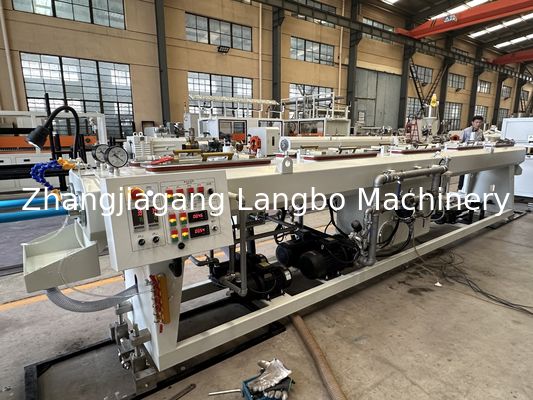

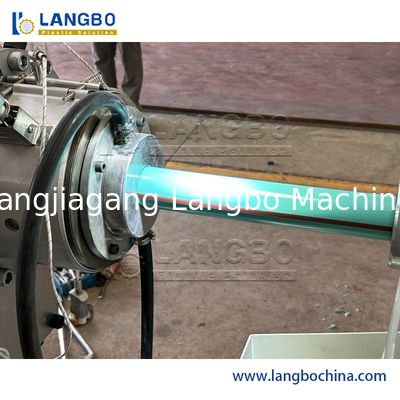

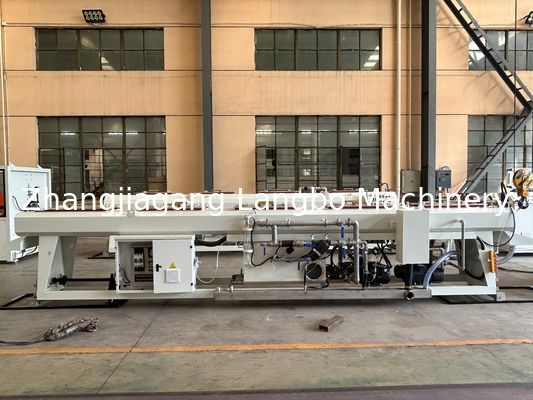

Vacuum Calibration & Cooling: Two-chamber vacuum calibration tank integrates vacuum calibration and cooling functions. Constructed from 304 stainless steel with high-performance vacuum system for precise pipe sizing.

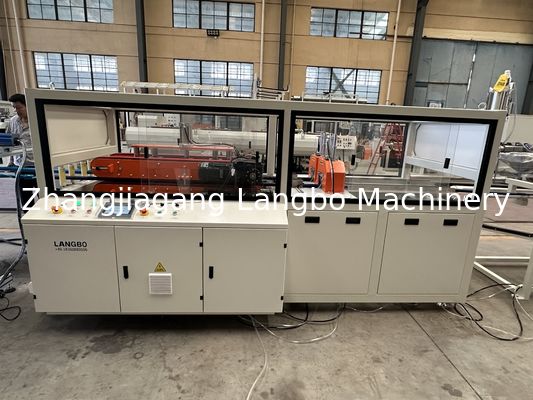

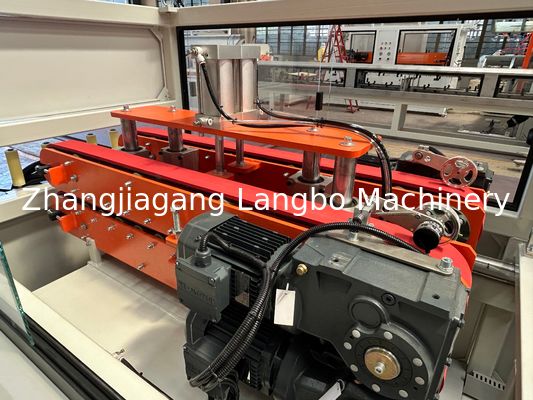

Haul-off Unit: Equipped with three crawler track belts for stable pipe movement. Adjustable general control allows customized hauling modes to meet specific production requirements.

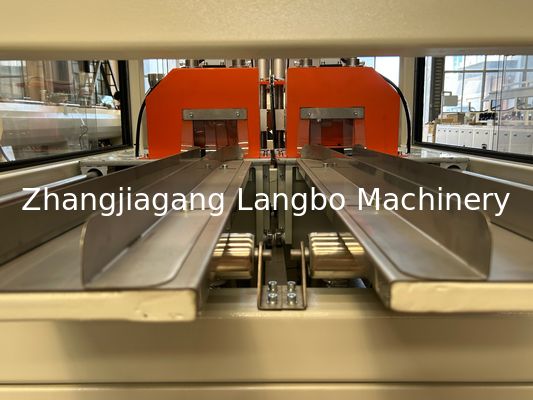

Cutting Unit: High-precision encoder ensures accurate and stable cutting lengths. PLC-controlled system supports manual operation for application-specific cutting requirements.
Technical Features
- PLC control system for high automation degree
- Specialized screw and barrel design for optimal performance
- Compound spiral engine head eliminates material memory function
- User-friendly operation with minimal labor requirements
- Convenient maintenance access
Delivery & Warranty
- Delivery: 30 days after order confirmation
- Warranty: 12 months comprehensive coverage
- Payment: T/T 30% advance, 70% before delivery
- Packing: Standard export wooden cases
Customer Support
- One-year guarantee for complete machine
- 24-hour technical support service
- Overseas installation & commissioning by qualified engineers
- Post-warranty maintenance guidance and competitively priced spare parts
- Comprehensive operator training services

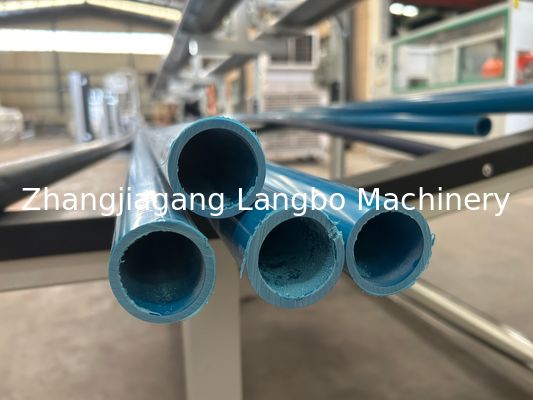

Production Line Images
