Home /Products/Plastic Pelletizing Machine/Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing

Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing

1 SET
MOQ
USD, EUR
Price
Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Condition: New
Automatic Grade: Automatic
Capacity: 400kg/h
Plastic Processed: TPU, EVA, TPEE, PP, PE, PVC, ABS
Screw Design: Double-screw
Model Number: LB
Motor: SIEMENS
INVERTER: ABB
Warranty: 2 Years
Electrical Components: Siemens Or Schnider
Packing Method: Wooden And Film Packages
Delivery Time: 45 Days
Highlight:

PP/PE plastic granulating extruder machine

,

post-consumer film pelletizing machine

,

plastic re-pelletizing extruder with warranty
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LANGBO
Certification: CE, ISO
Model Number: LB-80156
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 10 SETS PER MONTH
Product Description

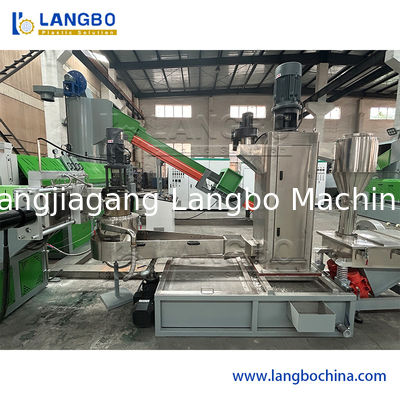

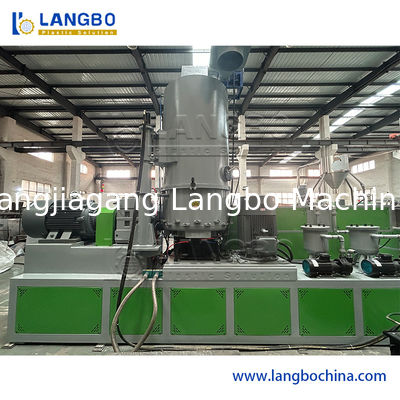

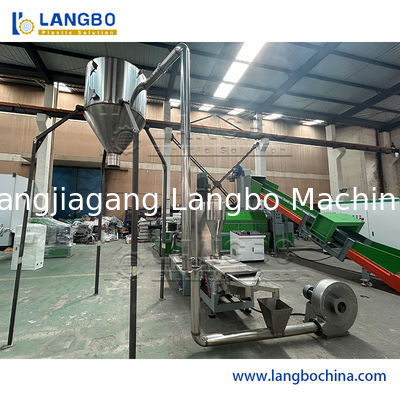

Waste PP PE Film BOPP Woven Bags Film Flakes Granulating Machine Plastic Recycling Line
This production line is specifically designed for converting plastic waste into high-quality pellets. The process includes extrusion, strand formation, cooling, and precise cutting to create uniform pellets that are easy to store and transport. The growing market demand for recycled pellets makes this system an excellent investment.
Key Components
  • High-performance extruder
  • Efficient cooling tank
  • Precision air knife system
  • Advanced pelletizer
  • Quality vibration sieve
Process Flow
Raw material + additive → Mixing → Conveying feeding → Hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technical Specifications
Model Diameter (mm) L/D Speed (rpm) Power (kw) Output (kg/h)
LB40-B 41 24-80 ~600 30~37 100~130
LB52-B 51.4 24-80 ~600 55~75 150~250
LB65-B 62.4 24-80 ~600 90~110 300~400
LB75-B 71 24-80 ~600 132~160 400~500
LB85-B 81 24-80 ~600 220~250 700~800
LB90-B 93 24-80 ~600 280~315 900~1000
LB110-B 110 24-80 ~600 400~450
System Features
Pelletizer
Constructed entirely from AISI 304 stainless steel with special alloy steel pelletizing blades and dies. Features mobile parts for easy maintenance and adjustable speed control for granule size customization during operation.
Vibration Sieve
Precisely controls granule size, filtering out oversized and undersized particles. Only properly sized granules are transported to the storage silo via air conveyance.
Parallel Twin Screw Extruder
  • Heavy load gearbox for reliable operation
  • High-precision screw components for optimal performance
  • Premium electrical components from world-renowned brands
  • Intuitive temperature control system
  • Degassing section for customized processing
Hydraulic Melt Filter Mould
  • 304 stainless steel screens with customizable mesh sizes
  • Available with hydraulic plate or cylinder filter body
  • Bronze heaters for superior thermal efficiency
Water Tank Tempering
Features water circulation for uniform temperature distribution and effective cooling. Adjustable strand holders precisely control cooling and drying processes, with robust construction for long-term reliability.
Air Knife
High-speed dewatering system for efficient strand drying.
Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 0 Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 1 Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 2 Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 3 Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 4 Automatic Plastic Pelletizing Machine with 400kg/h Capacity and 2 Years Warranty for Efficient Re-Pelletizing 5
