Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine

1 SET
MOQ
20000USD-30000USD
Price
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Production Name: PPR Glassfiber PPR Pipe Production Machine
Pipe Size: 20-110mm; 3 Layer
Extruder Capacity: 350kgs/h For Inner &outer +180kgs/h Middle GF
Die Head: 3 Layer Co-extrusion With Two Extruders
Production Speed: 12m/min; 20m/min; 28m/min
Control System: SIEMENS PLC With Remote Control System
Warranty: 2 Years
Screw And Barrel: Single Screw
Motor: SIEMENS
Extruder Model: 6533
Highlight:

HDPE water pipe making machine

,

PPR irrigation tube extrusion line

,

PE drainage hose production machine
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T,
Supply Ability: 15 SETS PER MONTH
Product Description
Our multi-layer pipe extrusion production line utilizes advanced co-extrusion technology to manufacture high-quality pipes while optimizing raw material costs. This specialized process enables the production of pipes with enhanced functional characteristics for various industrial applications.
The system allows for cost-effective production by incorporating recycled materials as middle layers in PE thick wall pipes. For hot water supply applications, the production line can integrate additional structural layers such as glass fiber reinforcement, providing superior performance characteristics for demanding environments.
Technical Specifications
Model Pipe Size (mm) Extruder Model Screw Speed (r/min) Line Speed (m/min) Output (kg/h) Total Power (kw)
PPR-63 Ø20-63 SJ-75/30 40-120 4-15 100 70
PPR-110 Ø20-110 SJ-90/30 40-120 4-10 200 100
PPR-160 Ø75-160 SJ-90/33 40-120 2-8 300 136
Key Components & Features
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 0

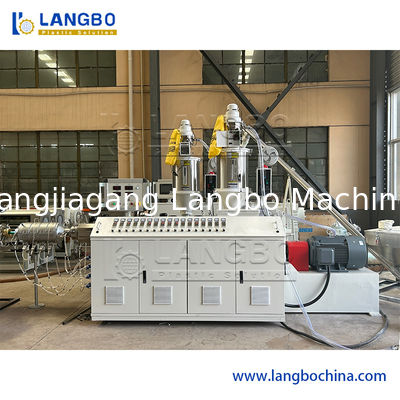

Single Screw Extruder Machine
Our extruders are manufactured using premium brand components to guarantee exceptional production stability, operational efficiency, and long-term machine durability.
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 1

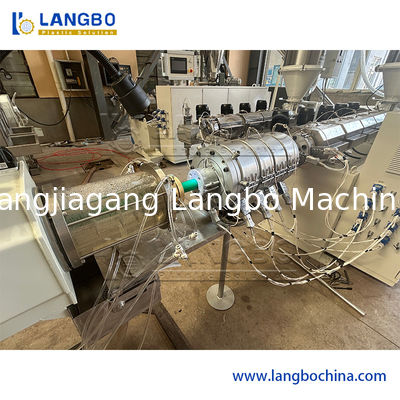

Advanced Co-Extrusion Mold
The specialized mold design features adapters for co-extrusion compatibility with multiple single extruders. Combined with extended cooling calibrators, this configuration delivers superior product performance and quality.
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 2

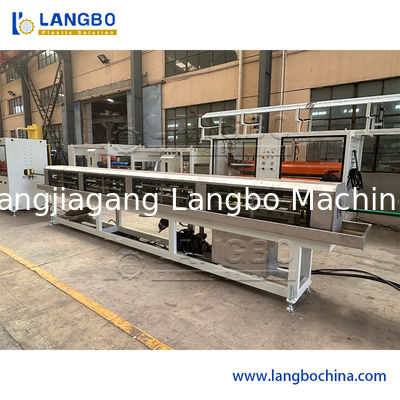

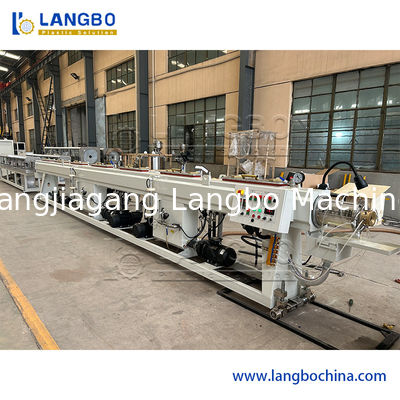

Vacuum Calibration & Cooling System
The dual-chamber vacuum calibration tank incorporates both vacuum calibration and cooling sections. Constructed from stainless steel 304, the system features an 8-meter extended cooling process that ensures precise pipe sizing and superior surface quality for CPVC materials.
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 3

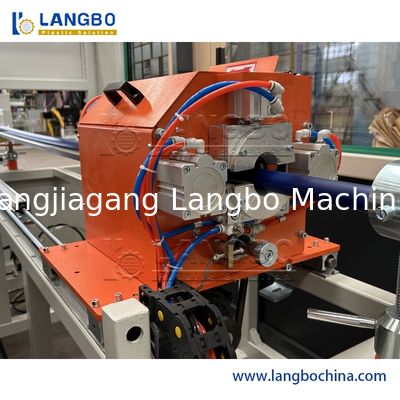

Triple-Track Haul-Off Unit
Three independent crawler tracks provide exceptional stability during pipe transportation. The haul-off system offers customizable operation modes through centralized control adjustments to meet specific production requirements.
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 4

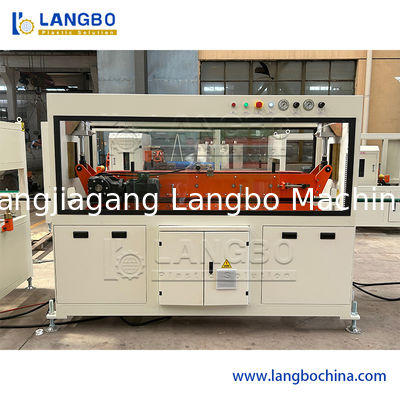

High-Precision Cutting Unit
Advanced encoder technology ensures accurate and consistent cutting lengths. The PLC-controlled system supports both automated and manual operation modes. All cutting unit surfaces utilize stainless steel 304 construction to withstand the corrosive properties of CPVC materials and extend equipment lifespan.
Plastic HDPE/PE/PPR/PP Water Supply/Drainage/Agricultural Drip Irrigation Pipe/Hose/Tube Making Machine 5

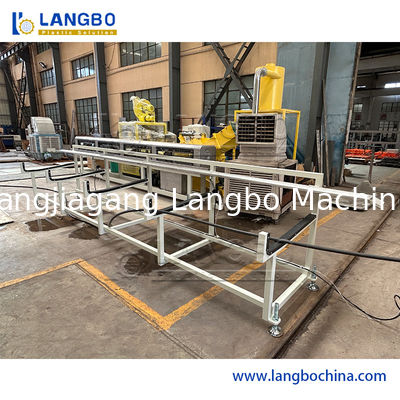

Automatic Tipping Rack
The automated tilting mechanism systematically stacks finished pipes, minimizing manual handling while ensuring safe and efficient product collection during continuous production operations.
