Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer

1 SET
MOQ
USD, EUR
Price
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

HDPE LDPE plastic mixing machine

,

vertical pellet drying mixer

,

plastic particle mixing machine with warranty
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LANGBO
Certification: CE, ISO
Model Number: LB-500
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: ,L/C,T/T
Supply Ability: 1 SET
Product Description

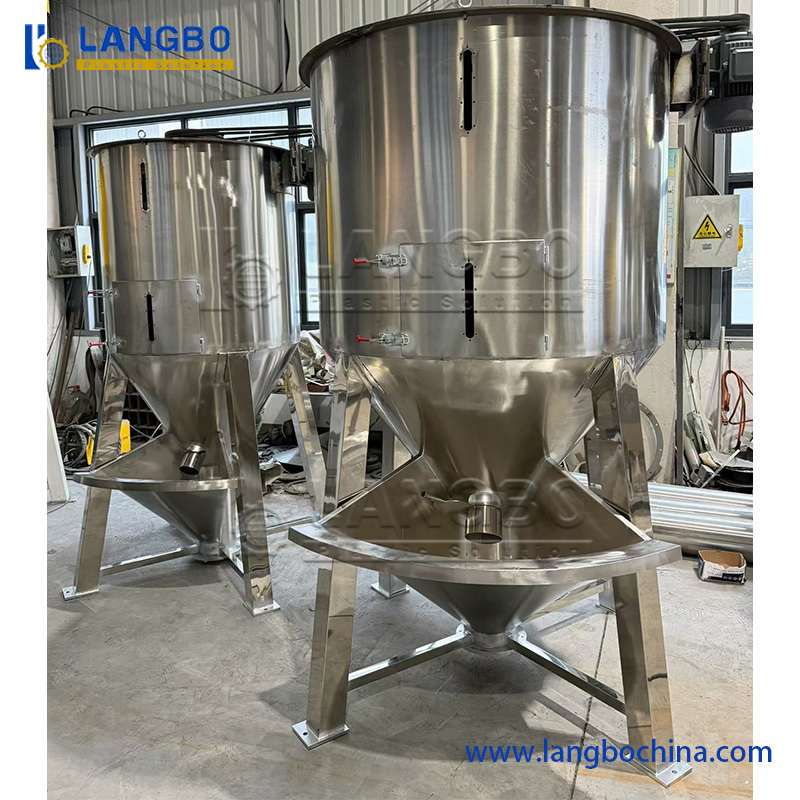

Vertical Mixing Machine for HDPE/LDPE Plastic Pellets
High-efficiency vertical mixing and drying machine designed for HDPE and LDPE plastic pellets and particulate materials, ensuring uniform mixing and consistent drying results.
Processing Process
Materials are loaded into the vertical cylindrical drum where steel spiral blades continuously lift, fold, and mix while hot air circulates for uniform drying. The integrated temperature control system maintains consistent heating, while the variable-speed drive allows precise control of mixing intensity. Moisture is efficiently removed through the exhaust system until materials reach optimal dryness and homogeneity, after which they are discharged for the next production stage.
Technical Specifications
Model 300KG 500KG 1T 2T
Power (KW) 3 3 4 5.5
Heating Power (KW) 15 15 15 15
Capacity (KG/m³) 300/0.75 500/1 1000/2 2000/4
Speed (R/MIN) 370 370 370 370
Weight (KG) 280 300 370 500
Key Features
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer 0
Large-Capacity Mixing Barrel
Designed to handle high volumes of powder or granular materials, ensuring efficient processing and uniform drying.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer 1
Helical Mixing Paddle
Spiral blades lift and fold materials continuously, providing thorough mixing and consistent particle distribution.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer 2
Control Unit
Integrated system for precise temperature and speed control, allowing operators to optimize drying and mixing for various materials.
Vertical Mixing Machine HDPE LDPE Plastic Pellet Particules Mixing Machine Drying Mixer 3

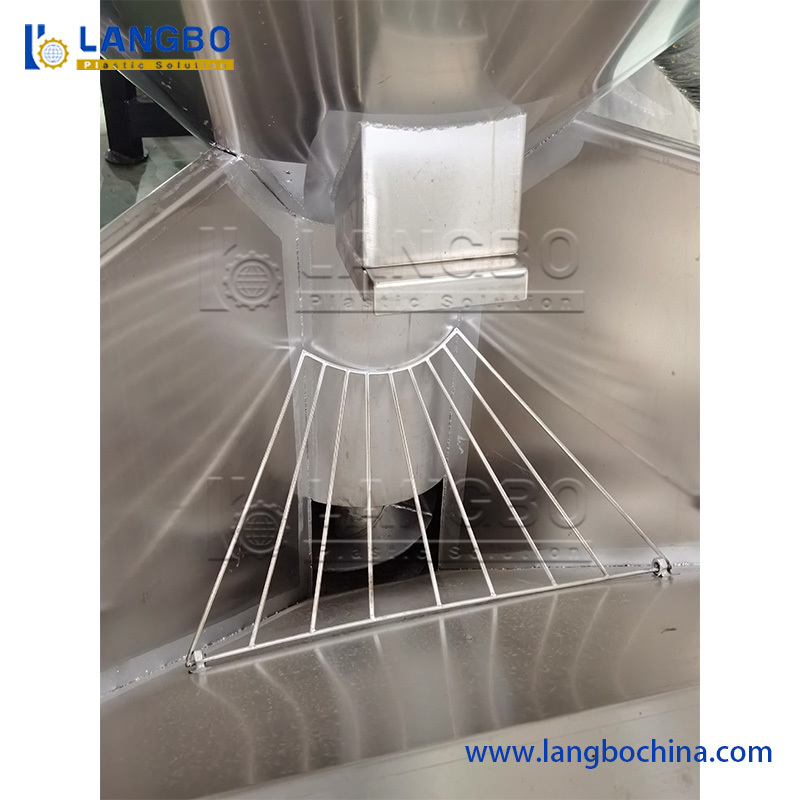

Feeder Hopper & Discharge Port
Easy material loading through the hopper and smooth discharge via the port, minimizing residue and simplifying cleaning.
Delivery & Payment Terms
  • Delivery: 30 days after order confirmation
  • Warranty: 12 months
  • Payment: T/T 30% in advance, T/T 70% before delivery
  • Packing: Standard export wooden case
Customer Support & Services
  • One-year guarantee for entire machine
  • 24-hour technical support
  • Overseas installation & commissioning services by our engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Operator training services for optimal machine handling
