PC LED Lamp / Light Making Machine Extrusion Machine

1 SET
MOQ
USD,EUR
Price
PC LED Lamp / Light Making Machine Extrusion Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
EXTRUDER TYPE: CO-EXTRUSION SINGLE SCREW EXTRUDER
EXTRUDER MODEL: 65/28 AND 50/28
MOTOR POWER: 22KW AND 11KW
RAW MATERIAL: PC MATERIAL
HAUL-OFFS: TWO BELT HAULING
CALIBRATION TABLE LENGTH: 2500MM
CALIBRATIN TABLE WIDTH: 600MM
CONNECTION MATERIAL: SUS304
WARRANTY: 1 YEAR
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO9001
Model Number: LB-1240
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description

DETAILS OF EXTRUSION LINE

In the middel west countries, the LED light market is vast and huge demand. For the LED light, the cover and bottom profile is made by PC material. The two colors PC LED tube needs co-extrusion crafts. For this line, it equips one 65/28 22kw extruder and another 50/28 11kw extruder. The co-extrusion ensures the profile with two color. We adopt 2500mm long and 600mm width calibration table. For the haul-off machine, it is two belt haul-off method.It ensures the cover and bottom LED light tube fix each other greatly. At the end, we have cutter unit and stacker for lying the finished PC profile.


PRODUCT DESCRIPTION:

PC profile extrusion line

PC LED Lamp / Light Making Machine Extrusion Machine 0

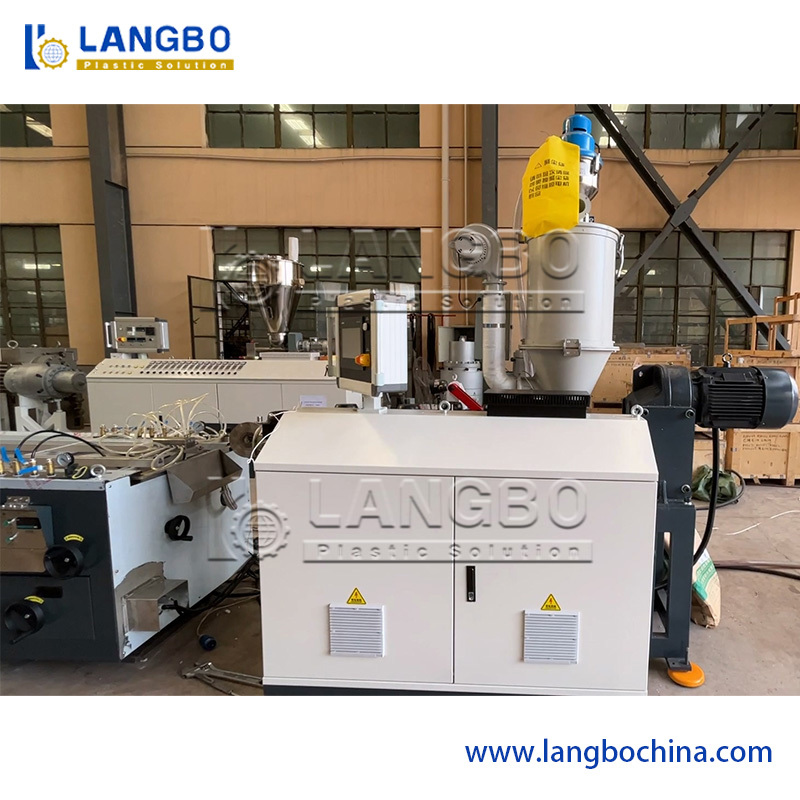

The 65/28 22kw single screw extruder

PC LED Lamp / Light Making Machine Extrusion Machine 1

The 50/28 11kw single screw extruder

                       PC LED Lamp / Light Making Machine Extrusion Machine 2

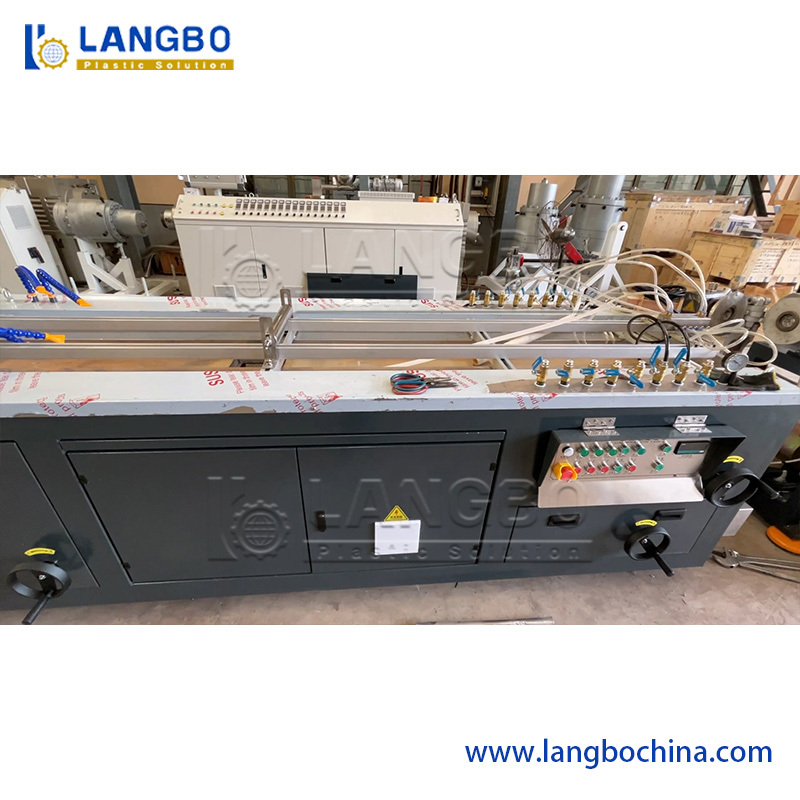

Vacuum and calibrating table

PC LED Lamp / Light Making Machine Extrusion Machine 3


If you are interested in the PC profile extrusion line, pls contact me for more information.
