Hot Sle Plastic PVC Material Cable Trunking Profile Extrusion Line PVC Making Machine

Brand Name: LB
Model Number: LB-1180
Place of Origin: ZHANGJIAGANG
Certification: CE,ISO9001
Minimum Order Quantity: 1 SET
Price: USD,EUR
Supply Ability: 15 SETS PER MONTH
Tags

pvc marble sheet production line

pvc sheet making machine

pvc ceiling panel extrusion machine

Product Details

EXTRUDER TYPE: 55/110 CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 1180MM
MOTOR POWER: 22KW RAW MATERIAL: PVC POWDER & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS CALIBRATION TABLE: EIGHT MTERS LONG
PACKING METHOD: WOODEN BOX AND FILM PACKAGE PROFILE SIZE: ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME: WITHIN 90 DAYS
Highlight

PVC cable trunking extrusion line

,

PVC profile making machine

,

plastic PVC extrusion machine

Product Description

This plastic PVC profile cable trunk production line is engineered for manufacturing various PVC profiles including window and door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings.
Production Process
The complete manufacturing workflow includes: PVC powder + additives → mixing → material feeding → twin screw extrusion → molding and calibration → vacuum forming → haul-off → cutting → discharge racking.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mold technology for enhanced productivity
  • Comprehensive PLC control system for centralized operation
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25

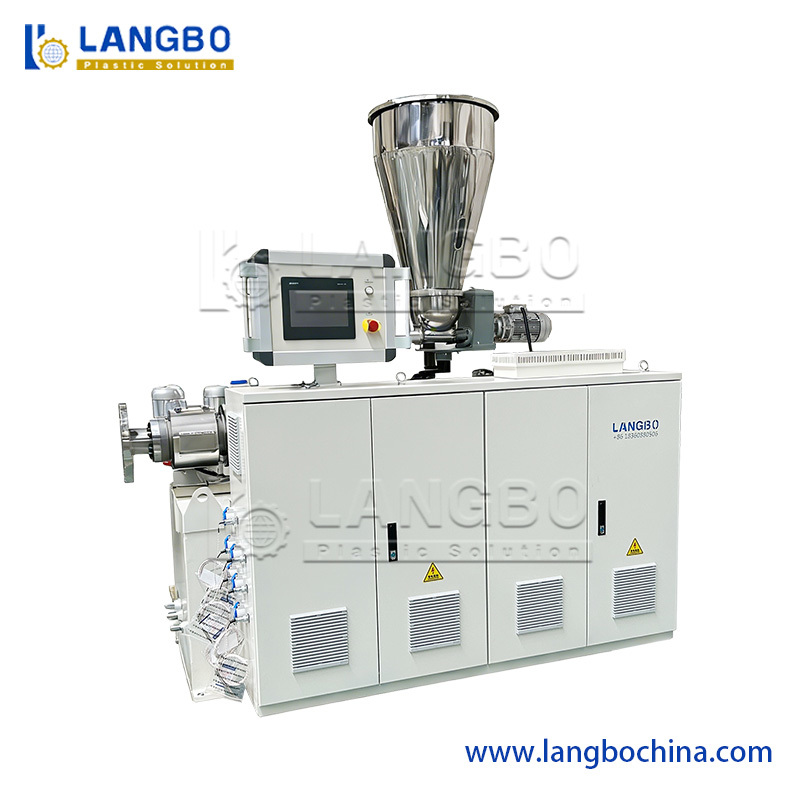

Conical Twin Screw Extruder
Engineered specifically for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixing, superior plastification, and optimal conveying efficiency. The permanent magnet synchronous motor delivers high energy efficiency, while the integrated PLC system enables centralized control of the entire production line.

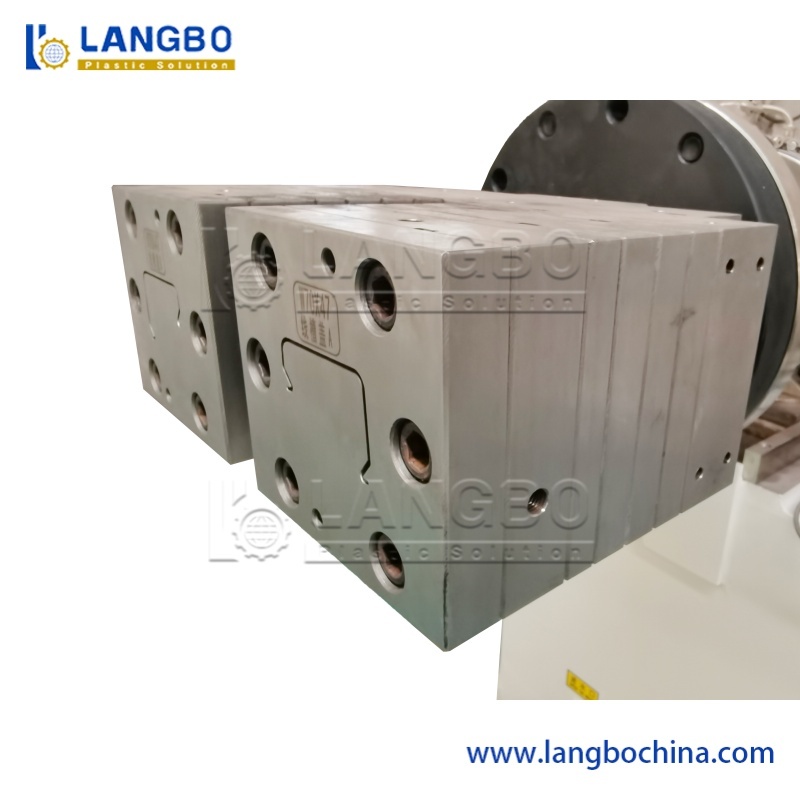

Plate Mould System
Features double-strand mold technology for PVC trunking production, significantly increasing output capacity. Advanced channel design provides exceptional flow performance, and precision manufacturing guarantees high-accuracy profile production.

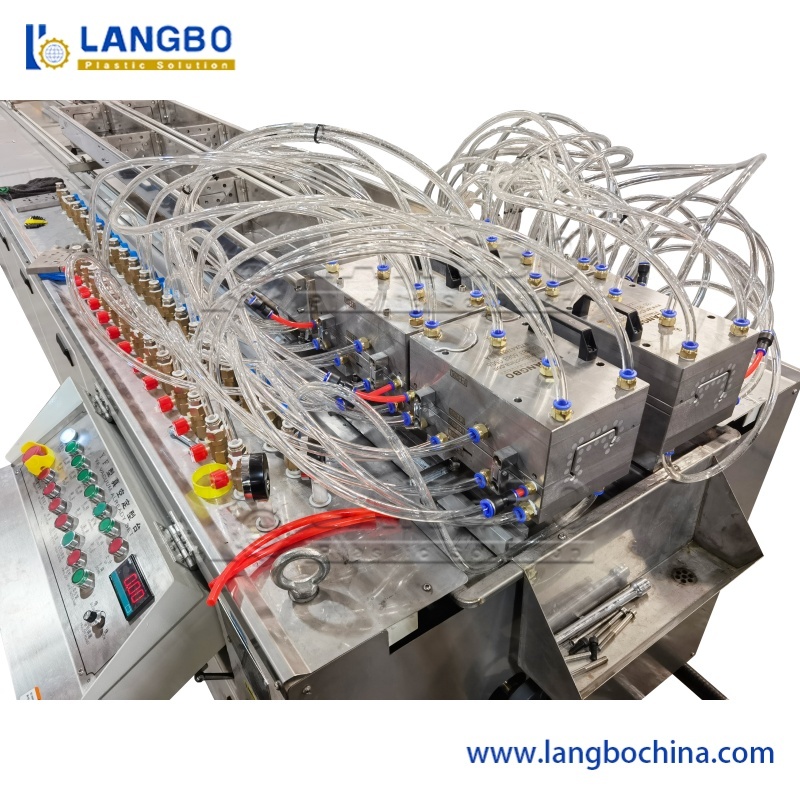

Calibration Table
Constructed with a robust steel frame and SUS 304 stainless steel body, the calibration table incorporates multi-dimensional position adjustment. Strategic placement of water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles, with sufficient length for complete profile formation.

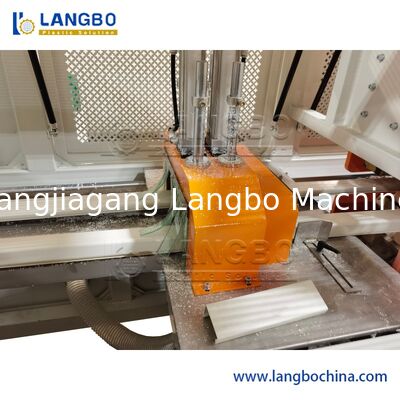

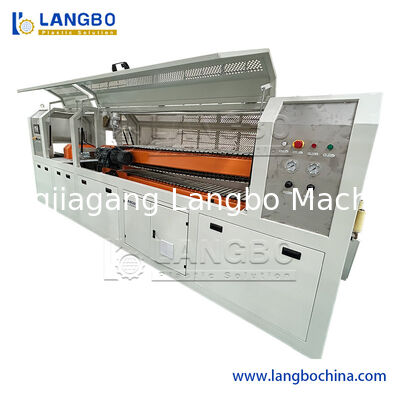

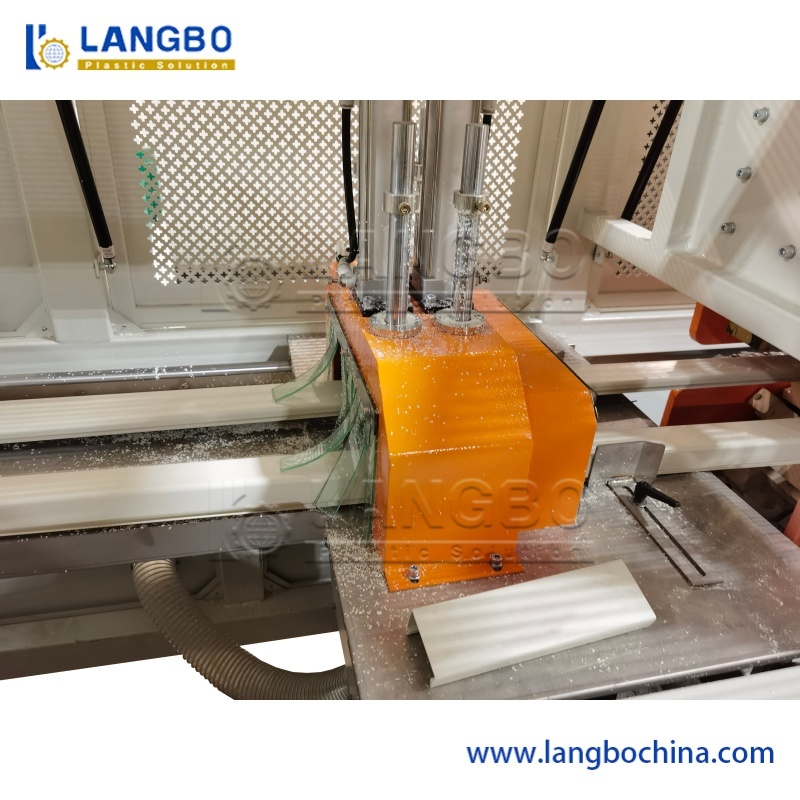

Haul-off & Cutting System
Even force distribution across crawler track tracks delivers consistent hauling power. High-quality rubber components ensure reliable performance, while pneumatic pressure systems facilitate easy adjustment and product protection. Customizable cutting options include swarf-free and saw cutting methods.
PVC cable trunk making machine production line overview Close-up view of conical twin screw extruder mechanism Calibration table and vacuum forming system Haul-off and cutting machine combination unit

Product Highlights

This plastic PVC profile cable trunk production line is engineered for manufacturing various PVC profiles including window and door profiles, ceiling panels, and cable trunking systems. Custom solutions and molds are developed based on specific profile drawings. Production Process The complete ...
