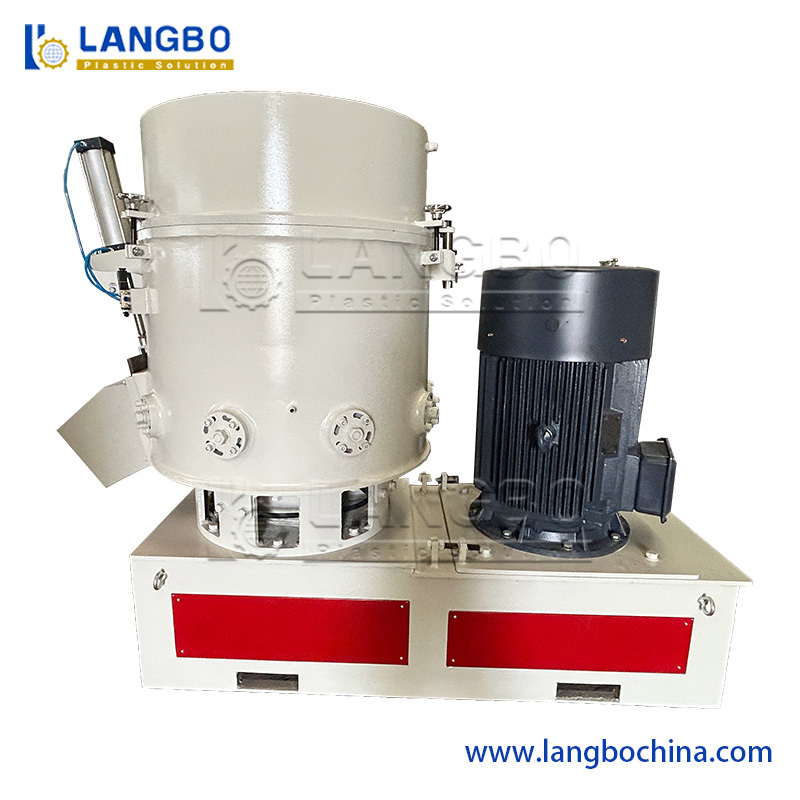

Plastic film agglomerator / PP PE film agglomerating machine

1/1 set
MOQ
USD, RMB, EUR
Price
Plastic film agglomerator / PP PE film agglomerating machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Plastic Processed: PE/PP
Output(kg/h): 50-960kg/h
Warranty Of Core Components: 1 Year
Core Components: Engine,Motor,PLC
Place Of Origin: Zhangjiagang Jiangsu,China
Type: Recycling Granulator, PP/PE Film Agglomerator
Screw Design: Single
Dimension(L*W*D): 10000*1200*1500MM
Weight: 3000KG
Highlight:

plastic film agglomerator machine

,

PP PE film agglomerating equipment

,

plastic auxiliary agglomerator with warranty
Basic Infomation
Place of Origin: JIANGSU PROVINCE ZHANGJIAGANG
Brand Name: Langbo machinery
Certification: CE,ISO9001
Model Number: LB-Agglomerator
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 10 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10 SETS PER MONTH
Product Description
Factory Supply Plastic Agglomerator
This cost-effective plastic agglomerator efficiently processes waste plastic materials through high-speed cutting and thermal processing to create reusable plastic pellets.
Operating Principle

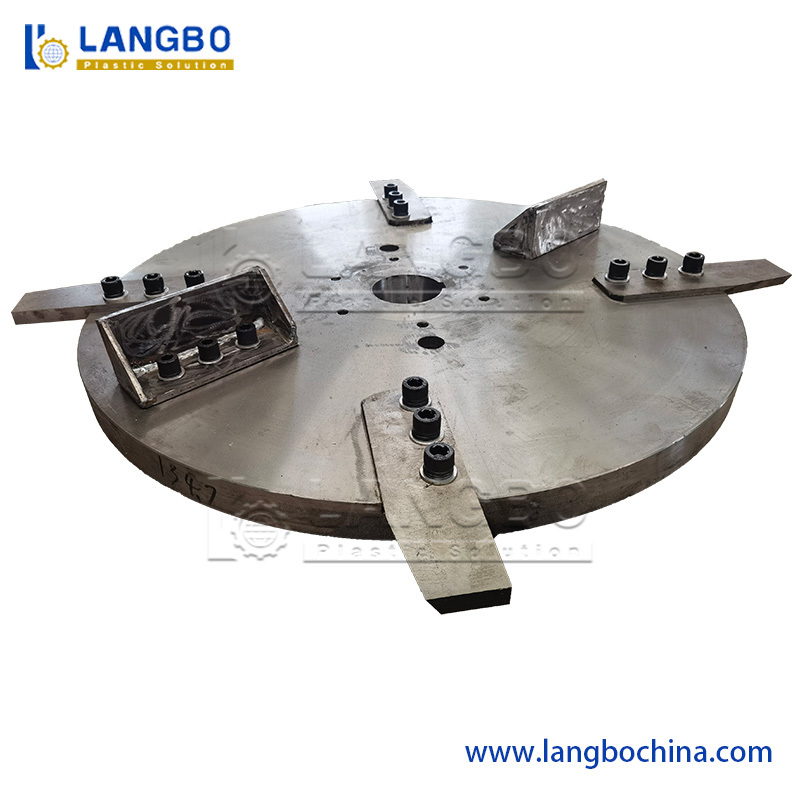

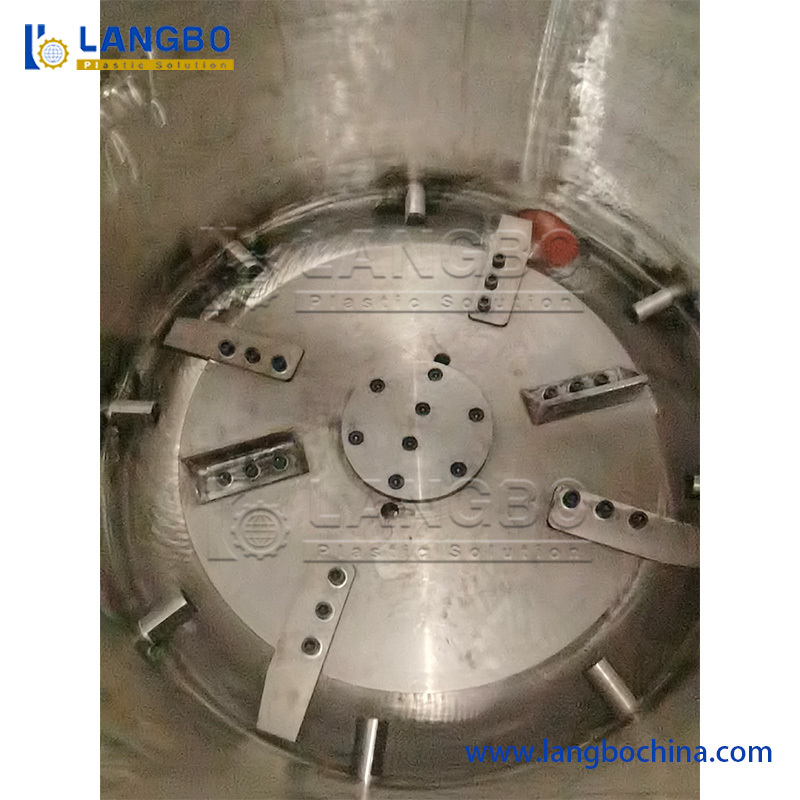

Waste plastic is fed into the machine's chamber where high-speed rotating blades and fixed blades work together to shear materials. Centrifugal force rapidly cuts materials into pieces, flakes, or sheets that flow along the chamber walls while undergoing continuous mixing and movement.
Technical Specifications
MODEL LB-1600 LB-1000 LB-750 LB-550 LB-450 LB-300 LB-200
Tank volume (liter) 1600 1000 750 550 300 300 200
Capacity (kg/hr) 300-450 250-350 200-250 150-200 80-120 80-120 40-80
Motor power (kw) 132 110 90 75 37 37 18.5

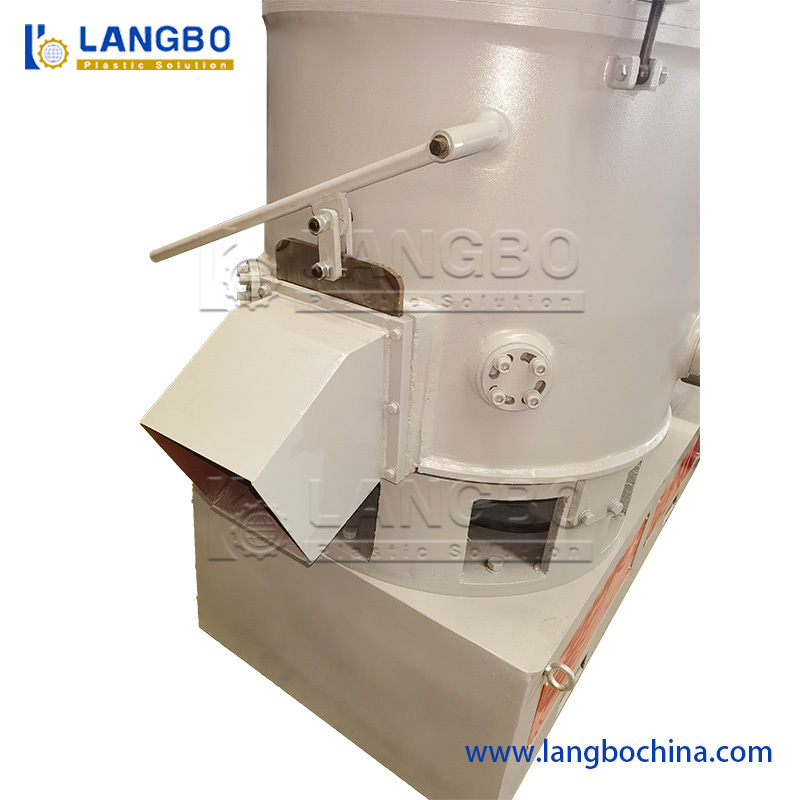

Discharging Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
Processing Technology
High-speed friction between materials and contact with chamber walls and blades generates significant thermal energy, rapidly heating materials to a semi-plasticized state where they begin to adhere together. The addition of cooling water causes rapid evaporation, carrying away surface heat and preventing material caking while enabling the formation of irregular plastic pellets through continued cutting action.
Additional Capabilities
  • Pigment addition during processing for material coloring
  • Produces pellets suitable for extrusion and injection machines
  • Can be combined with extrusion granulators for higher quality requirements
  • GSL series optimized for PE, PP plastic film processing
  • GHX series specialized for PET fiber pelletizing
Product Images

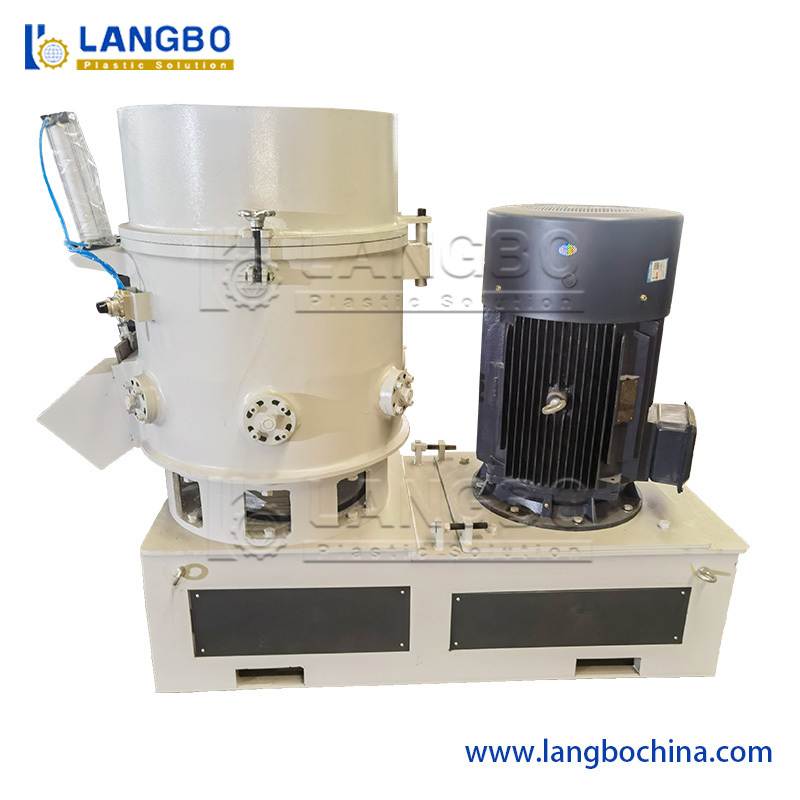

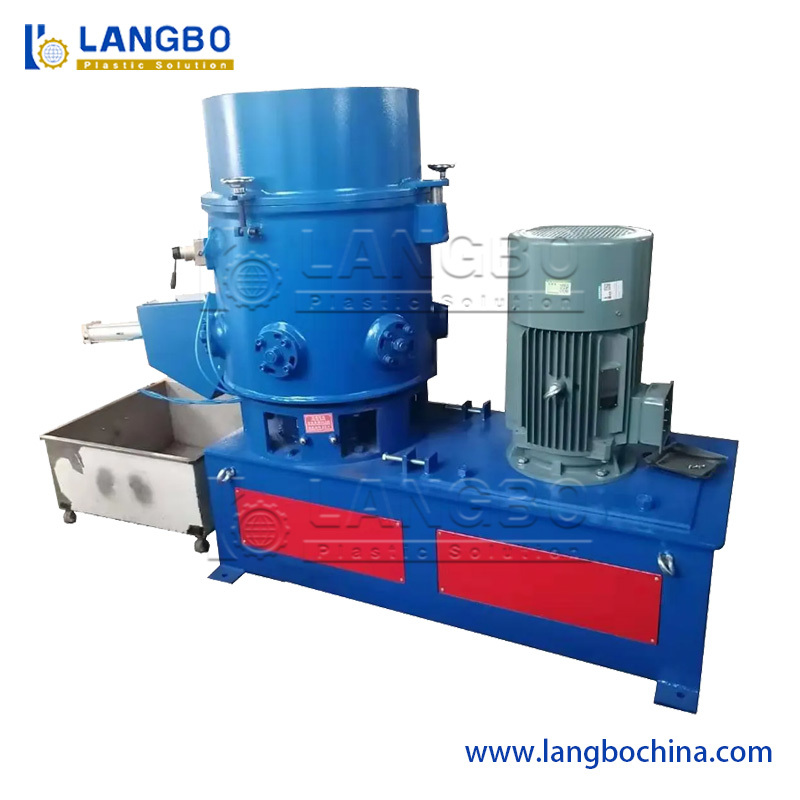

Plastic film agglomerator / PP PE film agglomerating machine 0 Plastic film agglomerator / PP PE film agglomerating machine 1 Plastic film agglomerator / PP PE film agglomerating machine 2 Plastic film agglomerator / PP PE film agglomerating machine 3 Plastic film agglomerator / PP PE film agglomerating machine 4
