High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine

1 SET
MOQ
USD,EUR
Price
High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
EXTRUDER TYPE: 55/110 CONICAL TWIN SCREW EXTRUDER
PROFILE'S SIZE: 1180MM
MOTOR POWER: 22KW
RAW MATERIAL: PVC POWDER & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS
CALIBRATION TABLE: EIGHT MTERS LONG
PACKING METHOD: WOODEN BOX AND FILM PACKAGE
PROFILE SIZE: ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME: WITHIN 90 DAYS
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO9001
Model Number: LB-1180
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
PVC Water Stopper Profile Extrusion Production Line
Complete manufacturing solution for producing PVC water stop profiles and various PVC profiles including window/door profiles, ceiling panels, and trunking systems.
Production Capabilities
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.
Processing Workflow
  • PVC powder + additive mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum forming table
  • Haul-off mechanism
  • Precision cutting
  • Automated discharge rack
Technical Features
The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details

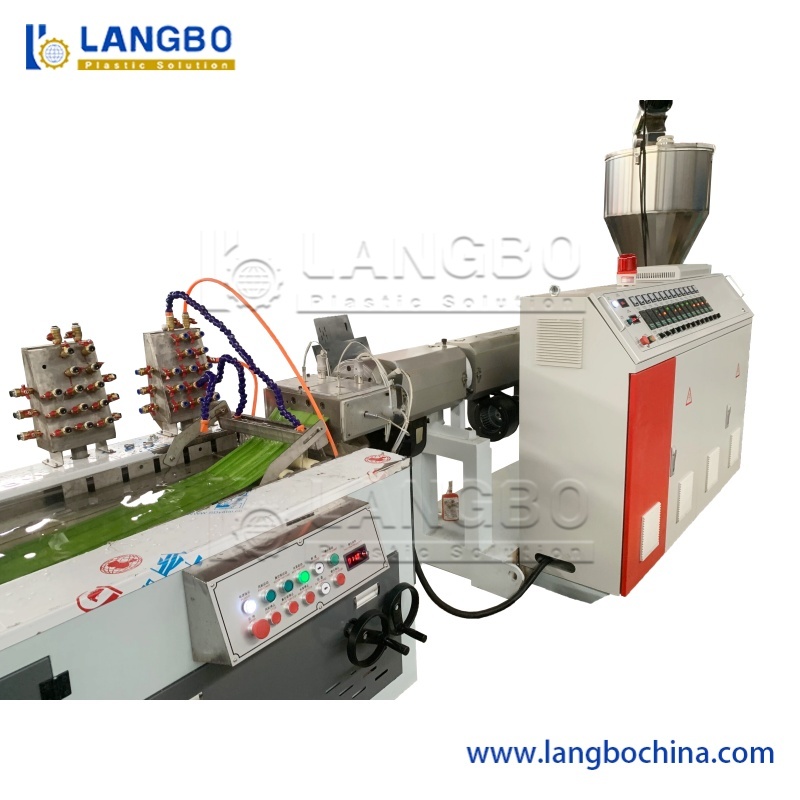

Conical Twin Screw Extruder
Specially engineered screws designed for processing dry PVC powder blends. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.

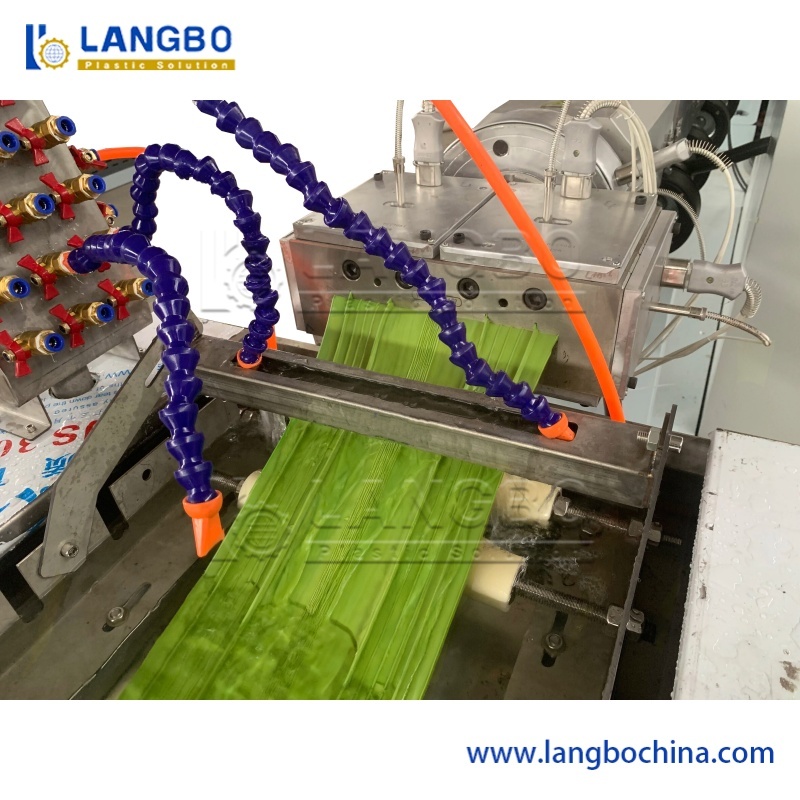

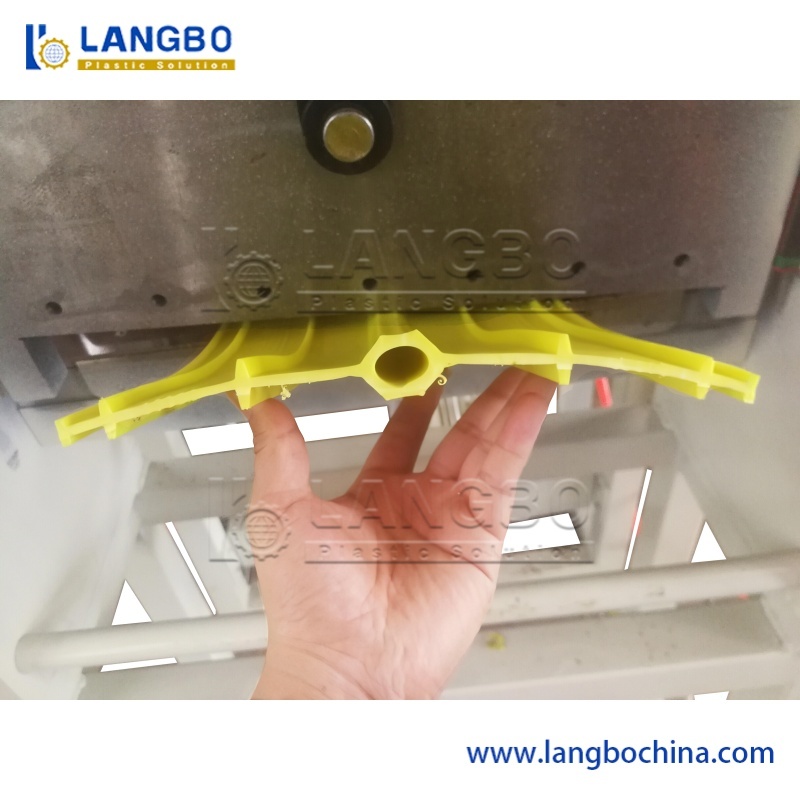

Plate Mould System
Double strand mold configuration for PVC trunking production with optimized channel design ensuring high flow performance and precision profile manufacturing.

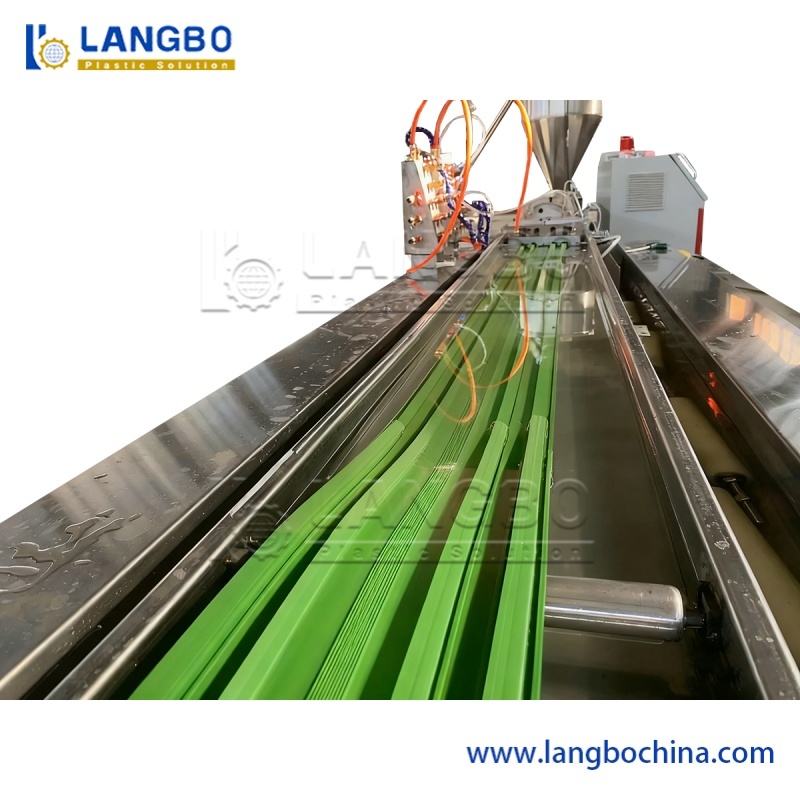

Calibration Table
Sturdy steel frame construction with SUS 304 stainless steel body. Multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling.
Haul-off & Cutting Combination
Even force distribution across caterpillars with high-quality rubber components. Pneumatic pressure system for easy adjustment and product protection. Customizable cutting options including swarfless and saw cutting methods.
Production Line Images
High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine 0 High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine 1 High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine 2 High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine 3 High-Performance Soft PVC Waterstop Profile Sheet Extrusion Making Machine 4
