Home /Products/Plastic Pelletizing Machine/PVC Granulation Line Granules Making Machine Granulating Production Line

PVC Granulation Line Granules Making Machine Granulating Production Line

1 SET
MOQ
USD, EUR
Price
PVC Granulation Line Granules Making Machine Granulating Production Line
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Condition: New
Automatic Grade: Automatic
Capacity: 400kg/h
Plastic Processed: TPU, EVA, TPEE, PP, PE, PVC, ABS
Screw Design: Double-screw
Model Number: LB
Motor: SIEMENS
INVERTER: ABB
Warranty: 2 Years
Electrical Components: Siemens Or Schnider
Packing Method: Wooden And Film Packages
Delivery Time: 45 Days
Basic Infomation
Place of Origin: ZHANGJIAGANG, JIANGSU
Brand Name: LANGBO
Certification: CE, ISO
Model Number: LB-80156
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 10 SETS PER MONTH
Product Description
PVC Granulation Line - Granules Making Machine
Complete granulating production line for processing recycled PVC materials into uniform pellets with high efficiency and stable operation.
Applications
This machine processes recycled rigid PVC, soft PVC, and waste PVC materials with continuous production capability. Features pneumatic conversion, strong-wind blowing, adjustable stainless steel storage container, and stable high-speed extrusion operation.
Key Features
  • Advanced equipment with precise pelletizing and high production capacity
  • Conical double-screw extruder optimized for PVC powder processing

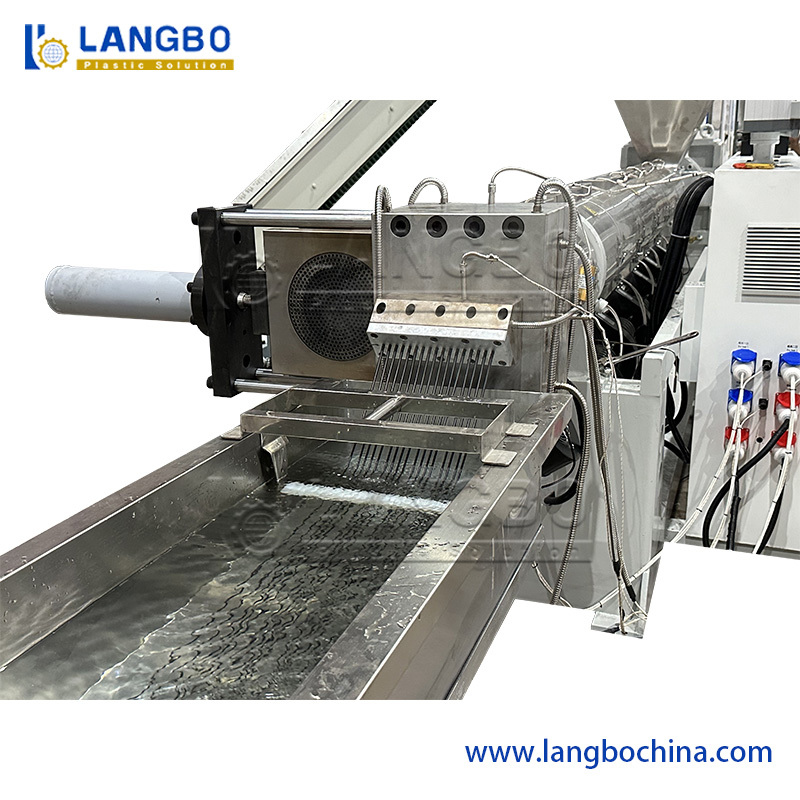

  • Hot-cutting on mould face for even cutting and consistent pellet shape
  • Complete auxiliary system including pellets cooling and classifying
Production Process Flow
Raw material + additive → Mixing → Conveying feeding → Hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technical Specifications
Model Number Screw Diameter (mm) Rotational Speed (rpm) Pellets Size (mm) Main Motor Power (kw) Heating Power (kw) Production Capacity (kg/h) Central Height (mm) Net Weight Overall Size (mm)
SJSZ45 45/90 1-45 3-4 15 9.6 70-80 1000 2800 3300*1200*2000
SJSZ51 51/105 1-45.5 3-4 22 11.5 80-120 1000 3000 3360*1290*2100
SJSZ55 55/110 1-40 3-4 22 18 150-180 1000 3500 3620*1350*2200
SJSZ65 65/132 1-38 3-4 37 24 250-300 1000 4000 4235*1520*2450
SJSZ80 80/156 1-36.9 3-4 55 36 320-450 1000 5000 4750*1550*2460
SJSZ92 92/188 1-34.7 3-4 110 88 650-800 1000 5500 6000*1600*2500
Product Images

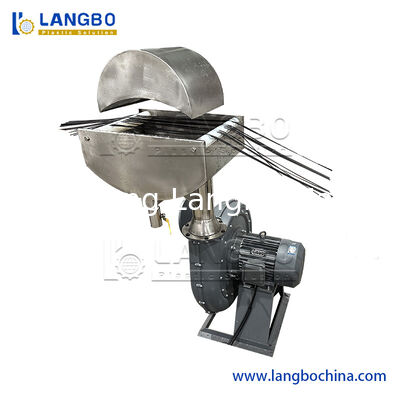

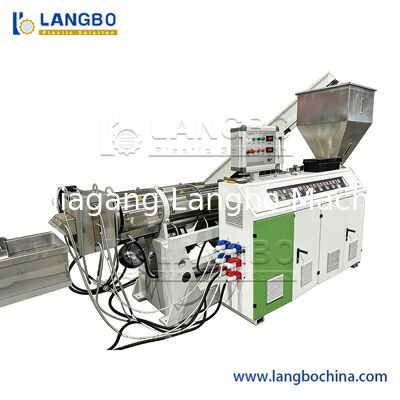

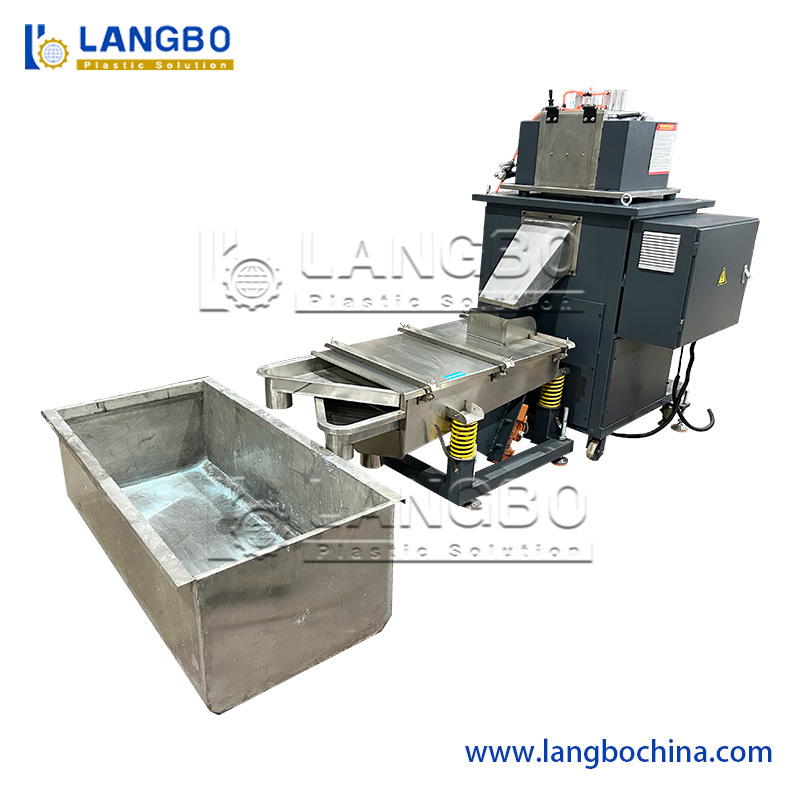

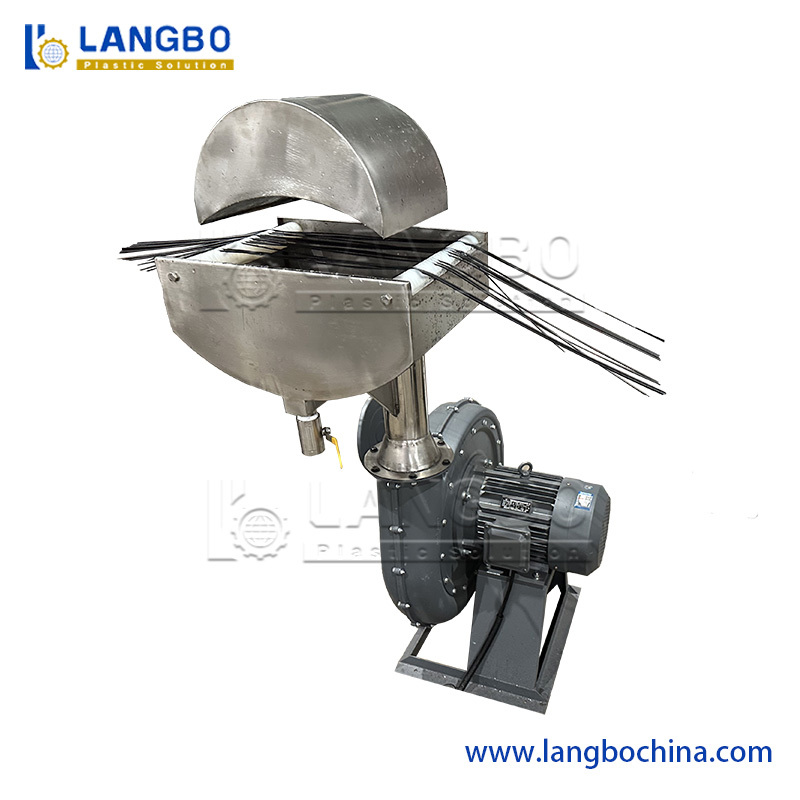

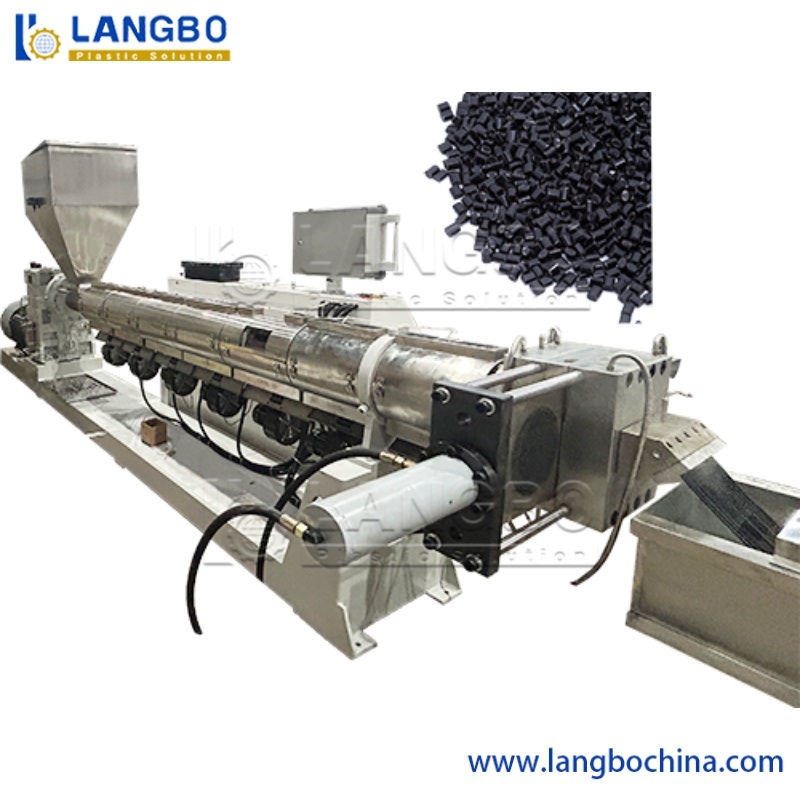

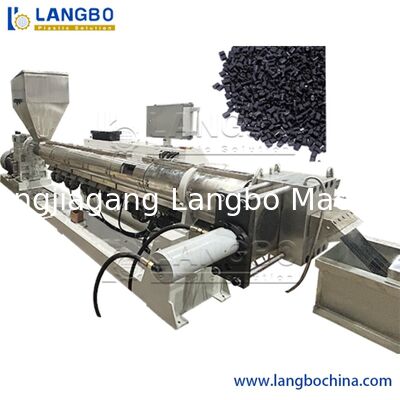

PVC Granulation Line Granules Making Machine Granulating Production Line 0 PVC Granulation Line Granules Making Machine Granulating Production Line 1 PVC Granulation Line Granules Making Machine Granulating Production Line 2 PVC Granulation Line Granules Making Machine Granulating Production Line 3 PVC Granulation Line Granules Making Machine Granulating Production Line 4
