Bamboo and Wood Fiber Grating Board Ecological Wood Background Wall Panels Making Machine

Brand Name: LB
Model Number: LB-1180
Place of Origin: ZHANGJIAGANG
Certification: CE,ISO9001
Minimum Order Quantity: 1 SET
Price: USD,EUR
Supply Ability: 15 SETS PER MONTH
Tags

PVC skirting profile extrusion machine

twin screw PVC baseboard extruder

conical double screw extrusion production line

Product Details

EXTRUDER TYPE: 55/110 CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 1180MM
MOTOR POWER: 22KW RAW MATERIAL: PVC POWDER & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS CALIBRATION TABLE: EIGHT MTERS LONG
PACKING METHOD: WOODEN BOX AND FILM PACKAGE PROFILE SIZE: ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME: WITHIN 90 DAYS
Highlight

bamboo wood fiber grating board machine

,

ecological wood wall panel machine

,

PVC wall panel extrusion line

Product Description

PVC Profile Extrusion Line for Bamboo Fiber Grating Panels
Complete production line for manufacturing high-quality PVC profiles including window/door profiles, ceiling panels, trunking, and waterproof bamboo fiber grating panels for decorative applications.
Production Capabilities
This PVC profile extrusion line is engineered to process various PVC formulations, delivering consistent quality for construction and decorative applications. Custom solutions and molds are developed based on specific product requirements.
Processing Workflow
  • PVC powder + additives mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum forming table
  • Haul-off mechanism
  • Precision cutting
  • Automated discharge rack
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Key Components & Features
Conical Twin Screw Extruder
Specifically engineered for processing dry PVC powder blends, our conical twin screw extruder ensures homogeneous mixture, superior plastification, and optimal conveying efficiency. Features permanent magnet synchronous motor for high energy efficiency and integrated PLC control system for centralized production line management.

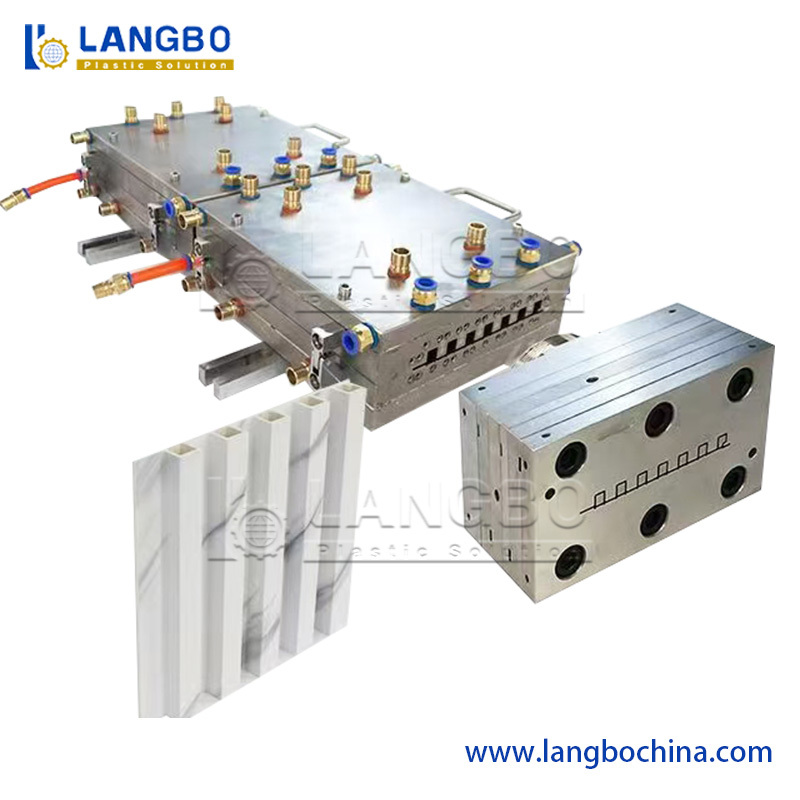

High-Precision Plate Mould
Double strand mold design significantly enhances productivity for PVC trunking production. Advanced channel optimization ensures excellent flow performance, while precision engineering delivers profiles with exceptional dimensional accuracy.

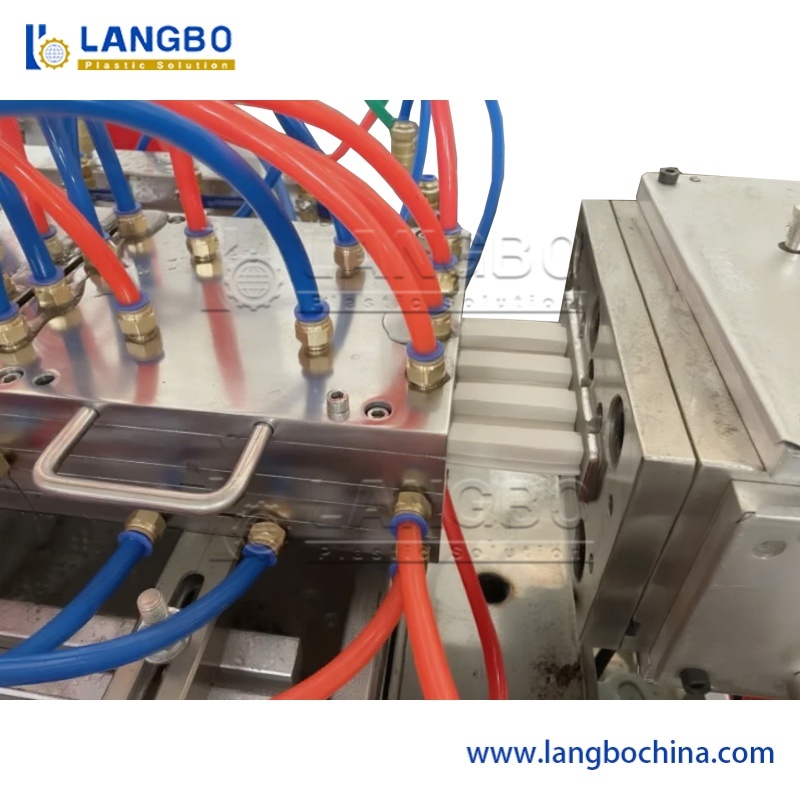

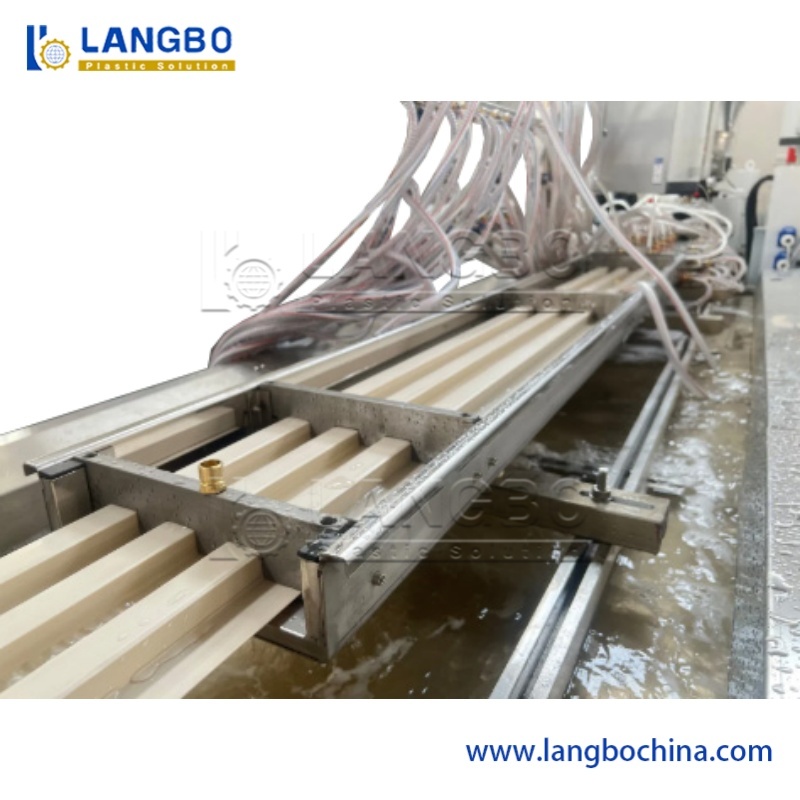

Stainless Steel Calibration Table
Constructed with stable steel framework and SUS 304 stainless steel body. Multi-dimensional position adjustment system combined with strategically placed water pumps and vacuum calibrators enables rapid shaping and cooling of PVC profiles. Extended calibration length ensures optimal product formation.
Haul-off & Cutting System
Even force distribution across crawler track tracks provides sufficient hauling capacity. High-quality rubber components ensure reliable operation. Pneumatic pressure system facilitates easy adjustment and product protection. Customizable cutting options include swarfless and saw cutting methods.
Production Line Gallery

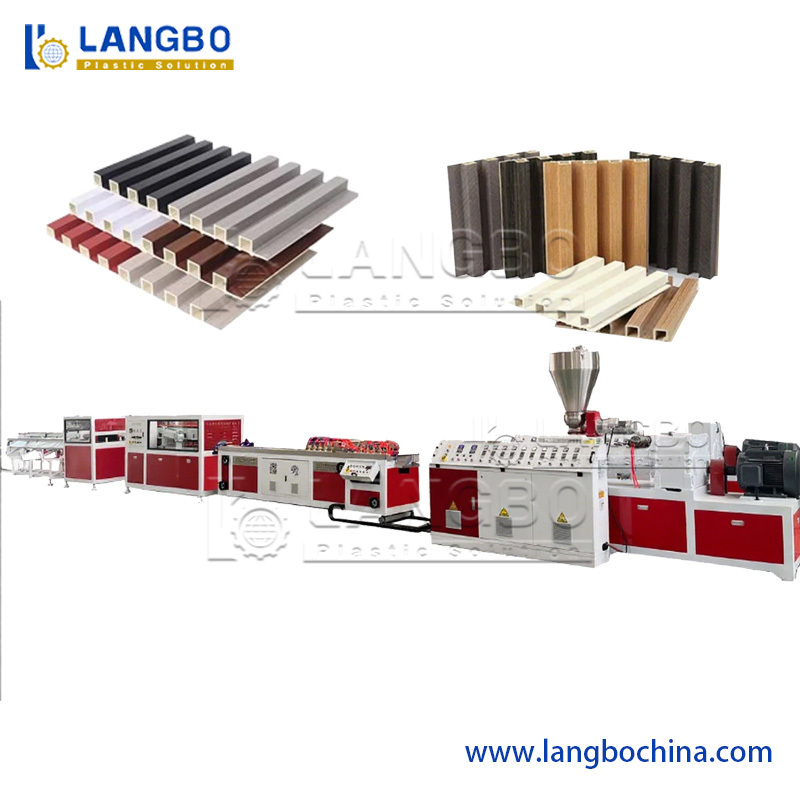

PVC profile extrusion line overview showing complete production setup Close-up view of twin screw extruder component Calibration table and vacuum forming section Haul-off machine and cutting system detail Finished PVC profiles on discharge rack
