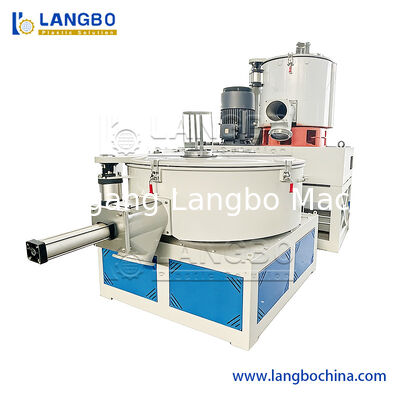

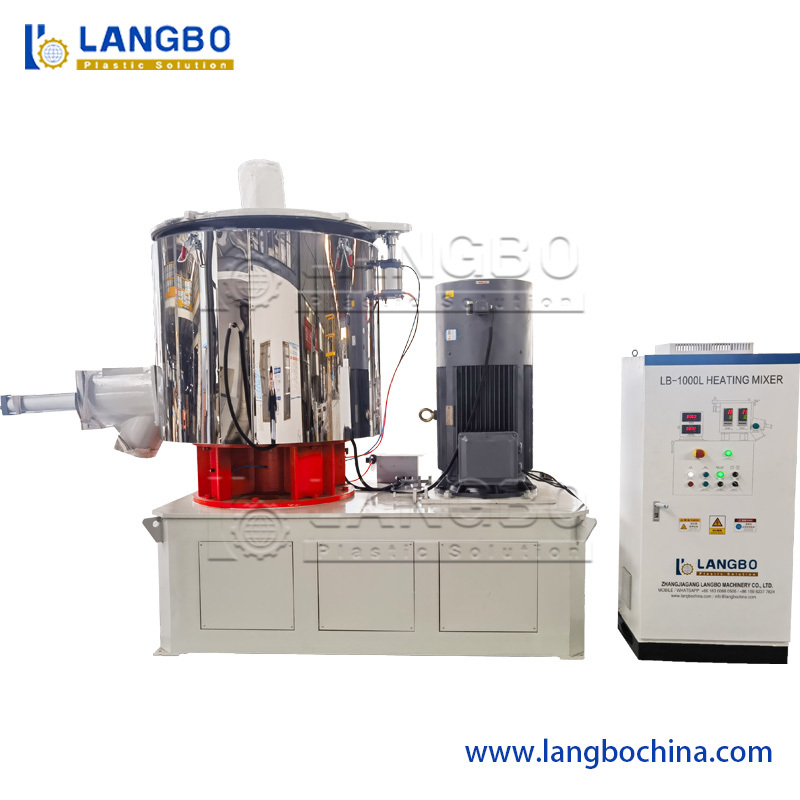

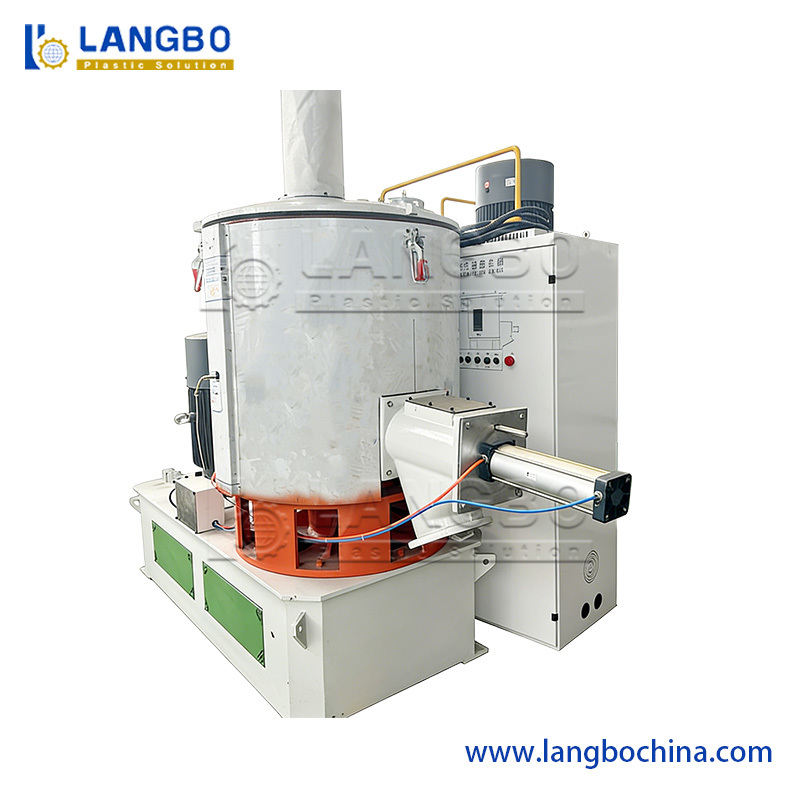

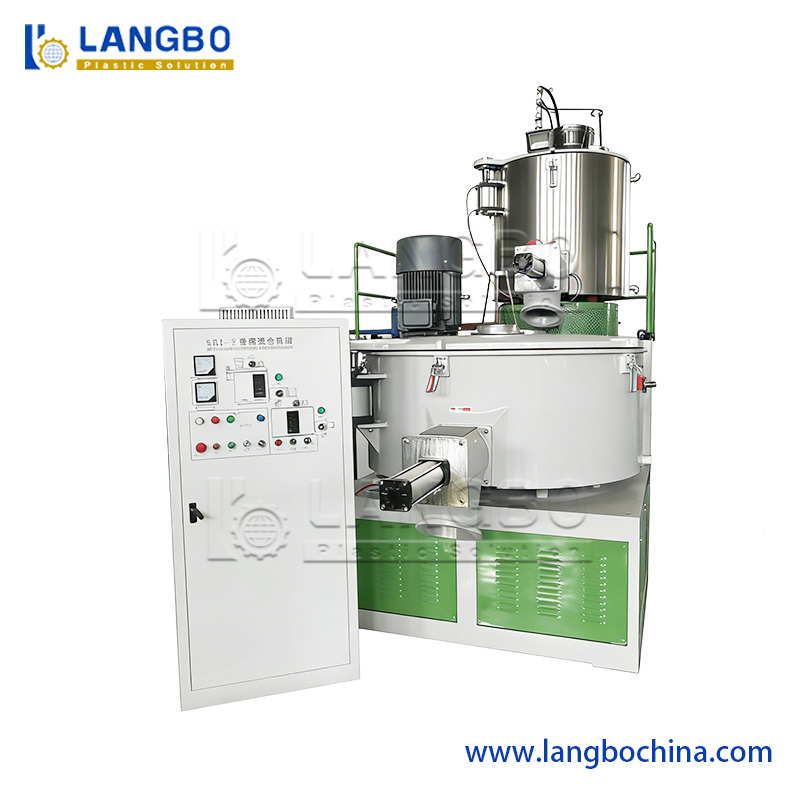

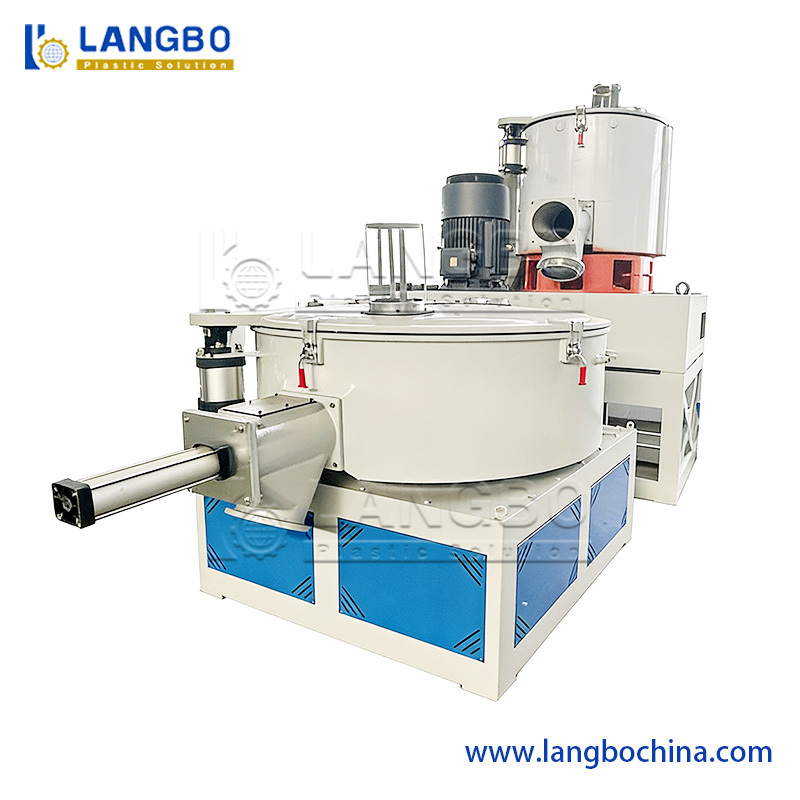

Plastic PVC Powder High Speed Hot Cold Mixer / PVC Mixing Machine
Product Details
| CONTROL: | AUTOMATIC | MIXER: | VERTICAL/HORIZONTAL COMBINATION |
|---|---|---|---|
| NOTOR POWER: | 83/110/22KW | FEEDING: | AUTO-PNEUMATIC |
| Model Number: | SRL-Z | Power(W): | 18.5-75kw |
| Warranty: | 2 YEARS | Shipping: | By Sea |
| Highlight |
PVC mixer machine high speed,plastic PVC powder mixer,hot cold PVC mixing machine |
||
Product Description
- All critical components (bowl, mixing tool, control) manufactured in-house to ensure quality
- All product-contact surfaces made of SUS304 or aluminum alloy to prevent contamination
- High cooling efficiency with short mixing times
- Easy to clean with high output capacity
- Customizable mixing tools for different applications
- Wear-resistant coating on mixing tools extends service life
- Dynamic and static balance tested for smooth operation
- Comprehensive after-sales service support

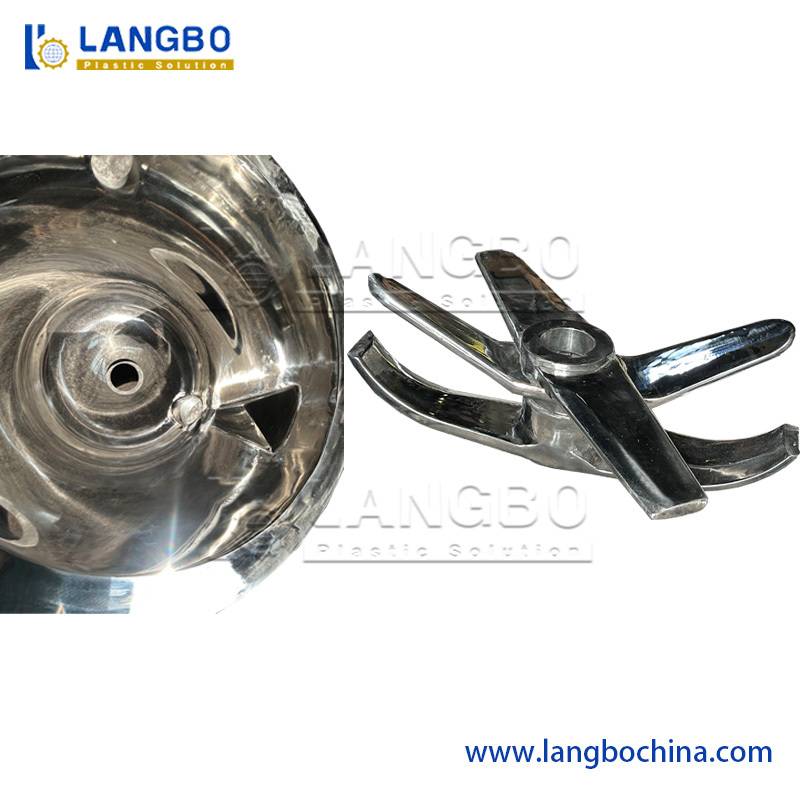

- Blade made of stainless steel with dynamic and static balance refinement
- Double sealing cap with pneumatic start for easy operation
- Stainless steel cylinder with 8mm wall thickness
- Temperature auto control or time control discharge
- ABB inverter for motor start and speed regulation
- Direct & stable control type with analog display screen
- Automated manufacturing procedure reduces labor intensity and production costs
| Model | Total Capacity (L) | Mixing Capacity (kg/h) | Motor Power (kw) | Paddle Speed (r/min) |
|---|---|---|---|---|
| SRL-Z100/200 | 100/200 | 165 | 14/22/7.5 | 650/130/180 |
| SRL-Z200/500 | 200/500 | 325 | 30/42/11 | 475/950/130 |
| SRL-Z300/600 | 300/600 | 500 | 40/50/15 | 475/950/130 |
| SRL-Z500/1000 | 500/1000 | 750 | 47/67/15 | 430/860/60 |
| SRL-Z800/1600 | 800/1600 | 1400 | 60/90/18.5 | 370/740/50 |
| SRL-Z800/2500 | 800/2500 | 1400 | 80/110/30 | 370/740/50 |
| SRL-Z1000/3000 | 1000/3000 | 1900 | 110/160/37 | 325/650/50 |
| SRL-Z1300/4500 | 1300/4500 | 2500 | 132/200/45 | 250/500/50 |
- Delivery: 30 days after order confirmation
- Warranty: 12 months
- Payment: T/T 30% in advance, T/T 70% before delivery
- Packing: Standard export wooden case
- One year guarantee for entire machine
- 24 hours technical support
- Overseas installation & commissioning services available
- Maintenance guidance and spare parts provision after warranty period
- Operator training services
