PPR Hot Cold Pipe Durable Plastic Tube for Industrial Water Supply System Making Machine
Product Details
| Production Name: | PPR Glassfiber PPR Pipe Production Machine | Pipe Size: | 63-150mm; 3 Layer |
|---|---|---|---|
| Extruder Capacity: | 350kgs/h For Inner &outer +180kgs/h Middle GF | Die Head: | 3 Layer Co-extrusion With Two Extruders |
| Production Speed: | 12m/min; 20m/min; 28m/min | Control System: | PLC With Remote Control System |
| Highlight |
63-150mm PPR pipe extrusion line,cost-effective PPR pipe manufacturing system,PPR pipe extrusion line with warranty |
||
Product Description
20-63mm PPR Pipe Production Line / 3 layer PPR Glassfiber Pipe Making Machine
Technical Data of PPR Glassfiber Pipe Production Line
| Line Model | Screw Diameter | L/D | Production Scope | Extruder Output | Nominal Power | L×w×h |
|
KDGF-65
|
ф65/50mm | 33:1 | ф20-63mm | 150kgs/h | 91KW | 24×2.5×3 |
|
KDGF-60
|
ф60/65mm | 36/33:1 | ф20-110mm | 340kgs/h | 157KW | 36×2.5×3 |
| KDGF-75 | Ф75/60mm | 36:1 | ф20-110mm | 550kgs/h | 248KW | 45×2.5×3 |
Features of Pipe Production Line

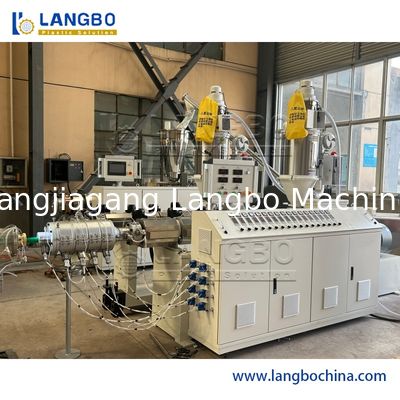

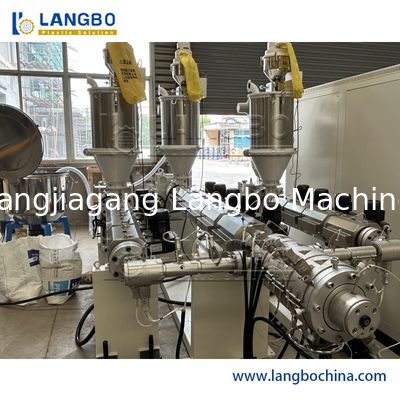

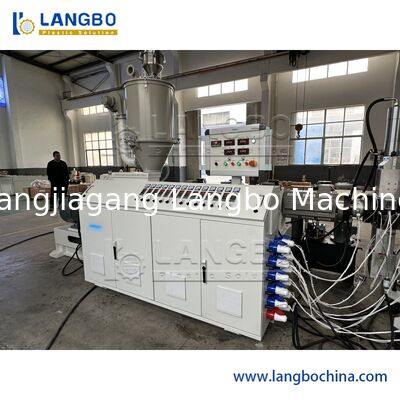

1) Independently developed high efficiency PPR Extruder and Glassfiber Extruder are applied, especially in the Glassfiber Extruder that is specially designed according to glassfiber feature, with advantages of high wear resistance and corrosion resistance, effectively ensuring the stable extrusion.

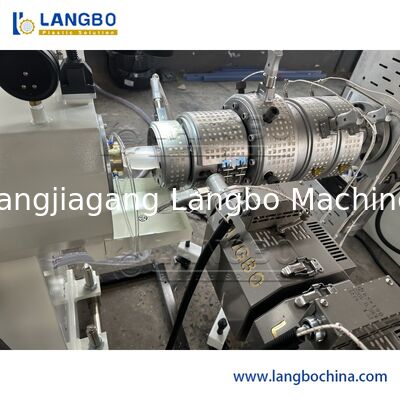

2) The adjustable co-extrusion die head, our patent product, can composite multi-layer evenly and rapidly and get optimal thickness of each layer quickly without adjusting the extruder rotating speed. Thus, the design can reduce the dependence on operator’s skill during the production process.

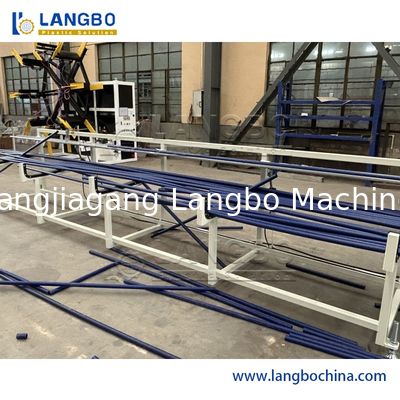

3) The combined cutting system can guarantee the rapid and dustless cutting of different diameters’ pipes during the high speed production. The control technology, which is self-developed according to pipe cutting characters, ensures higher accuracy of cutting during the high speed production and eliminates the problems of printing being not synchronous with cutting, uneven pipes’ length, etc.
4) It can be upgrade by machine configuration renovation to produce high speed three layers or single layer HDPE pipe.
